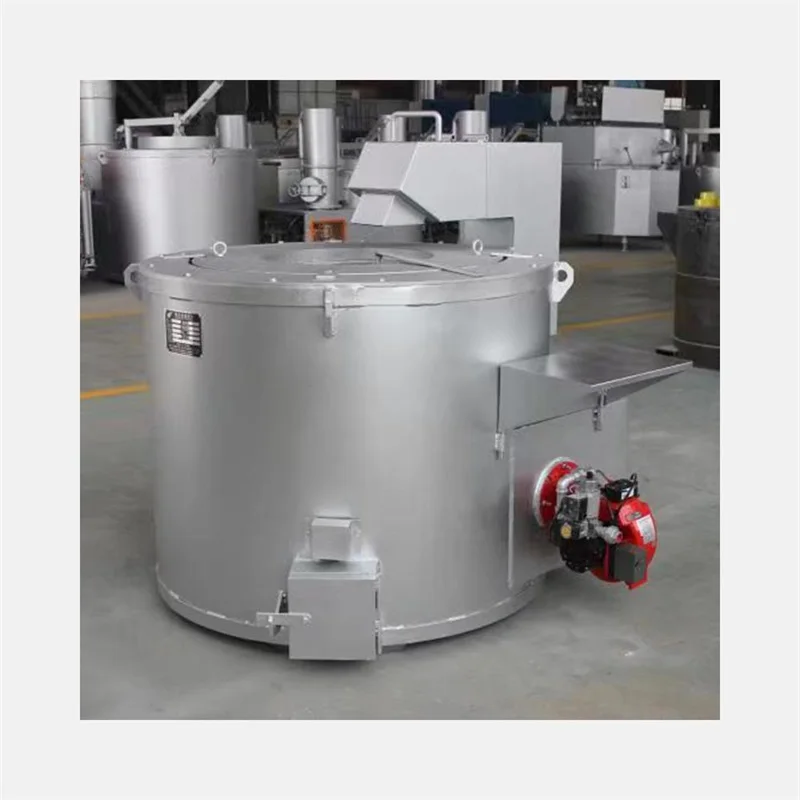

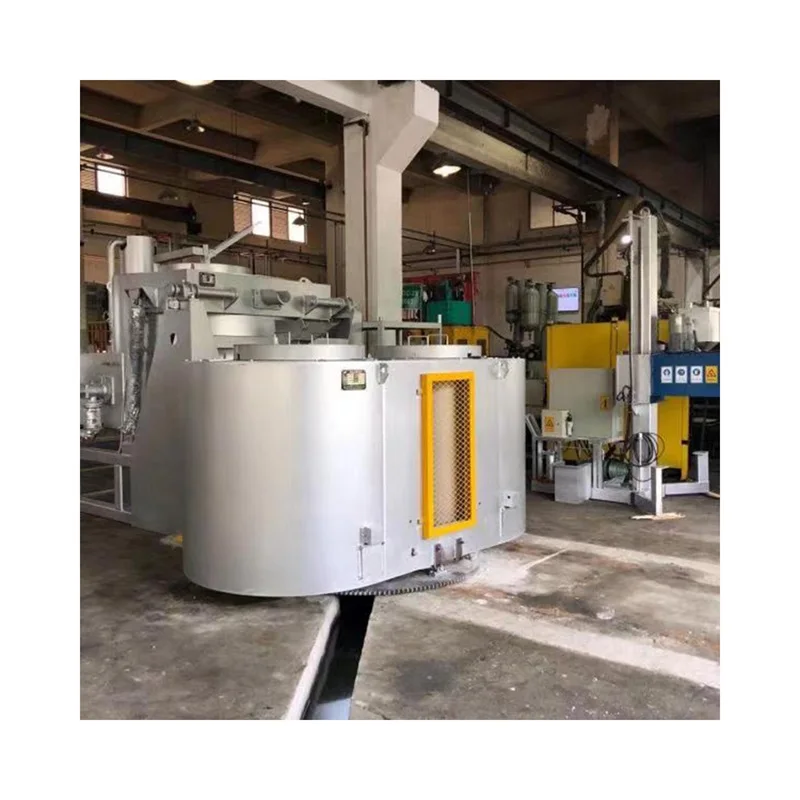

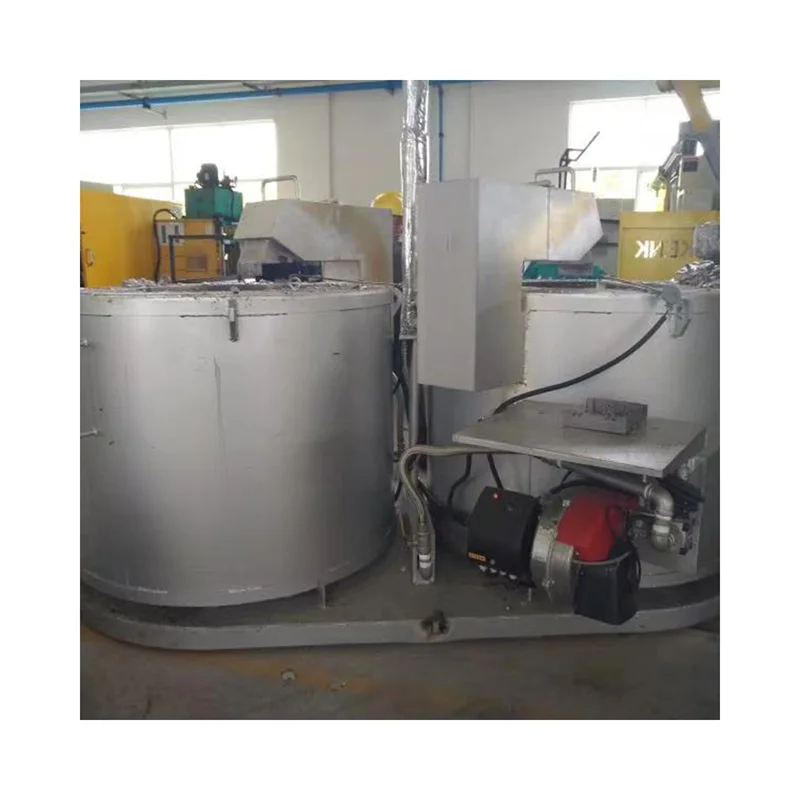

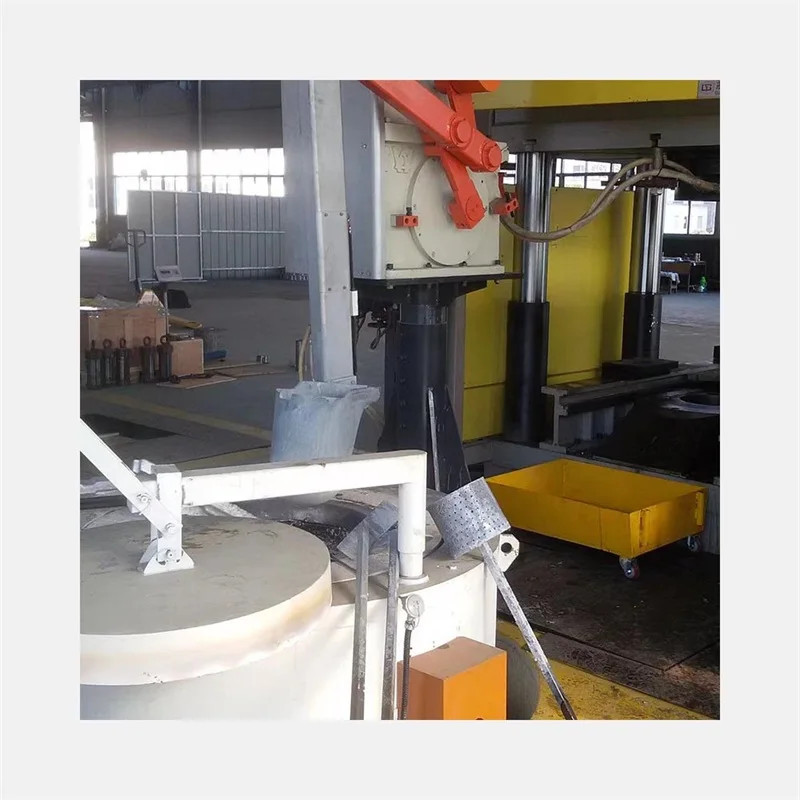

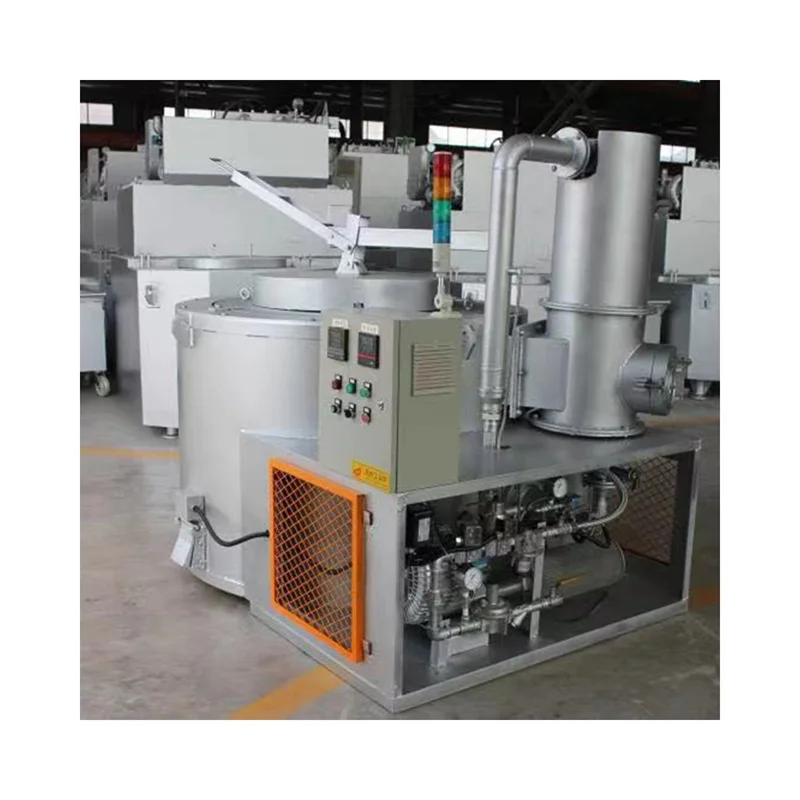

Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces
Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces
Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces
Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces
Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces
Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces
Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces

Crucible Furnace Aluminum Furnace Scrap Metal Melting Furnaces

Share on (1600330167360):


Price:

Quantity:


Product Overview

Description



Product Description




1.The furnace lining is made by imported pressed refractory fiber modules, which replaces the original refractory brick structure. It has the characteristics of good heat preservation effect, low heat storage, and fast heating speed. The temperature rise of the furnace outside is ≤25℃;
2.Imported temperature PID controller, furnace temperature stability control at ≤±5℃;
3.Equipped with non-metallic thermocouple protection tube, which can directly measure the temperature of aluminum water By using double temperature controls, ensure correct execution of the process.
4.Imported graphite crucible , good thermal conductivity, long service life and no iron growth;
5.Heating by high temperature alloy resistance band, which has the characteristics of large heat dissipation surface area and long service life;
6.Leakage alarm and over-temperature alarm to ensure the safety of equipment and operations;
7.The furnace cover can pressed down and unscrewed for easy operation.


Specification



Model
Aluminum holding capacity
kg
Melting capacity
kg/h
Biggest electric power
KW
Outer
diameter mm
Height
mm
Energy consumption
Kwh/T
GDR -100
100
50
45
φ1250
1010
500
GDR -150
150
50
45
φ1250
1010
500
GDR -200
200
50
45
φ1250
1010
500
GDR -250
250
80
60
φ1420
1100
500
GDR -300
300
100
75
φ1420
1100
500
GDR-400
400
120
75
Φ1450
1150
500
GDR -500
500
150
90
φ1570
1200
500
GDR -600
600
150
90
φ1570
1200
500
GDR -800
800
200
120
φ1700
1400
500
GDR -900
900
200
120
φ1700
1400
500
GDR -1000
1000
250
120
φ1700
1630
500


Company Profile

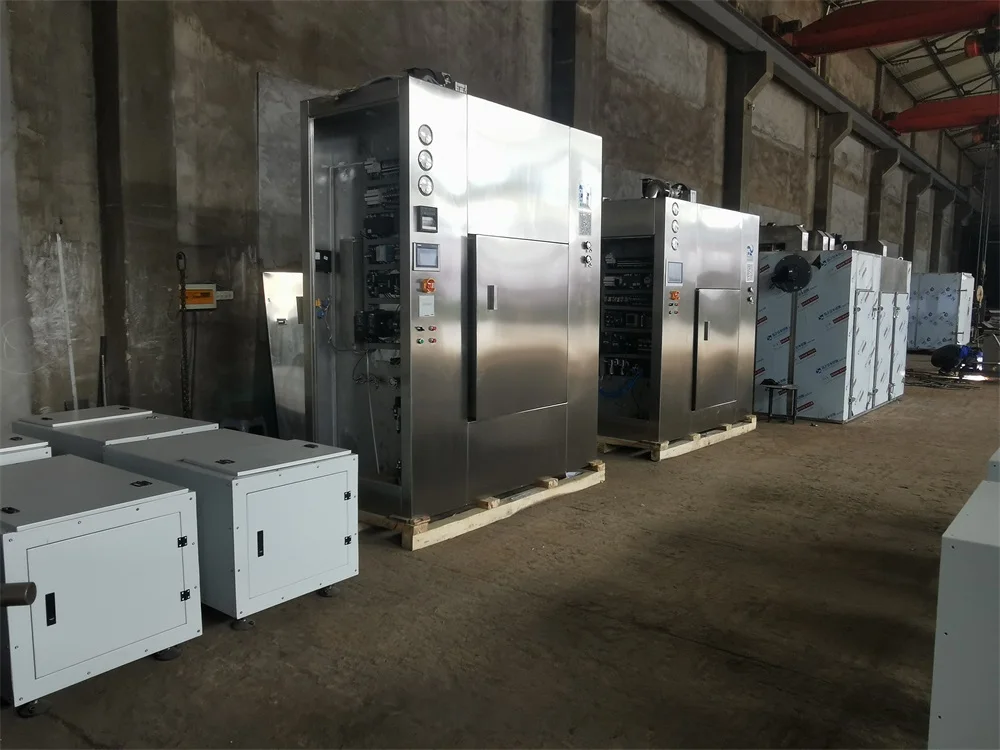

Nanjing Baifuruo Machinery Equipment Co., Ltd. is a scientific research center, we provide fabrication, and custom-design service.it has advanced production equipments and integrates testing and quality control system. The main products are vacuum drying oven, hot air circulation oven, clean oven, tunnel oven, drying chamber and other products.

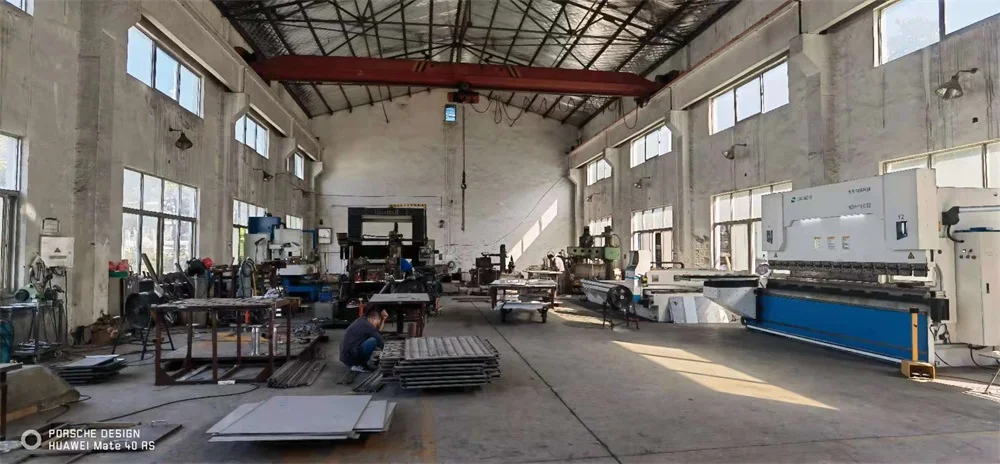

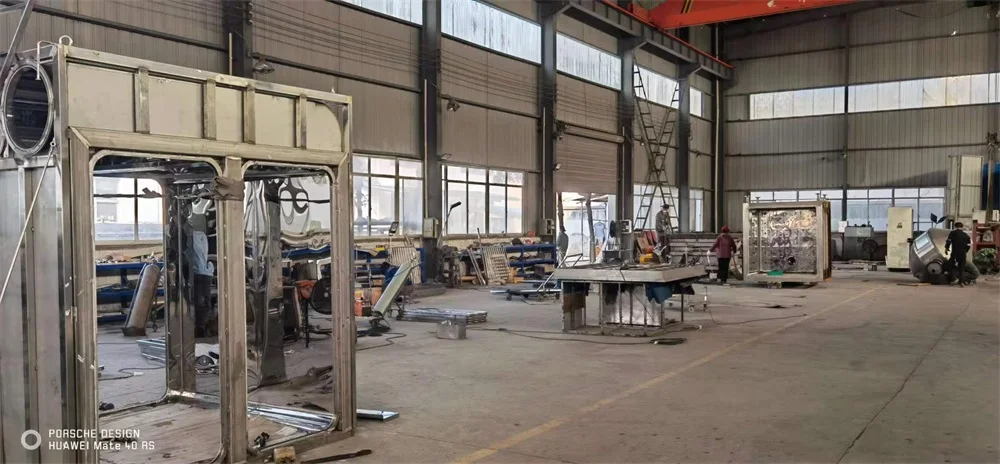

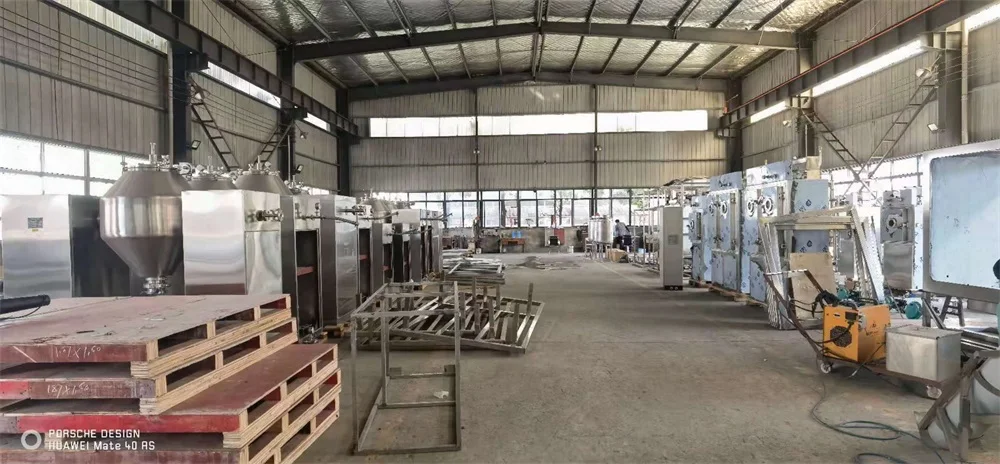

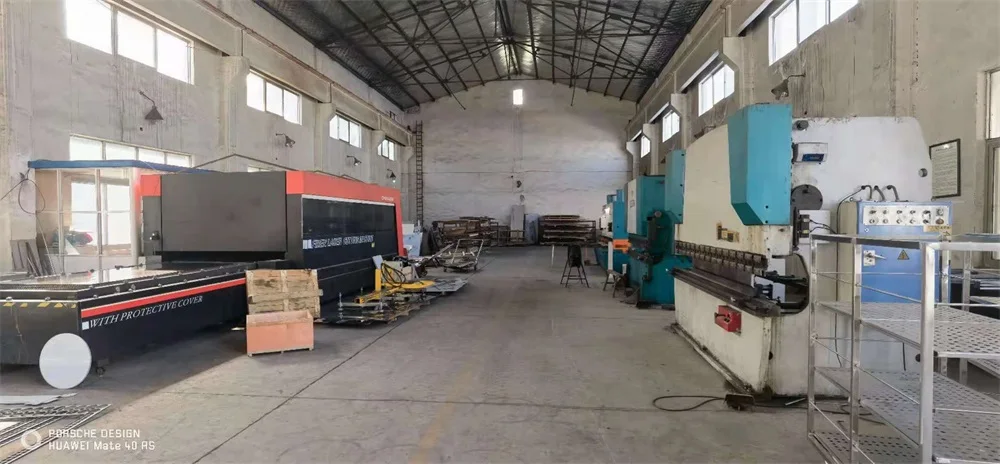

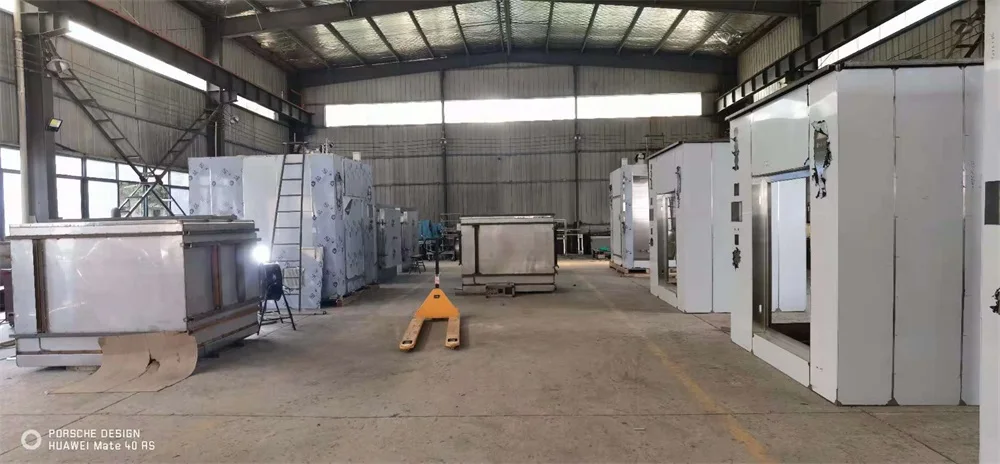

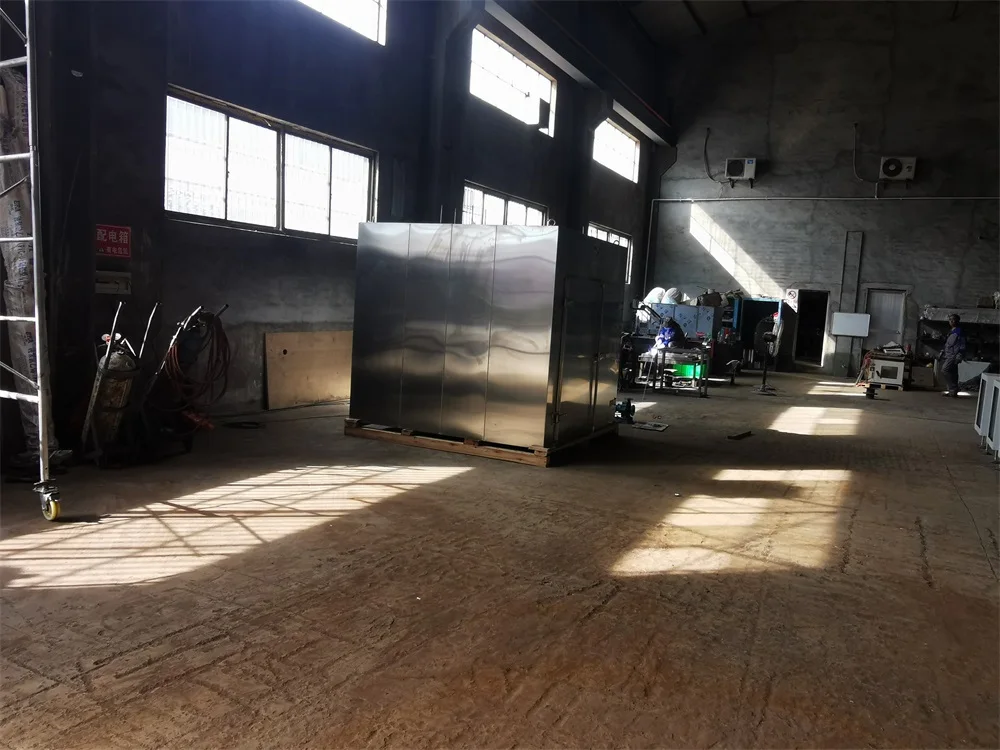

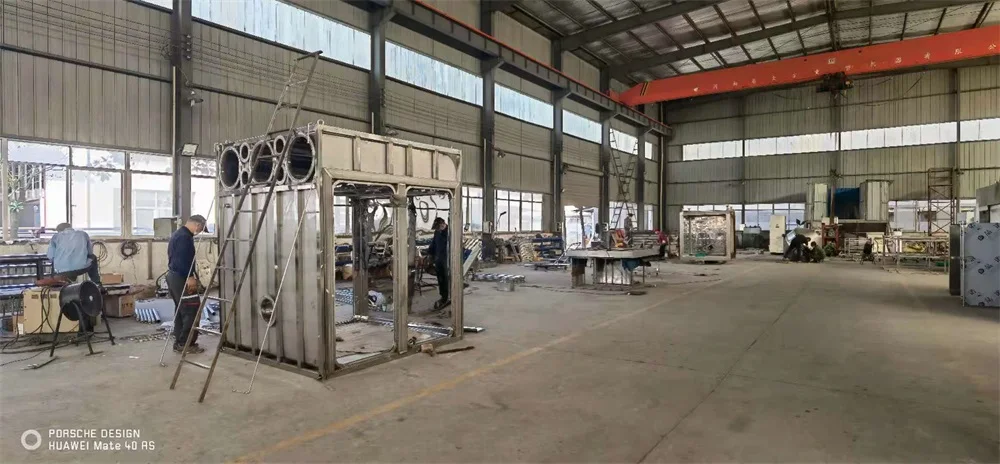

My company is located in Yangtze River Industrial Park Jing'an Town, Qixia District Nanjing plant, with area of 2,000 square meters, and has more than 30 employees.
The company is gradually open the domestic market, to expansion oversea market share, we speed up the cooperation with foreign companies.


Our Advantages




The professional technical team can flexibly respond to customer's customization requirements. The experienced after-sales team can provide continuous technical support. The sales team has more than 10 years of export operation experience.


Certifications


Trademark Registration Certificate
Quality Management System Certification
Patent Certificate


Packing & Delivery




FAQ


Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.

Q2. Why should I choose your products?
A2. Our products are high quality and low price.

Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.

Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
