Распродажа и заводская цена AVR SX460 Для бесщеточной генераторной установки

Распродажа и заводская цена AVR SX460 Для бесщеточной генераторной установки

Category: Generator Parts & Accessories >>>
Supplier: Fuan,Three,Bees,Electronic,Technology,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

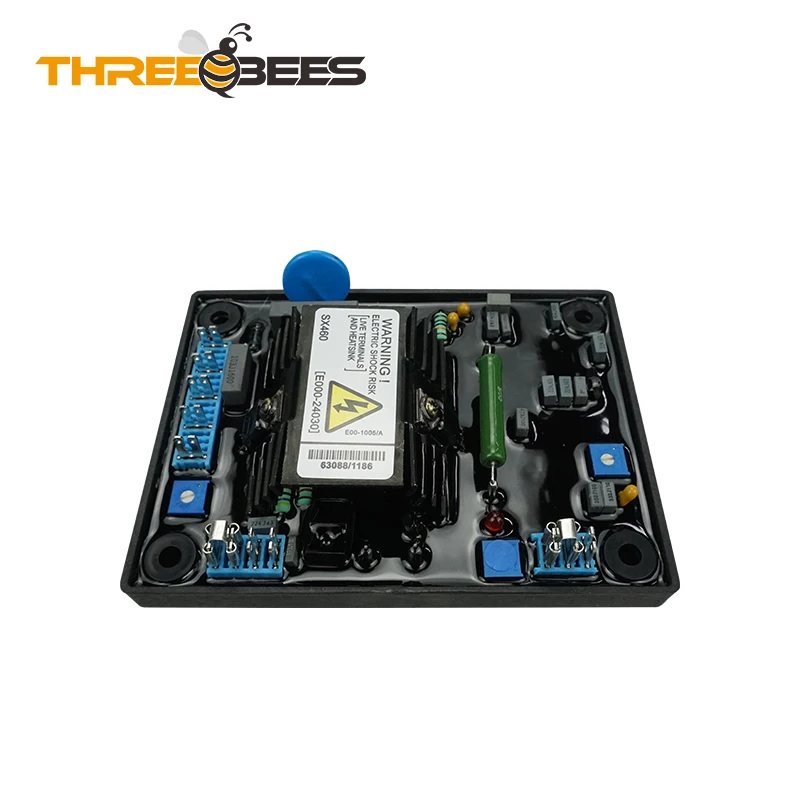

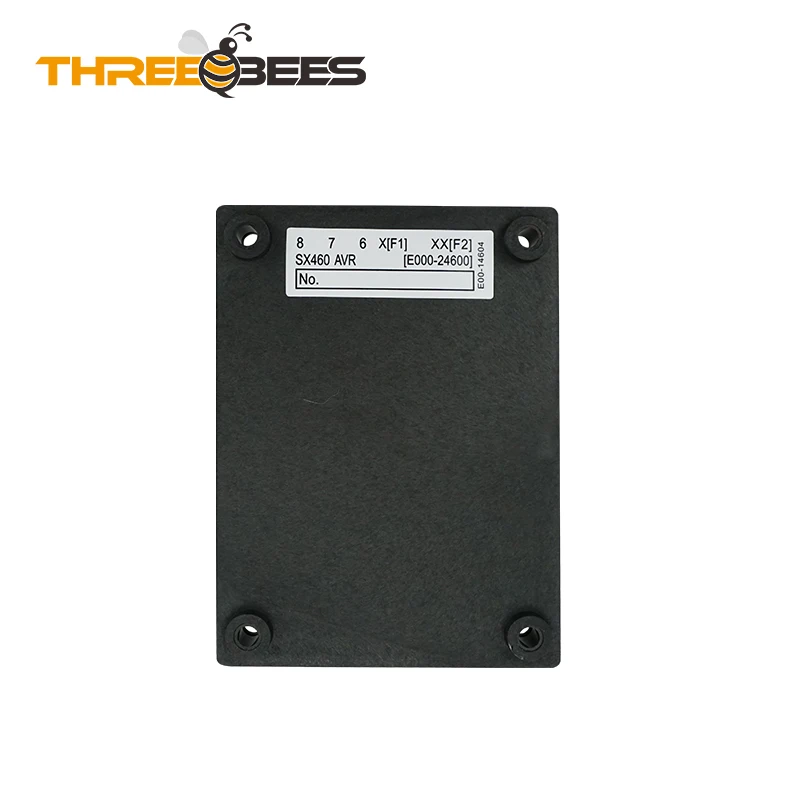

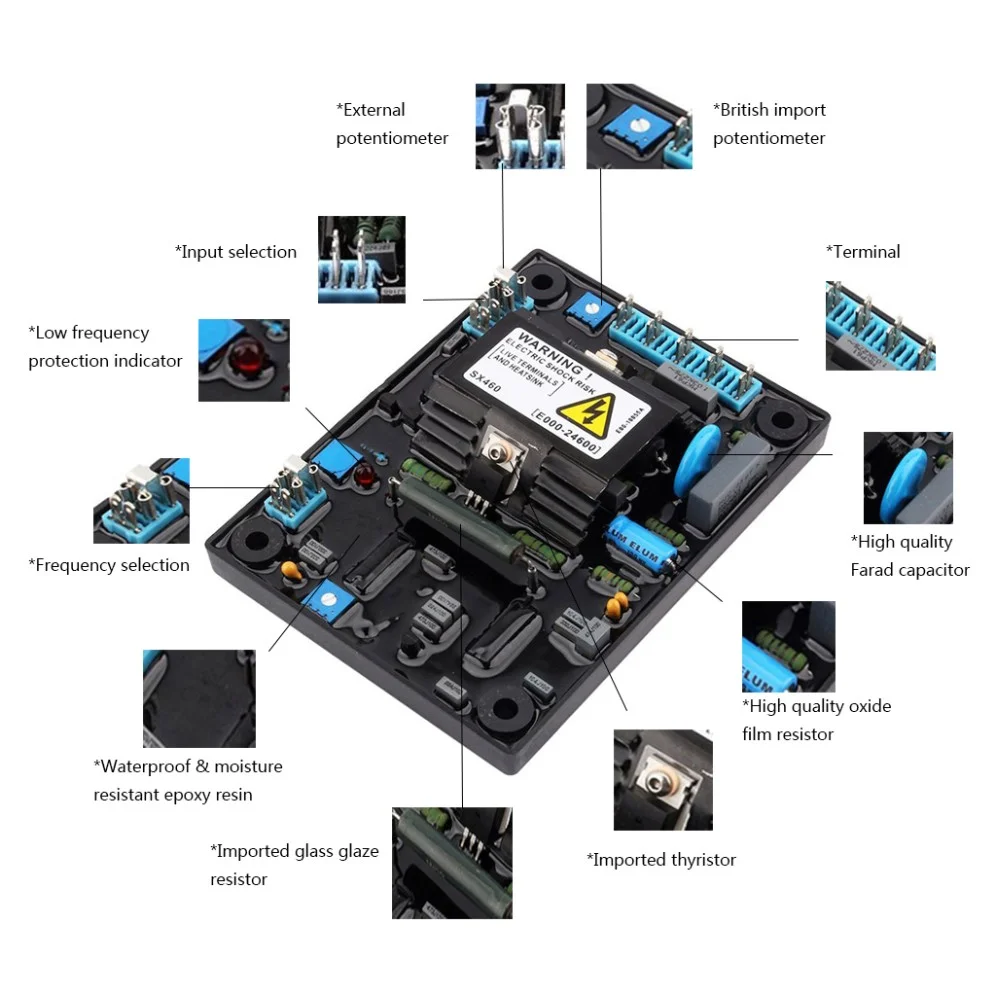

3 Phase Generator AVR SX460

3 Phase Generator AVR Automatic Voltage Regulator AVR SX460 is a half-wave phase controlled thyristor type Automatic Voltage
Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the
AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage
build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is
linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load
regulations of +/- 1.5%

How to choose Stanford Generator AVR
MODEL	SENSING INPUT	POWER INPUT	MAGNETIC FIELDOUTPUT			PRESSURE REGULATIONG ACCURACY
			Voltage(max)	Current(within 10 sec)	with 4% rngine governing
SX460	120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options			90VAD at 207VAC	continuous 4A,intermittent 10A	<±1%RMS
SX460-A
SX440	190-264VAC,1phase,2wire
SX440-A	190-264VAC,1phase,2wire
AS440	120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options
AS480
MX341	190-264VAC, 1phase,2wire	170-220VAC, 3Phase,3wire	120VAD	continuous 2.7A,intermittent 6A	<±0.5%RMS
MX321	190-264VAC, 2phase,3wire	170-220VAC, 3Phase,3wire		120VAD	<±0.5%RMS	continuous 3.7A,intermittent 6A
MX450	170-264VAC,1phase,2wire			90VAD	continuous 4A,intermittent	<±1%RMS

How to choose Stanford Generator AVR

Generator/AVR

SA465

SX460

SX440

SX421

MS341

MX321

BC16

STD

BC182

STD

BC184

AUX WDG

OPT

STD

LOOSE

UC224

STD

OPT

OPT(PMG)

UC274

STD

OPT

OPT(PMG)

HC4

STD

OPT

OPT(PMG)

HC5

STD

OPT

OPT(PMG)

HC6

STD

HC/MV7

STD

Product Test

AOI automatic optical detection equipment

Detection of automatic plug and patch of the wrong parts, leakage parts, less welding, virtual welding, component skew and other
welding problems, greatly reduce defective products, improve the reliability of products.

High and low temperature testing equipment

Military industry standard
Each product will be after four hours of 85 ℃, low temperature minus 45 degrees after the simulation testing factory. Ensure that
each product is used by customers assured.
