Leibao 5.5 kw Fertilizer Biomass Woodchip Screening C01A C02A C03A 15 TO 50 T/H
- Category: >>>
- Supplier: Leizhou Leibao Machinery Co. Ltd.
Share on (1600330201032):
Product Overview
Description

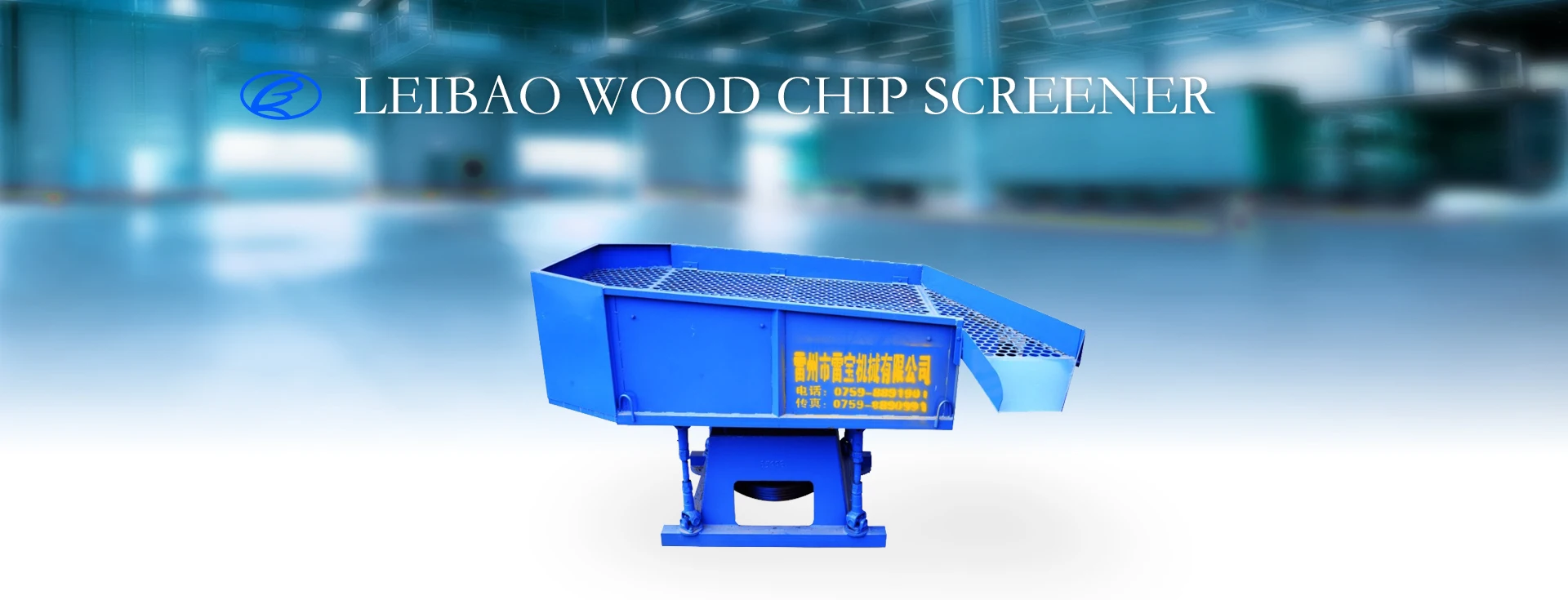

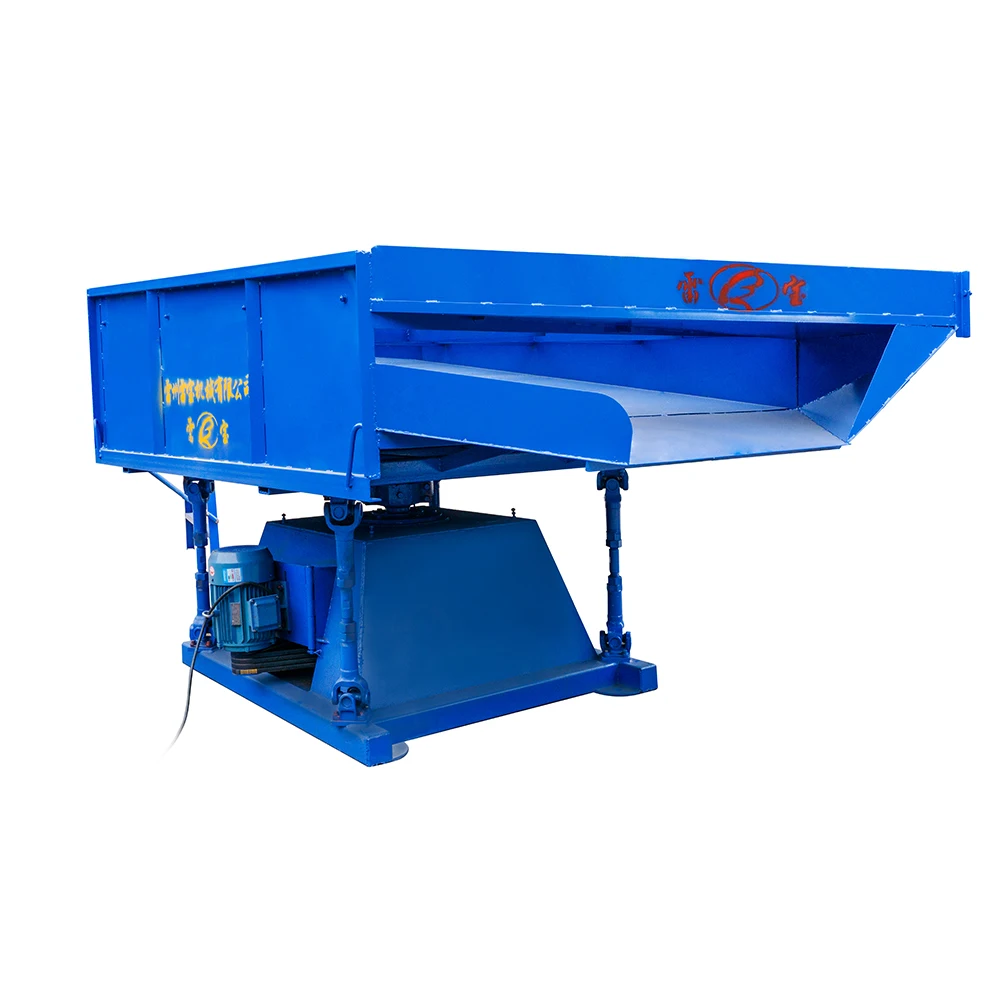

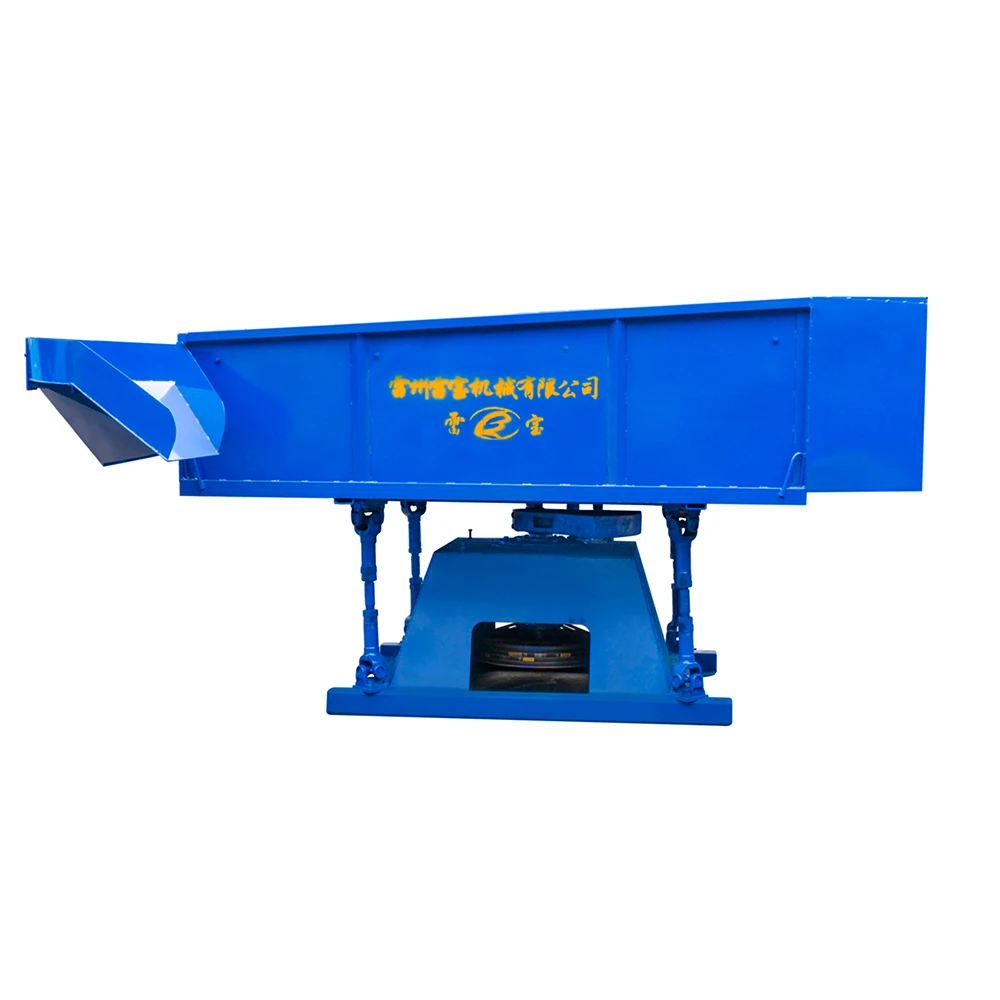

LEIBAO VERTICAL VIBRATIONAL SCREEN
Leibao screen machine is unique in the market finishing operating stability, leaving the entire double screening deck surfaces clear for high-capacity screening. Easy maintenance and unique design in this screen are out of the ordinary.
· Reliable, heavy-duty universal joints and rigid shafts reliably uphold whole screener
· Bottom intermediate shafts assembly allows stable operation
· 4 corners column of vibration shafts result in minimal dynamic loading to the frames
· The frame of screen deck is upheld by 4 vibratory shaft columns for vibrational stability
· The screen deck styles and mesh sizes can be custom designed to best suit customers' requirements
Features：
· Versatile design allows screen from a support frame
· Reliable, heavy-duty universal joints and rigid shafts reliably uphold whole screener
· Bottom intermediate shafts assembly allows stable operation
· 4 corners column of vibration shafts result in minimal dynamic loading to the frames
· The frame of screen deck is upheld by 4 vibratory shaft columns for vibrational stability
· The screen deck styles and mesh sizes can be custom designed to best suit customers' requirements
SPECIFICATIONS: WOOD CHIP SCREENER C01A | ||
Product Model | C01A | |
Power Type | Electric Motor | |
Power | 5.5 kw | |
Screen Deck Diameter （L x W） | 300 x 157 cm | |
Frist Screen Mesh Diameter | 3 to 60 cm | |
Second Screen Mesh Diameter | 0.2 to 1.2 cm | |
Revolving Speed of Main Engine | 740 rpm | |
Number of Screen deck | 2 layers | |
Output | 15 tons per hour | |

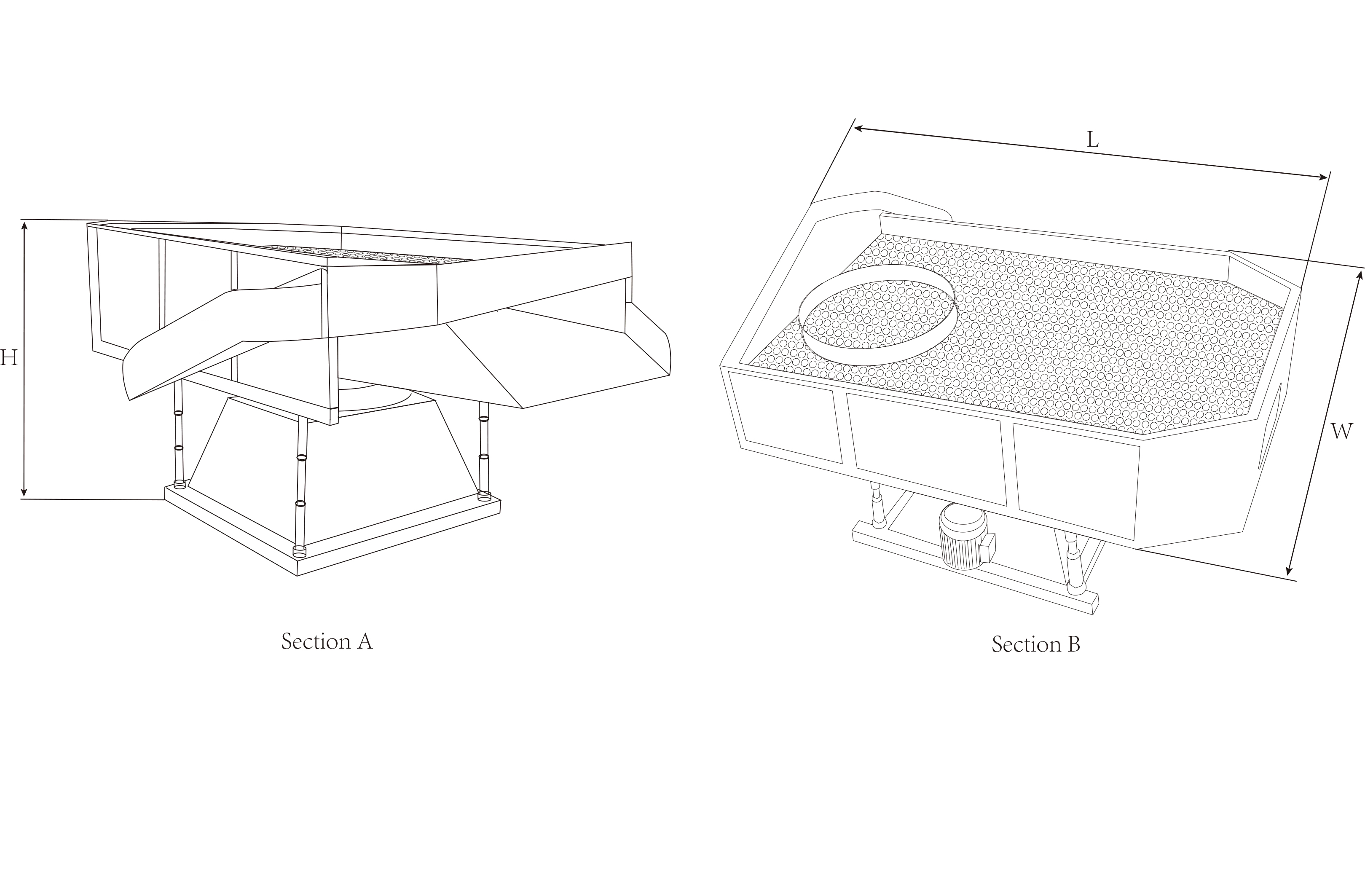

Product Dimensions (L × W × H) | 300 X 245 X 170 | |
SPECIFICATIONS: WOOD CHIP SCREENER C02A | ||
Product Model | C02A | |
Power Type | Electric Motor | |
Power | 5.5 kw | |
Screen Deck Diameter （L x W） | 360 x 195cm | |
Frist Screen Mesh Diameter | 3 to 60 cm | |
Second Screen Mesh Diameter | 0.2 to 1.2 cm | |
Revolving Speed of Main Engine | 740 rpm | |
Number of Screen deck | 2 layers | |
Output | 15 tons per hour | |
Product Dimensions (L × W × H) | 360 X 265X 172.80 | |
SPECIFICATIONS: WOOD CHIP SCREENER C03A | ||
Product Model | C03A | |
Power Type | Electric Motor | |
Power | 5.5 kw | |
Screen Deck Diameter （L x W） | 420 x 260 cm | |
Frist Screen Mesh Diameter | 3 to 60 cm | |
Second Screen Mesh Diameter | 0.2 to 1.2 cm | |
Revolving Speed of Main Engine | 740 rpm | |
Number of Screen deck | 2 layers | |
Output | 50 tons per hour | |
Product Dimensions (L × W × H) | 420 X 340 X 177.20 | |
Customized Options | ||
Customized Screen Mesh Diamater | Yes | |
Customized Screen Mesh Shape | Yes | |
Customized Layers of Screen Deck | 3 layers or more | |
Adjustable Screen Deck Size | Yes | |
*Note: We offer OEM and ODM service for you. According to the customer's requirements, we will offer our best solution. Welcome to inquire us. | ||
Products Description
UNIQUE SCREENER STRUCTURE.
1: Screen mesh: dual layers of screen mesh that is removable
2: Frame of Screen Deck - Has 3 outlets which is for screening standard size, oversize and undersize of wood chips
3: Vibration Shaft Column: 4 pcs of the shaft columns fix on the four-corner of base frame
4: Base Frame - Be very heavy to fix whole machine

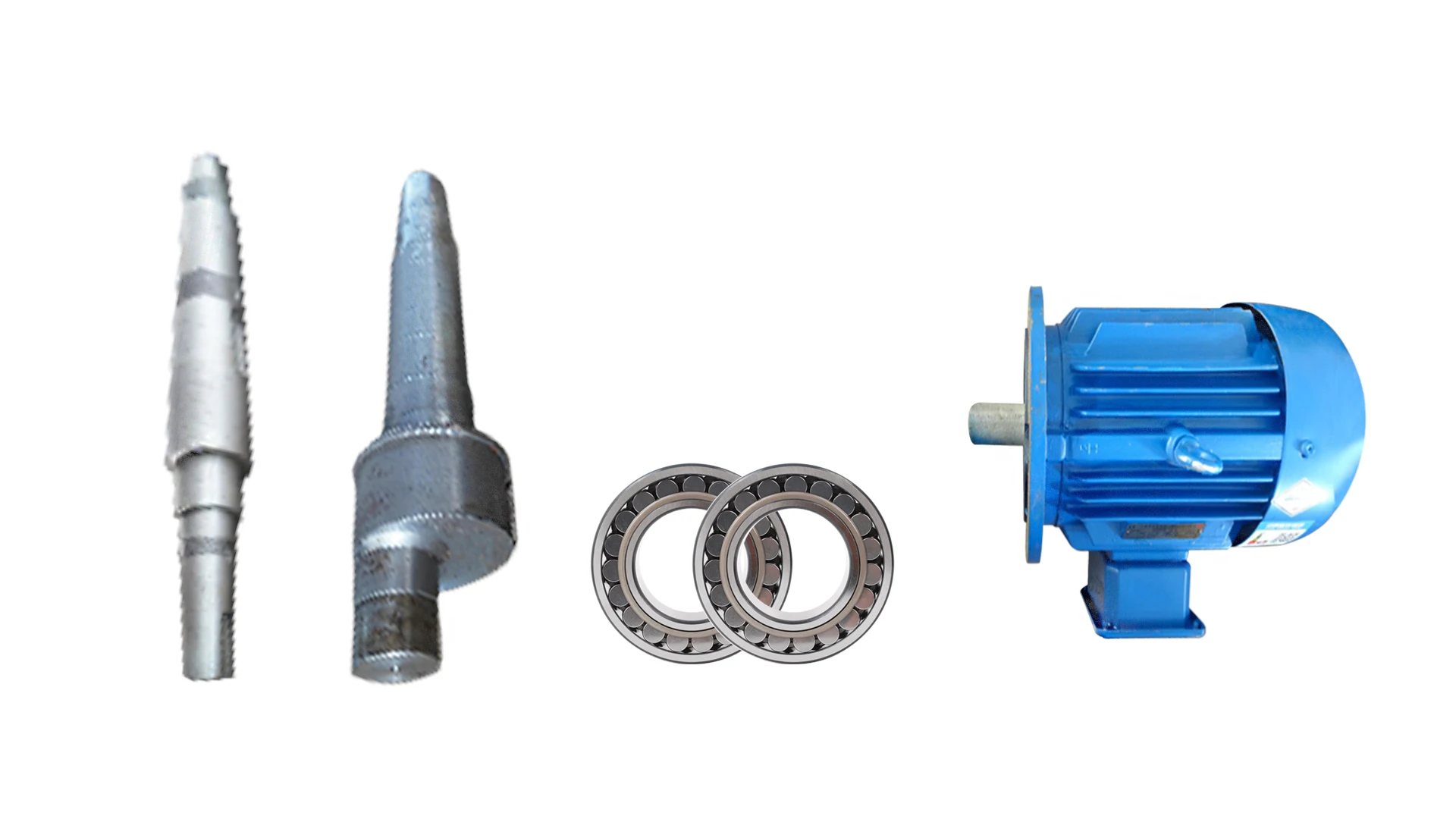

5: Shaft Assembly - Located under the intermediate frame of screen deck
6: Brand Electric Motor - 380V 5.5kw, reliable operation, firm structure and high working efficiency
7: Belt - the motor drives the shaft assembly by belt. Be durable and a long lifespan
The screener is designed all drive components are located under the frame of screen deck for strong vibrational stability.

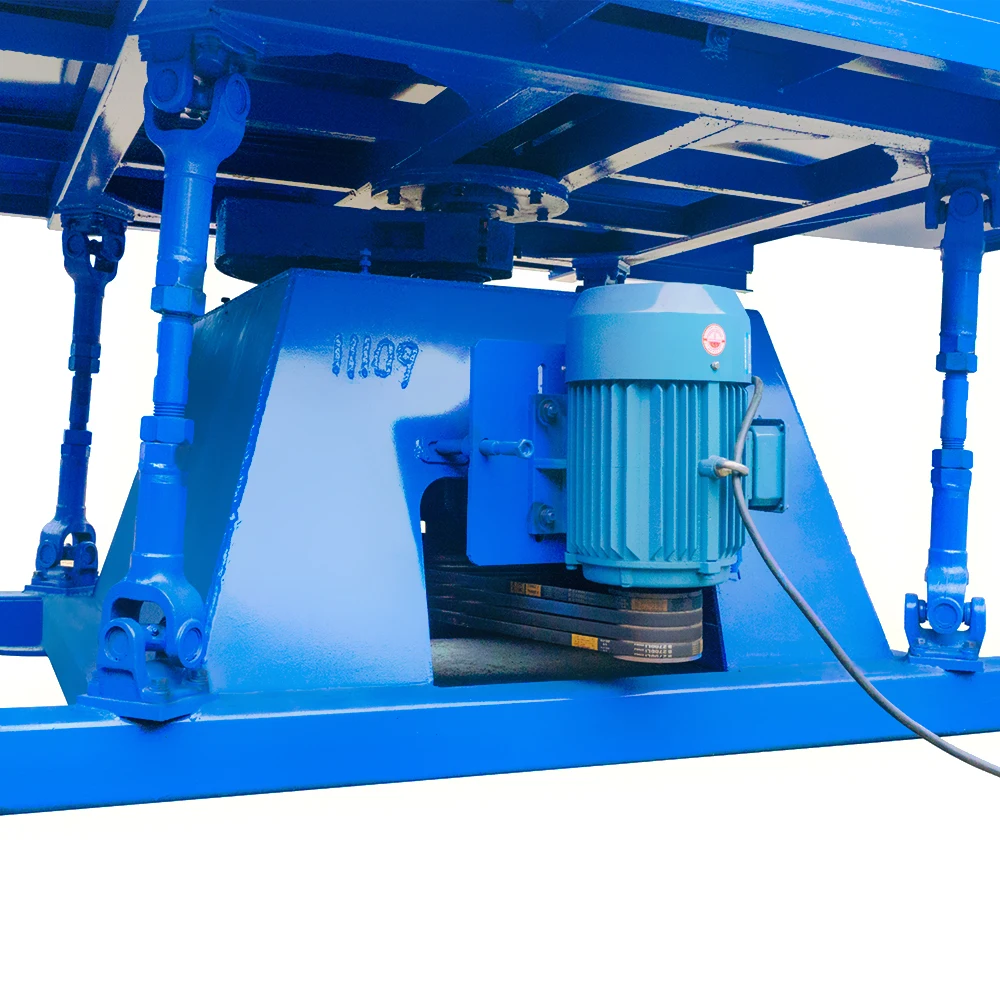

Bottom Mounted Motor.
The intermediate shaft assembly is powered and synchronized from a single 380v electric motor.
A bottom mounted motor configuration may be preferred for outdoor installations.
Leibao’s engineers combine of the motor's speed and the screen’s amplitude to yield optimum material movement and particle separation, fulfill screening material of high quality.
A Least Effort on Shaft Assembly.
A bottom mounted motor drives transmitting forces to the shaft Assembly by belt that can horizontally rotate all of the frame of screen deck.

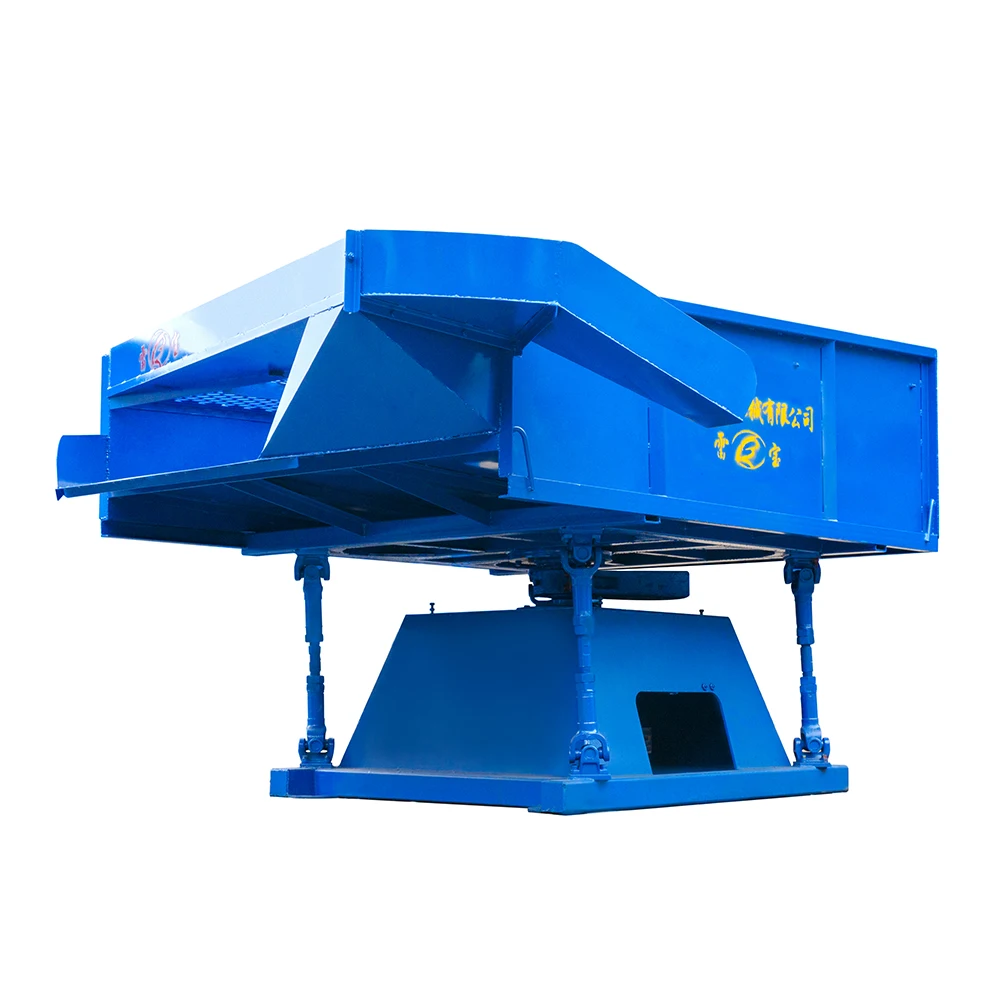

Optimum 4 x Vibration Shaft Columns.
4 pieces of vibration shaft columns are fixed on the four corner of base frame as well as fixing under the frame of the screen deck.
Leibao's engineers designed an optimum vibration shaft columns to provide max supporting force that enhance the vibrational stability while operating.
A Long Lifespan.
This screener's lifespan in excess of 100,000 hours on our customer cases. We also provide one year of trouble-free service in Leibao wood chip screener.

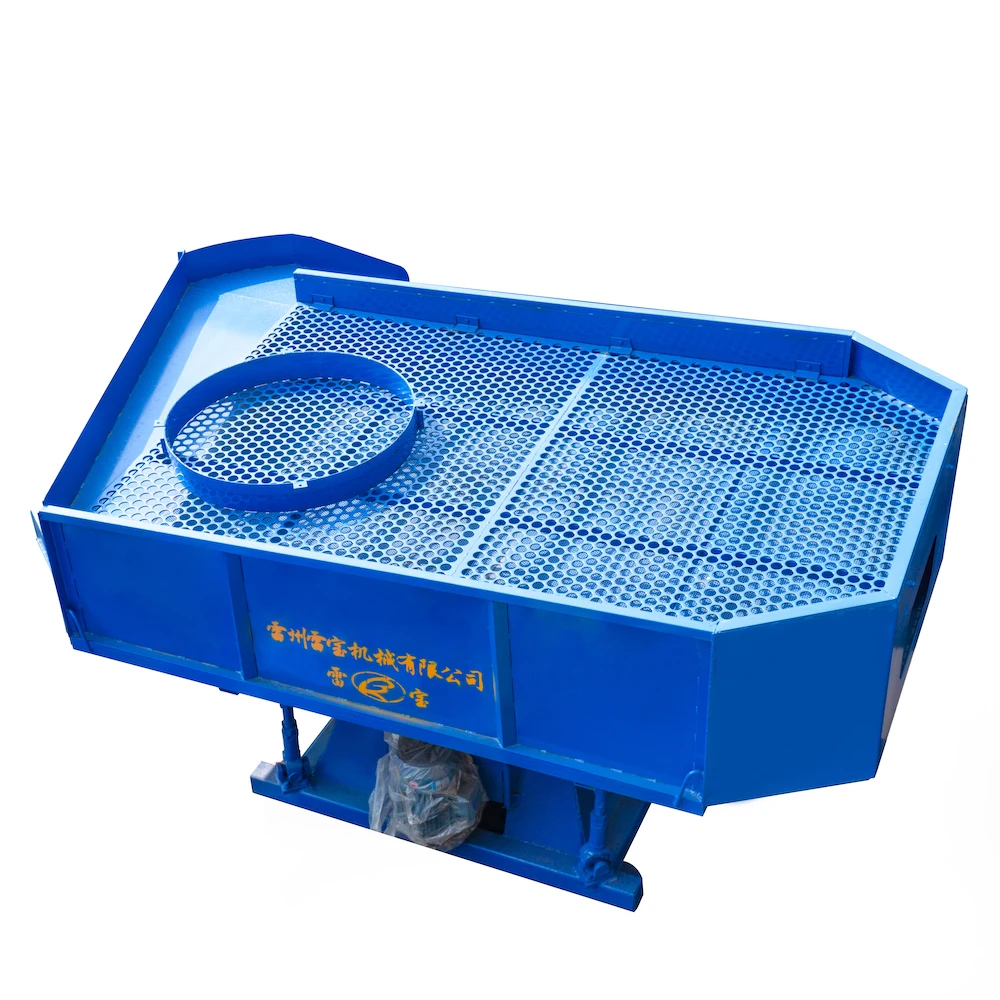

Screen Deck Option.
All types of screen plates are available including screen deck size, numbers of screen surface, punched plate size, wire mesh shape, and stainless-steel material is supplied in custom according to customer’s requirements. All screens' plates are dismountable. All of screen deck is dynamically balanced and produce max effect.
If you need to know pulping system sensitivity to chip quality, in most pulp mills require a chip length of 15 mm (0.58 in.) to 18 mm (0.70 in.) is used, and Leibao machineries on complete wood chip system is what over length and oversize wood chips are filtered out to re-chop.

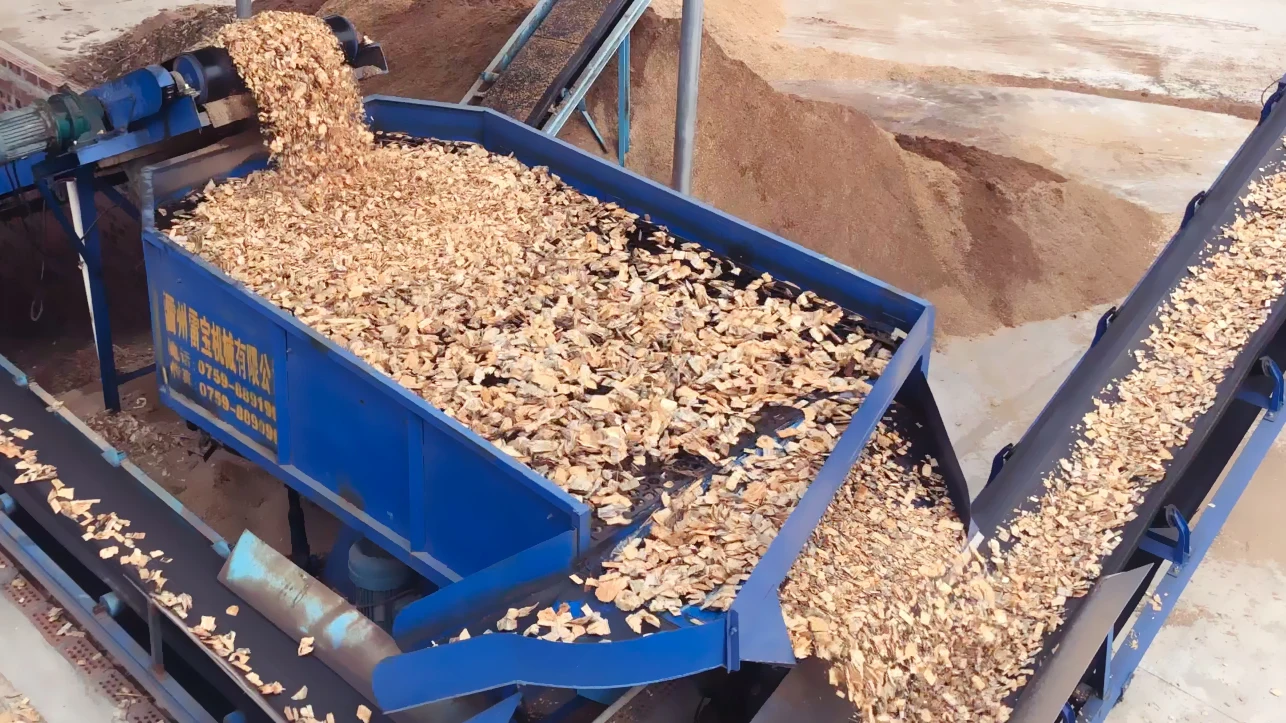

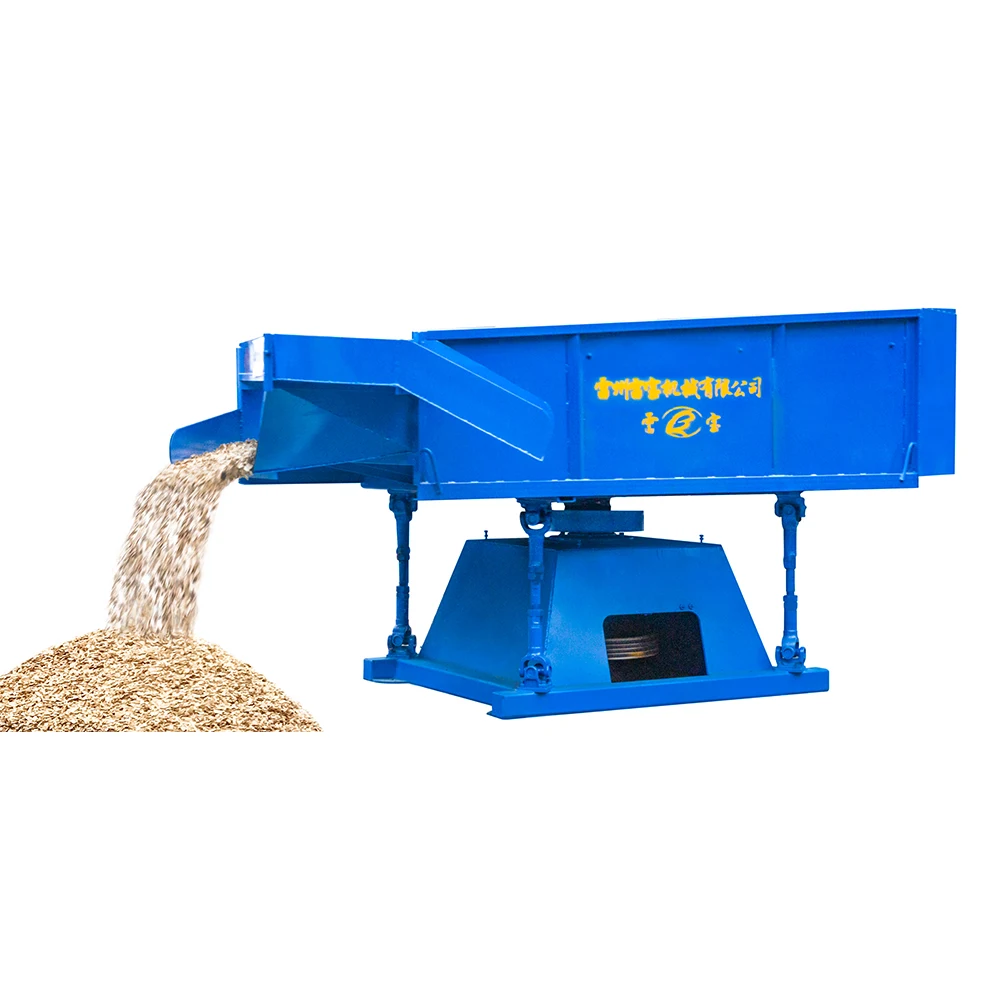

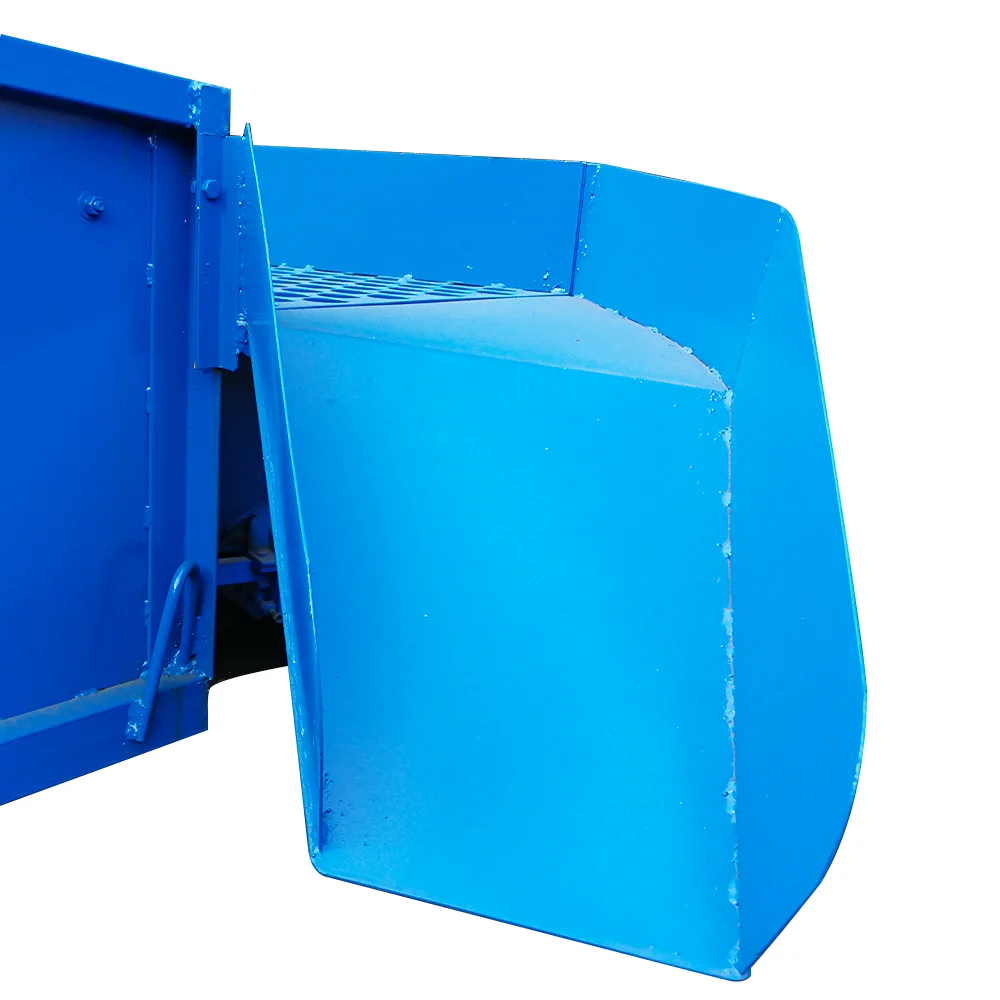

How The Screen Discharge Wood Chips?
1. An outlet for standard size of wood chips.
2. An outlet for oversize of wood chips.
3. An outlet for undersize of wood chips.
Uniform Size of Wood Chip.
Leibao Wood Chippers are able to produce 15mm to 18mm for each chip diameter that satisfies for the pulp plant's requirements.
High efficiency on Productivity.
Leibao Wood Chippers are able to produce 15 ton per hour, even 50 ton per hour. Please check more details above the product specification's table.
Optimum Screening.
Eliminate the minimal pins, fines, oversize, undersize and over-thick chips.
Wood Chip Screen is one component in Leibao ‘s complete line of chip processing equipment.
OR

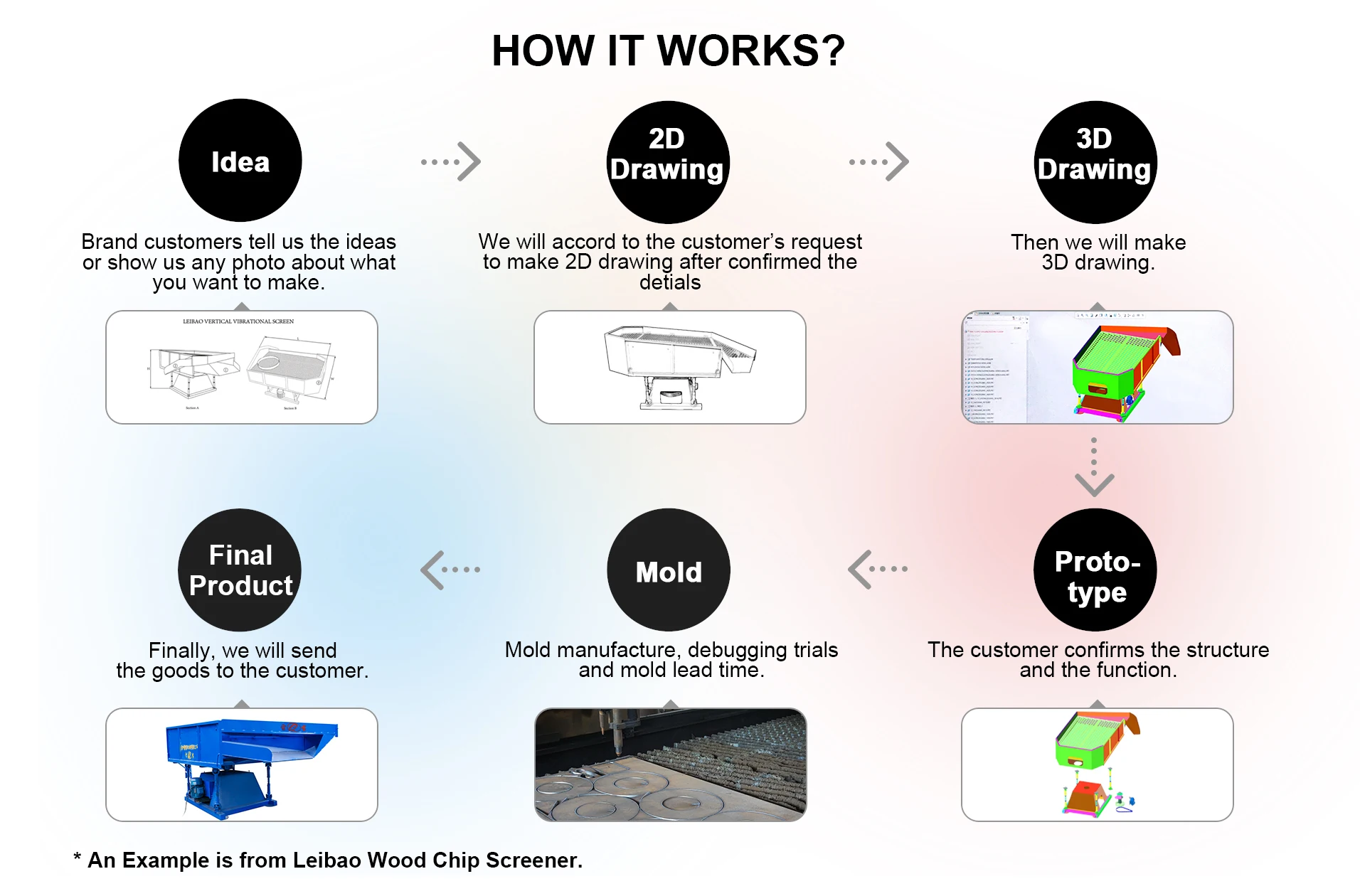

Build Your Customized Product
Main Products

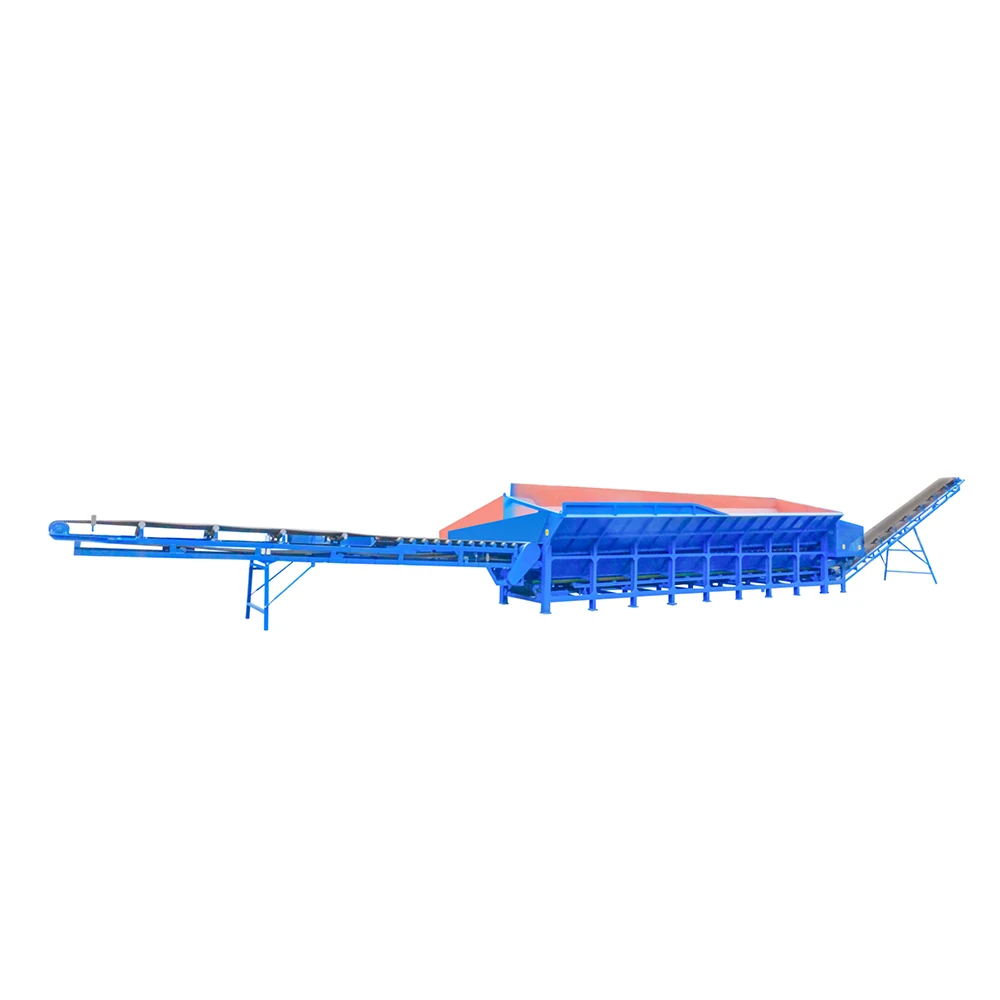

Log Debarker
Wood Chipper
Wood Chip Screener
Belt Conveyor

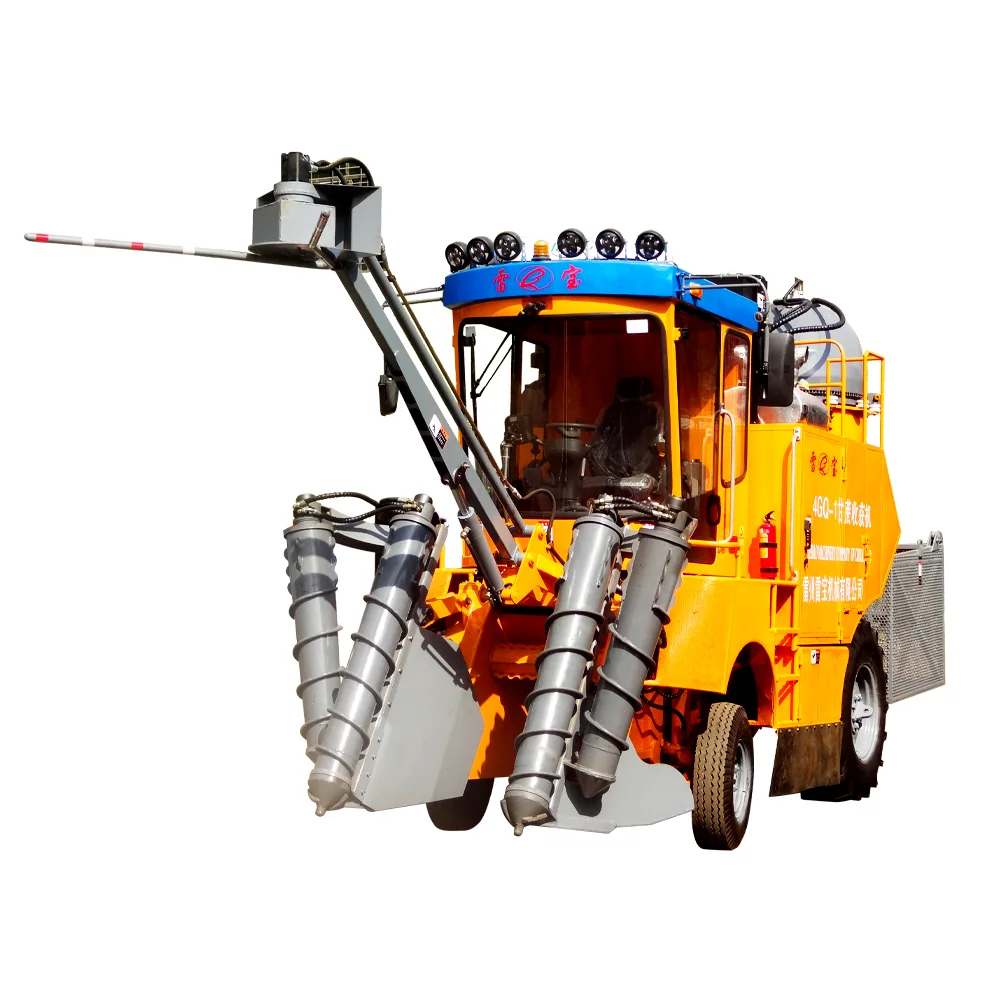

Sugarcane Harvester
Accessories

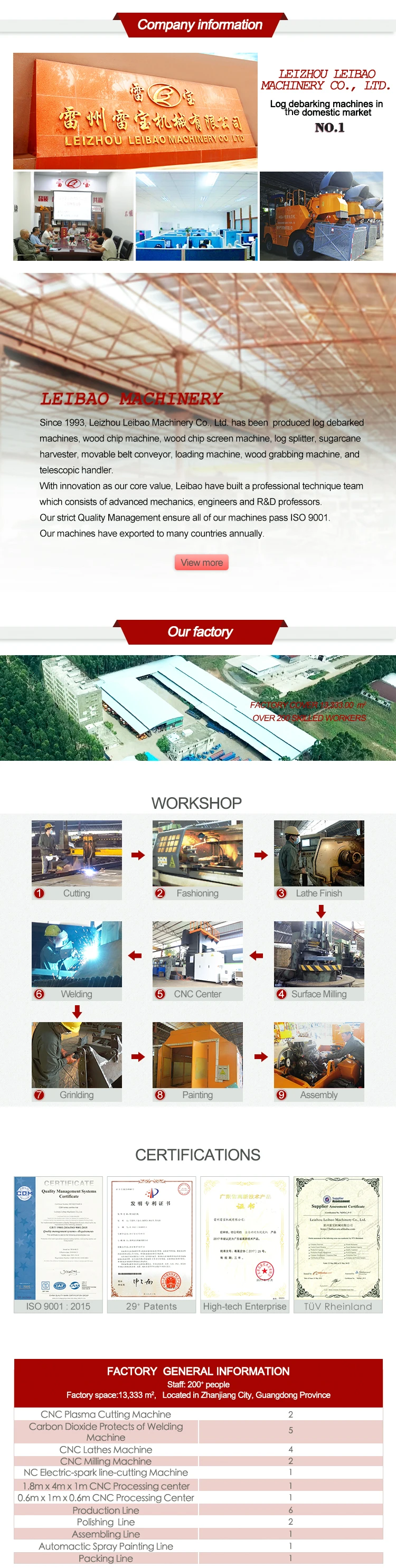

Company Information
