high quality 220V 10KW ceramic band heater for heat treatment
- Category: >>>
- Supplier: Yancheng Hengsheng International Trade Co. Ltd.
Share on (1600330201307):
Product Overview
Description
Products Description

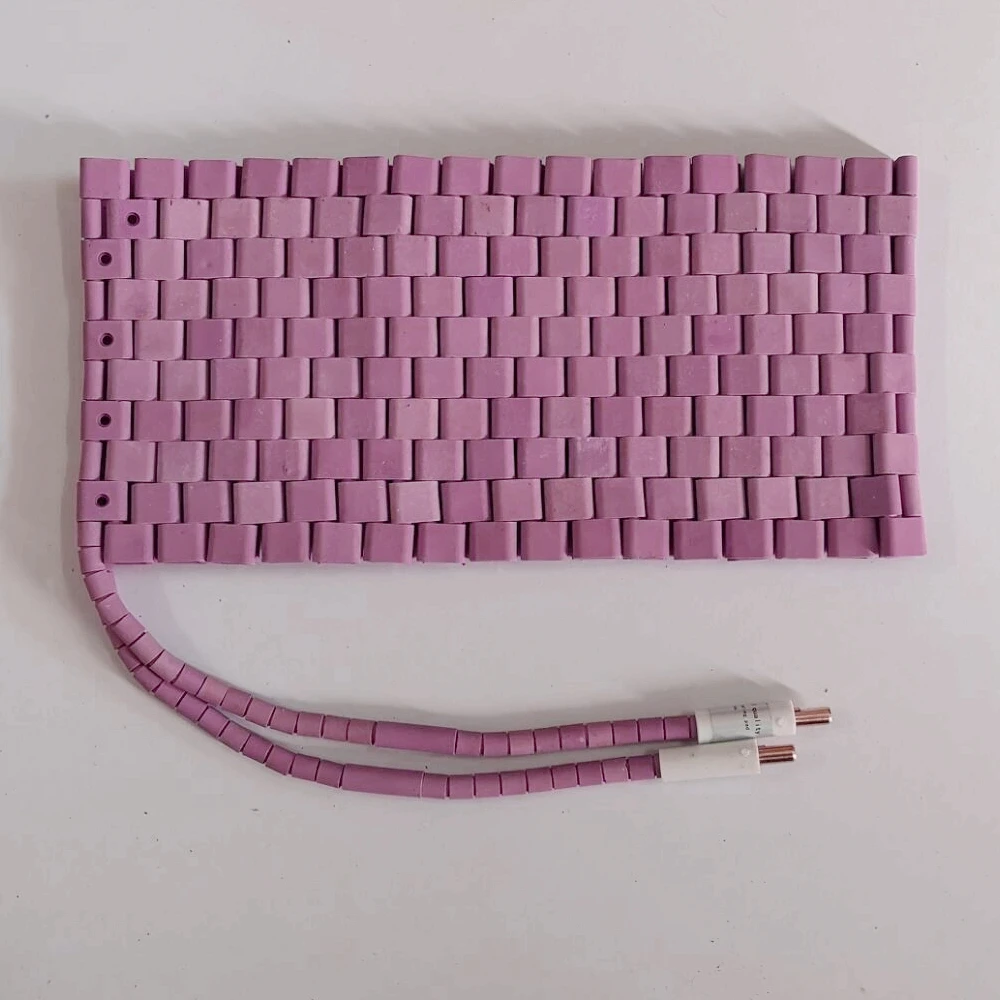

Flexible Ceramic Pad Heater Description:
Fexible Ceramic Pad(FCP) heater is a selection of high-quality nichrome wire rope, coat of high purity alumina ceramic pieces of insulation made crawler or rope heaters and other products type. According to the shape of the workpiece, the size of production, can be spliced, bending, is wrapped snugly workpiece heating, with the use of a wide range, fast heating speed, high heat utilization rate, convenient operation feature and so on . The highest surface temperature can reach 1050 DEG C. Applicable to allkinds of metal components, such as the large tower, pressure vessels, bridges, high pressure pipeline welding preheating, welding stress relief. Can also be used for piping, vessels of auxiliary heating, indoor and outdoor is not restricted, is currently the most advanced, practical local heating equipment.
Flexible Ceramic Pad Heater Technical Detail:
Insulation: Aluminium Oxide Ceramics (96%)
Heating Conductor: Ni-Cr wire(Cr20Ni80), 19 single strands
Temperature: Max. 1050 C
Power: 2.7/3.6 /5/10KW,or customized
Voltage: 60/ 80/110/220V ,or customized
Amperage: 45A
Flexible Ceramic Pad Heater Applications:
All kinds of pipe and tank circumferential welded joints
Longitudinal-seam welded bends.Connecting piece and flange welds
Fexible Ceramic Pad(FCP) heater is a selection of high-quality nichrome wire rope, coat of high purity alumina ceramic pieces of insulation made crawler or rope heaters and other products type. According to the shape of the workpiece, the size of production, can be spliced, bending, is wrapped snugly workpiece heating, with the use of a wide range, fast heating speed, high heat utilization rate, convenient operation feature and so on . The highest surface temperature can reach 1050 DEG C. Applicable to allkinds of metal components, such as the large tower, pressure vessels, bridges, high pressure pipeline welding preheating, welding stress relief. Can also be used for piping, vessels of auxiliary heating, indoor and outdoor is not restricted, is currently the most advanced, practical local heating equipment.
Flexible Ceramic Pad Heater Technical Detail:
Insulation: Aluminium Oxide Ceramics (96%)
Heating Conductor: Ni-Cr wire(Cr20Ni80), 19 single strands
Temperature: Max. 1050 C
Power: 2.7/3.6 /5/10KW,or customized
Voltage: 60/ 80/110/220V ,or customized
Amperage: 45A
Flexible Ceramic Pad Heater Applications:
All kinds of pipe and tank circumferential welded joints
Longitudinal-seam welded bends.Connecting piece and flange welds

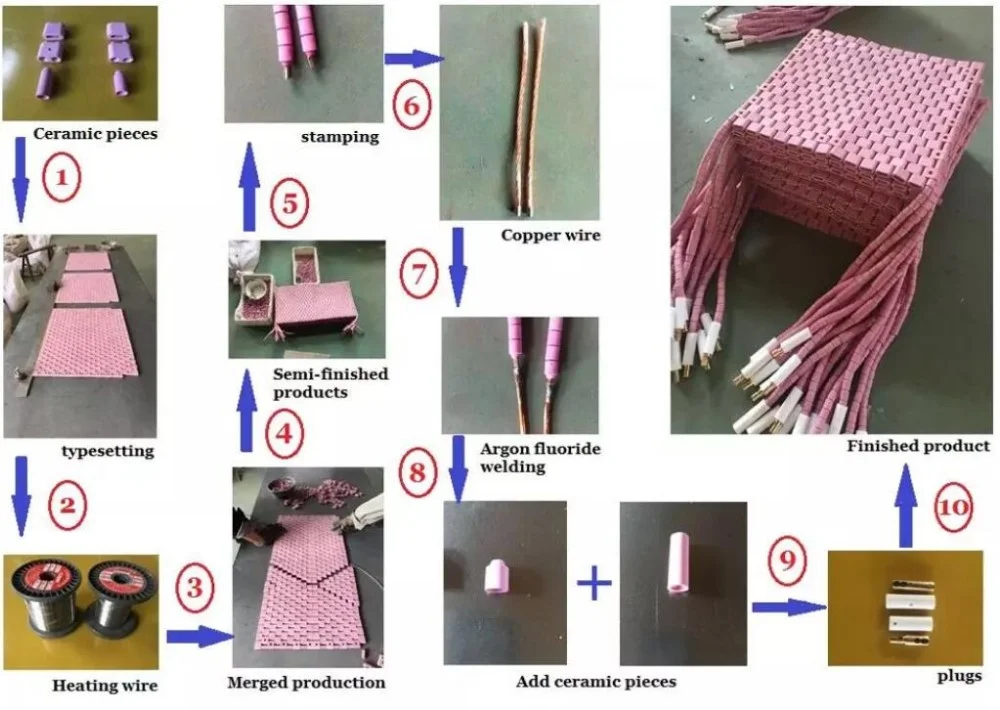

Manufacture Step
Different Types
LCD Type
Voltage:55V/60V/80V/110V/220V
Power:2.5KW/2.7KW/3.6KW/5KW/10KW
Heating wire:NiCr2035/NiCr2080
Length:produce as your needs
Wideth:produce as your needs
Lead wire length:500mm
Weight:10W,220V is 6Kg
Area:0.23mm² (220V,10KW)
Power:2.5KW/2.7KW/3.6KW/5KW/10KW
Heating wire:NiCr2035/NiCr2080
Length:produce as your needs
Wideth:produce as your needs
Lead wire length:500mm
Weight:10W,220V is 6Kg
Area:0.23mm² (220V,10KW)

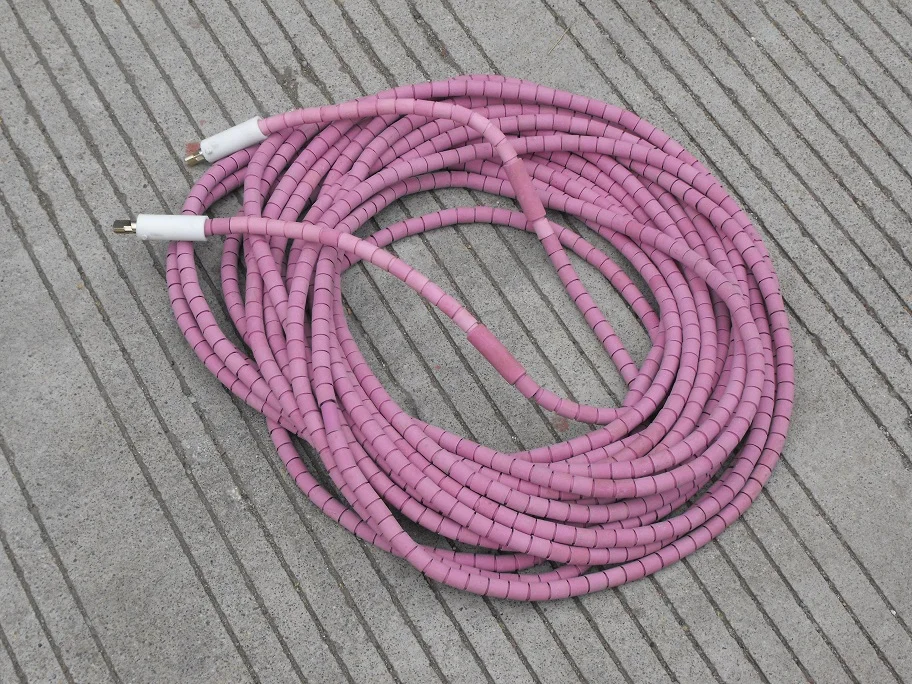

Rope type ceramic heater
Voltage:55V/60V/80V/110V/220V
Power:2.5KW/2.7KW/3.6KW/5KW/10KW
Heating wire:NiCr2035/NiCr2080
Lead wire length:500mm
Length:220V,10KW 18m
Weight:220V,10KW 6Kg
Application:especially suitable for the shape workpiece such as pipe, pipe joint and the situation where the space around the
heating part is narrow and difficult to work
Power:2.5KW/2.7KW/3.6KW/5KW/10KW
Heating wire:NiCr2035/NiCr2080
Lead wire length:500mm
Length:220V,10KW 18m
Weight:220V,10KW 6Kg
Application:especially suitable for the shape workpiece such as pipe, pipe joint and the situation where the space around the
heating part is narrow and difficult to work

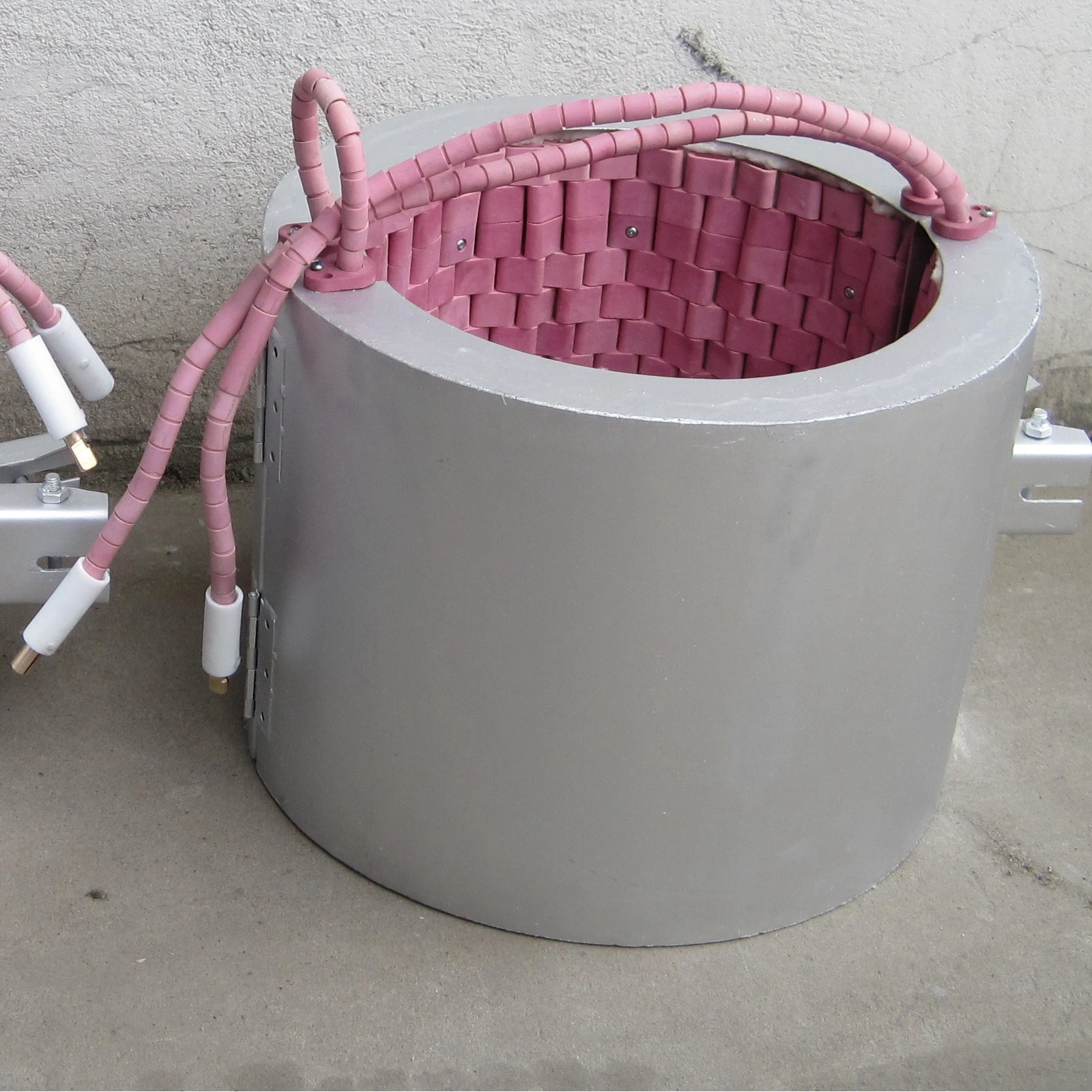

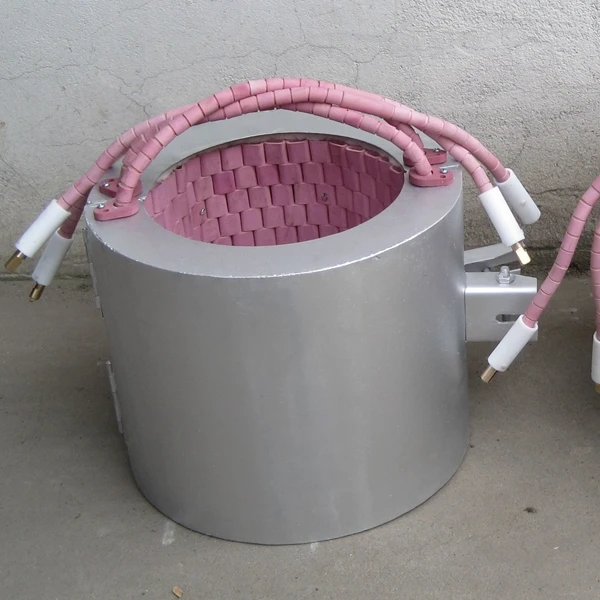

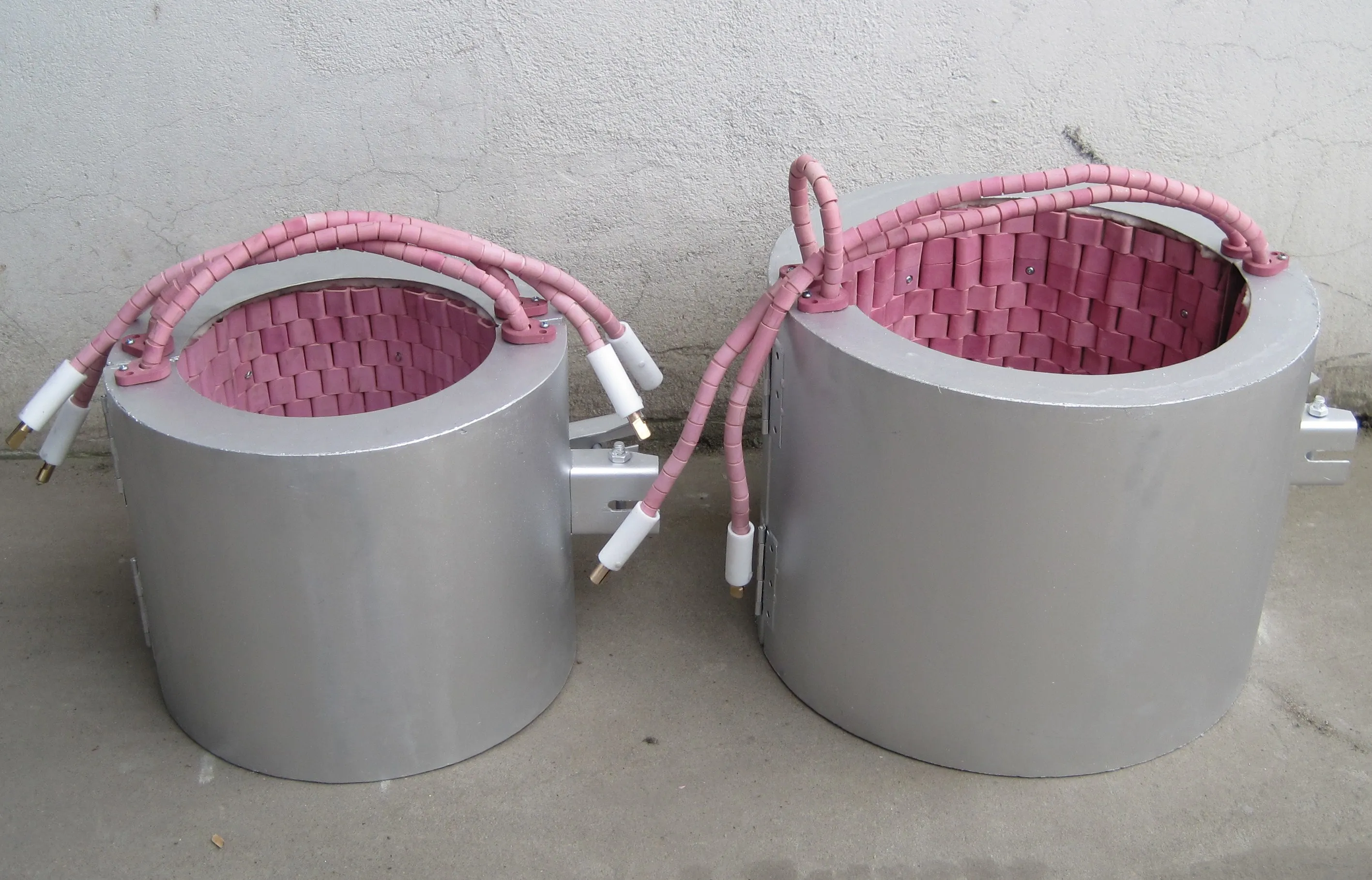

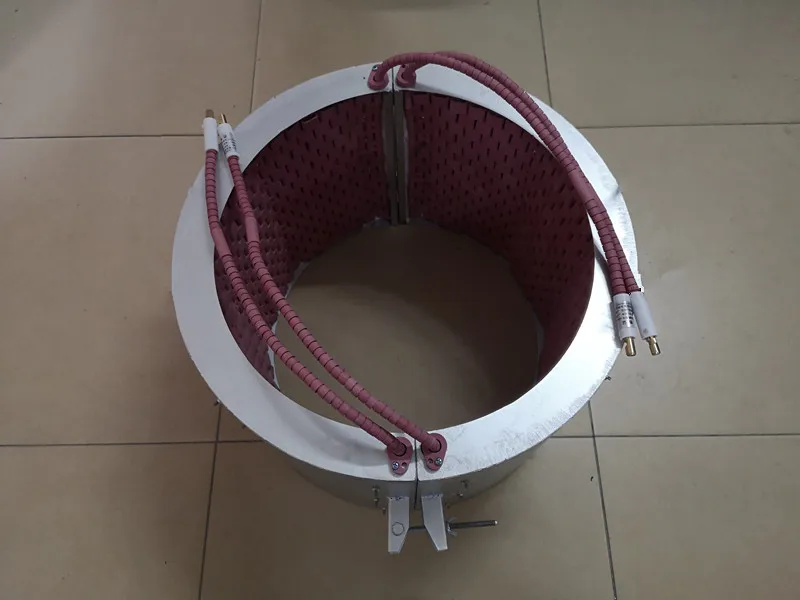

Band type ceramic heater
Voltage:110V/220V
Power:5KW/10KW/20KW
Heating wire:NiCr2035/NiCr2080
Diameter :89mm/108mm/133mm/159mm
219mm/273mm
325mm/377mm/426mm
Weight:6-15Kg
Application:a circular open-end heater, which is convenient for loading and unloading, suitable for local heating of small and
medium-sized pipelines, with the maximum working temperature of 750 ℃
Power:5KW/10KW/20KW
Heating wire:NiCr2035/NiCr2080
Diameter :89mm/108mm/133mm/159mm
219mm/273mm
325mm/377mm/426mm
Weight:6-15Kg
Application:a circular open-end heater, which is convenient for loading and unloading, suitable for local heating of small and
medium-sized pipelines, with the maximum working temperature of 750 ℃

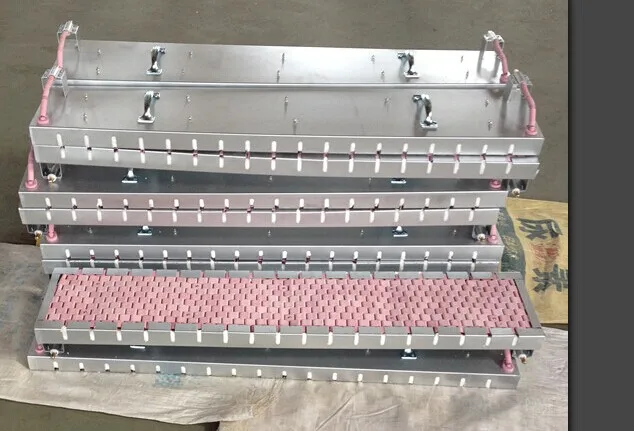

Iron shell ceramic heater
Voltage:55V/60V/80V/110V/220V
Power:2.5KW/2.7KW/3.6KW/5KW/10KW
Heating wire:NiCr2035/NiCr2080
Length and Width:produce as your needs
Structure:Ceramic pad+ insulation cuttom+ SS plate
Lead wire length:500mm
Usage:Suitable for preheating before welding of ball tank, hull and other metal components
Power:2.5KW/2.7KW/3.6KW/5KW/10KW
Heating wire:NiCr2035/NiCr2080
Length and Width:produce as your needs
Structure:Ceramic pad+ insulation cuttom+ SS plate
Lead wire length:500mm
Usage:Suitable for preheating before welding of ball tank, hull and other metal components

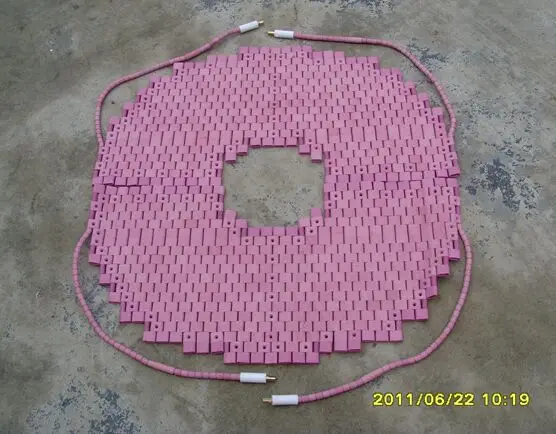

Irregular type ceramic heater
Produce as customers' drawings
Any question just contact us freely
Skype:jessica922927
What'app:+86 18082185166
Wechat:mandy922927
Any question just contact us freely
Skype:jessica922927
What'app:+86 18082185166
Wechat:mandy922927
Size
Pipe Diameter(inch) | Item | Type | Power | Voltage | Size |
￠2 | Ceramic Heater | LCD-2.5-55 | 2.5KW | 55V | 190*300mm |
￠4 | Ceramic Heater | LCD-5-110 | 5KW | 110V | 350*340mm |
￠6 | Ceramic Heater | LCD-5-110 | 5KW | 110V | 510*220mm |
￠8 | Ceramic Heater | LCD-10-220 | 10KW | 220V | 670*340mm |
￠10 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 828*280mm |
￠12 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 988*240mm |
￠14 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 1148*200mm |
￠16 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 1307*180mm |
￠18 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 1435*160mm |
￠20 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 1600*140mm |
￠24 | Ceramic Heater | LCD-10-220 | 10KW | 10KW | 1900*120mm |
