Product Overview
Description
Produc Description

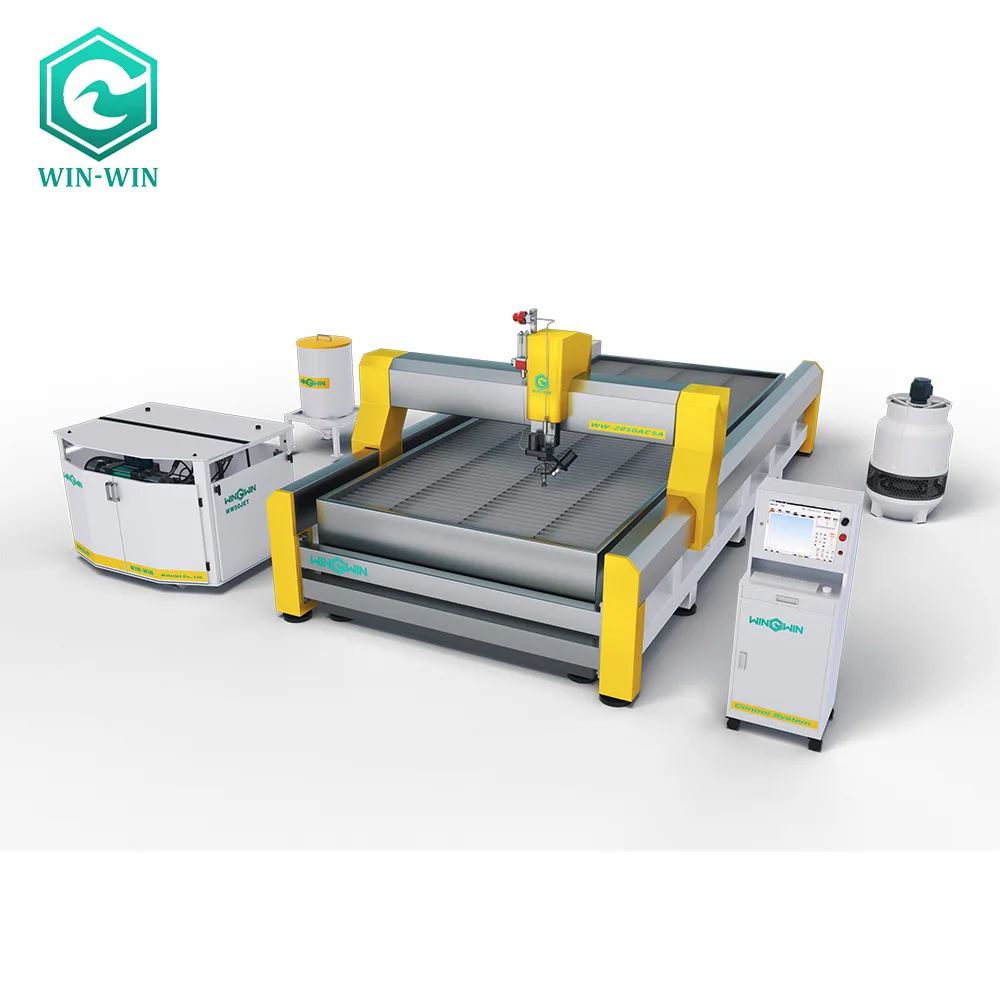

Water cutting, also known as water jet, is a high-pressure water jet cutting technology. It is a machine that uses high-pressure water to cut. Under the control of the computer, the workpiece can be sculpted at will, and it is not affected by the texture of the material. Because of its low cost, easy operation, and high yield rate, water cutting is gradually becoming the mainstream cutting method in industrial cutting technology.
water jet cutting machine has been used in a variety of applications, including mining, automobile manufacturing, paper manufacturing, food, art and architecture. can be used to cut all most all materials, such as: rubber, foam, plastic, composite, stone, tile, marble, glass so on.
Features of Win-Win waterjet cutting machine
Gantry type cutting platform. |
Sink is rugged and reliable , with fully stainless steel sheet. |
Professional manufacturing technique which make sure that the machine can achieve maximum stability without deformation under high speed operation and vibration. |
We separate the sink from the cutting table for easy transport and better protection of the stability of the frame. |

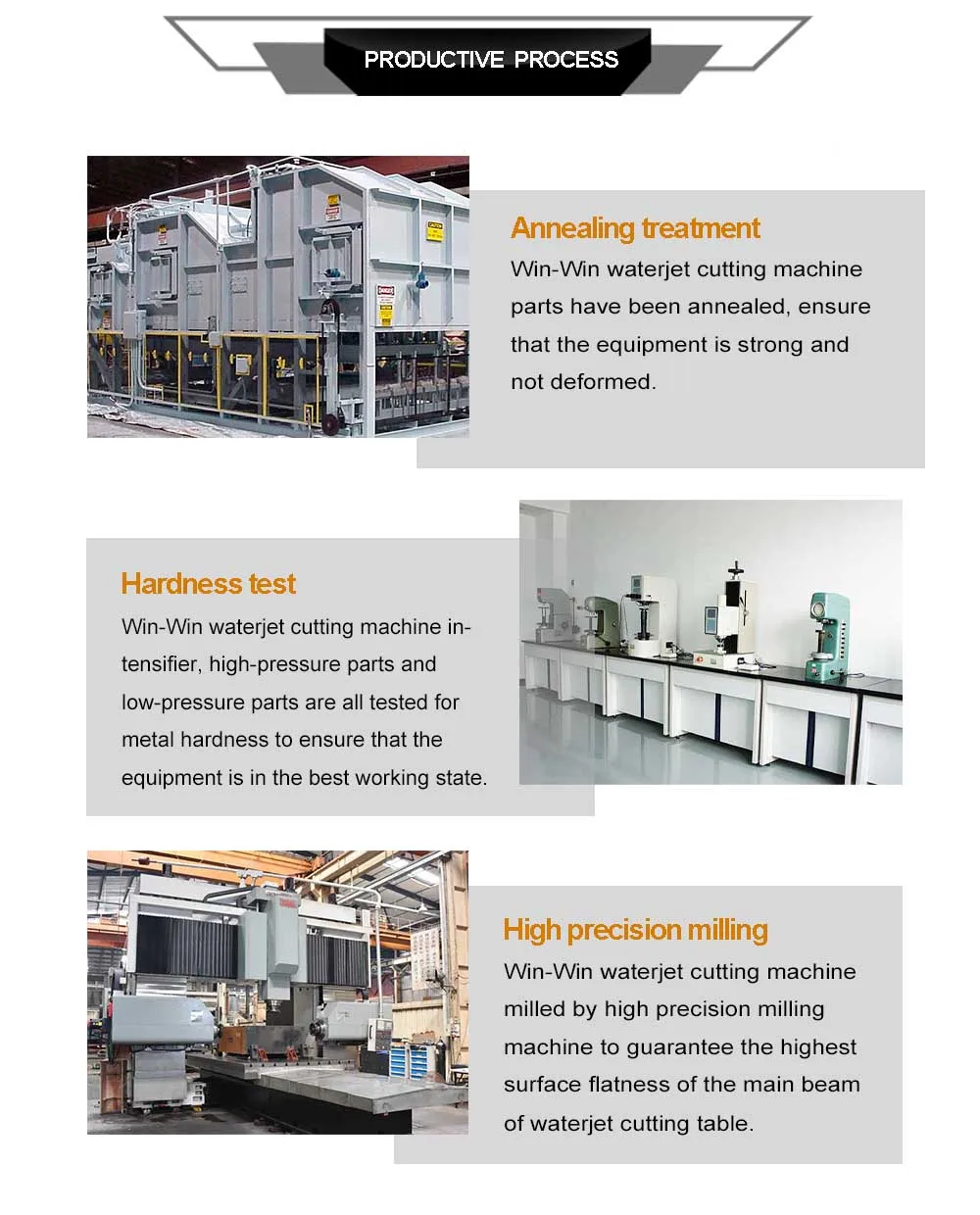

The base of cutting platform is a cast iron frame, made of thickened steel sheet, which ensure the necessary rigidity in the harsh working conditions. The processing through double housing planer, to eliminate deformation and guarantee its’ accuracy. |
The X-axis of the cutting platform is made of aluminum alloy and is characterized by light weight, good structure, no deformation. This is the most advanced technology in the field of water cutting. |
A pair of ball screws (Taiwan ABBA) and linear guide (Taiwan IRSO), to ensure its high precision, good quality and long service life. |
Servo motor and driver, reliable control, stable operation without low-frequency resonance. |
Limit switch Taiwan Omron. |
Linear guide and ball screw adopt automatic lubrication supply system to make the machine maintenance convenient and extend the life of the machine. Sink height 700 mm. |
The sink is mounted on a special adjusting bracket. |
Technical specifications

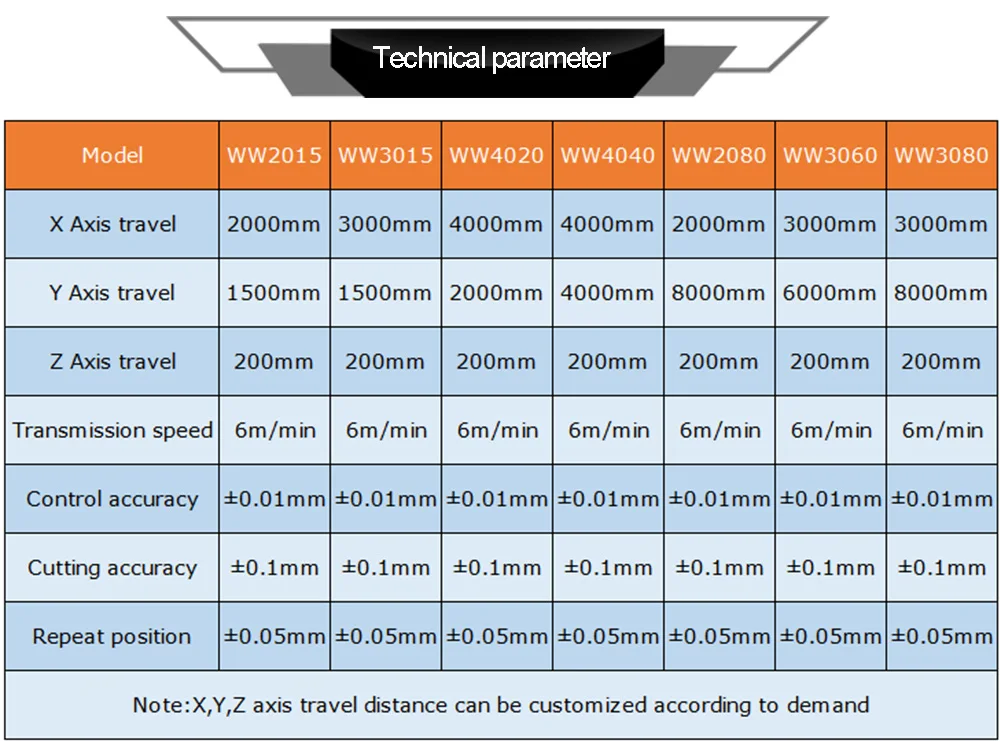

Platform structure | Gantry type |
Available Cutting range | X-3000mm,Y-2000mm,Z-200mm |
Voltage | 380V(220V/420V/110V Accept customization) |
Nominal power | 37 kW / 50 HP |

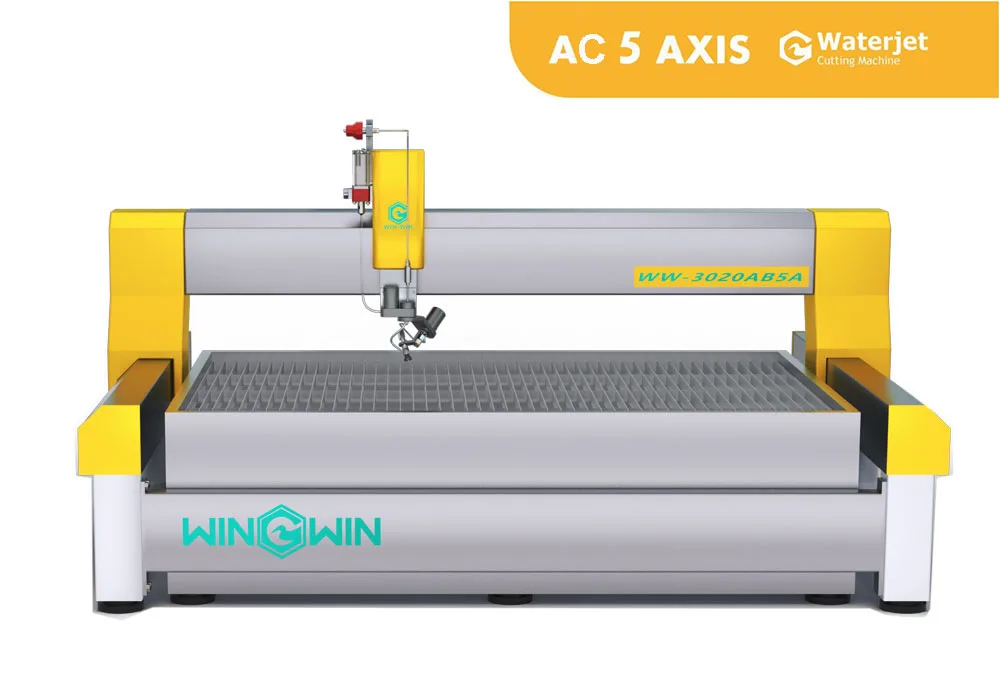

Max Swing Angle | ±68°(AC 5 Axis), ±10°(AB 5 Axis) |
Swing Angle precision | ±0.1° |
Cutting accuracy | ±0.1mm |
Continuous working pressure | 320MPa-380MPa |
Re-position accuracy | 0.025mm |
Max. Travel Speed | 10m/Min. |

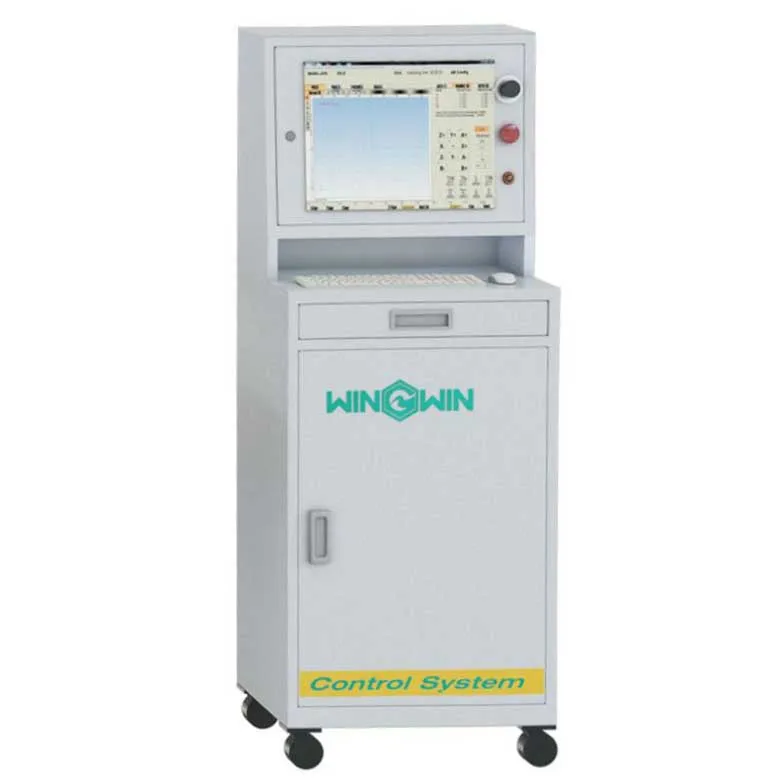

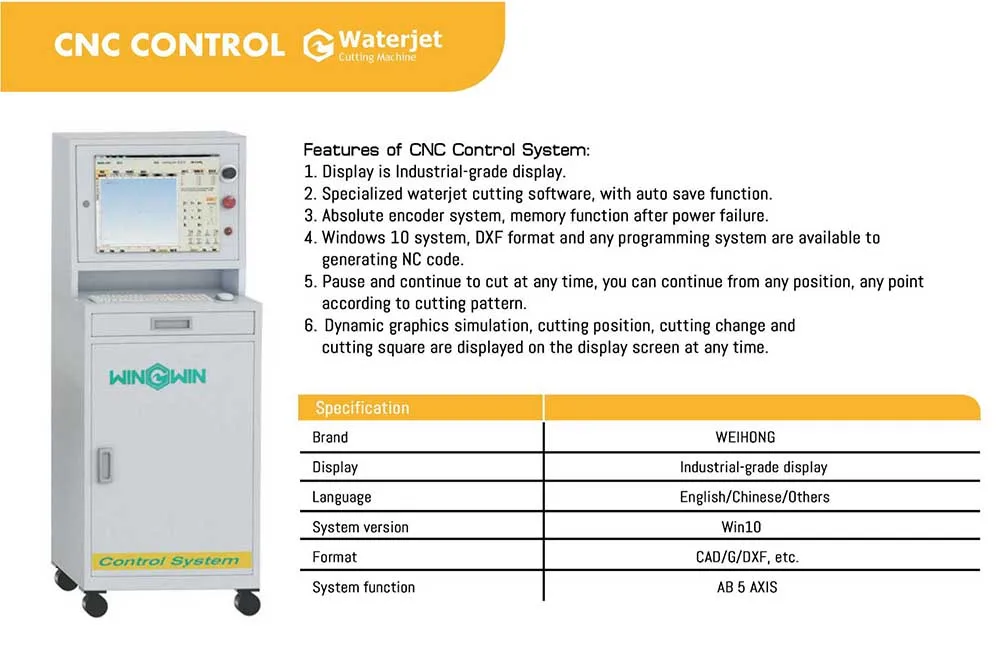

Operating software | WEIHONG |
Nominal power rate of X.Y Axis | 0.8KW/pc |
Nominal power rate of Z.A.B Axis | 0.4KW/pc |
Maximum working pressure | 4136 bar |
Maximum flow | 4.1L/min |
Hydraulic tank capacity | 211L |
Pressure accumulator volume | 1L/2L |
Water inlet pressure | 2.4 - 5.5 bar |
Nominal current | 72 A |
Protection at 400 V / 50 Hz | 80 A |
System Version | Win7/Win10 |
Formats | DXF/G/ENG/OLT |

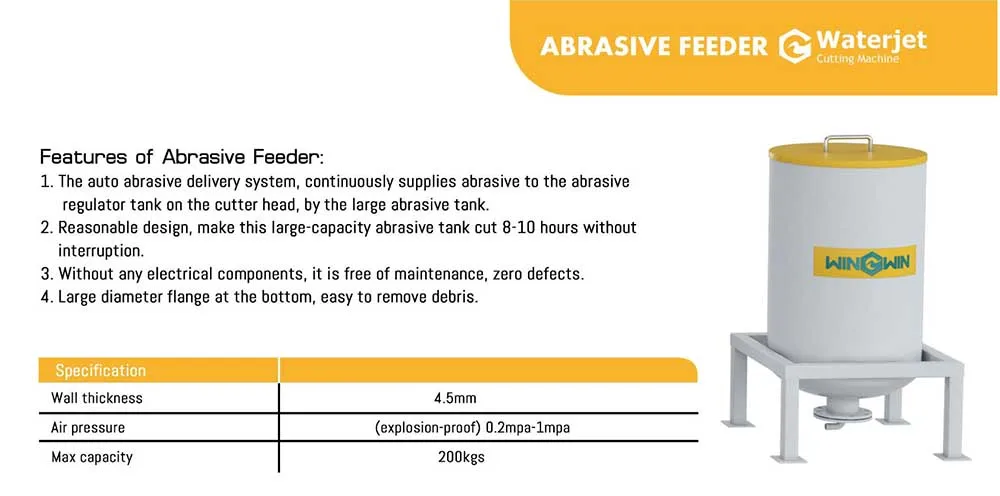

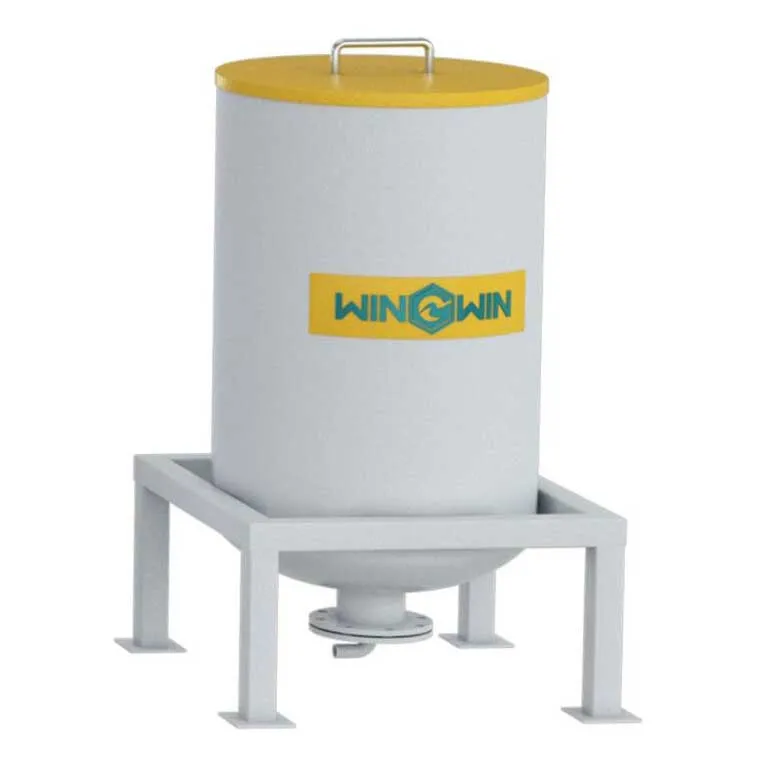

Abrasive delivery system Volume | 200KGS |
Display | Industrial-grade Display |
Total Weight | 5500 Kg |

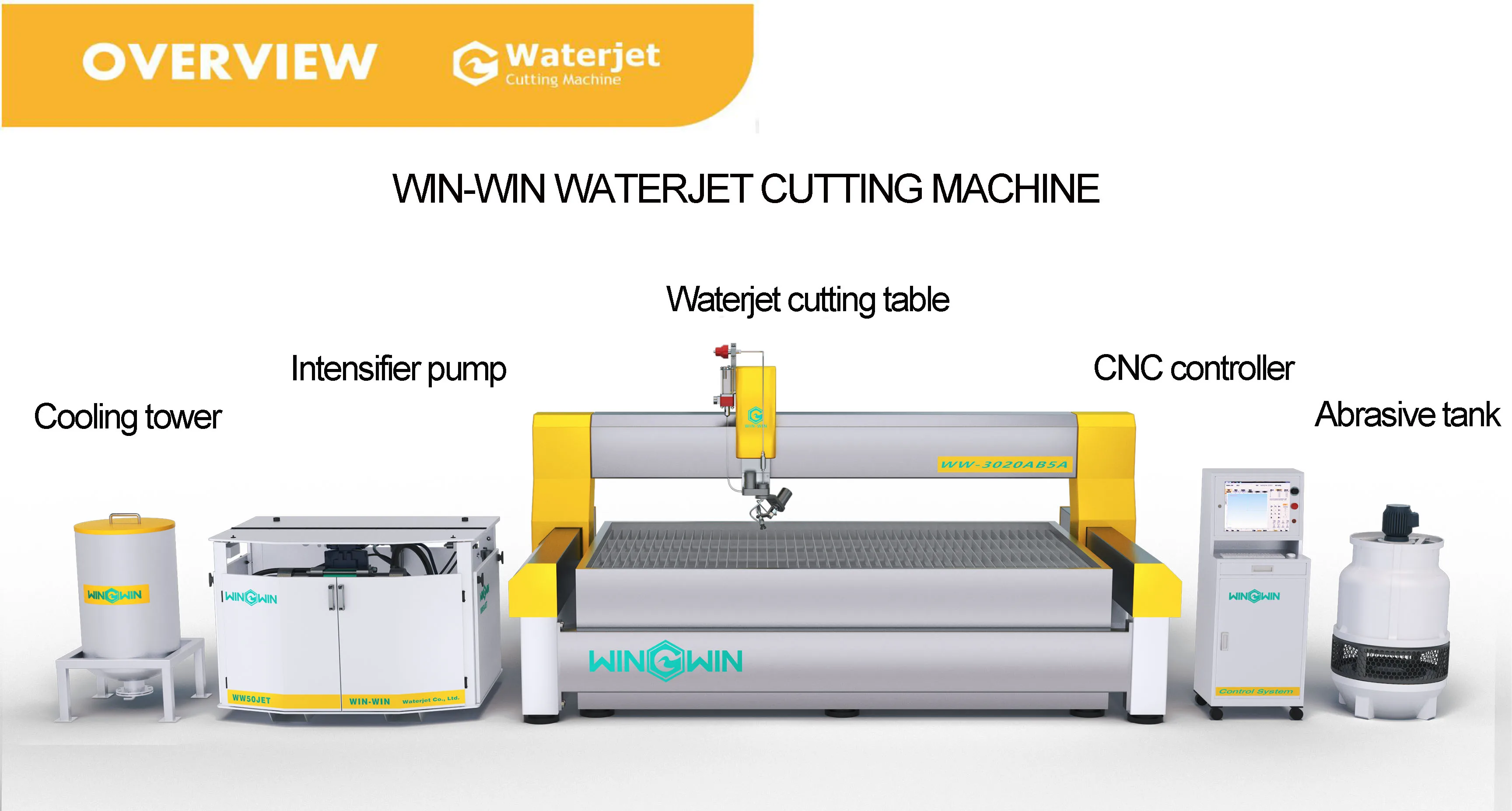

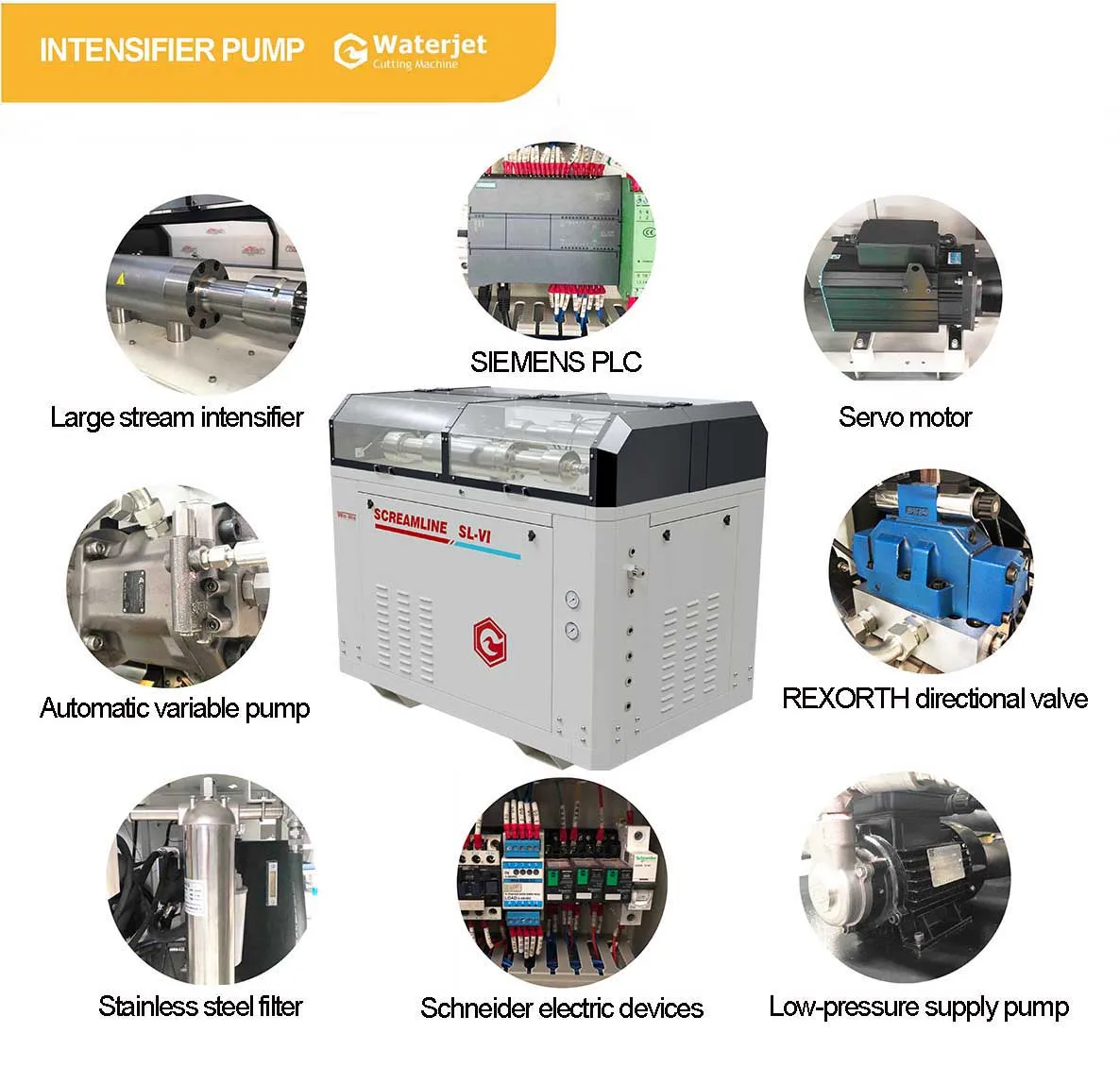

The main parts of water jet cutting machine | ||||||
The split cutting table prevents the influence of long-term stress change on the bearing platform and improves the cutting accuracy. | All stainless steel body, rust and corrosion prevention, prolonging the service life of the equipment. | Strengthening the ball screw and slider can better absorb vibration energy and have higher driving accuracy | Absolute Encoder System,The anti-interference characteristics and data reliability are greatly improved | |||

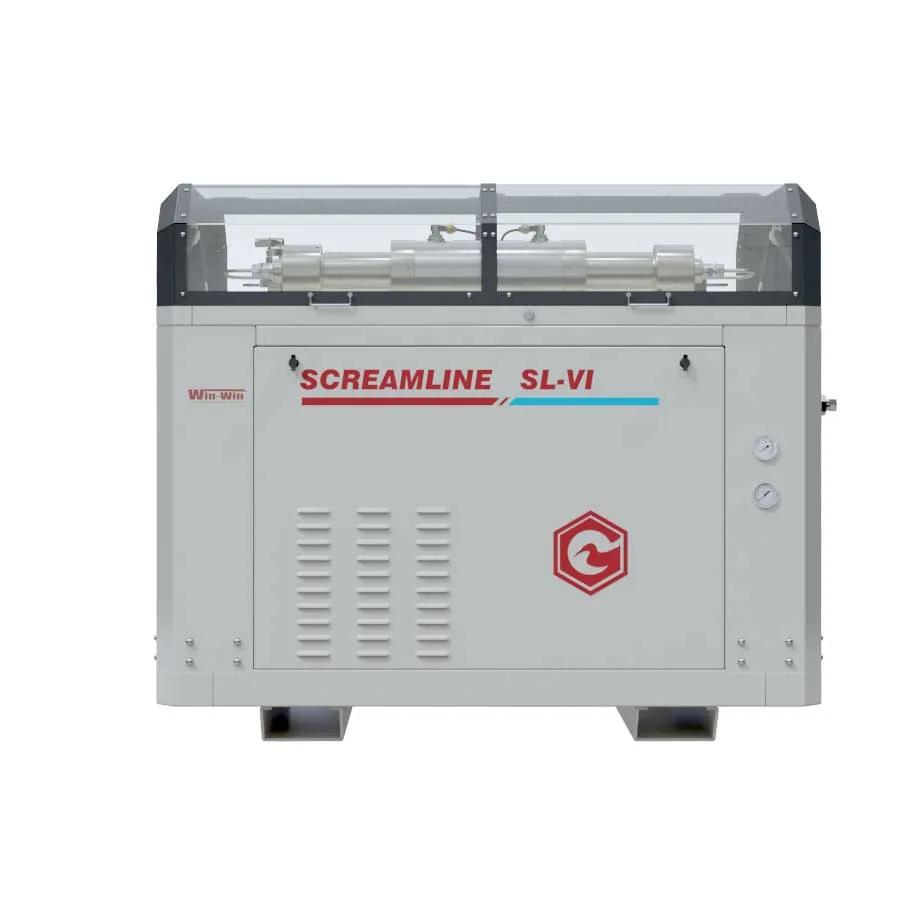

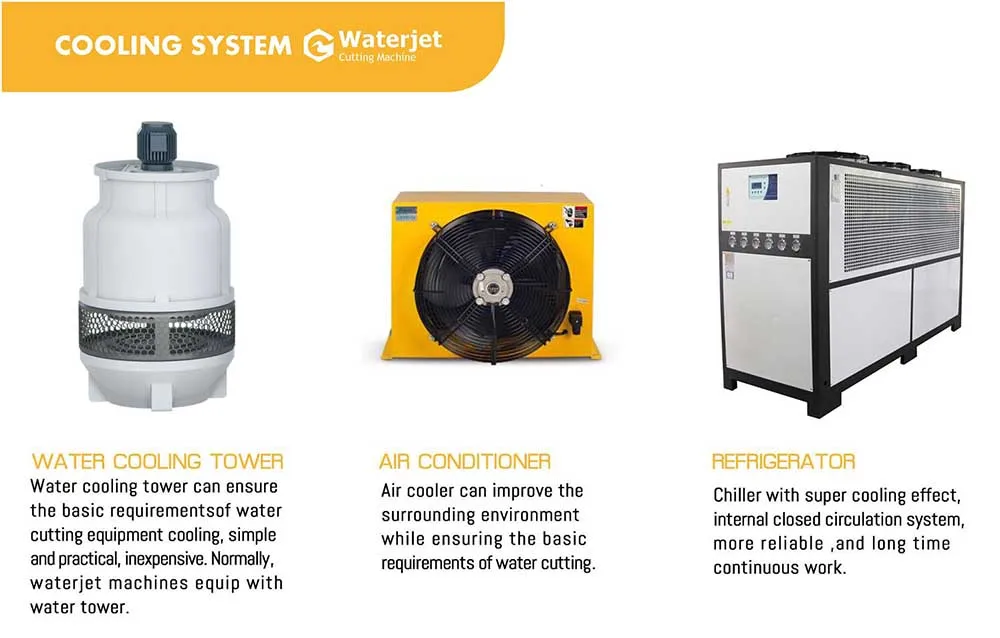

Main Features |
Energy-Saving Stand-by Time no power consumption |
Pressure Stabilization, Low fluctuated pressure byServo Motor, stabilize HP waterjet, extend the service life andimprove accuracy |
Less Noise, Less Heat, Working Noise by Servo Motorless than 65 dBs |
Dual Intensifier Design (Optional), Alternating Work from one to another, continuously work 24/7 |
2L Attenuator, Large Capacity Attenuator, lower thefluctuation of HP Water, Fully-Integrated body, maintenance-free |

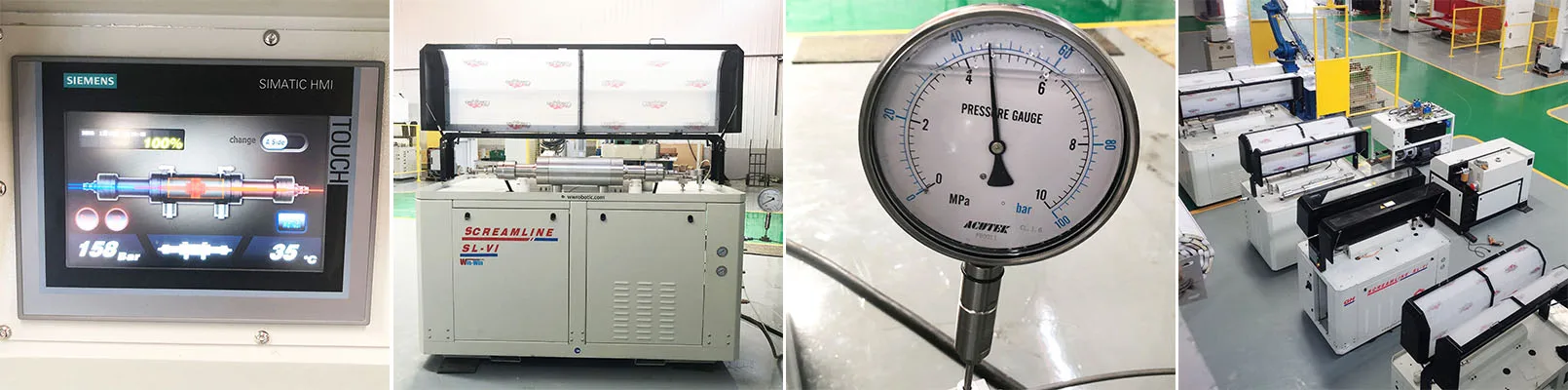

Touch Screen Dynamic Operation Panel, Fast Switching andtroubleshooting, monitoring the work condition of intensifier pump |
Variable Pump, Zero Pressure on Standby - Low Pressure onStartup - High Pressure Operation |
Double Oil Filtration, Filters set on Inlet and Return,ensure high purity of hydraulic oil |
Cutting samples
Cutting speed parameters
Material | Thickness | 0.33mm orifice | ||||
320Mpa | 380Mpa | 420Mpa | ||||
Aluminum | 0.25"(6mm) | 400-520mm | 460-590mm | 500-580mm | ||
0.50"(13mm) | 300-800mm | 350-420mm | 400-510mm | |||
0.75"(19mm) | 220-280mm | 260-380mm | 300-420mm | |||
Stainless steel | 0.25"(6mm) | 200-260mm | 240-310mm | 260-350mm | ||
0.50"(13mm) | 80-120mm | 100-150mm | 125-180mm | |||
0.76"(20mm) | 50-65mm | 70-90mm | 100-120mm | |||
1.18"(30mm) | 15-25mm | 30-40mm | 40-50mm | |||
Glass | 0.25"(6mm) | 1200-1400mm | 1600-1900mm | 2100-2300mm | ||
0.39"(10mm) | 600-700mm | 700-800mm | 820-900mm | |||
0.79"(20mm) | 330-400mm | 400-500mm | 600-800mm | |||
Marble | 0.24"(10mm) | 1000-1200mm | 1200-1400mm | 1350-1550mm | ||
0.79"(20mm) | 400-500mm | 600-700mm | 750-850mm | |||
1.18"(30mm) | 220-300mm | 310-380mm | 400-480mm | |||
1.97"(50mm) | 70-90mm | 100-120mm | 130-150mm | |||
Tile | 0.59"(15mm) | 1200-1400mm | 1400-1500mm | 1600-1800mm | ||
Copper plate | 0.20"(5mm) | 500-600mm | 700-800mm | 900-1000mm | ||
0.59"(15mm) | 190-220mm | 220-300mm | 330-400mm | |||
1.18"(30mm) | 80-100mm | 100-120mm | 120-150mm | |||
Our Service & FAQ
Guarantee of abrasive waterjet cutting:
1 YEAR for the whole machine, within 1 year under normal use and maintenance, if something is wrong with the machine, you will get spare parts FOR FREE, consumable parts are excluded. Out of 1 year, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support for abrasive waterjet cutting:
1, Technical support by phone, Whatsapp, email or Skype and so on.
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Abrasive waterjet cutting After sales services:
Normal machine is properly adjusted before dispatch. The machine will be accomplished within one week after arriving at user's site, we can provide free training for your operator. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
1 YEAR for the whole machine, within 1 year under normal use and maintenance, if something is wrong with the machine, you will get spare parts FOR FREE, consumable parts are excluded. Out of 1 year, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support for abrasive waterjet cutting:
1, Technical support by phone, Whatsapp, email or Skype and so on.
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
Abrasive waterjet cutting After sales services:
Normal machine is properly adjusted before dispatch. The machine will be accomplished within one week after arriving at user's site, we can provide free training for your operator. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.

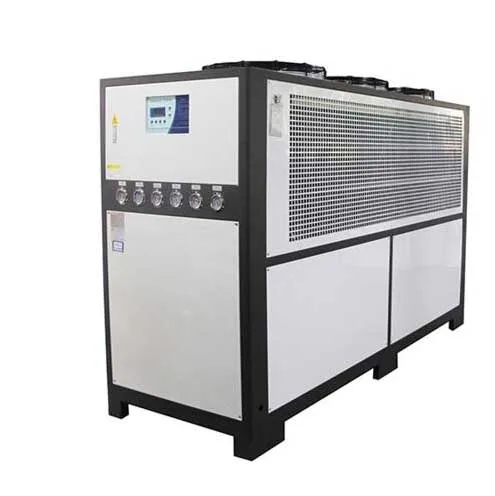

QUESTION | ANSWER |
Reference data on max thickness of different material | The Max. Thickness for ALL Metal Material: 100mm For Wood: 150mm For Rubber: 100mm For Tile/Marble: 150mm |
Advantages of Win-Win in terms of software and hardware | 1. The most popular Waterjet CNC System in China: WEIHONG 2. Absolute Encoder System 3. Full 304 Stainless Steel Structure 4. Oil-Immersed Linear Guide Assembly 5. Thick Linear Guide, Large Ball Screw 6. Full Enclosed Dust Cover 7. Height of Z-AxIs 200mm 8. International Standard Spare Parts, Easily Purchase in local Market 9. Accumulator Maintenance-Free 10. Variable Oil Pump, High Performance Motor 11. Double Oil Filtration System 12. We could provide OEM service for customers 13. Core Components Warranty for 2 Years 14. Permanently Technical and After-Service online |
All parts that need to change for every day, week, month, quarter month, half yearly and yearly. | For Consumption: In General our machine consupmtion for Abrasive, Electric, Water as Chinese Standard: US$6.5/hour. the general consumable parts: Orifice, Nozzle, On/off Valve Repair Kits,High-Pressure Seal Kits The purchase amount according to our customers' feedback: US$1000-2000/year It depends the daily working condition of each machine. |
The same abbrasive material to cut all different type of material like steel, wood, titanium, copper ? please list out what type of abbrasive for what type material to cut | 1. It's able to use same type of abrasive to cut different materials. 2. As well, you could adopt different type of abrasive to cut different materials. 3. If you adopt larger mesh for abrasive, the cutting edge would be smoother. If you adopt lower mesh for abrasive, the cutting speed would be faster. |
Can we recycle the abbrasive material? | In general, we couldn't recycle the abrasive |
How many types and sizes of nozzles? | Our machine: 7.14mm x 1.02mm x 76.2mm / 7.14mm x 0.76mm x 76.2mm We can customize the special inner diameter of nozzles according to customer requirement. |
How to do programming? | We use AutoCAD software to draw the shape. save as a DXF file, then transit it to CNC System by USB key. And use NC Studio(software of WEIHONG System) to execute the processing. All the methods we will note it into the manual. |
Does software show "working time" for nozzle? | Yes |
Does software show maintenance reminder? | Yes |
Does software calculate cycle time and speed after program is done? | Yes |
What is the weight and dimension of cutting table, intensifier pump, cooling tower, abrassive feeder and CNC control system? | Cutting Table: 1500 Kgs/2.89㎡ Intensifier Pump: 1000 Kgs/1,2㎡ Abrasive Feeder: 100KG/0.5㎡ Cooling Tower: 50KG/0.5㎡ Equipments are meeting the weight limitation (Actual weight should calculate the Workpiece.) |
