Ultrasonic nanomaterial dispersion machine for sale
- Category: >>>
- Supplier: Xian Toption Instrument Co. Ltd.
Share on (1600330604388):
Product Overview
Description
Product Description
Ultrasonic generator transport ordinary electric energy to high efficient transducer, through piezoelectric ceramics effect to
produce high-frequency vibration, thus to make different frequency sonic wave, sonic wave through liquid to produce void effect, finally achieve ultrasonic crush and disperse effect.
produce high-frequency vibration, thus to make different frequency sonic wave, sonic wave through liquid to produce void effect, finally achieve ultrasonic crush and disperse effect.
Specification
model | TUE-150 | TUE-250 | TUE-650 | TUE-900 | TUE-1000 | TUE-1200 | TUE-1800 | TUE-3000 | |||||||
frequency(khz) | 20-25KHz Automatic tracking | 20-25KHz | 20-25KHz | 20-25KHz | 20-25KHz | 19.5-20.5KHz | 19.5-20.5KHz | 19.5-20.5KHz | |||||||
power(w) | 150W | 250W | 650W | 900W | 1000W | 1200W | 1800W | 3000W | |||||||
horn(mm) | Φ6 | Φ6 | Φ6 | Φ6 or Φ10 | Φ6 or Φ10 | Φ20 | Φ20 or Φ22 | Φ35 | |||||||
optional horn(mm) | Φ2、Φ3，Φ8， Φ10 | Φ2、Φ3，Φ8， Φ10 | Φ2、Φ3、Φ8、Φ10、 Φ12 | Φ2、Φ3、Φ8、 Φ10、Φ12、Φ15 | Φ2、Φ3、Φ8、 Φ10、Φ12、 Φ15、Φ20 | Φ6、Φ10、 Φ15、Φ22、 Φ25 | Φ10、Φ15、 Φ20、Φ25、 Φ28 | Φ15、Φ25、Φ28 | |||||||
disruption capacity(ml) | 0.1-150 | 0.1-250 | 0.2-500 | 0.2-600 | 0.1-800 | 10-1200 | 50-1500 | 500-5000 | |||||||
input method | Touch control | 20KG | |||||||||||||

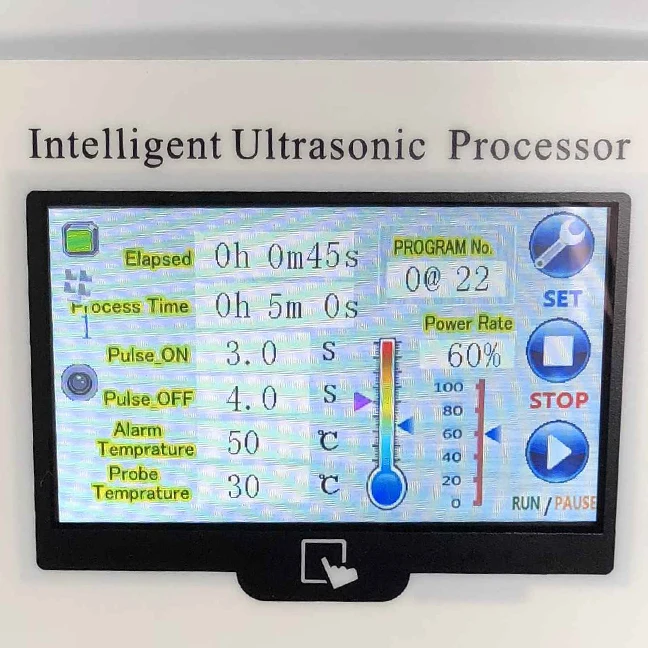

display | 7 inch TFT | New | |||||||||||||
display items | Temperature, power, wave form, amplitude, pulse, time etc, total 10 items. | Liquid and powder mixing | |||||||||||||
protection device | Self-diagnostic function, program automatic error correction, over-load / over- temp. Protection display,etc. | China | Over-temperature, protection | ||||||||||||
Login password protection | Have | Toption | |||||||||||||
Computer on-line function | Optional | 110V/220V | |||||||||||||
Sound proof box | Illumination, sterilization, automatic lifting, etc function. | 470*305*430mm | |||||||||||||
Other function | Date storage 20 sets, print, ultrasonic interval / continuously etc function. | CE/ISP9001:2008 | |||||||||||||

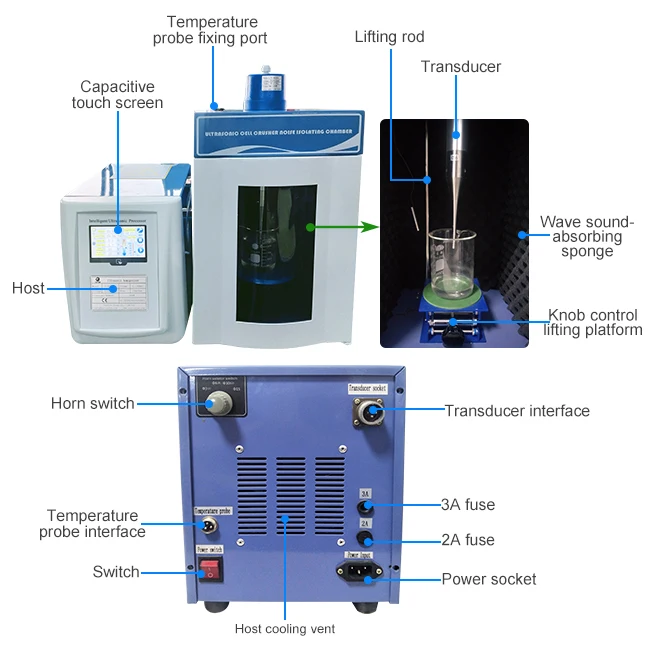

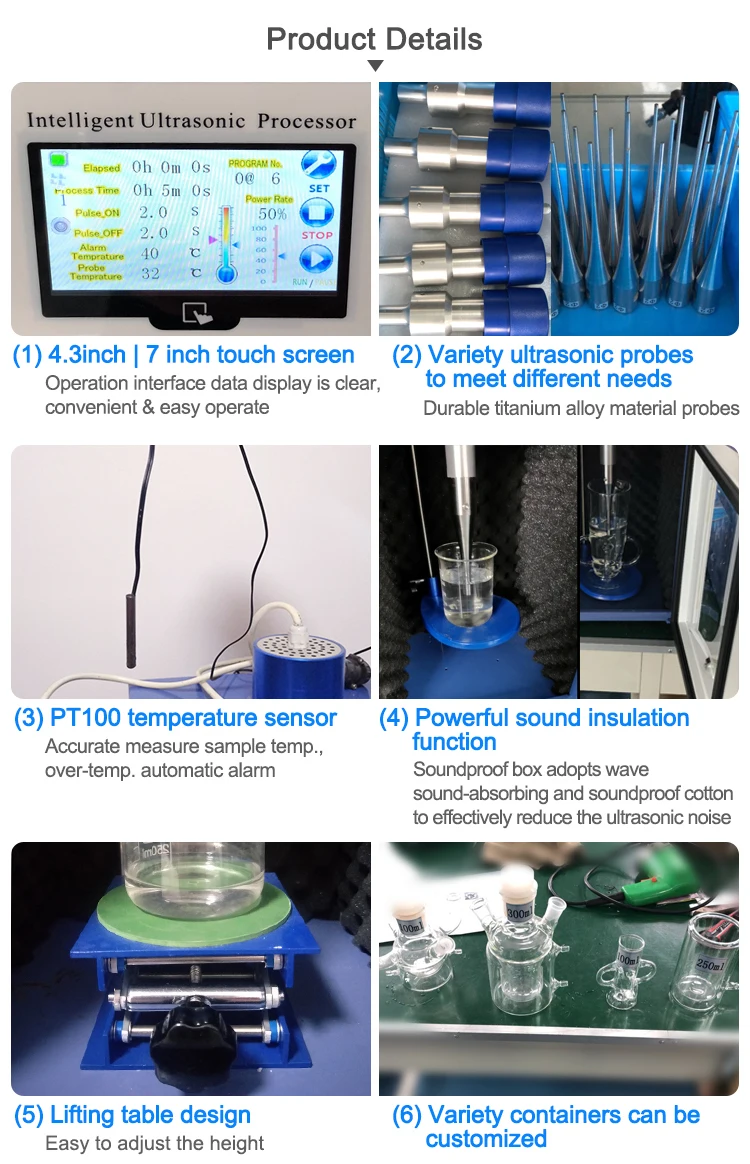

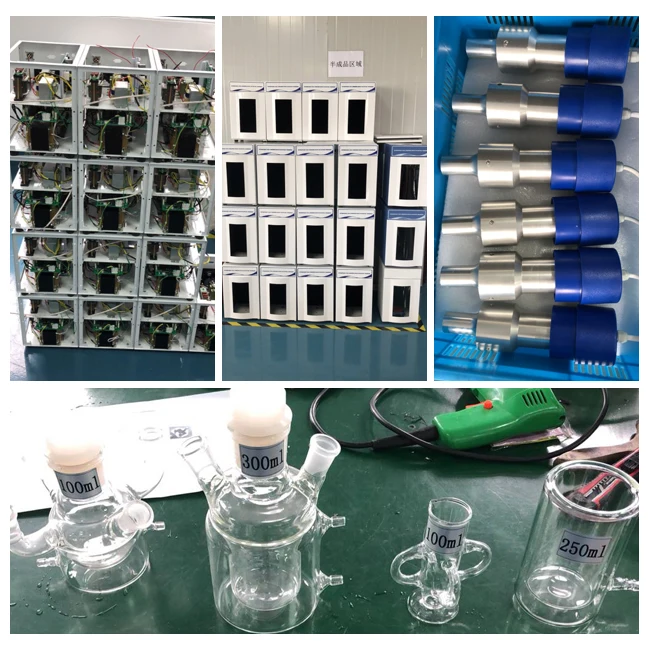

Details Images
Packing & Delivery

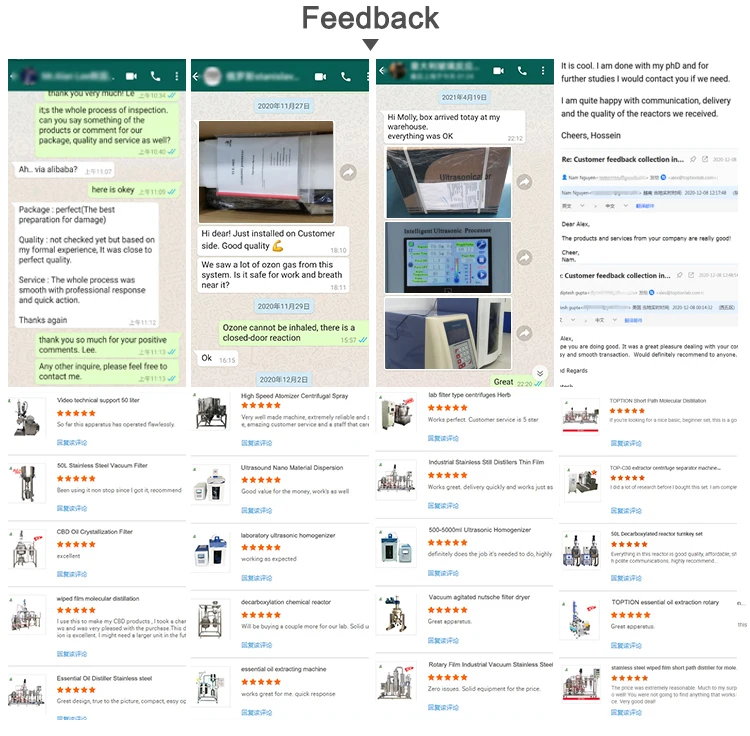

Feedback
Certifications
Exhibition
Company Profile
TOPTION INSTRUMENT Co., Ltd., has spent many years becoming a world leading lab solution provider, supply the best cbd oil distillation one stop solutions and products for our global customers. Excellent quality, advanced technology, and professional service are crucial for making lab research and production successful.
Since 2004 TOPTION'S distillation & extraction equipment has been used and praised in many counties including Canada, United States, Poland, Spain and Russia, etc. Our stainless steel, high precision molecular distillation equipment currently services more than 85% of the market share in the cbd industry.
TOPTION has passed ISO9001 & CE certification. Choose TOPTION to maximize your results. We believe, TOPTION will be your TOP OPTION.
Since 2004 TOPTION'S distillation & extraction equipment has been used and praised in many counties including Canada, United States, Poland, Spain and Russia, etc. Our stainless steel, high precision molecular distillation equipment currently services more than 85% of the market share in the cbd industry.
TOPTION has passed ISO9001 & CE certification. Choose TOPTION to maximize your results. We believe, TOPTION will be your TOP OPTION.
