High quality BOE mipi to hdm i TFT IPS monochrome lcd Open cell 5K 10.1 inch monochrome lcd display
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600330619245):
Product Overview
Description
Related Products
Product Description

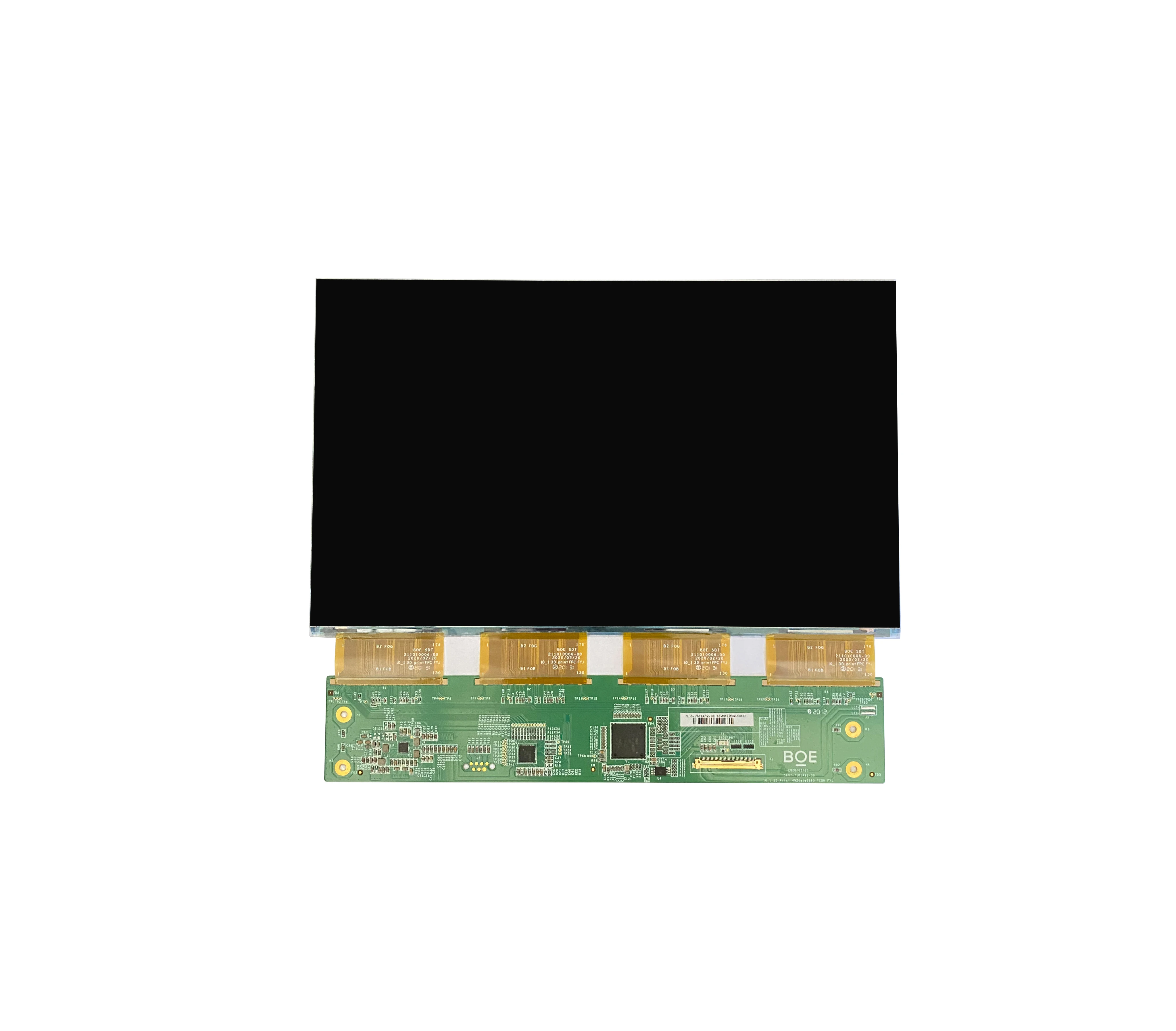

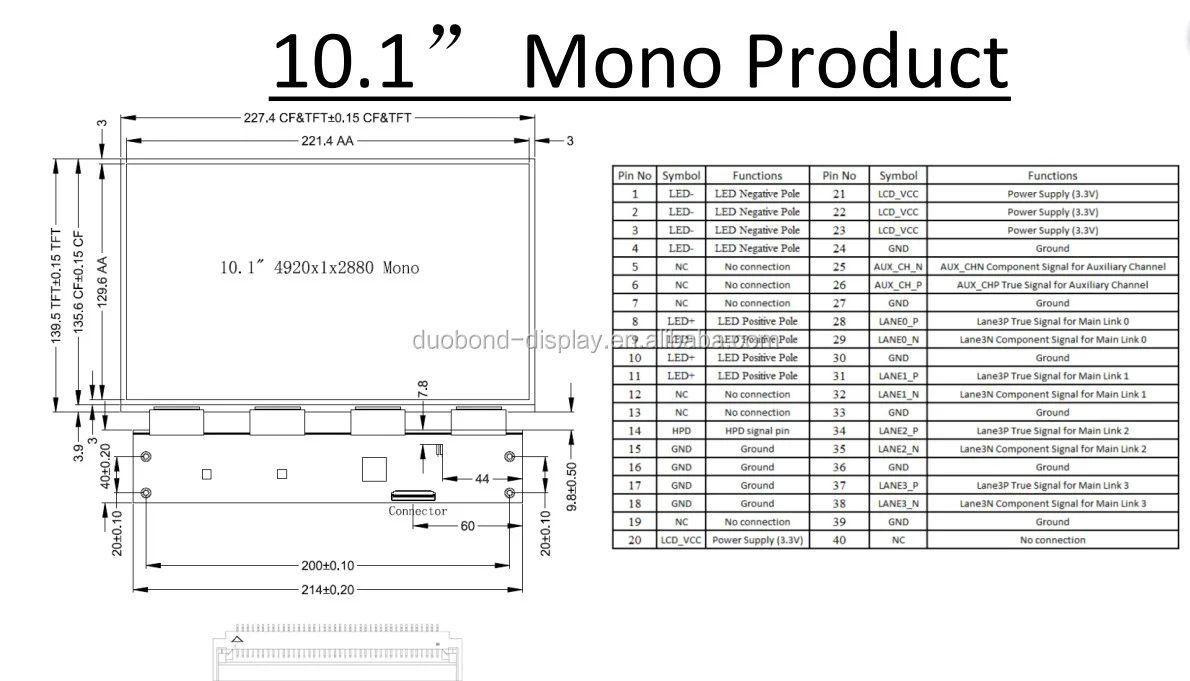

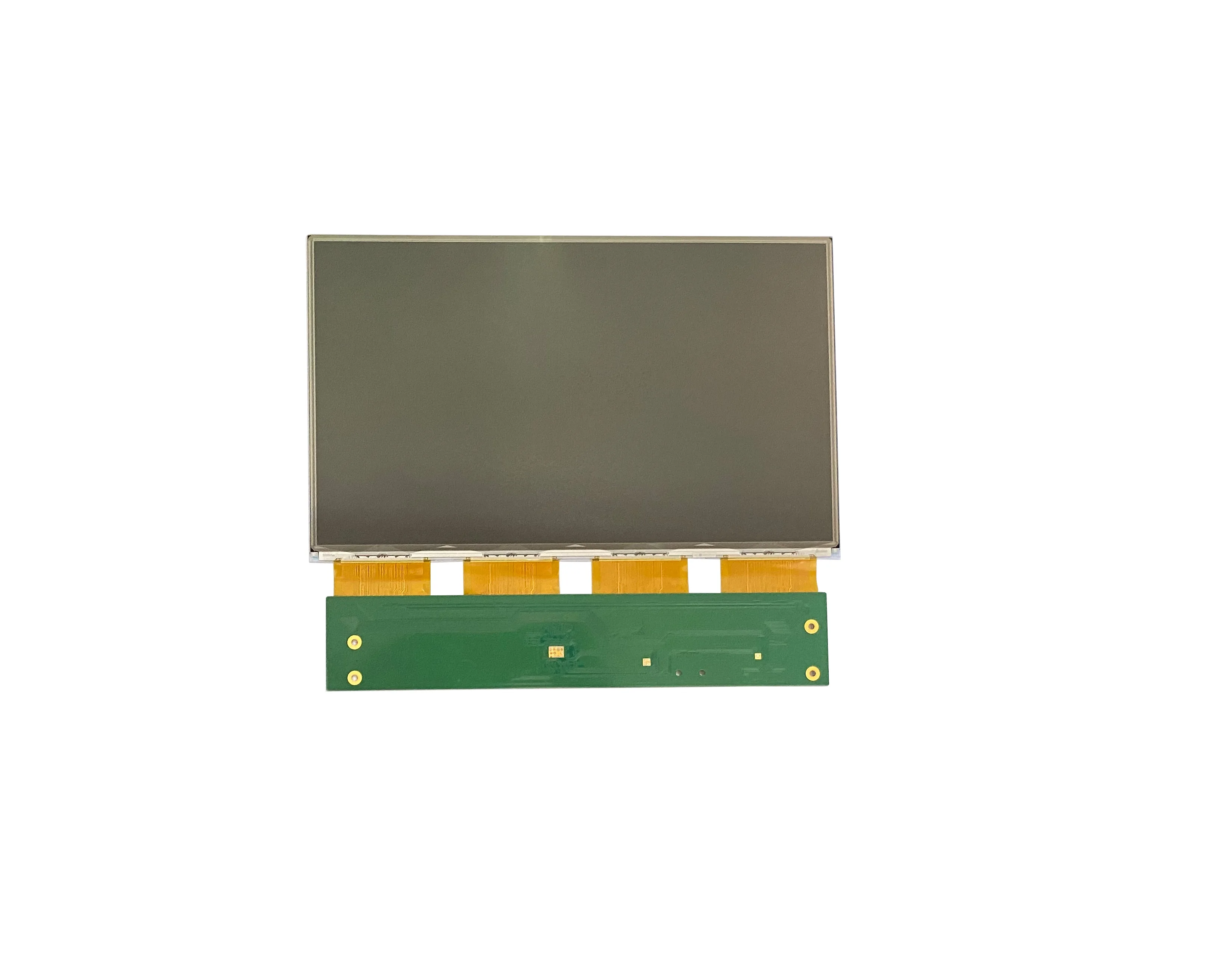

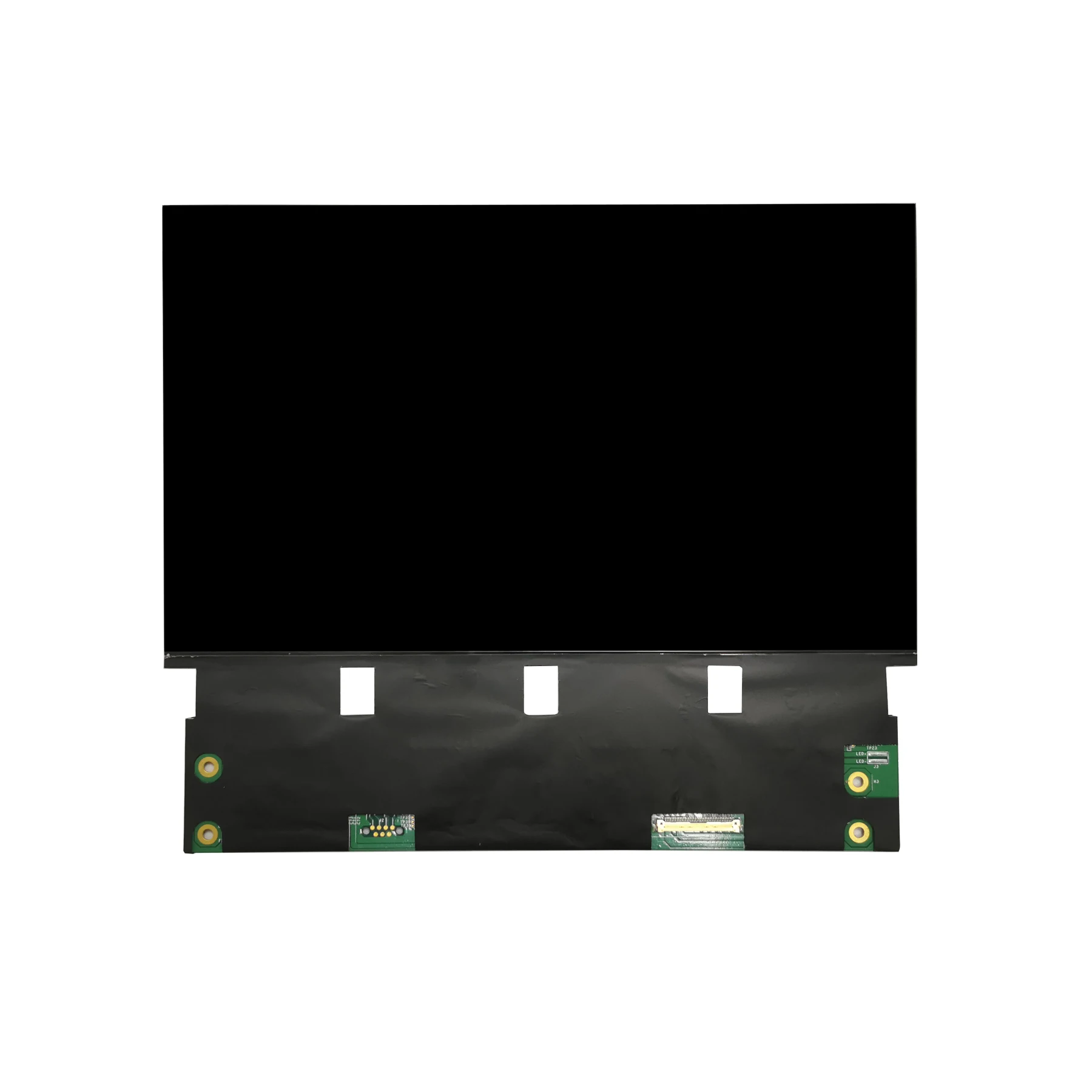

BOE & DuoBond 10.1 inch 5K 4920*2880 monochrome LCD for 3D Printer
No. | Item | Specification |
1 | LCD size | 10.1 inch |
2 | Model Name | RV101FBB-N00 |
3 | Resolution | 4920*1*2880 (Single sub-pixel monochrome LCD) |

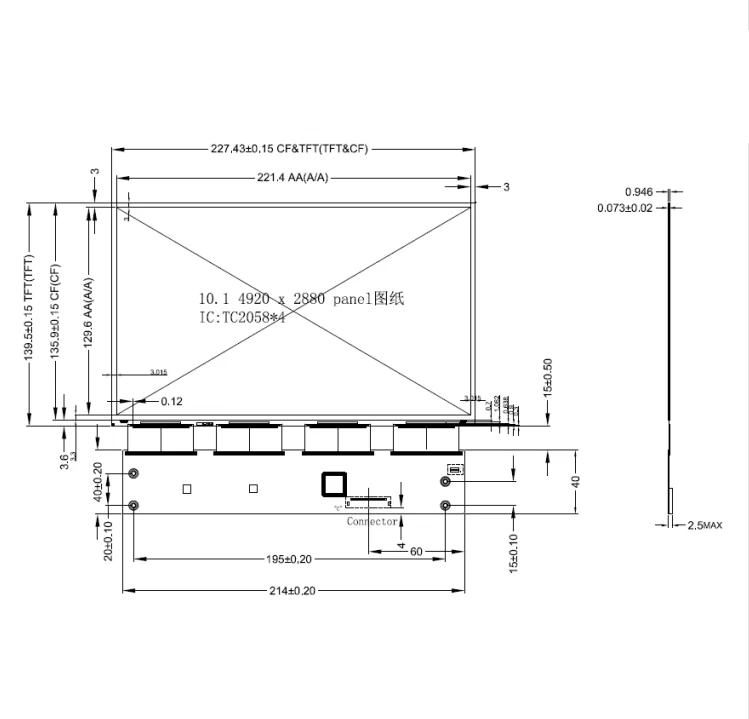

4 | Display Area | 221.4*129.6 mm |
5 | Outline Size | 227.43*139.5*2.5 mm |
6 | Backlight | Original open cell from BOE, LCD without backlight |
7 | Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
8 | Pixel pitch | 45*45 um |
9 | UV transmission | 5~7% |
10 | Signal Interface | 40 pins eDP |
11 | Environment | Operating Temp.: 0~ 70 °C Storage Temp.: -10 ~ 80 °C |
12 | Contrast Ratio（405nm UV) | 400:1 |
13 | Application | 3D printer |
Details Images
Advantages of 10.1 inch 5K monochrome LCD for 3D Printer
(1).Original Open Cell from BOE (monochrome LCD without backlight).
(2).10.1 inch monochrome LCD is a real monochrome LCD without sub-pixel，not RGB display with color filter removed.
(3).High Transmittance: 405 nm UV light, monochrome 5~7% VS RGB LCD <1%
(4).High Resolution : Pixel Pitch 45*45 um
(5).Long Life Cycle :Much longer lifetime than RGB LCD

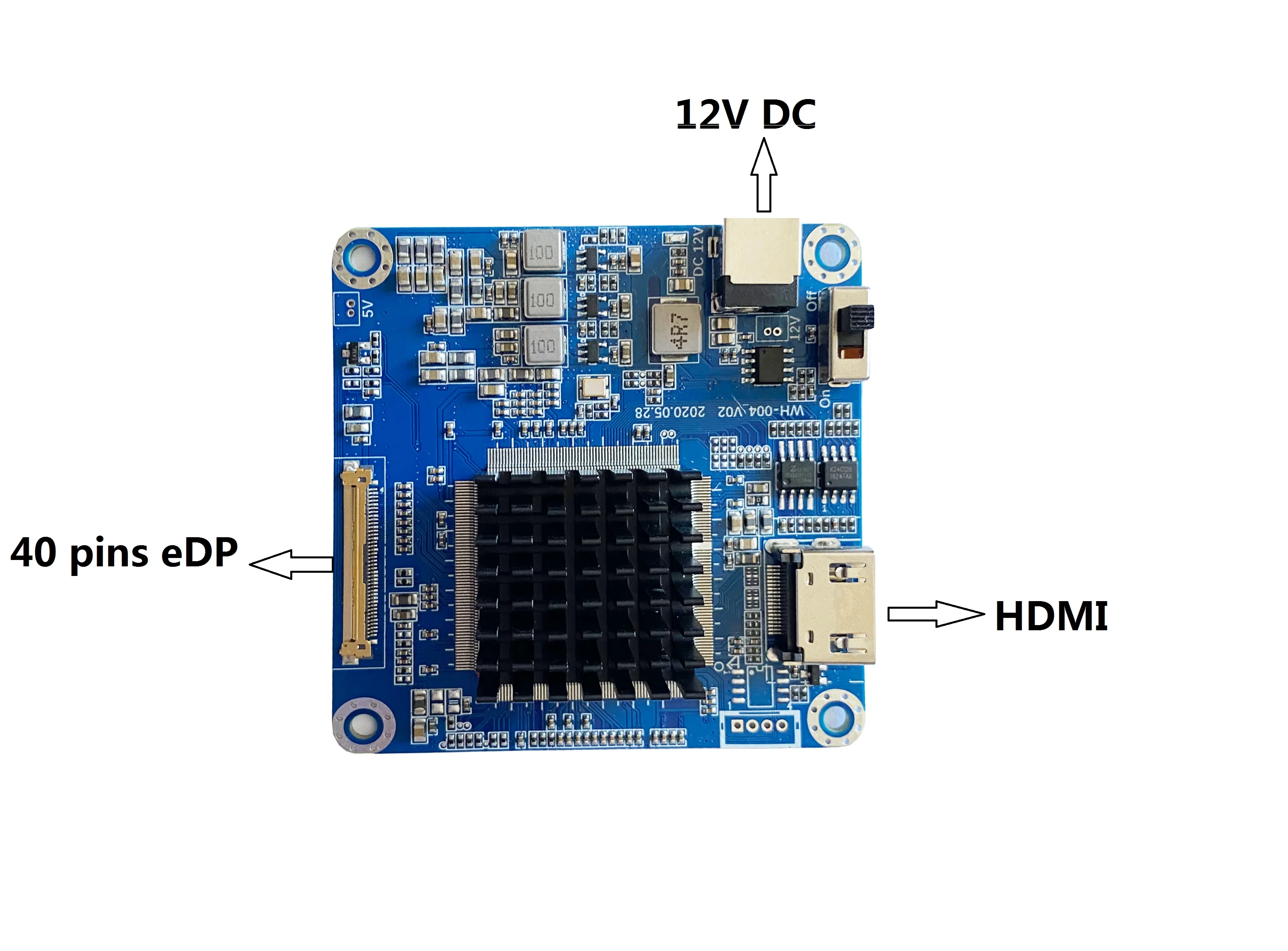

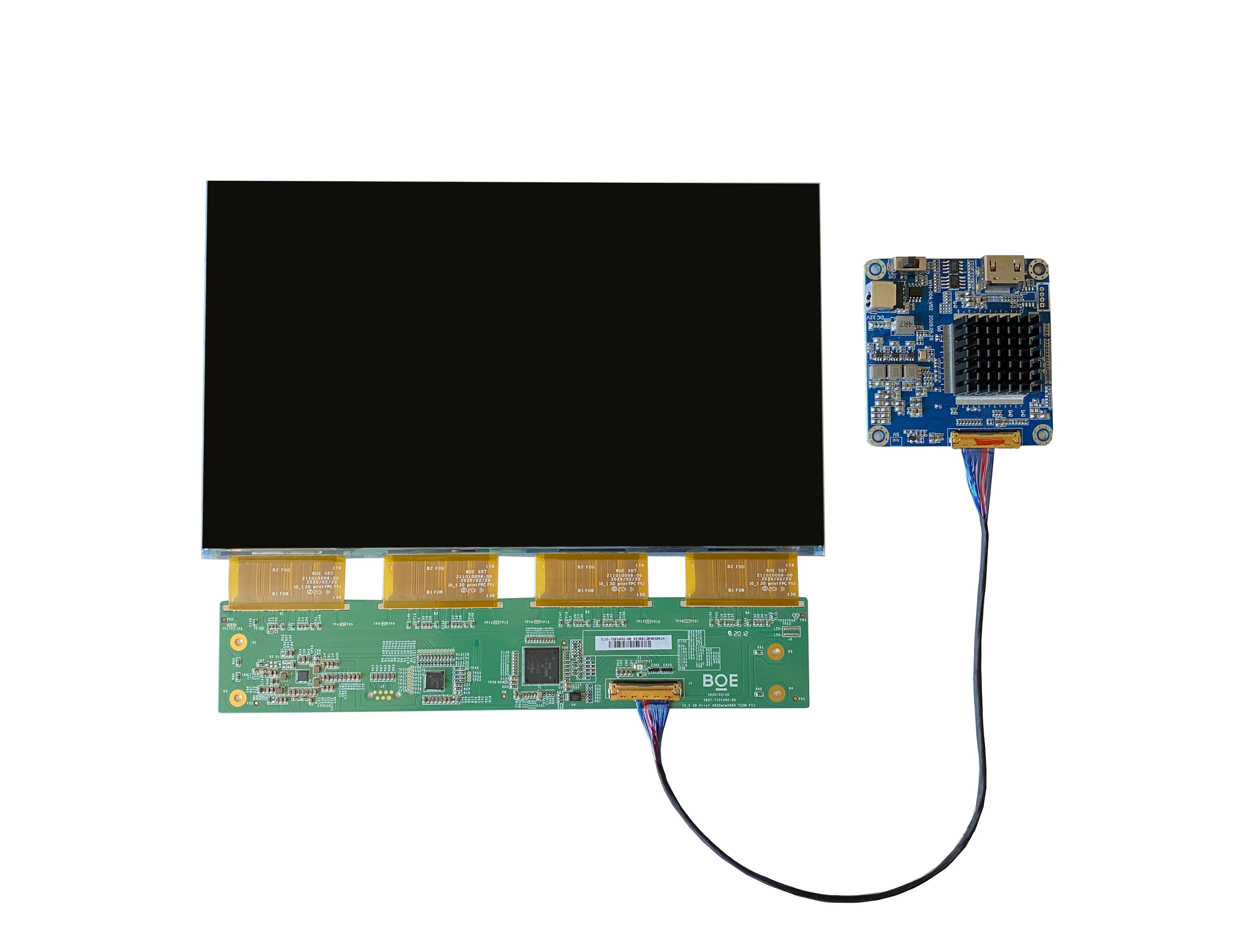

HDMI driver board for 10.1 inch 5K LCD screen
(We can provide HDMI board and LCD cable)

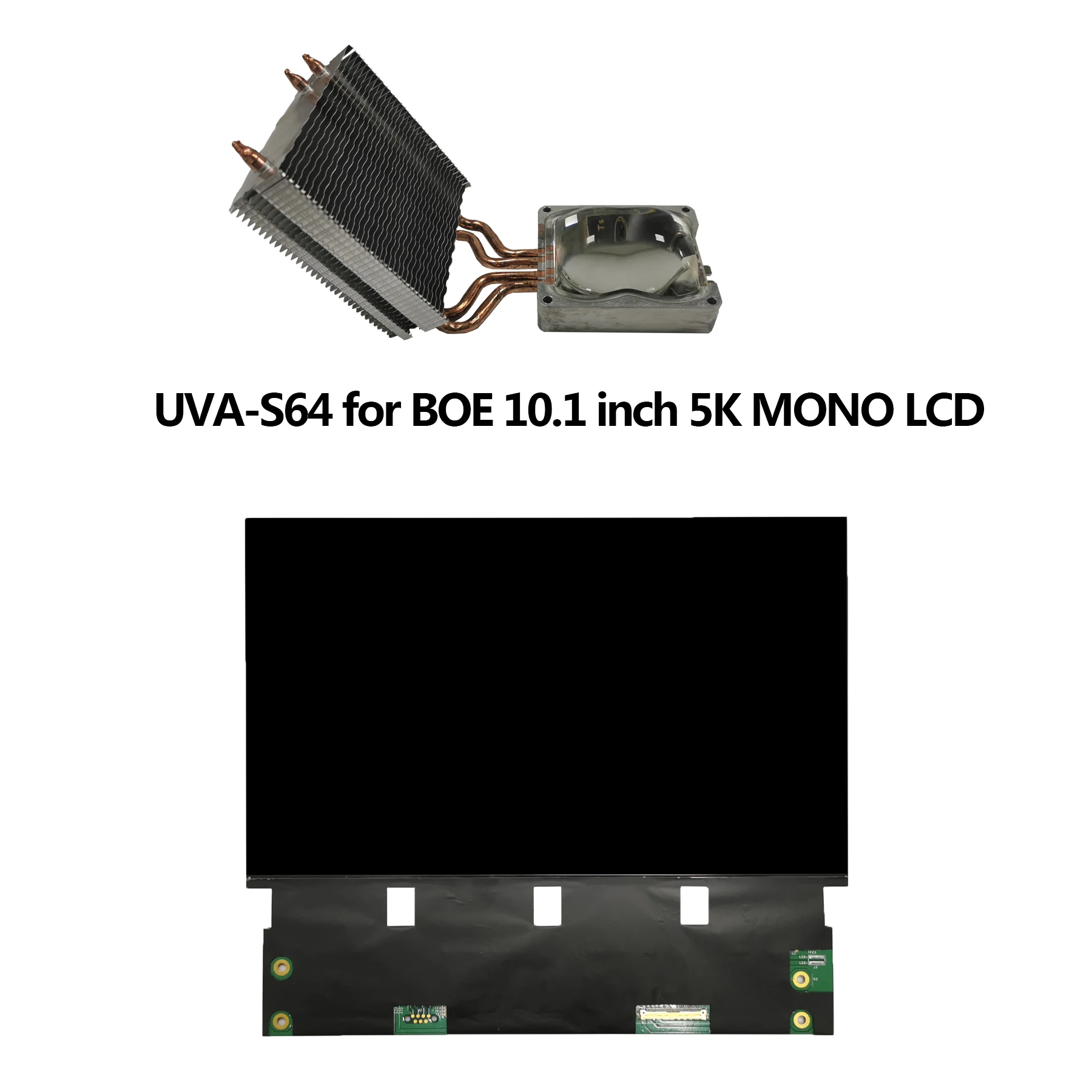

UVA-S64

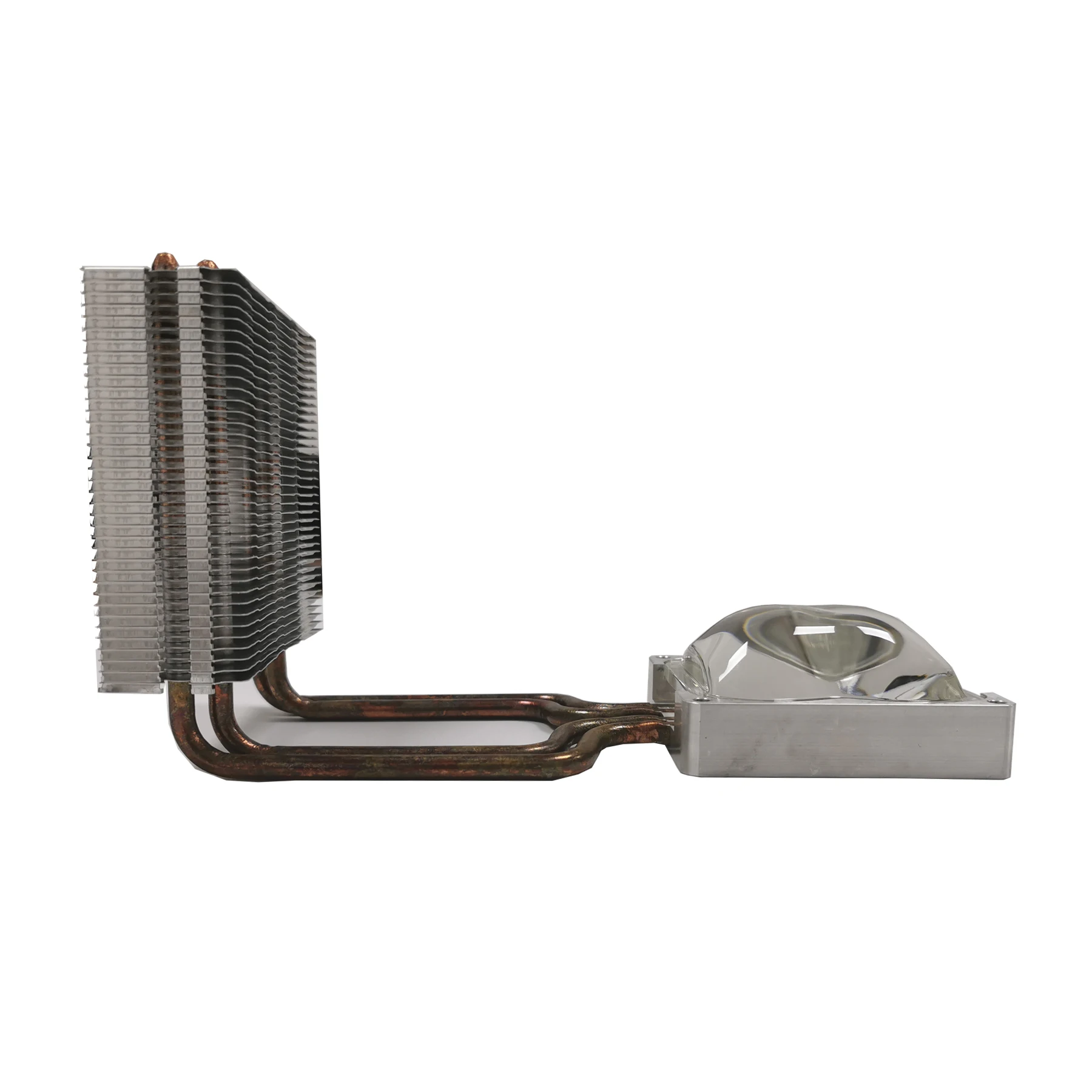

405nm Parallel UV light source.This is a product independently developed by Duobond for the 10.1 inch 3D printer
(It has a matching UV light source and driver board)
UV light uniformity about 90%！Please contact sales for datasheet.
Product packaging
About Us
Size and Feature | Model No | Resolution | Interface | Viewing angle | Color |
5.5" 2K LCD with driver board | 1440*2560 | MIPI (2 ch, 4 data lanes) , 50 pins , Connector | 80/80/80/80 (Typ.)(CR≥10) | RGB | |
5.5'' 4K LCD with driver board | 2160*3840 | MIPI (2 ch, 4 data lanes) , 60 pins Connector | 85/85/85/85 (Typ.)(CR≥10) | RGB | |
5.5'' MONO 4K LCD with driver board | 2160*3840 | MIPI 4 Lanes x 2 | 85/85/85/85(Typ.)(CR≥10) | MONO | |
5.96'' MONO 2K LCD with driver board | 1620*2560 | 30 pins MIPI | 80/80/80/80(Typ.)(CR≥10) | MONO | |
6.6'' MONO 4K LCD with driver board | 4098x2560 | 50 Pins MIPI | Free | MONO | |
8.9'' 2K LCD with driver board | 1600*2560 | MIPI (2 ch, 4 data lanes) , 61 pins Connector | 80/80/80/80 (Typ.)(CR≥10) | RGB | |
8.9'' 4K MONO LCD with driver board | 3840x2400 | 50pins MIPI | 85/85/85/85(Typ.)(CR≥10) | MONO | |
10.1'' 5K MONO LCD with driver board | 4920*2880 | 40 pins eDP | 80/80/80/80 (Typ.)(CR>10) | MONO | |
12.5'' 4K LCD with driver board | 3840x2160 | eDP 40 pins | 89/89/89/89 (Typ.)(CR≥10) | RGB | |
13.3'' 4K MONO LCD with driver board | 3840x2160 | 40pins eDP | 85/85/85/85(Typ.)(CR≥10) | MONO |
Certifications
Patent Certificate
We designed parallel light sources with patent certificate.
Patent number: ZL 2019 3 0018260.5
Patent number: ZL 2019 2 0120538.4
Patent number: ZL 2019 3 0018797.1
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 10.1 inch 5k monochrome LCD in stock,can ship them within 7 working days.
Q: Does your product have any warranty?
A: It is well known that UV damage LCDs, and the heat generated by resin curing damages LCDs. Different user cause different damages to LCDs. We guarantee that when you receive the LCD, it will work properly. We do not provide guarantees for damage caused during use.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A: We provide comprehensive shipping methods.
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
