Shenzhen OEM All Dielectric Self Supporting Fiber Optic SM MM 8 12 24 48 Core Fiber Optic Span 100m ADSS Cable
- Category: >>>
- Supplier: JFOPT CO. LTD.
Share on (1600330700783):
Product Overview
Description
Shenzhen OEM All Dielectric Self Supporting Fiber Optic SM MM 8 12 24 48 Core Fiber Optic Span 100m ADSS Cable
PRODUCT DESCRIPTION
ADSS (single sheath)

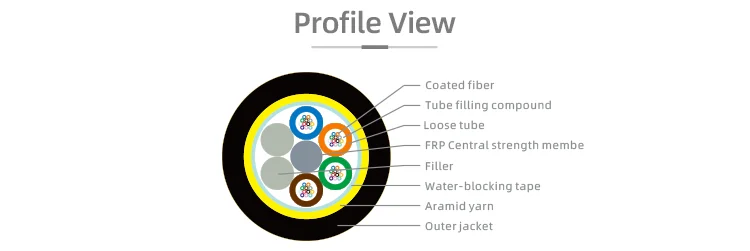

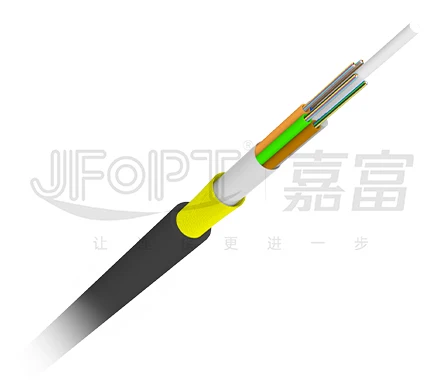

The structure of ADSS All-dielectric Self-supporting Cable is to sheath 250um fiber into a loose tube (PBT) , and the loose tubes are filled with water-resistant filling compound.The central strength member is made of FRP, non-metallic material. The loose tubes (and fillers) are twisted around the central strength member into a compact and round shape, the gap amount them is filled with water blocking filling compounds. Water blocking tape wrapped outside the cable core, the aramid yarn is evenly wound around the water blocking tape.The cable is completed with a polyethylene (PE) sheath.

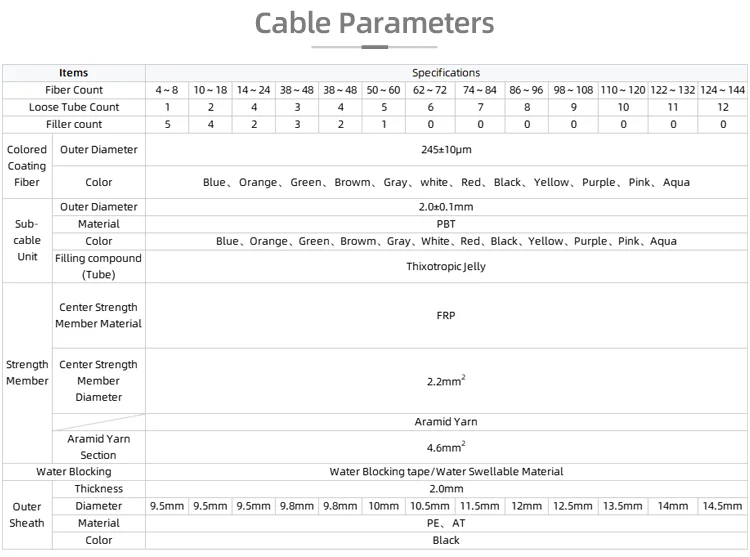

ORDERING INFORMATION
Item | Parameter | ||
Cable Model | ADSS (Loose tube stranded with single sheath) | ||
Fiber Type | SM: G652D/G657A1/G657A2/G657B3 MM: OM1/OM2/OM3/OM4/OM5 | ||
Fiber Count | 1~144 | ||
Outer Sheath | Material | PE/AT/customized | |
Diameter | 9.5~14.5mm | ||
Color | Black/customized | ||
PRODUCT DETAILS
Single mode | ||||||||||||||||
Items | Unit | G.652D | ||||||||||||||
Mode Field Diameter | μm | 8.6～9.5±7 | ||||||||||||||
Cladding Diameter | μm | 125±1 | ||||||||||||||
Cladding Non-Circularity | % | ≤1 | ||||||||||||||
Coating Diameter | μm | 245±10 | ||||||||||||||
Attenuation Coefficient | 1310nm | dB/km | ≤0.36 | |||||||||||||
1550nm | dB/km | ≤0.22 | ||||||||||||||
Chromatic Dispersion | 1280～1330nm | ps/nm/km | ≤0.35 | |||||||||||||
1550nm | ps/nm/km | ≤0.18 | ||||||||||||||
Zero Dispersion Wavelength | nm | 1300～1322 | ||||||||||||||
PMD Coefficient | ps/√km | ≤0.2 | ||||||||||||||

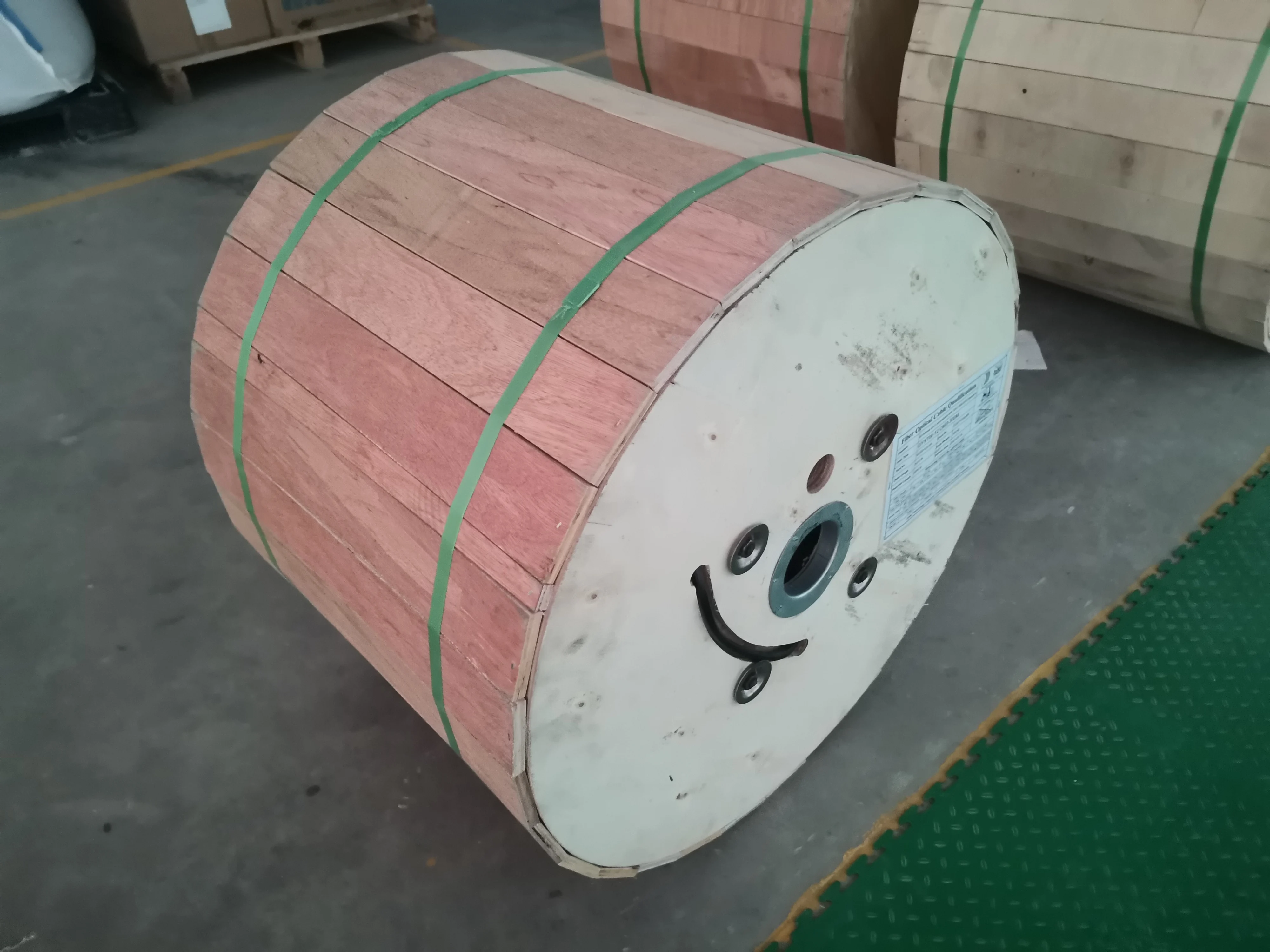

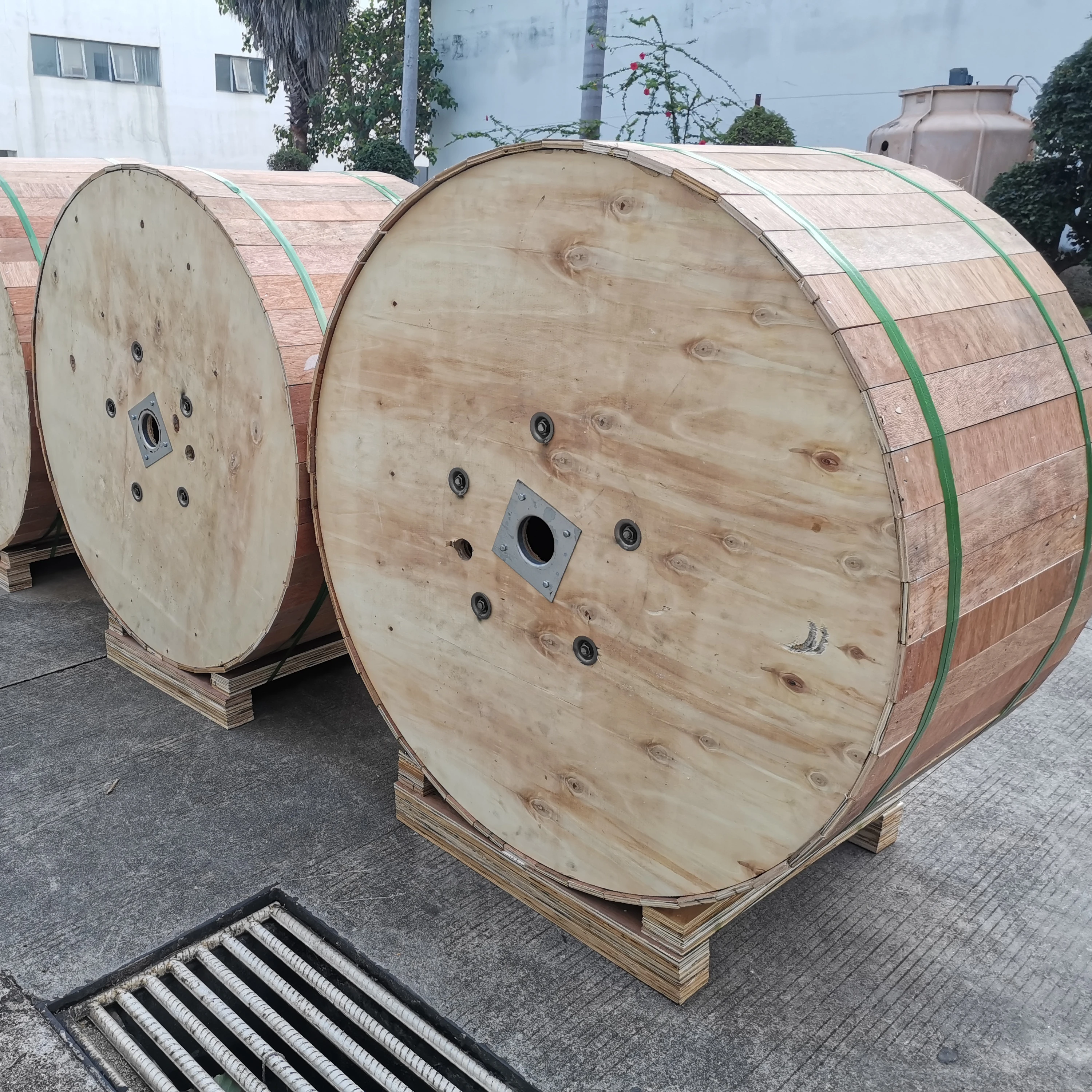

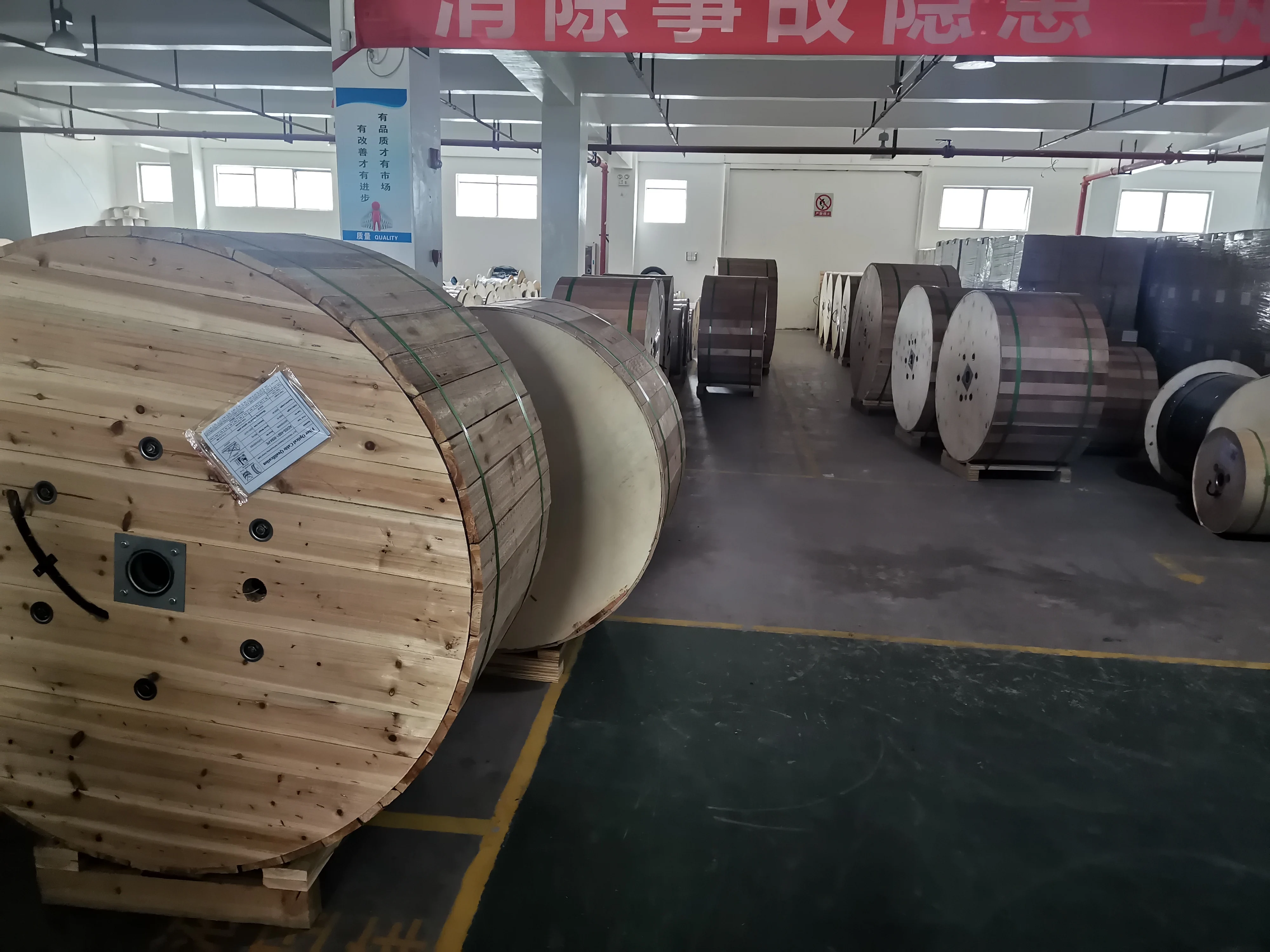

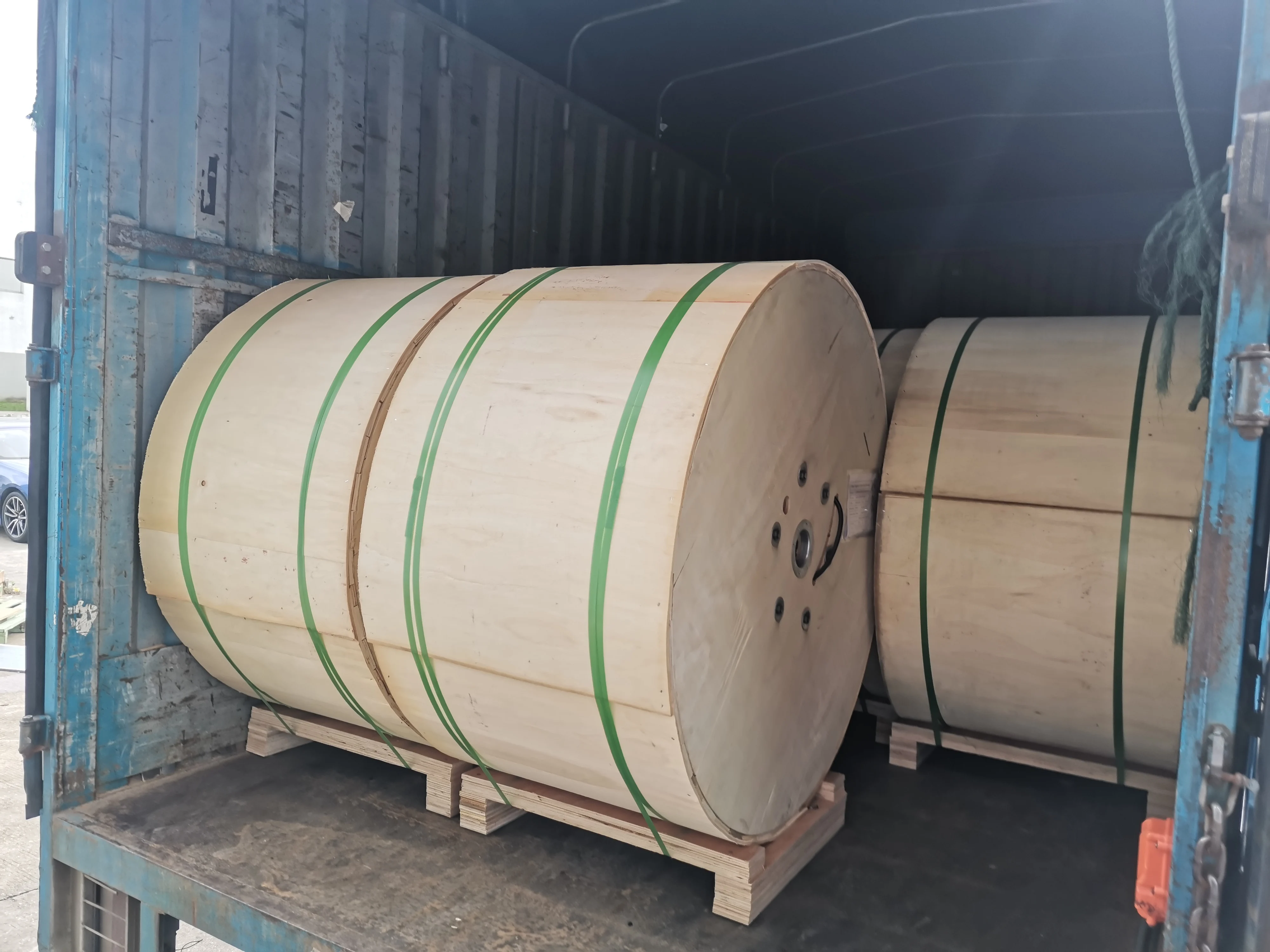

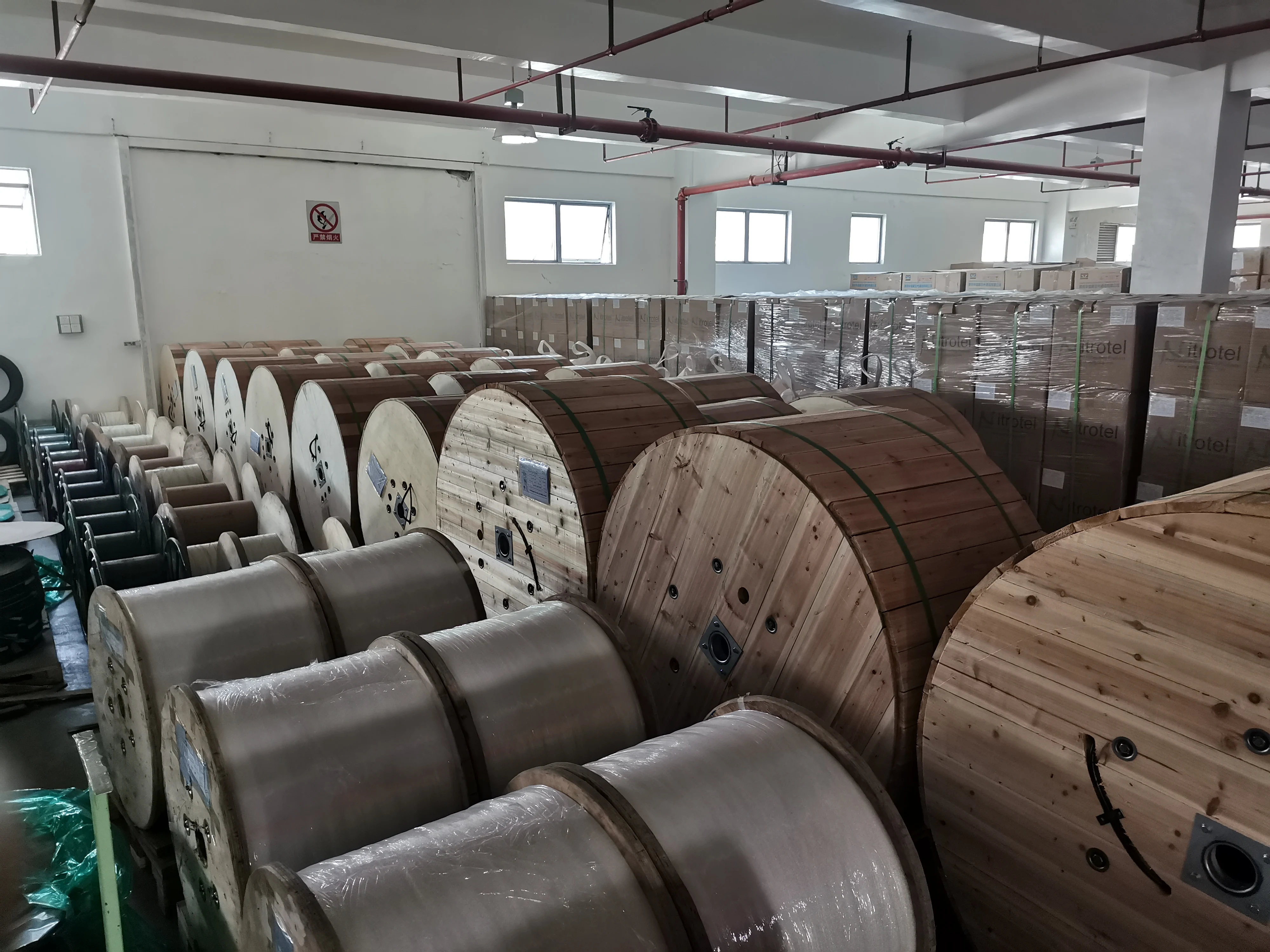

PRODUCT PACKAGING
