High resolution BOE TFT IPS MIPI to HDM I RGB 2160x3840 5.5 inch 4K LCD panel for 3D printer
- Category: >>>
- Supplier: Shenzhen Aptus Technology Co. Ltd
Share on (1600330746204):
Product Overview
Description
Product Description

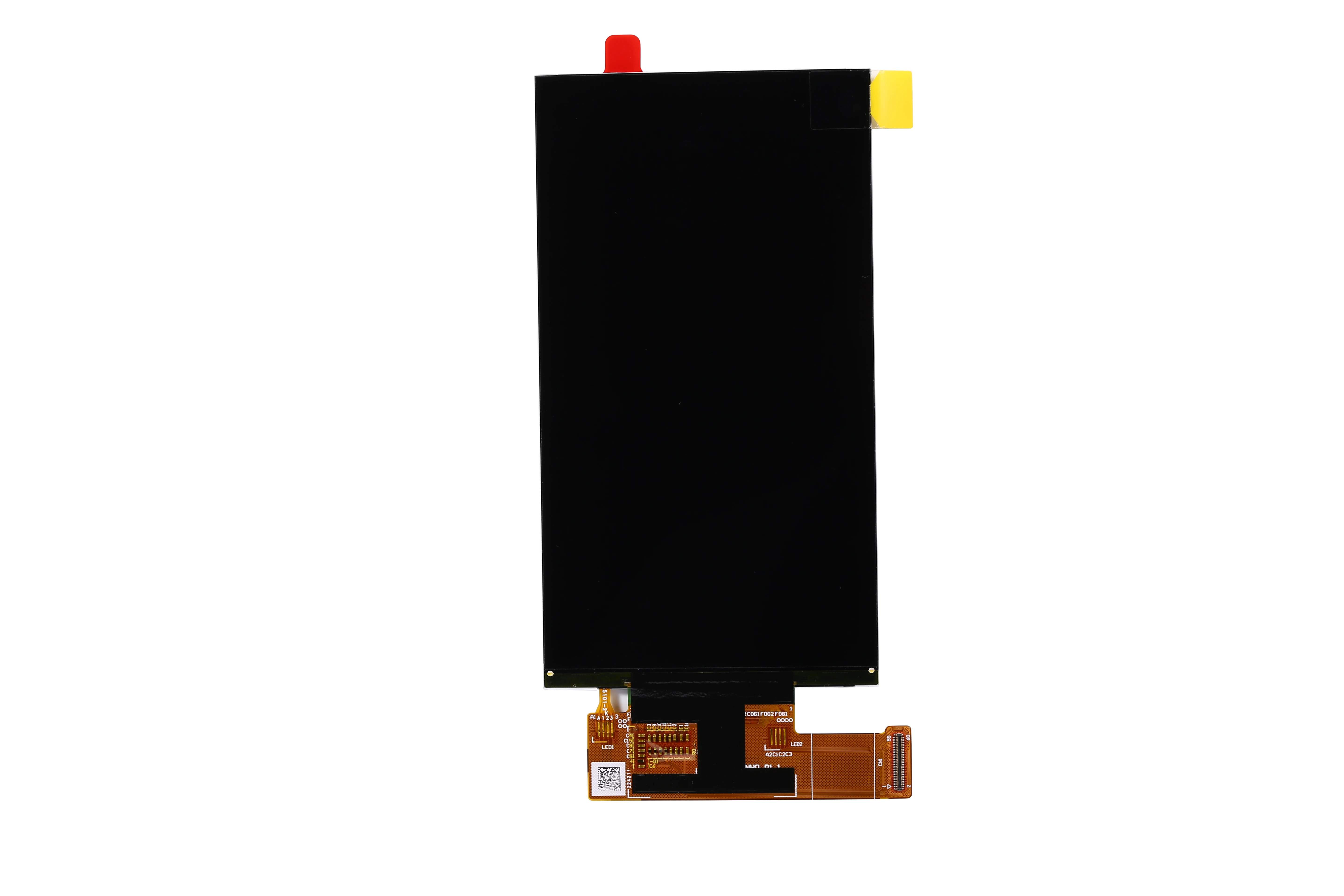

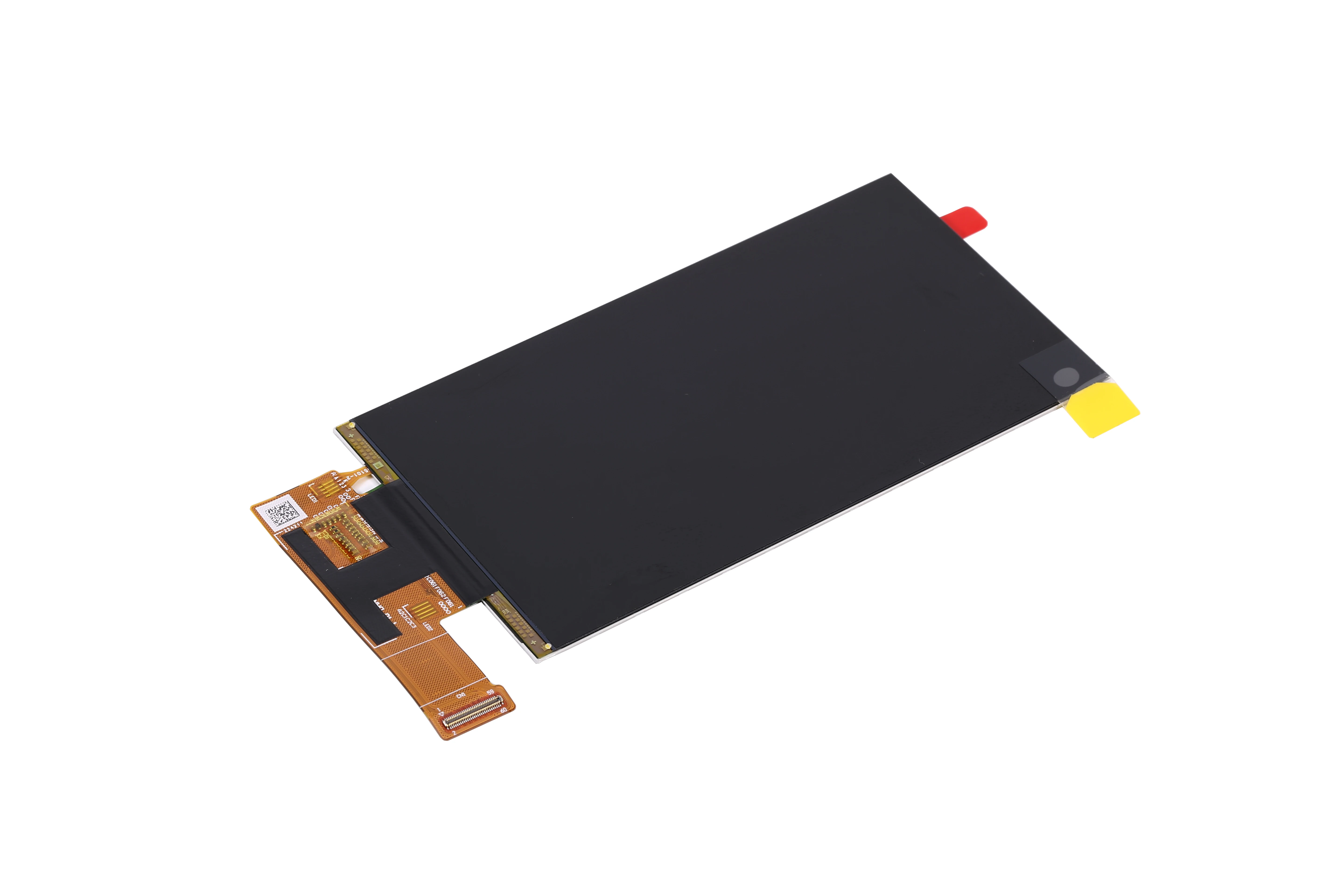

BOE 5.5 inch 2160*3840 4K lcd module
No. | Item | Spec |
1 | panel brand | BOE |
2 | panel size | 5.5 inch |
3 | Resolution | 2160*3840,4K LCD screen |
4 | Active area | 68.04(H)×120.96(V) mm |
5 | Outline Size | 70.26(H)×133.1(V) ×1.67(D) mm |
6 | Backlight | We can remove the backlight |
7 | Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
8 | Pixel Pitch | 31.5*31.5 um |

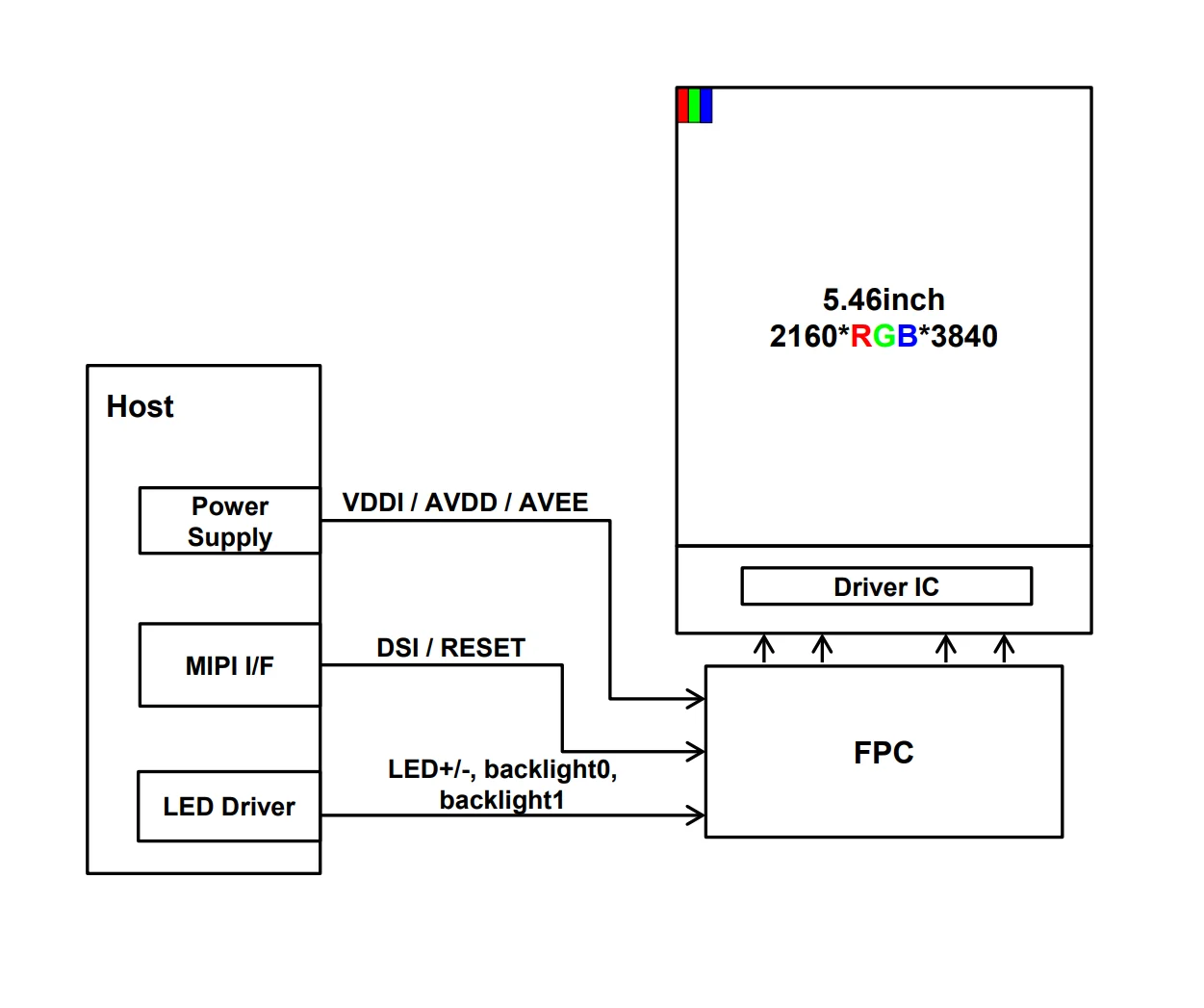

9 | Signal interface | 60 pins MIPI |
10 | Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
11 | Pxel format | Normally Black, Transmissive |
12 | Cntrast ratio | 700:1 (Typ.) (TM) |
Details Images

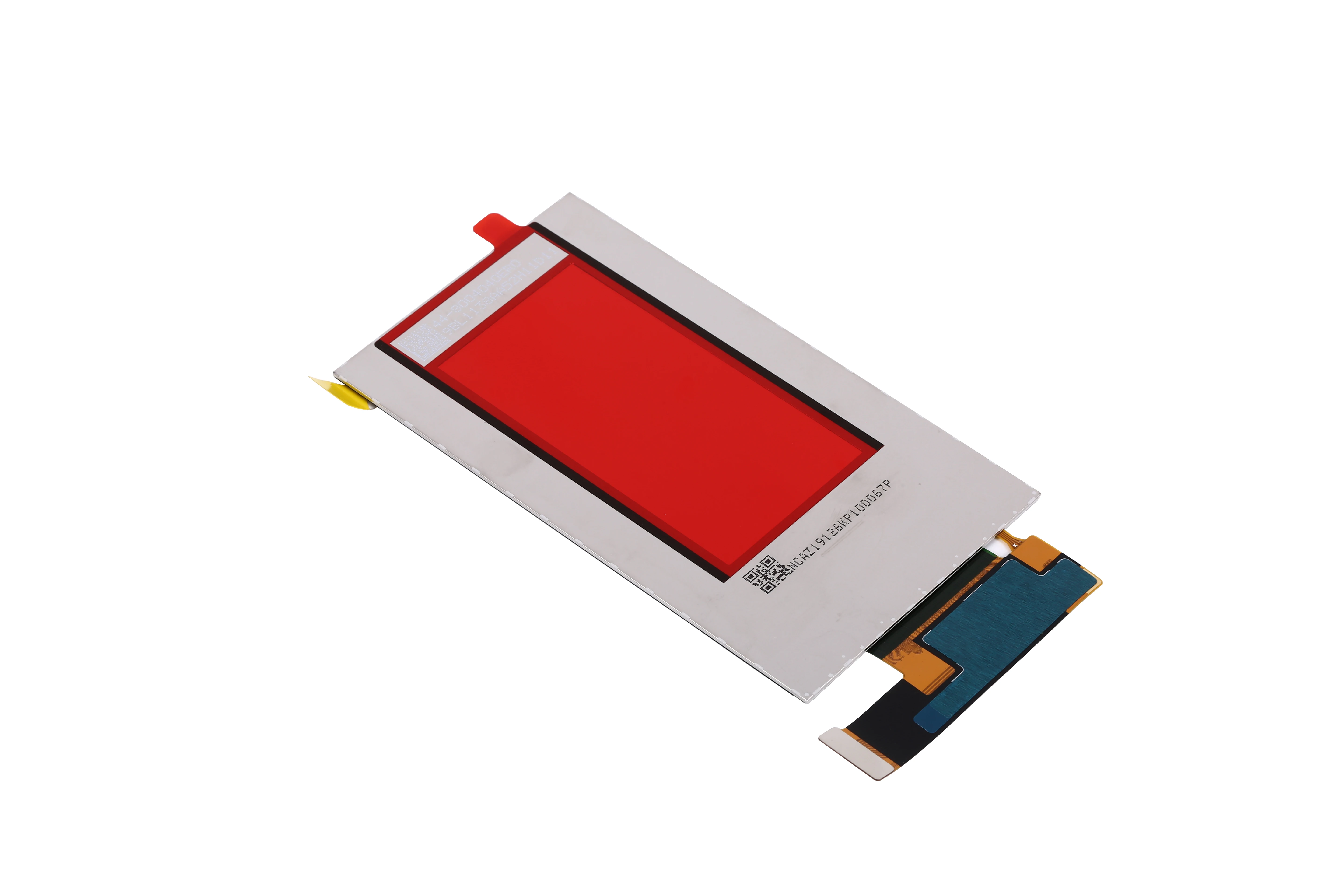

This LCD is suitable for 3D printer, we can remove the backlight for you
(2).The backlight can be removed as customers request. You can directly replace the old screen of your 3D printer, which will be very convenient for you.
(3).Lifetime is more than 1000 hours(Lifetime is more than 1000 hours(test by 405 nm UV Light)).
(4).It can work with Raspberry Pi and Windows PC.
(5).Custom services:We can custom tempered cover for the LCD.

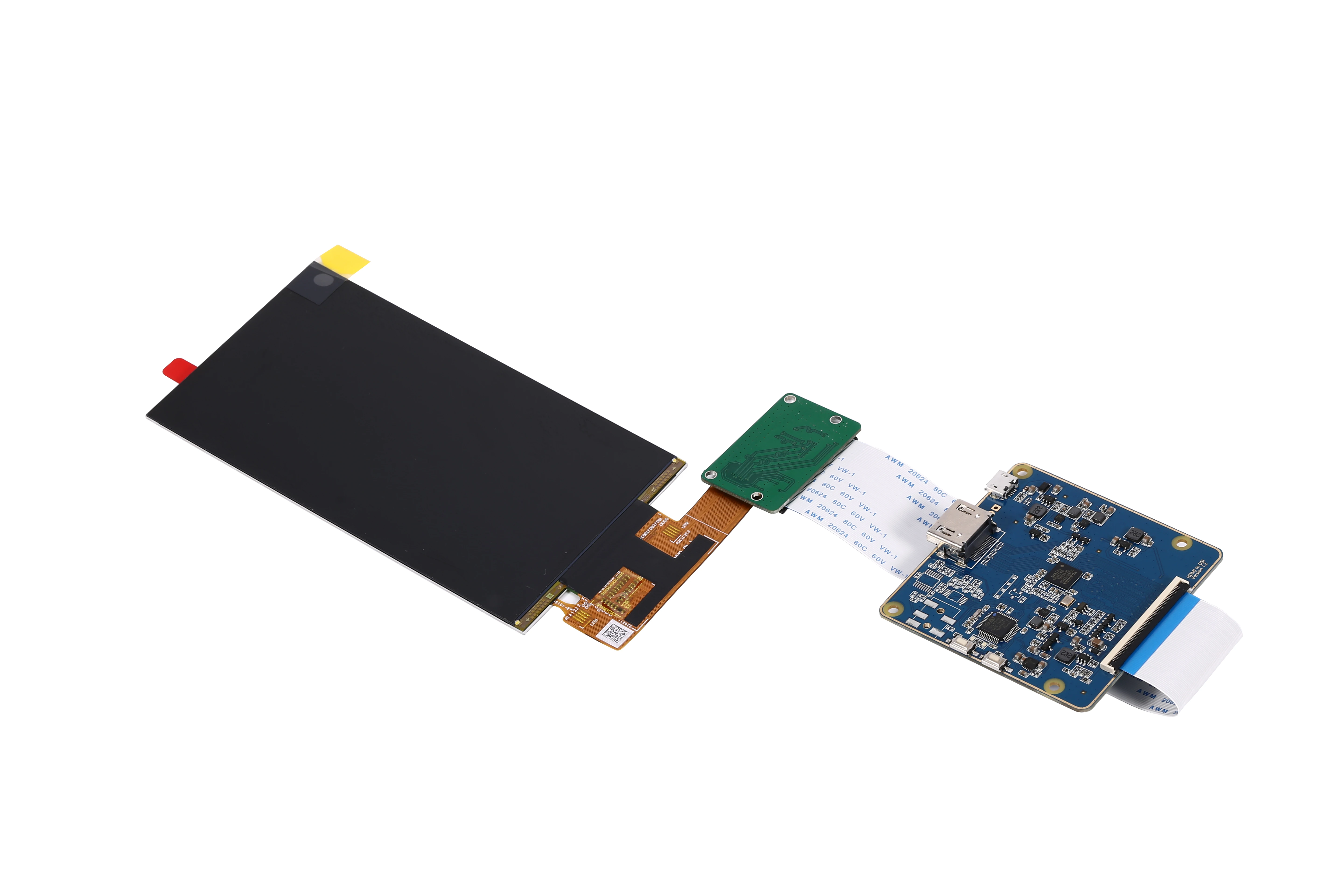

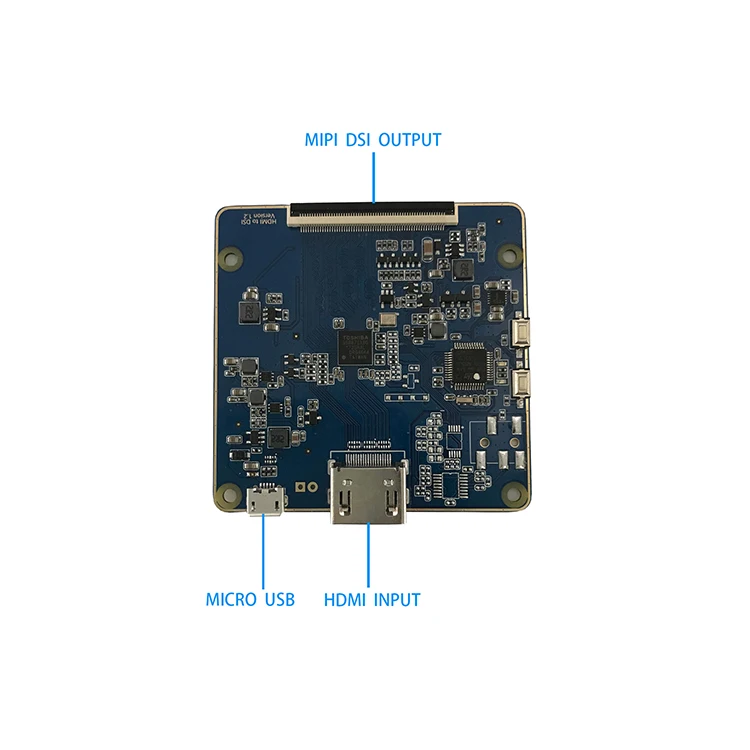

HDMI Driver Board for 5.5 inch LCD
(It includes HDMI board,LCD cable and connector)

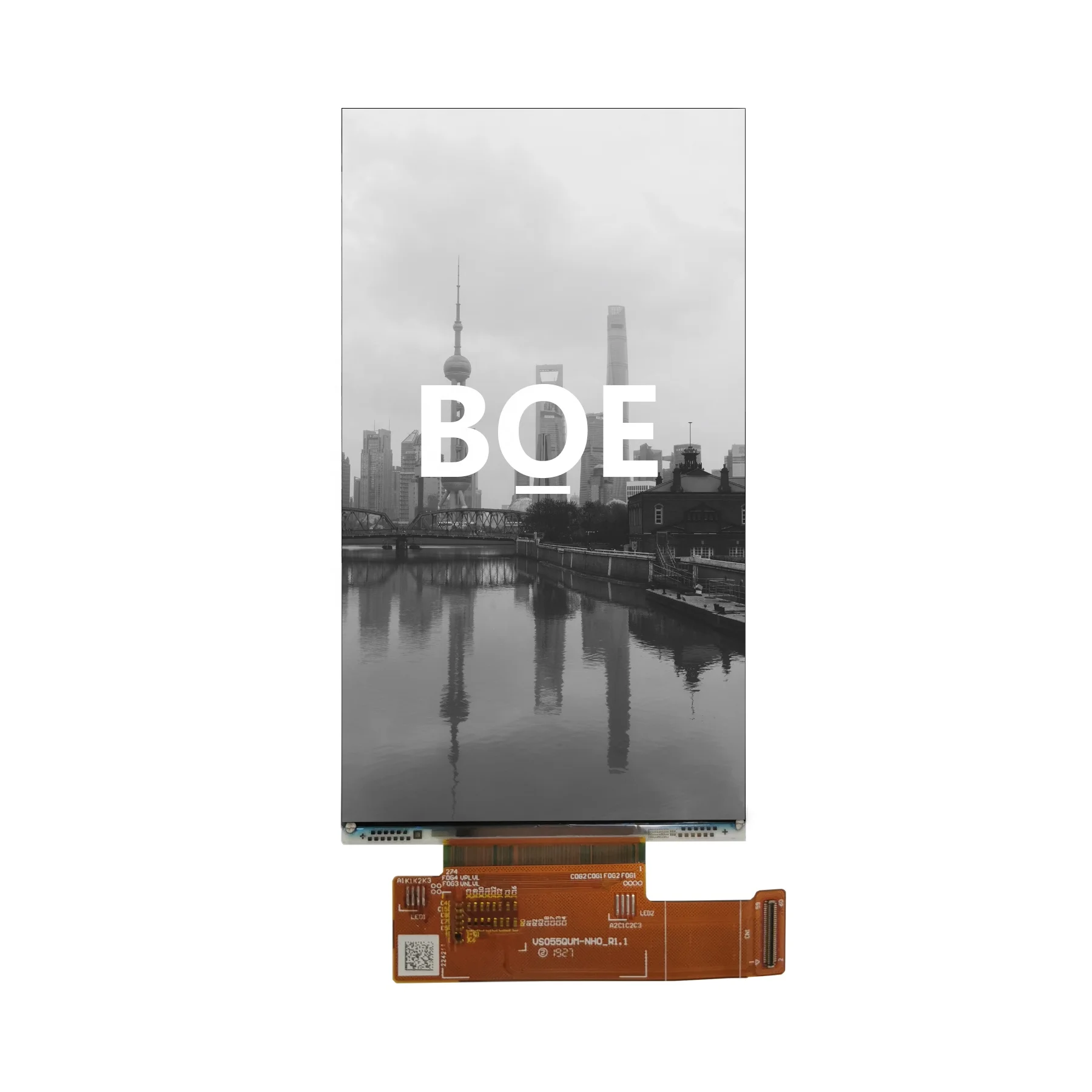

We also provide 5.5-inch monochrome LCD screen with better light transmittance.
Related Products
3D printer LCD screen
Size and Feature | Model No | Resolution | Interface | Viewing angle | Transmittance （405nm） |
5.5" 2K RGB LCD with driver board | 1440*2560 | MIPI (2 ch, 4 data lanes) , 50 pins , Connector | 80/80/80/80 (Typ.)(CR≥10) | <1% | |
5.5'' 4K RGB LCD with driver board | 2160*3840 | MIPI (2 ch, 4 data lanes) , 60 pins Connector | 85/85/85/85 (Typ.)(CR≥10) | <1% | |
5.5'' 4K MONO LCD with driver board | 2160*3840 | MIPI 4 Lanes x 2 | 85/85/85/85(Typ.)(CR≥10) | 3%~5% | |
5.96'' 2K MONO LCD with driver board | 1620*2560 | 30pins MIPI | 80/80/80/80(Typ.)(CR≥10) | 5.45%~6.4% | |
6.6'' 4K MONO LCD with driver board | 4098x2560 | 50Pins MIPI | Free | 4%~6% | |
8.9'' 2K RGB LCD with driver board | 1600*2560 | MIPI (2 ch, 4 data lanes) , 61 pins Connector | 80/80/80/80 (Typ.)(CR≥10) | <1% | |
8.9'' 4K MONO LCD with driver board | 3840x2400 | 50pins MIPI | 85/85/85/85(Typ.)(CR≥10) | 5%~5.4% | |
10.1'' 5K MONO LCD with driver board | 4920*2880 | 40pins EDP | 80/80/80/80 (Typ.)(CR>10) | 4.5%~6% | |
10.1" 8K MONO LCD with driver board | 7680x4320 | 40pins EDP | Free | >=5% | |
12.5'' 4K RGB LCD with driver board | 3840x2160 | 40pins EDP | 89/89/89/89 (Typ.)(CR≥10) | <1% | |
13.3'' 4K MONO LCD with driver board | 3840x2160 | 40pins EDP | 85/85/85/85(Typ.)(CR≥10) | 6% | |
13.3" 6K MONO LCD with driver board | 5760x3240 | eDP v1.3 4LANE | 80/80/80/80 (Typ.)(CR≥10) | 6.6% | |
13.6"7K MONO LCD with driver board | 6480x3600 | 4 LANE EDP | 85/85/85/85(Typ.)(CR≥10) | 8%~9% |
Click the product "Model name" in the list to enter the corresponding product interface for details!Wavelength:405nm
Module name | Compatible 3D printer size | Lamp Power | Voltage | Current | Brightness uniformity | Remark |
5.5",5.96",6.1",6.6" | 85W | 17-17.5V | 4.5-5A (5A recommended) | >=88% | ||
8.9",9.1",10.1",10.3" | 196W | 53-56V | 3.2-3.8A (3.5A recommended) | >=85% | ||
12.8",13.3" | 280W | 33-35V | 7.5-8.5A (8A recommended) | >=85% | ||
5.96",6.1" | 48W | 48V | 0.89A | >=80% | ||
5.5" | 70W | 50V | 1.4A | >=82% | ||
8.9",10.1" | 200W~924W | 50V | 4A | >=80% | We can make the Lamp Power up to 200W. If you need higher power, you need to match the driver board yourself. | |
8.9",10.1" | 200~308W | 50V | 4A | >=80% |
About Us
Certifications
Patent Certificate
Patent number: ZL 2019 3 0018260.5
Patent number: ZL 2019 2 0120538.4
Patent number: ZL 2019 3 0018797.1
FAQ
Q: What is the MOQ?
A: MOQ is 1 pcs.We can do the support when the test process.
Q: What about the delivery time?
A: We have 5.5 inch 4K LCD in stock,can ship them within 7 working days.
Q: Does your product have any warranty?
A: It is well known that UV damage LCDs, and the heat generated by resin curing damages LCDs. Different user cause different damages to LCDs. We guarantee that when you receive the LCD, it will work properly. We do not provide guarantees for damage caused during use.
Q: What's your payment method?
A: We usually accept the payment methods include T/T,Alibaba order,Paypal.
Q: What's your shipping method?
A:
For small quantity orders we ship by UPS Air-Express,or DHL/FEDEX/TNT/EMS Express service, it is safe and fast.
For large quantity orders we ship by buyer's cargo agent in China, we can also ship by Air transportation or sea transportation.
Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.
Q: How to Contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now!
