Product Overview
Description
Product display
Dispersion \\ Colloid mill
It is used for fine grinding of fluid and semi-fluid materials.
Different types of machines have the same structure and principle

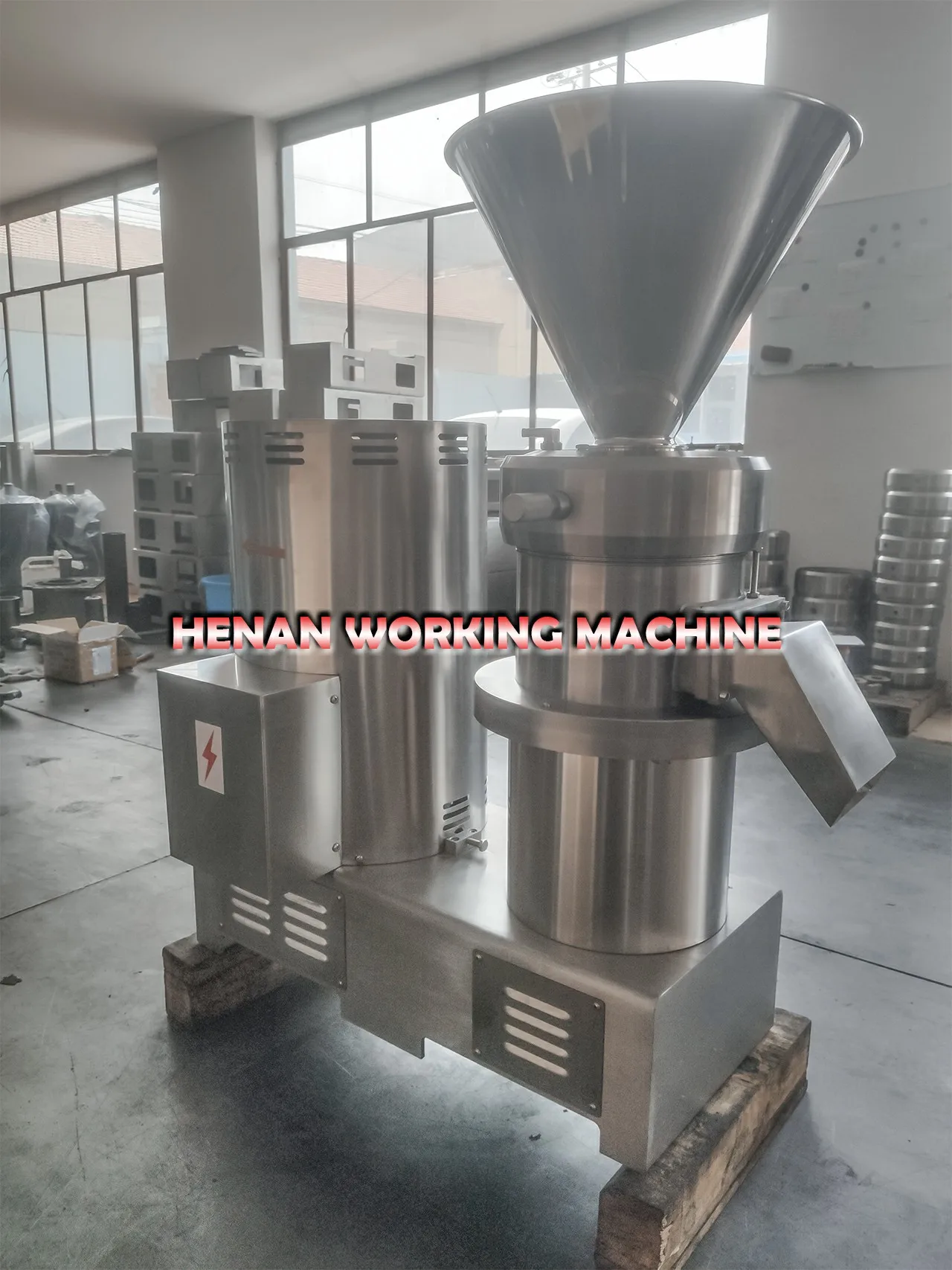

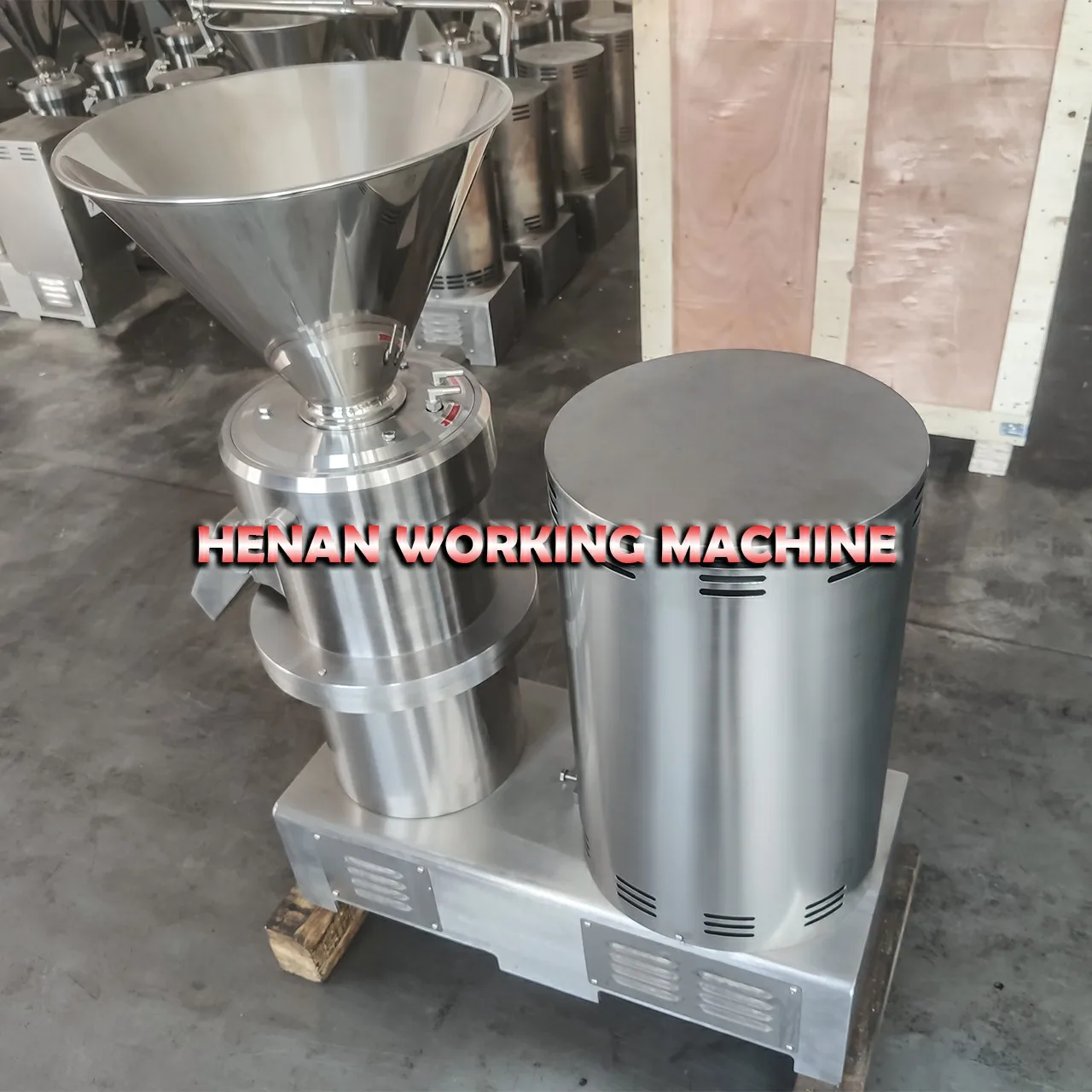

Split type mill
The motor of the split type mill is separated from the grinding disc,
which has the characteristics of good stability, convenient operation, long motor life, etc.,
and the material will not leak and interfere with the motor.
With labyrinth seal, no wear, corrosion resistance, less failure.
Drive through the pulley, change the transmission ratio, increase the speed, and make the grinding more delicate.
Vertical type mill
The vertical type mill is directly driven by the elongated shaft motor to drive the rotating teeth, with compact structure, light weight and small footprint.
The overall structure is exquisite, the sealing structure is reliable, it can work continuously.
It runs smoothly, the vibration is small, and can work without the foundation. Ideal for small businesses and lab work.
Cutaway view of grinding chamber
The mill grinds the material by the relative motion of the toothed slope.
The rotor rotates at a high speed and the stator is stationary, so that the material passing through the helical tooth surface is subjected to shear force and friction force, and at the same time, the rotation generates high-frequency vibration and high-speed vortex.
The materials are ground, emulsified, pulverized, homogenized and mixed under the action of complex forces.
The materials are ground, emulsified, pulverized, homogenized and mixed under the action of complex forces.
Parameters of machine
*Different models of machines, Single-circulation or multi-circulation of materials processing
thickness : fineness of particles (thinnest)＜150μm; Mesh size: 50~100 ;
*All models are equipped with cooling water channel, fineness adjustment disc.
MODEL | POWER | SIZE (mm) | WEIGHT |
JM-50 | 1.1 / 1.5 KW | 270*500*700 | 55 kgs |
JM-65 | 1.5 KW | 270*500*700 | 60 kgs |
JM-80 | 3 KW | 350*570*950 | 85 kgs |
JM-100 | 5.5 KW | 400*650*1000 | 145 kgs |
JM-120 | 7.5 KW | 400*650*1000 | 150 kgs |
JM-140 | 7.5 KW | 400*750*1050 | 180 kgs |
More stable small vertical colloid mill | ||
Model | JMC-60 | |
Power | 220v 50hz single-phase, 1.5Kw | |
Motor speed | 2800 r/m | |
Hopper capacity | 4.1L | |
Weight | 42 Kgs | |
Dim. | 370*370*780mm | |
MODEL | POWER | SIZE (mm) | WEIGHT |
JMS-80 | 4 KW | 680*400*850 | 160 kgs |
JMS-110 | 7.5 KW | 750*550*950 | 205 kgs |
JMS-130 | 15 KW | 990*550*1000 | 320 kgs |
JMS-180 | 22 KW | 1000*600*1100 | 400 kgs |
JMS-240 | 45 KW | 1330*650*1250 | 750 kgs |
JMS-300 | 90 KW | 1450*750*1300 | 1250 kgs |
Details
Customized content

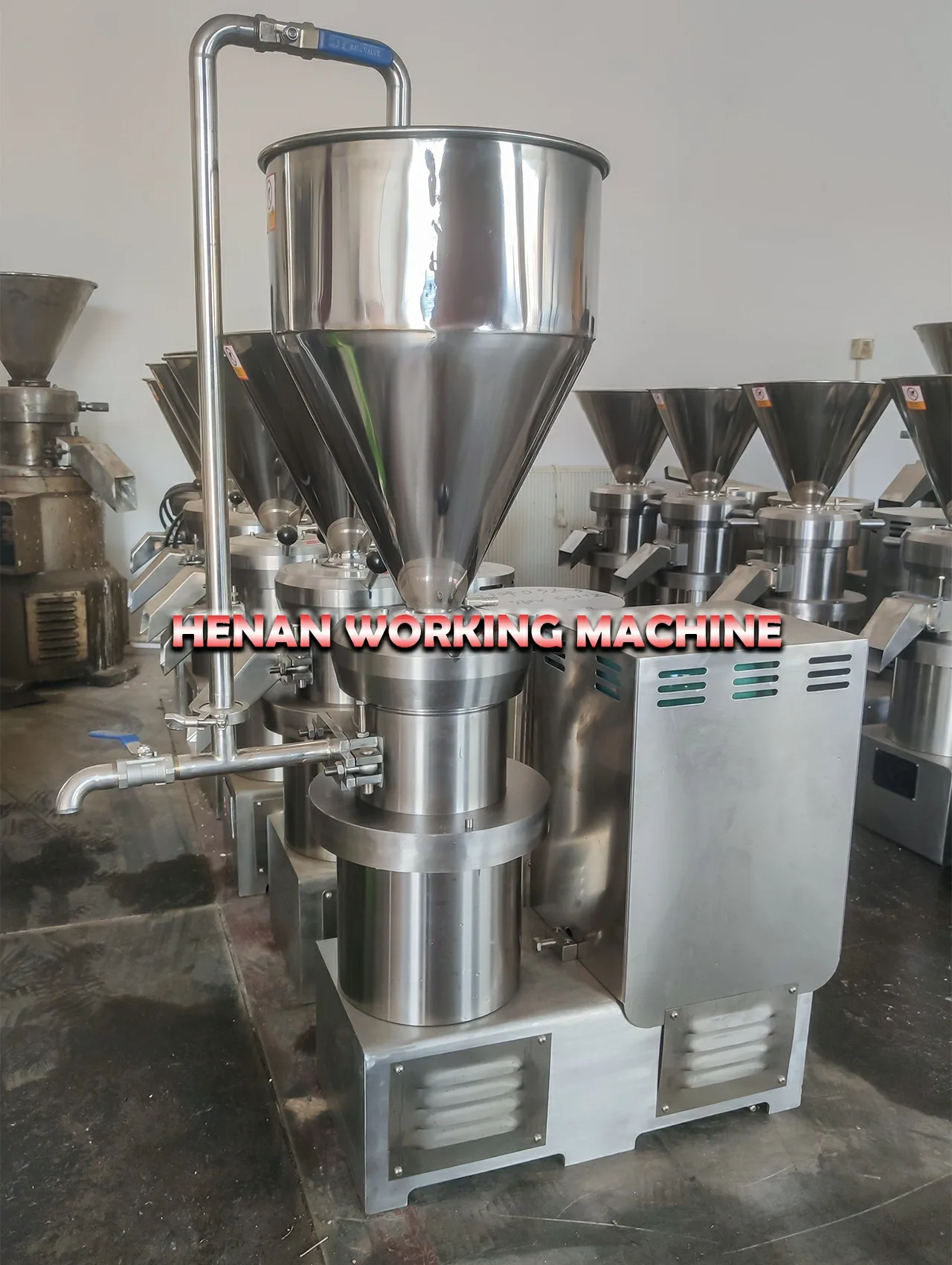

Pre-grinding / Multiple grinding
Through the modification of the machine, it can meet the needs of different customers.
Rhombus teeth
The material is finely ground under effective shearing, so that the fineness of the material can reach the best state.
Fine grinding of liquid and semi-fluid materials with good flow.
Shear type / Helical teeth
It is mainly aimed at fibrous materials, effectively crushing and separating them, and maximizing the output of the machine.
Compound type
It combines the advantages of helical teeth and rhombus teeth, and the compound teeth make the fineness and output reach the best state when processing the material.
The first-level shearing teeth have a good coarse crushing effect on materials, and are suitable for the processing and refining of viscous materials such as peanut butter.
Production process and supporting machines
We will help customers build a complete production line and run it for test.
Factory & Manufacture
Quality & After-sales service
Packing & Shipping
//www.logisunitrans.com
Copy to visit.
FAQ
1. What is your warranty?
24 months warranty and lifetime maintenance.
2. What about the voltage and power of your machine?
The voltage can be customized according to country standard.
3. How to pay?
Through Alibaba.com, choose your product and model.
Or by other ways like Bank, please contact us.
4. How to install it and use this machine?
We will supply Install / User manual to you, and professional training about operation / maintenance.
Also we can assign engineers to your side.
