Product Overview





Product Description

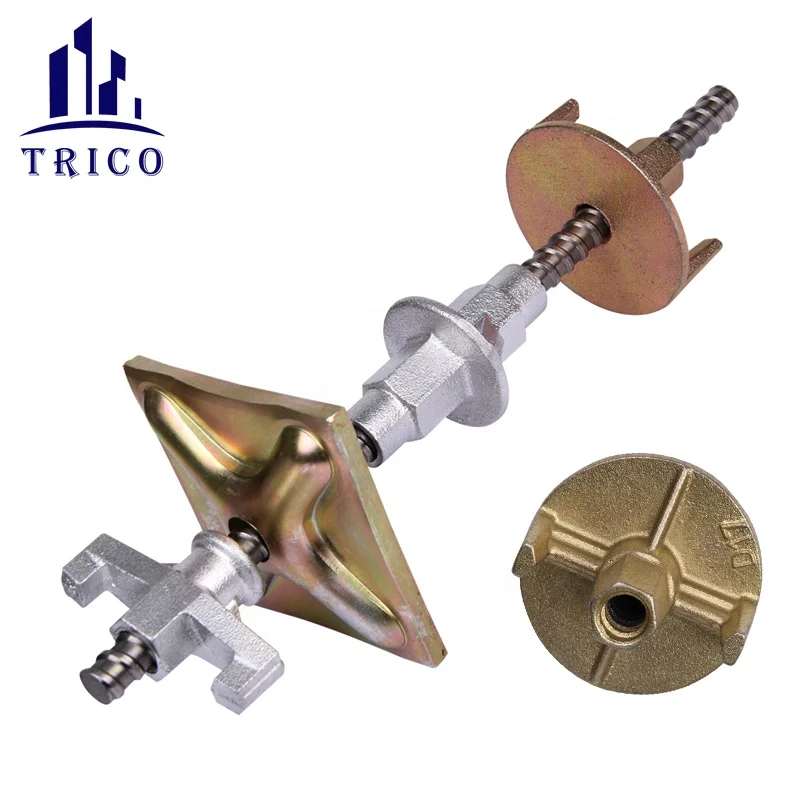

1. Product name:  Hebei TRICO  Formwork Accessories Tie Rod And Wing Nut System 16mm Tie Rod with Waler Plater Water Stop For Concrete

2. Material: steel, cast iron

3. Tie Rod:15/17mm,  Continuous intermittent, self cleaning, coarse pitch thread.

    Length: 6m, can be cut accordingly(Available in a range of lengths)

4. Tensile strength: 180KN-200KN

5. Various accessories are available, each item has different sizes and weights. It is ok to do according to client's requirements.

6. Finishing: usually in black, galvanizing also available

7. Shipping port: Xingang,China

8. Delivery time: within two weeks after getting the deposit or Original L/C


Formwork Tie Rod Nut is a kind of important accessories in pouring shear wall project. Together with the Tie Rod, they act as wall tie system, to fasten the formwork panels tightly during concrete pouring process. They can also be used in other applications for fasten purpose.


Item NamePhotoDiameterWeightFinishingBreaking Load

Tie Rod

(Hot Rolled)

Tie Rod 15mm.jpgD151.47kg/mSelf color or galvanzing180Kn

Tie Rod

(Cold Rolled)

1-Tie-Rod.jpgD151.5kg/mSelf color or galvanizing140Kn for Steel #45
Wing NutTie Rod and Wing Nuts.jpgD15300g/340gSelf color or galvanizing180Kn
Tie NutVarious Tie Nuts.jpgD15Up to Base Size and shapeSelf color or galvanizing180Kn
Water StopWater Stop.jpgD15500gSelf color or galvanzing180KN
Waler Platewaller plate (6).jpg



Up To ThicknessSelf color or galvanizing/
Hex Nut/Connection Nuthexagonal nuts 1.jpg


30mm, 50mm, 90mm,100mm,etc. in length available

Up to LengthSelf color or galvanizing180Kn

 45# sdl2.jpgwaler plate (4)photobank.jpgFORMWORK WARTER STOPPER 2.jpgIMG_191294.jpg

Packaging & Shipping

In In bundles, in bags/carton box, then put on pallets

tie rod in yellowdfd.jpg

Company Information

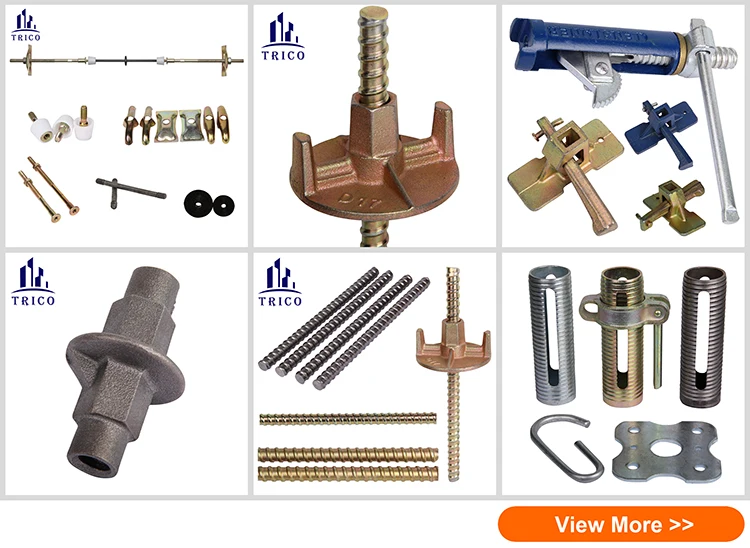

Other item available
