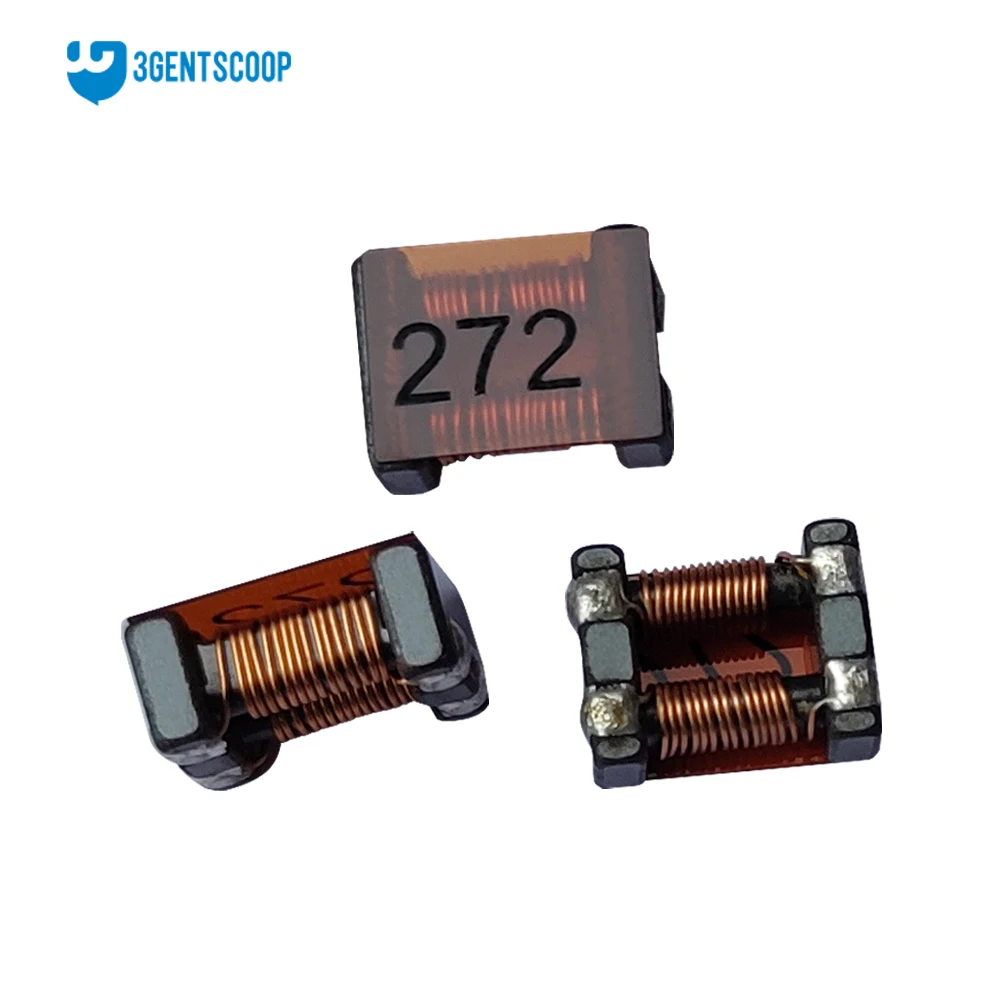

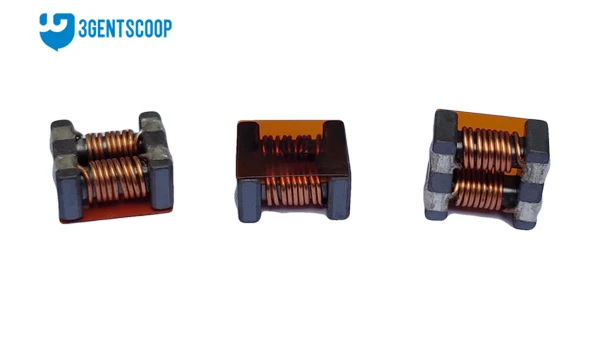

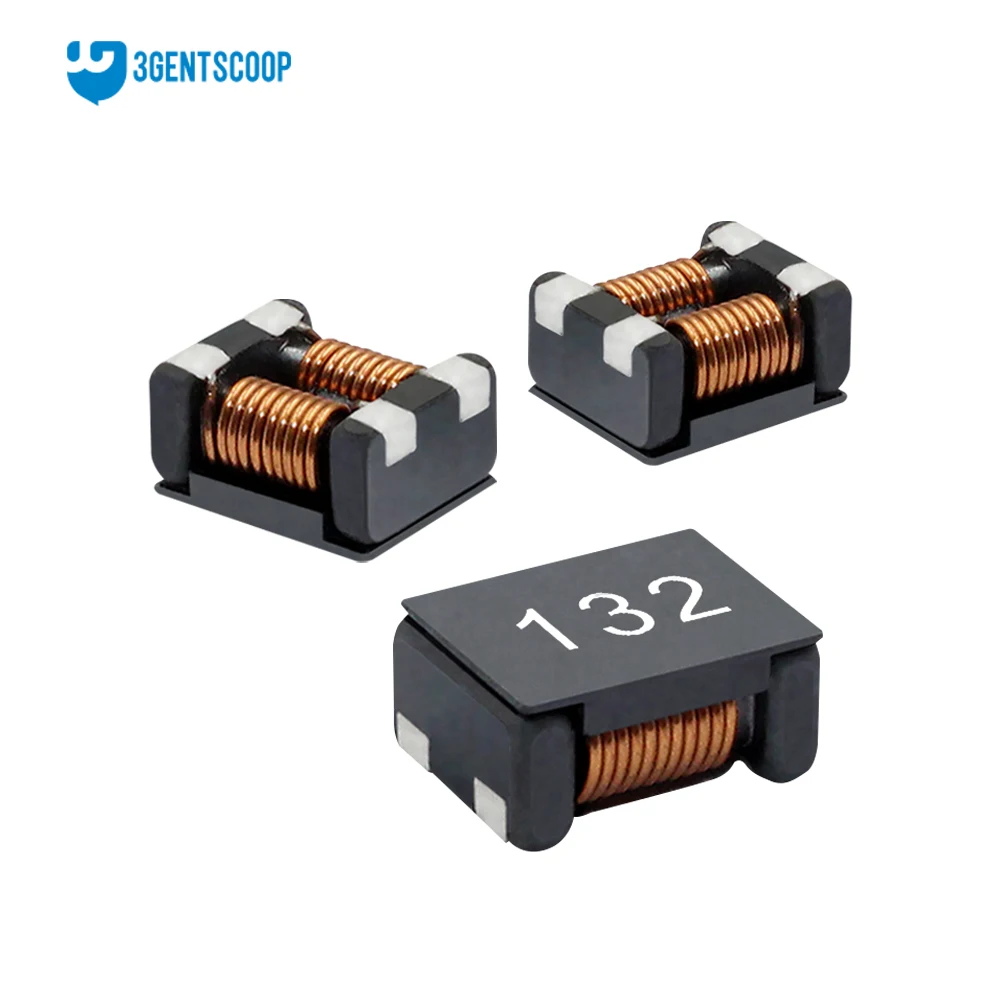

Wire Wound Electronics Electromagnet Coil Common Mode Choke Guangdong Transmitter Ferrite Original Manufacturer 15 Days 2000 Pcs
- Category: >>>
- Supplier: Shenzhen,Junchuang,Sanhe,Technology,Co.,Ltd.
Share on:
Product Overview
Description
FEATURES
1.The inductor designed as surface mounting , smallest and thinnest with high power ,
high saturation and low resistance
2.Magnetic-resin shielded structure reduces buzz noise to ultra-low levels , Closed magnetic circuit structure reduces magnetic leakage flux , high performance of anti-EMI .
3.with the same size part , the rated current 30% higher than the traditional inductors .
4.Wide range working frequency that reach more than 5MHz
5. RoHS ,Halogen-free environmental protection products
APPLICATIONS
1. LED Lighting LED
2. Automotive systems
3. Notebooks,desktop computers,servers,graphic cards
SPECIFICATION TABLE
| Part Number | Common Mode Impedance (100MHz) (Ω)±25% | Rated Current (mA) | Rated Voltage (V) | Insulation Resistance ( MΩ) | hstand Volage (V) | DC.R Max. (Ω)max |
| CMF2012-670 | 67 | 400 | 50 | 10 | 125 | 0.25 |
| CMF2012-750 | 75 | 400 | 50 | 10 | 125 | 0.25 |
| CMF2012-900 | 90 | 400 | 50 | 10 | 125 | 0.3 |
| CMF2012-121 | 120 | 400 | 50 | 10 | 125 | 0.3 |
| CMF2012-161 | 160 | 350 | 50 | 10 | 125 | 0.35 |
| CMF2012-181 | 180 | 350 | 50 | 10 | 125 | 0.35 |
| CMF2012-201 | 200 | 300 | 50 | 10 | 125 | 0.4 |
| CMF2012-221 | 220 | 300 | 50 | 10 | 125 | 0.4 |
| CMF2012-261 | 260 | 300 | 50 | 10 | 125 | 0.4 |
| CMF2012-361 | 360 | 300 | 50 | 10 | 125 | 0.5 |
Company Information
Our company Environment
Features:
1. Primary competitive advantages:
a) Country of region
b) Small order accepted
c) Experienced technical staff
2. Delicate design, high quality and reasonable price.
3. Work together with DHL/UPS/Fedex/TNT/EMS, can arrange air shipping samples to client's office directly.
4. Be able to design and manufacture under customer's special request.
5. Mainly exported to Asia, America and Europe.
Packaging & Shipping
FAQ
Q:Are you a Manufacture or Trading company ?
A:We are a Manufacture specialized in making inductor ,ferrite coil ,common mode choke, etc.
Q:Can I get sample ?
A:Yes. It is our pleasure to provide free samples for you.
Q:How long can I expect to get samples ?
A: Usually it will take about 3-5 working days.
Q:How long can I expect to get products?
A: Depend on item, and normally 3-4 weeks due to we take more procerdures to ensure our quality.
Q: Could I have your catalogue and price list for trial order in MOQ quantity?
A: All of our products are showing on Alibaba or official website, you are always welcome to ask me to get more information directly.
