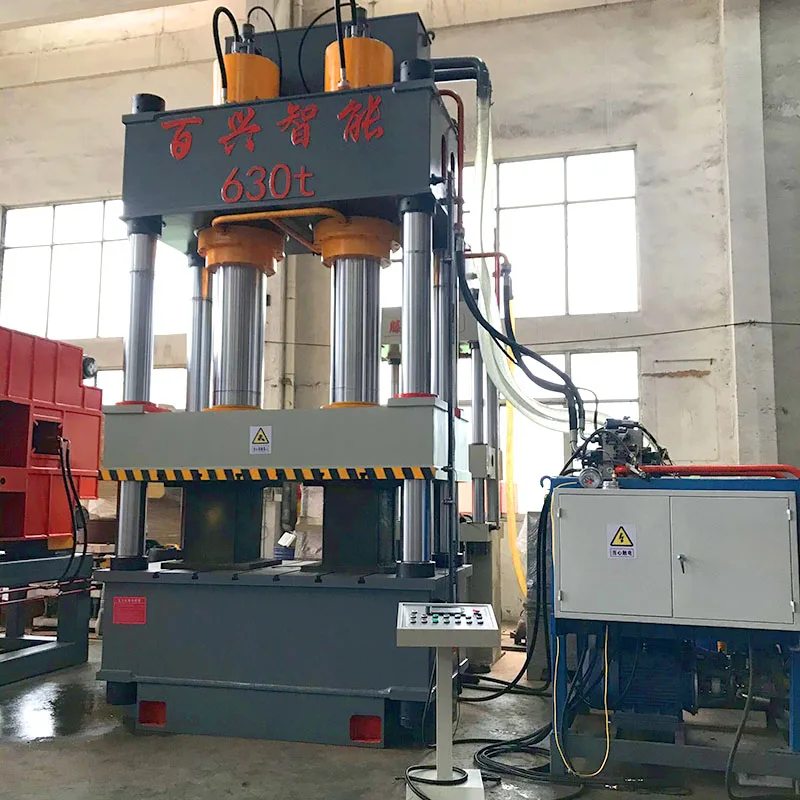

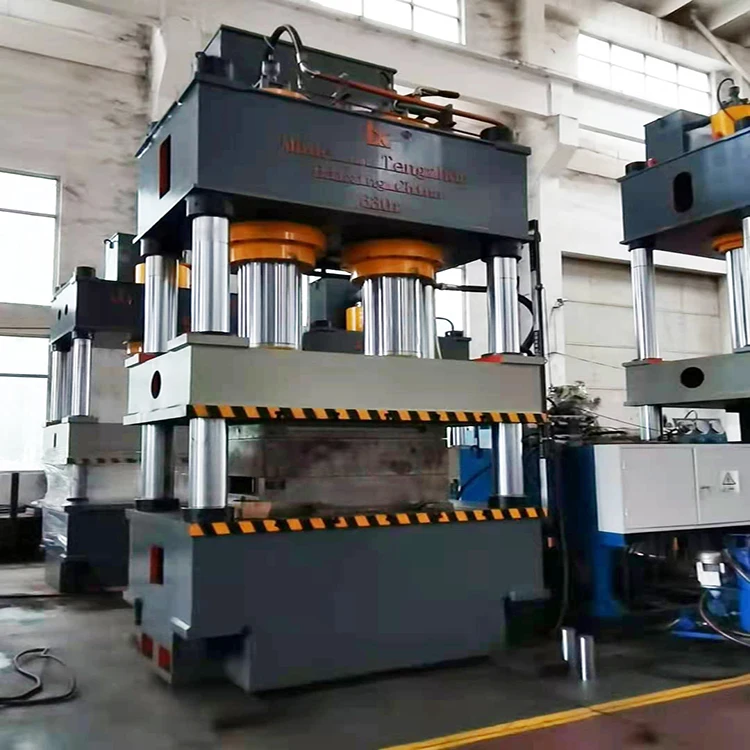

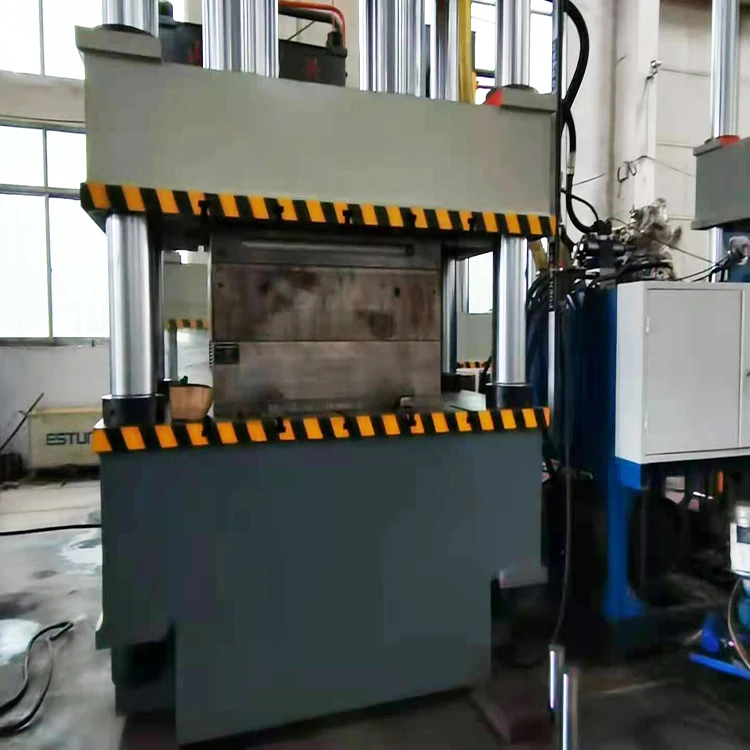

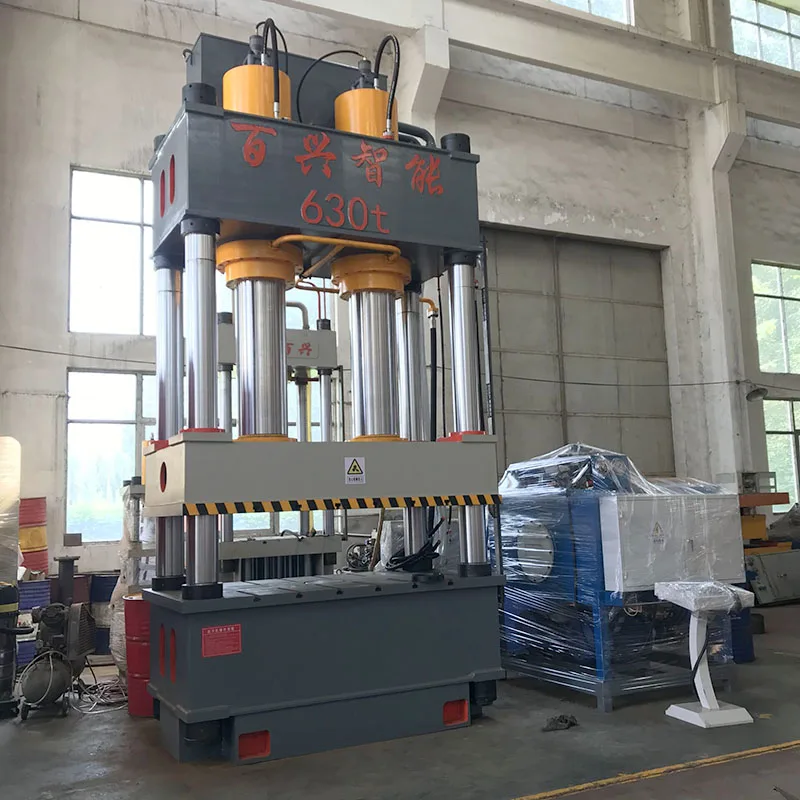

hydraulic press machine , Quartz sink pressing machine , BMC/SMC hot pressing hydraulic machine
- Category: >>>
- Supplier: Tengzhou Baixing Machinery Co. Ltd.
Share on (1600331174935):
Product Overview
Description
序号(NO.) | 项目(ITEM) | 单位(UNIT) | 规格(NORMS) | ||
1 | (Nominal capacity) | KN | 6300 | ||
2 | （Ejection nominal force） | KN | 800 | ||
3 | (Working pressure) | MPa | 25 | ||
4 | (Master cylinder effective stroke) | mm | 800 | ||
5 | (Ejector Stroke) | mm | 300 | ||
6 | (Maximum opening height） | mm | 1250 | ||
7 | (minimum shut height) | mm | 100 | ||
8 | (Effective area ofworking table) | 左右(L/R) | mm | 1600 | |
前后(F/B) | mm | 1200 | |||
9 | (Speed) | rapid down | mm/s | 120 | |
working speed | mm/s | 5-10 | |||
return trip | mm/s | 90 | |||
10 | motor power | KW | 22 | ||
