Product Overview
Description
Products Description
Counterflow cooling Tower Fill, also called Liangchi counterflow cooling tower infill film media, is among those cooling tower fills of being designed into two types.It is one of the most important components for exchange of gas and water in cooling tower.
It is the major parts to improve cooling tower workingefficiency and make sure the economy and safe operation. With the development of the plastic industry, counter-current tower drench water plastic packing "S" shape ladder wave, inclined corrugated fills, which has the advantages of heat dissipation, durable, good performance, ventilated small resistance..etc.
Based on the easy and other advantages it is widely used in different types of large,medium and small cooling towers.
Name | wholesale PP PVC counterflow types of cooling tower fill |
Material | PVC, PP |
Nomal Size | 305mmx305mmx1200mm,150*305*1200mm,610*305*1200mm |
Fluted size | 12mm,19mm |
Shaping mode | Plastic extrusion mould |
Sheet thickness | 0.28-0.37MM ,also can be customized |
Packing Details | In bundle, wooden pallet or as requested |
Sample Time | 1-2days |
Production Date | Within 20days |
Details Images

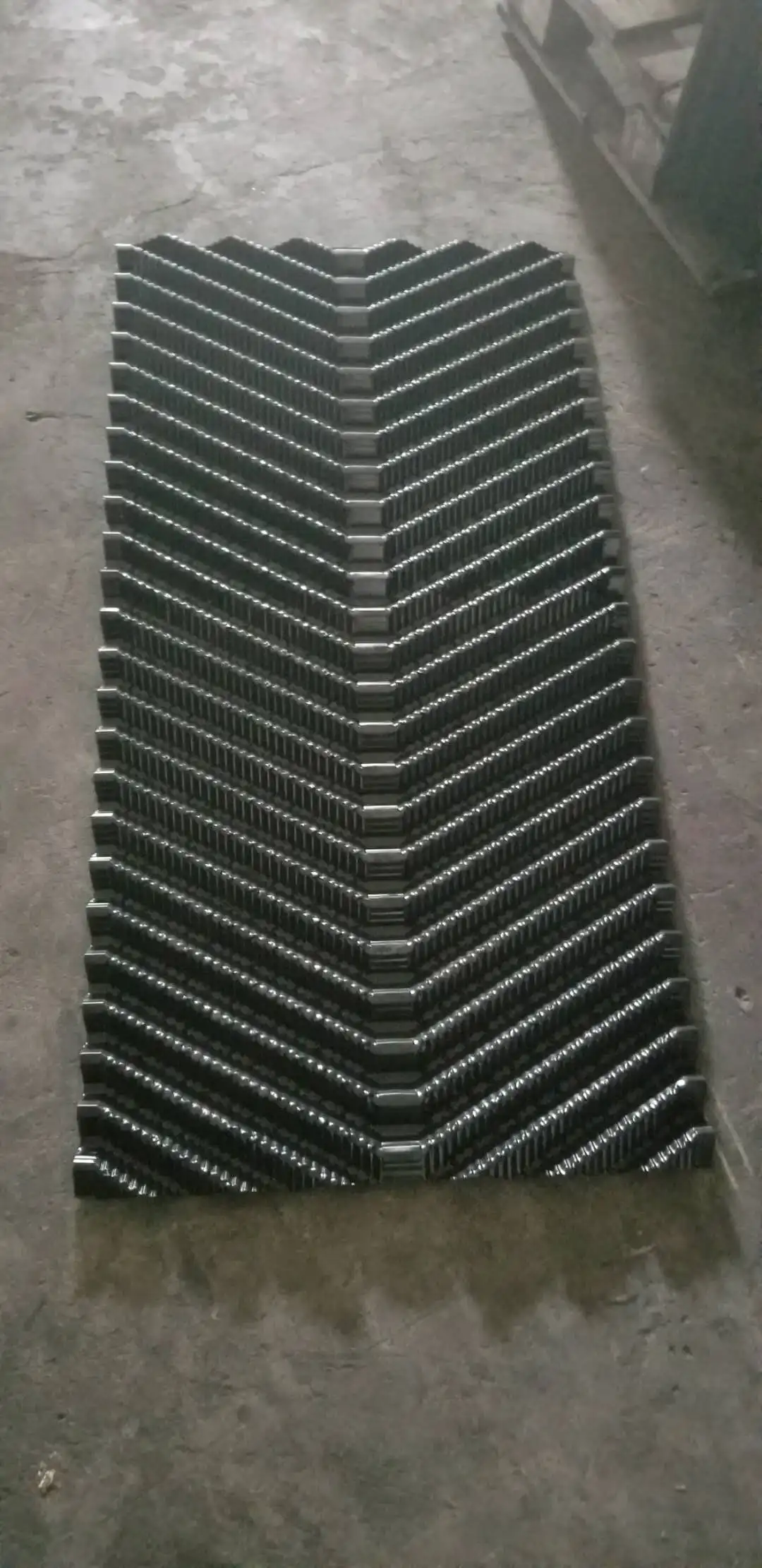

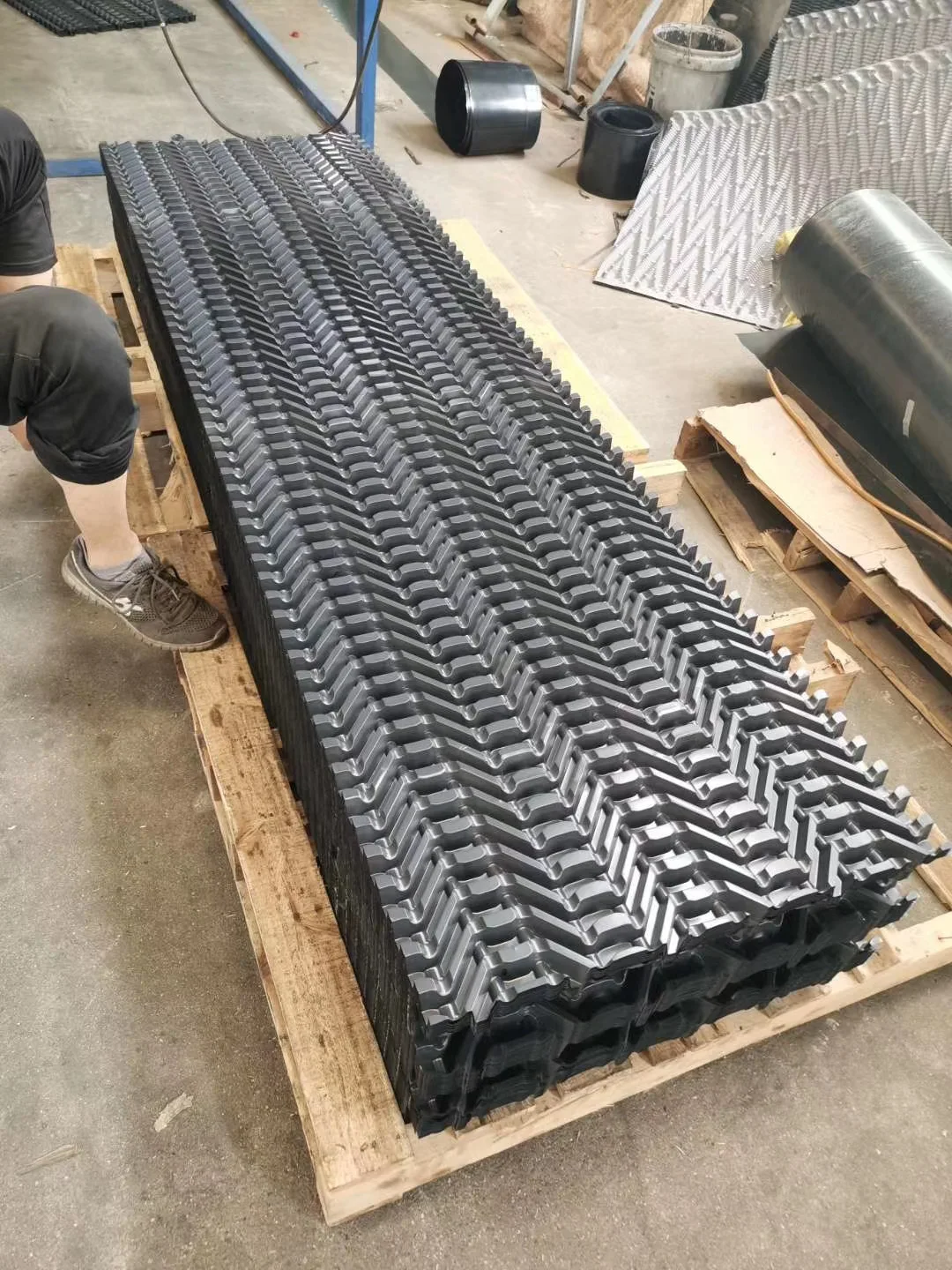

Cooling tower fill belong to counter flow cooling tower fill, it is glued together to be a block which is full of the middle
bottom in tower. The thickness are 0.28mm 0.38mm; the width are 150mm,305mm,610mm; the length are 1200mm,1800mm,2000mm,2400mm;The
pitch distance are 12mm,15mm,19mm and 25mm.The pitch 12mm 19mm is normal size. The cooling tower fill is also called CF1900,CF1200. It means the Trickling Filter Media will be glue to be a block which size is 305x305x1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.
Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the Cooling tower fill tomake sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
bottom in tower. The thickness are 0.28mm 0.38mm; the width are 150mm,305mm,610mm; the length are 1200mm,1800mm,2000mm,2400mm;The
pitch distance are 12mm,15mm,19mm and 25mm.The pitch 12mm 19mm is normal size. The cooling tower fill is also called CF1900,CF1200. It means the Trickling Filter Media will be glue to be a block which size is 305x305x1200mm. The honeycomb is in the vertical direction to make sure the cool air meet the hot water directly.
Usually there are 2 or 3 layers in the bottom of the cooling tower. There are PVC air inlet louver match the Cooling tower fill tomake sure the water- treatment surface area proportion arrive to 248m2/m3, and the typical face velocity arrive to 2.0-3.5m/s.
