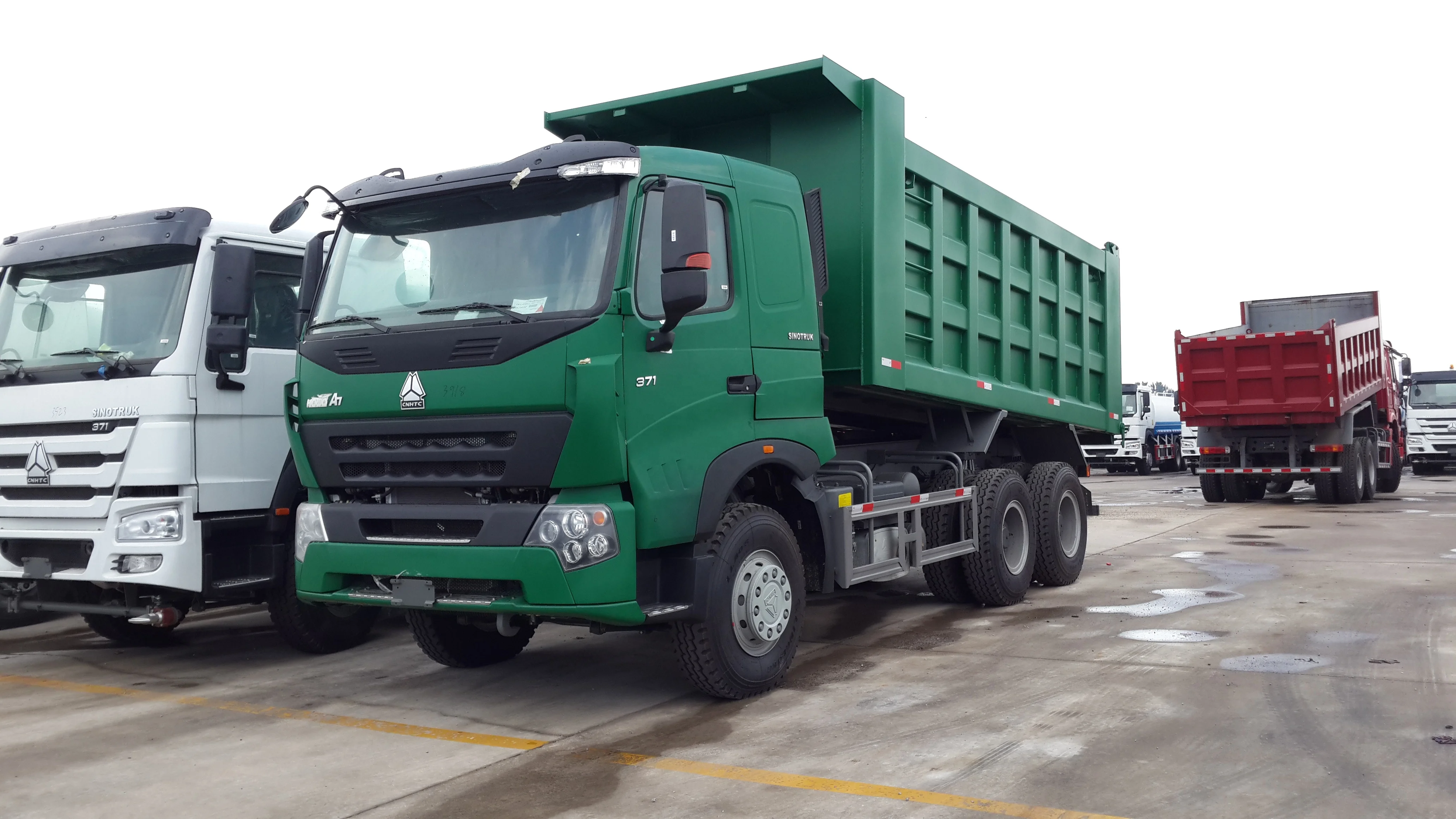

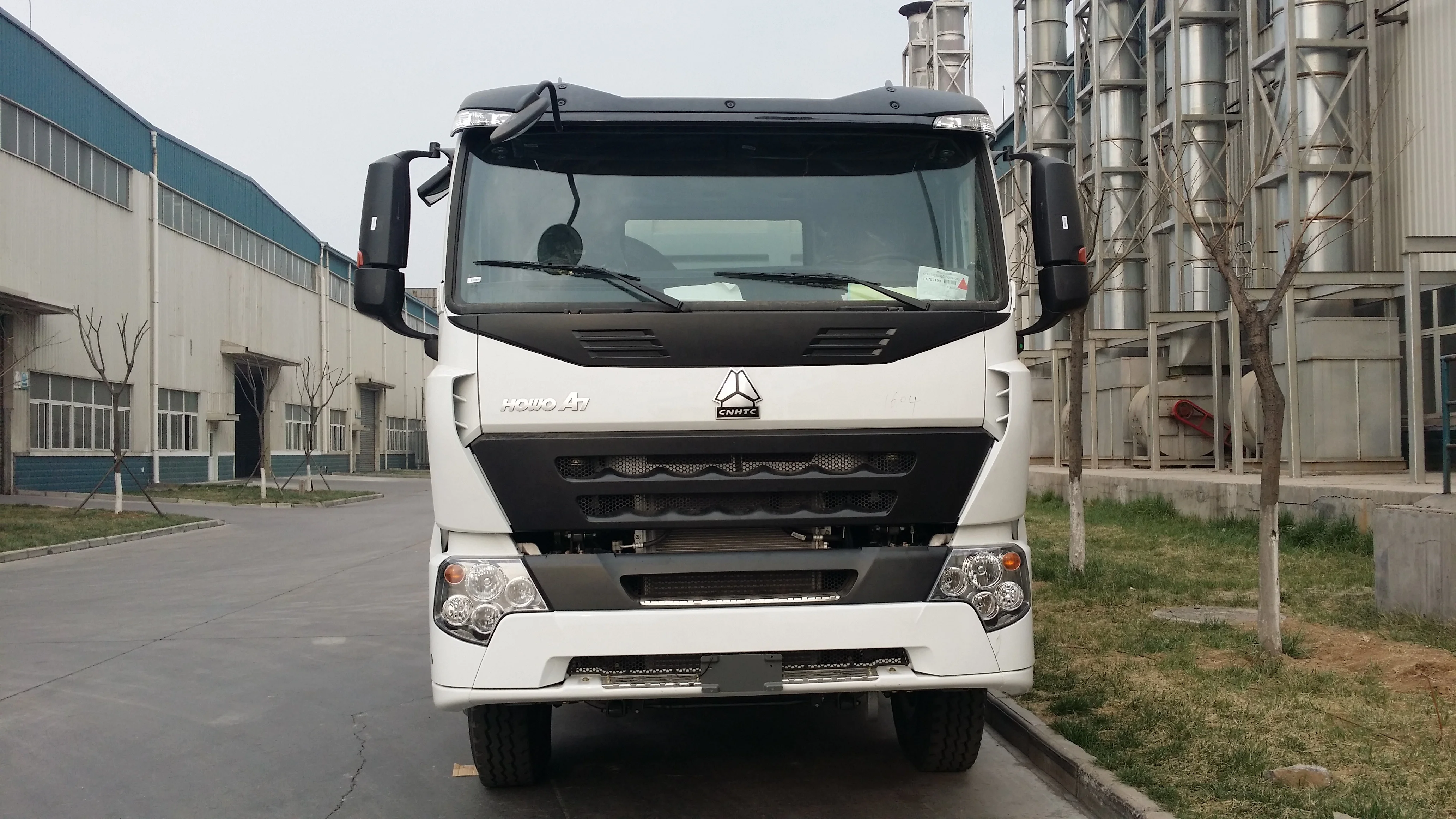

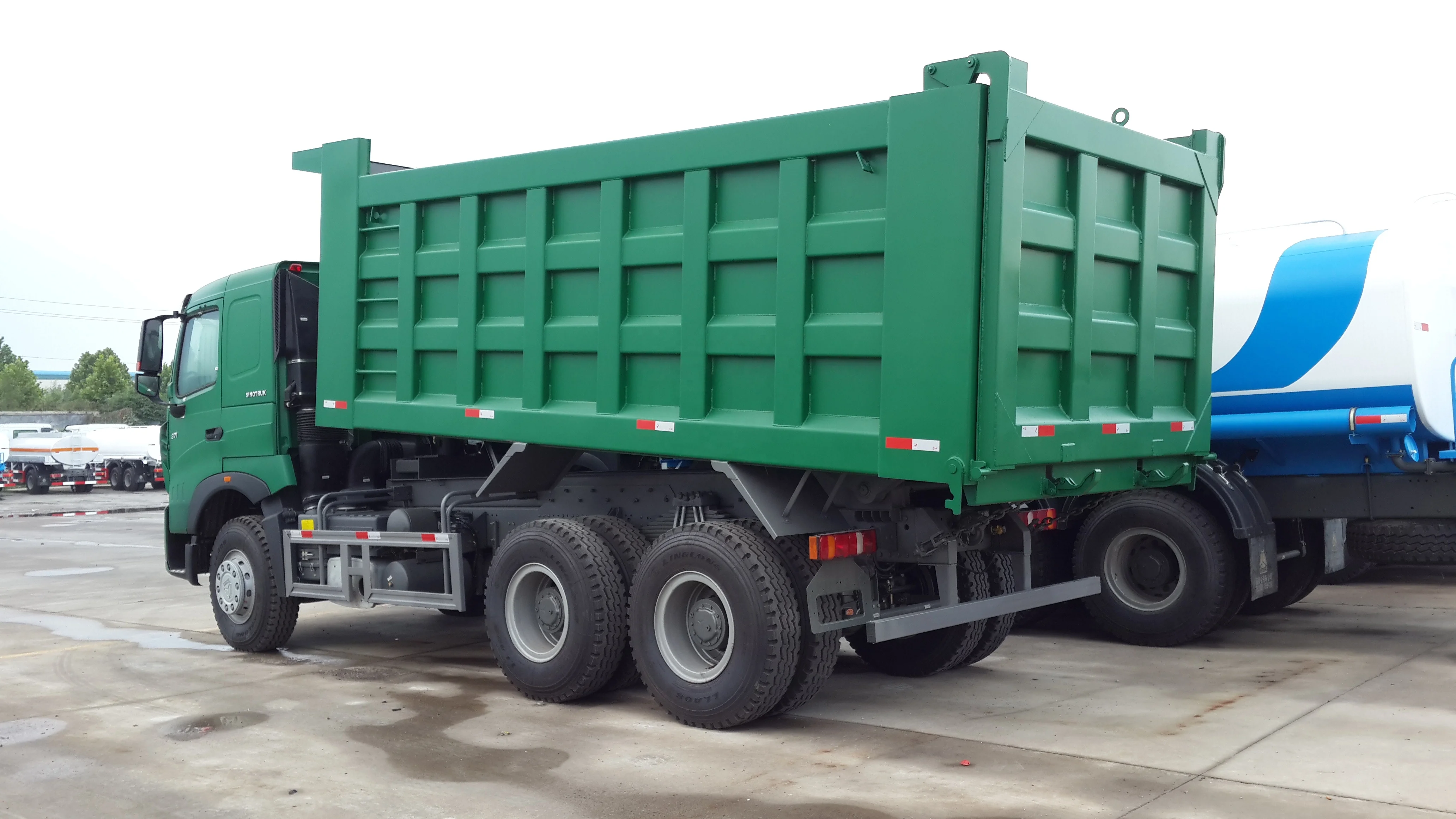

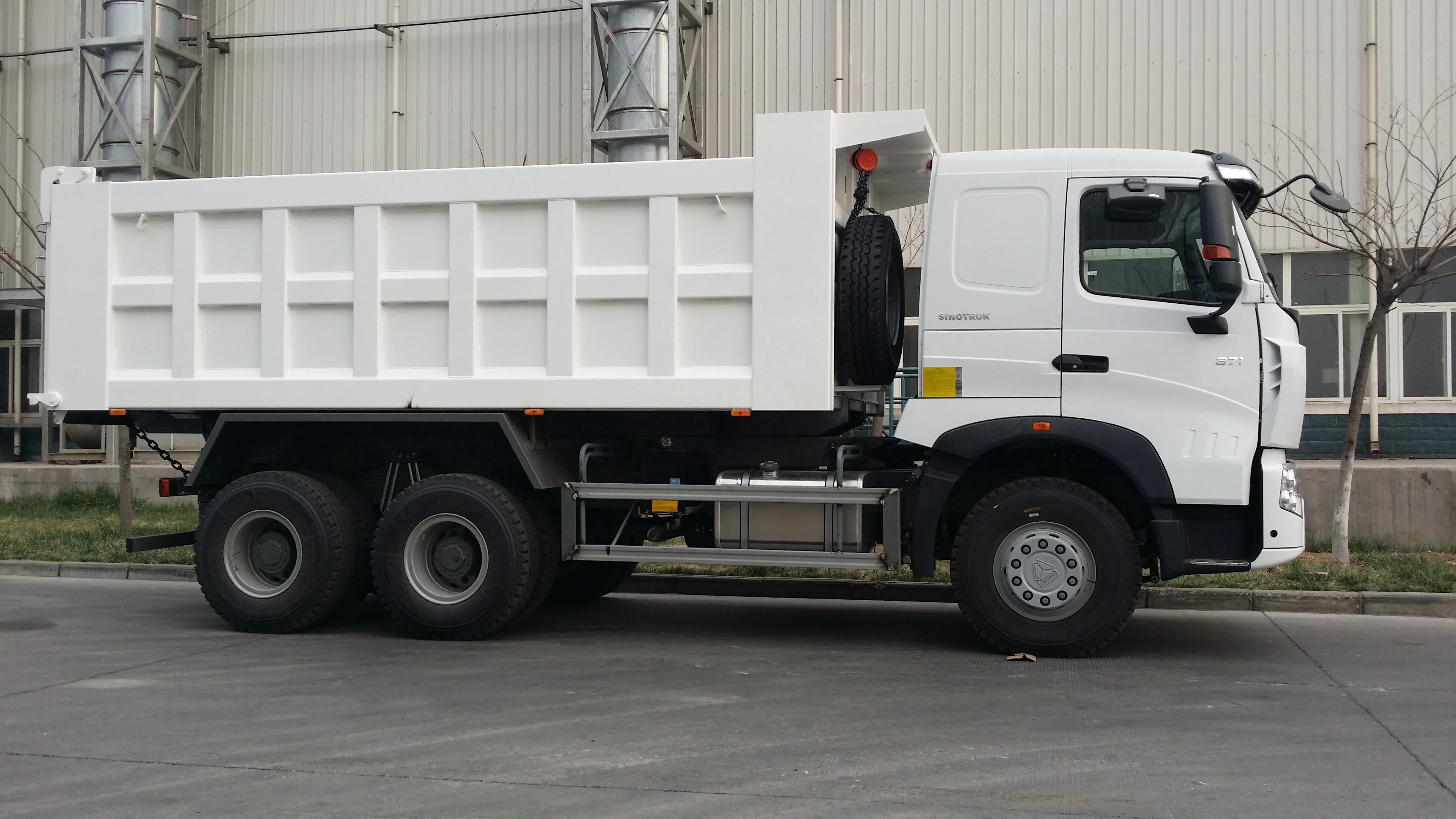

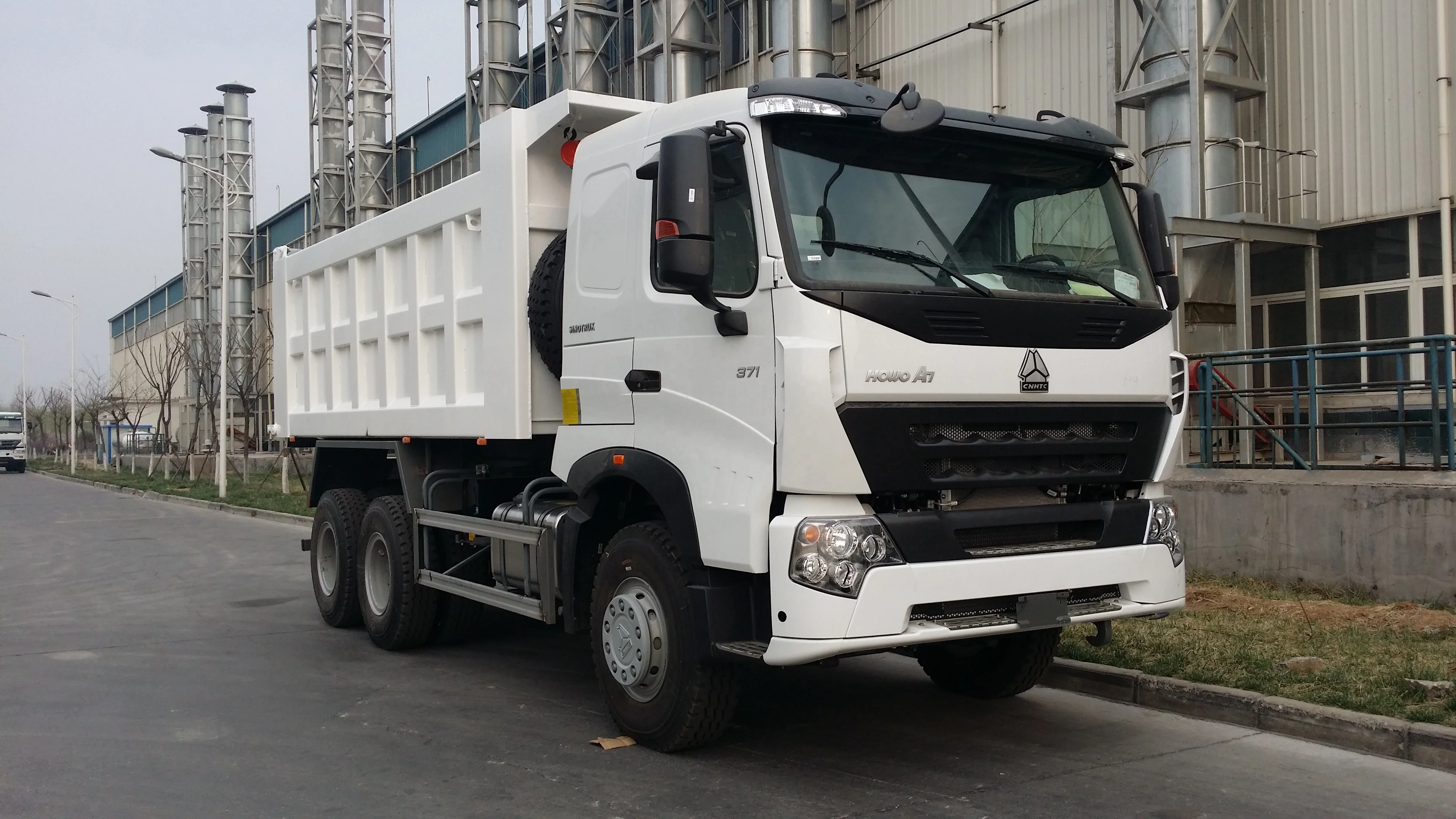

Factory Direct Sale Sinotruk HOWO A7 Dump Truck for sale

SPECIFICATION

Dimension(Lx W xH)(unloaded)(mm)

8065×2496×3490

Cargo body size (LxWxH) (mm)

5200x2300x1500 Sand body,Middle lifting, Bottom 8 mm, Side 6 mm

Approaching angle/Departure angle(°)

20/26

Overhang(front/rear) (mm)

1540/1750

Wheel base (mm)

3425+1350

Max speed(km/h)

78

Curb weight(kg)

12170

Engine(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

336HP

Emission

EUROII

Fuel tanker capacity(L)

300L aluminum oil tank

Transmission

Model

HW19710, 10 speeds forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8118

Front axle

HF9

Rear axle

HC16

Tire

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

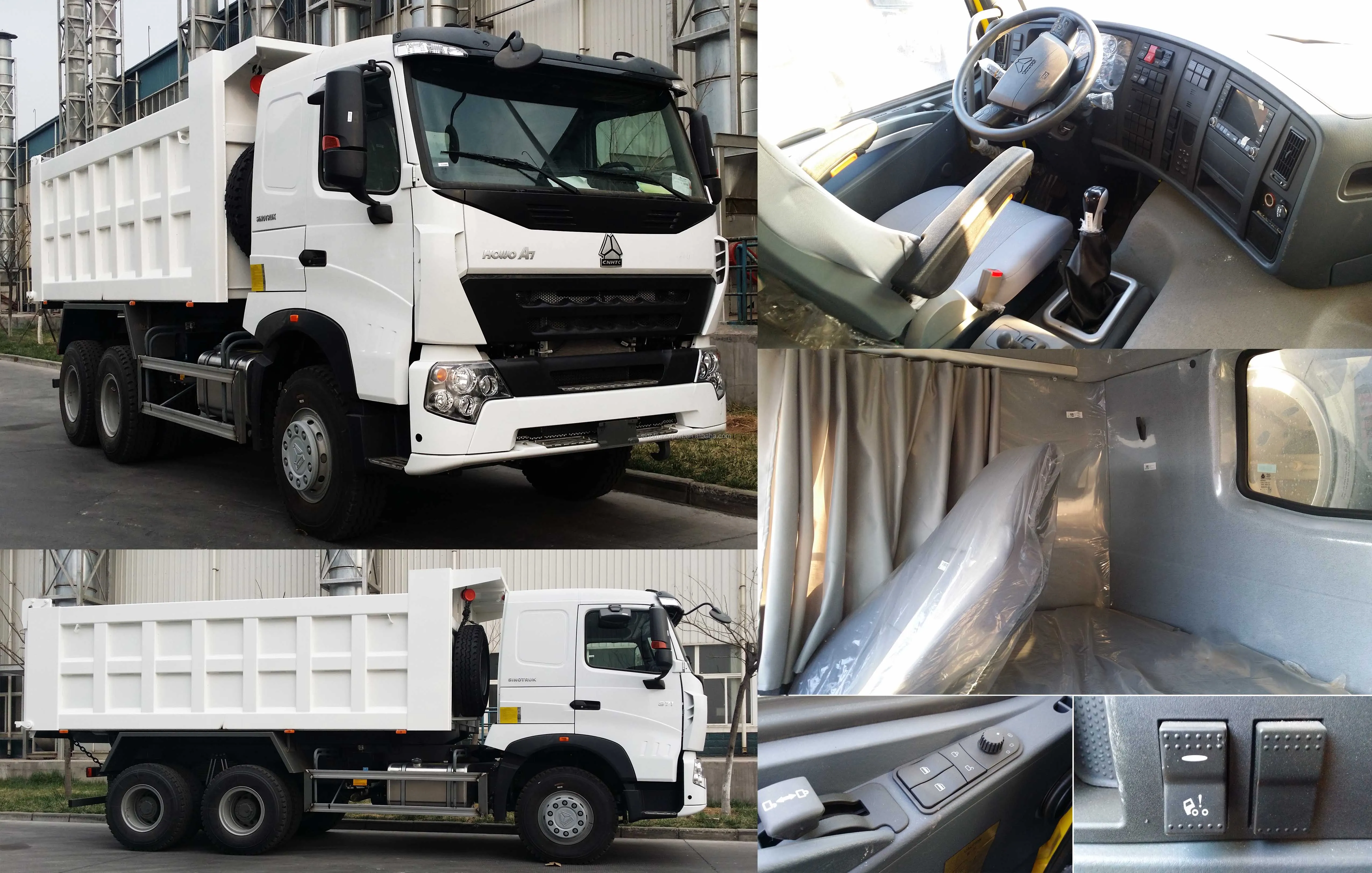

A7-W Standard Driving Cab:Four-point suspension plus coil spring and shock absorber; one sleeper with air conditioning; adjustable seat with radio, MP3 player and VDO numerical control instrument; manually adjusted rear-view mirror and manually lifted driving cab.
