Product Overview
Description
Hello ,welcome to our products ,our products in high quality even under the violence test ,for the details you can see the video and more information pls freely to contact us。
email：chinasteel0525@gmail.com，whatsapp：+8615805655043
Product Paramenters

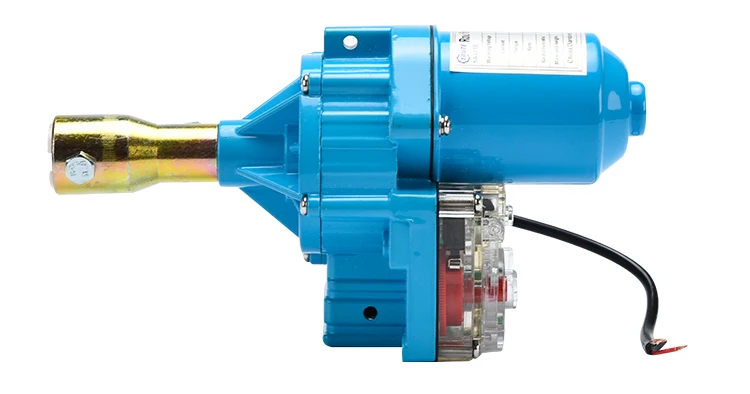

Name | Greenhouse Roll up Motor Ventilation Electric Roll-up Motor |
Model Number | YLT-100 |
Single package size: | 28*19*15CM |
Details Images

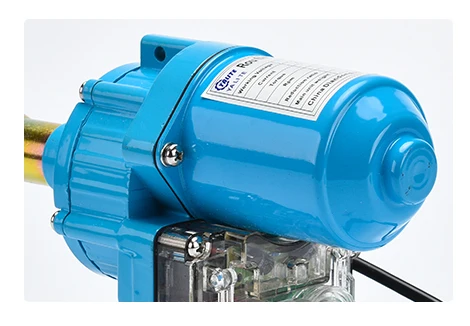

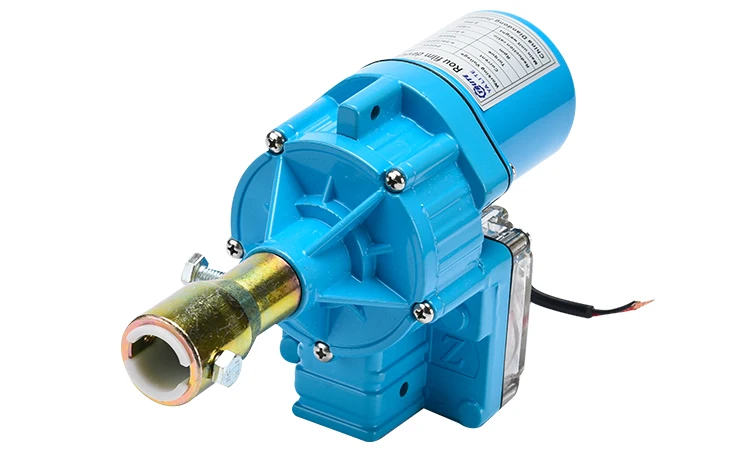

Cast aluminum shell
The shell is made of cast aluminum, which is cast by precision, die-casting process

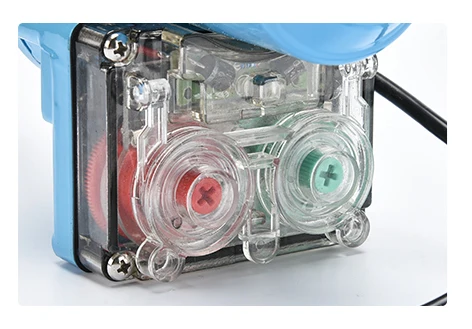

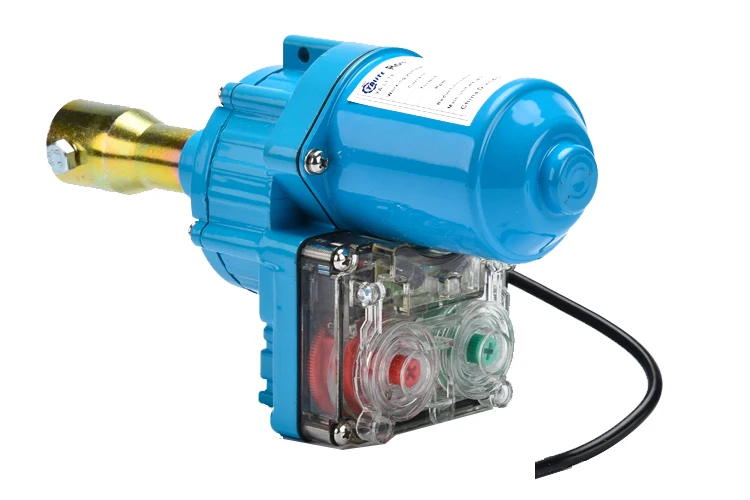

Limit switch
The upper and lower roll stroke can be easily set, the precise scale display, roll height is 4 meters, the pointer stops when it reaches 0

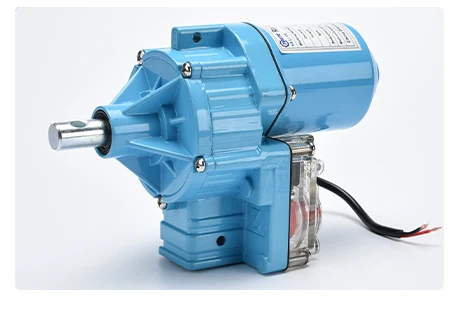

High-power motor
The upper and lower roll stroke can be easily set, the precise scale display, roll height is 4 meters, the pointer stops when it reaches 0

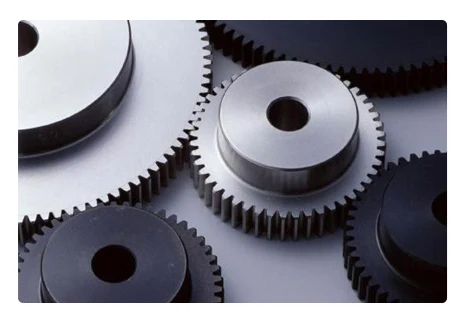

High strength gear
The internal gear is made of gear steel, which is treated with carbon, with high hardness, continuous teeth, not easy to rust and long service life

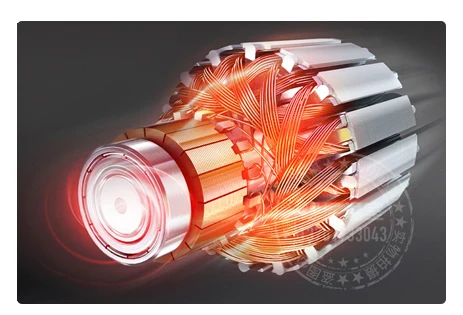

All copper movement
Strong power, power is 1.5 times of the same power click
Mediation steps:
1. Fix the film coiler in the middle position of the film expansion, switch on the power supply to make the motor run, and change the motor steering back and forth several times to test whether the operation is normal.
2. The drive shaft of the film coiler can rotate about 40 times (about 10 minutes) at most. When using 25MM film coiler, the width of the film coiler is about 4M.
3, the limit switch part of the film coil is shown in the figure, and the product is red and green when leaving the factory. The color is set to 0. When 25MM film tube is used as the driving axis, the height of film rolled by each large scale film tube is about 0.08m, and the film rolled by each 10 scale film tube
5. After the limit switch is adjusted, run it several times repeatedly to test whether the limit switch works normally and adjust to the best working position at the same time.
6, limit switch once adjusted, do not change at will.
2. The drive shaft of the film coiler can rotate about 40 times (about 10 minutes) at most. When using 25MM film coiler, the width of the film coiler is about 4M.
3, the limit switch part of the film coil is shown in the figure, and the product is red and green when leaving the factory. The color is set to 0. When 25MM film tube is used as the driving axis, the height of film rolled by each large scale film tube is about 0.08m, and the film rolled by each 10 scale film tube
5. After the limit switch is adjusted, run it several times repeatedly to test whether the limit switch works normally and adjust to the best working position at the same time.
6, limit switch once adjusted, do not change at will.

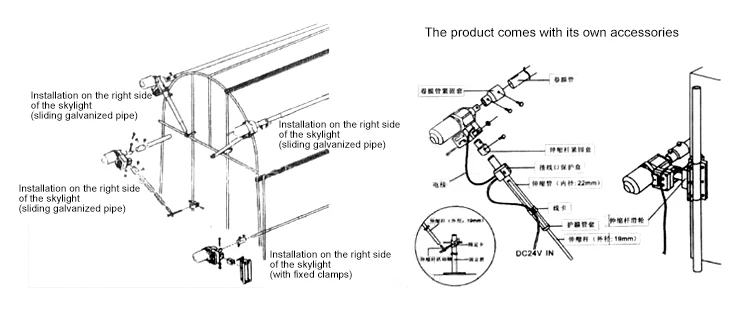

Installation precautions:
1. One end of the drive steel pipe is extended out about 150MM to cut off the film coil installed in the greenhouse, and no bending or distortion is allowed.

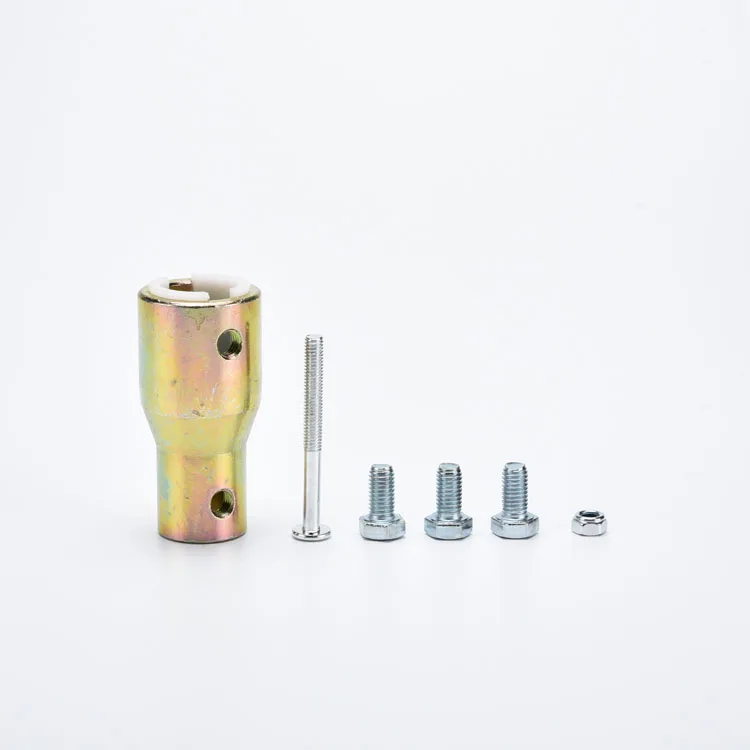

2. Connect the joint of the drive shaft and the drive steel pipe with the M8 hex screw. .
3. The overlap length between the expansion tube (outside) and expansion tube (inside) shall not be less than 100MM in the width of the film.
4, telescopic tube (inside) and fixed tube hinged to be able to rotate around the fixed steel pipe.
5, side open coil climbing steel pipe and driving steel pipe should be at right angles.
2. Connect the joint of the drive shaft and the drive steel pipe with the M8 hex screw. .
3. The overlap length between the expansion tube (outside) and expansion tube (inside) shall not be less than 100MM in the width of the film.
4, telescopic tube (inside) and fixed tube hinged to be able to rotate around the fixed steel pipe.
5, side open coil climbing steel pipe and driving steel pipe should be at right angles.

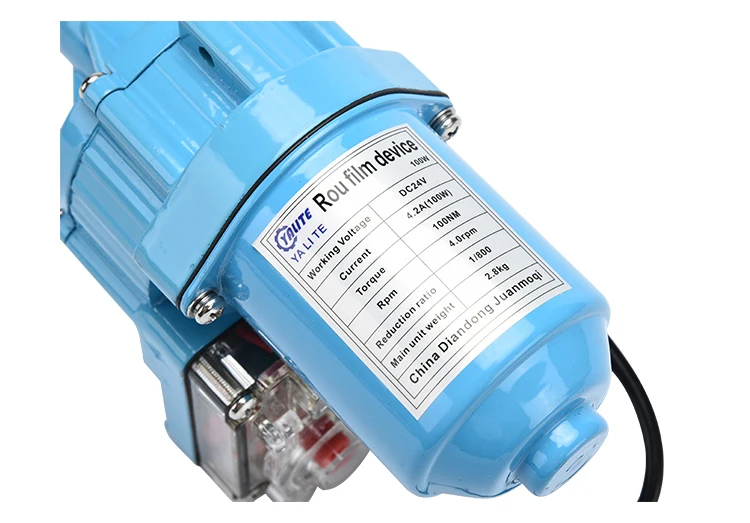

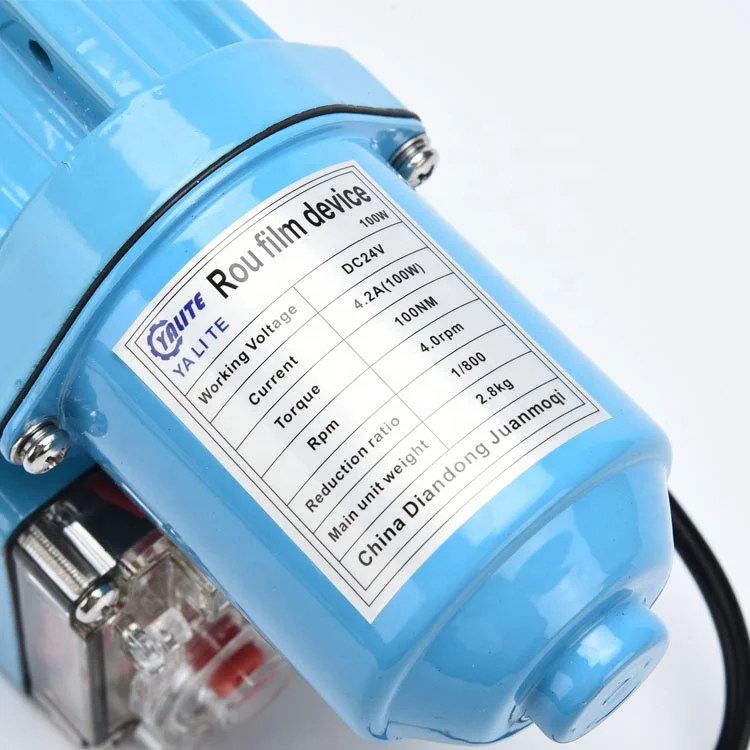

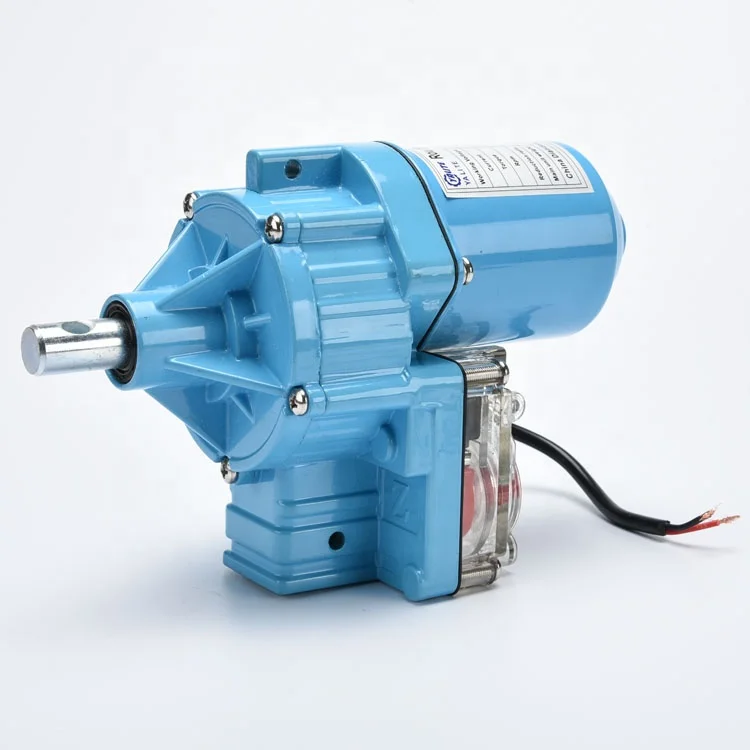

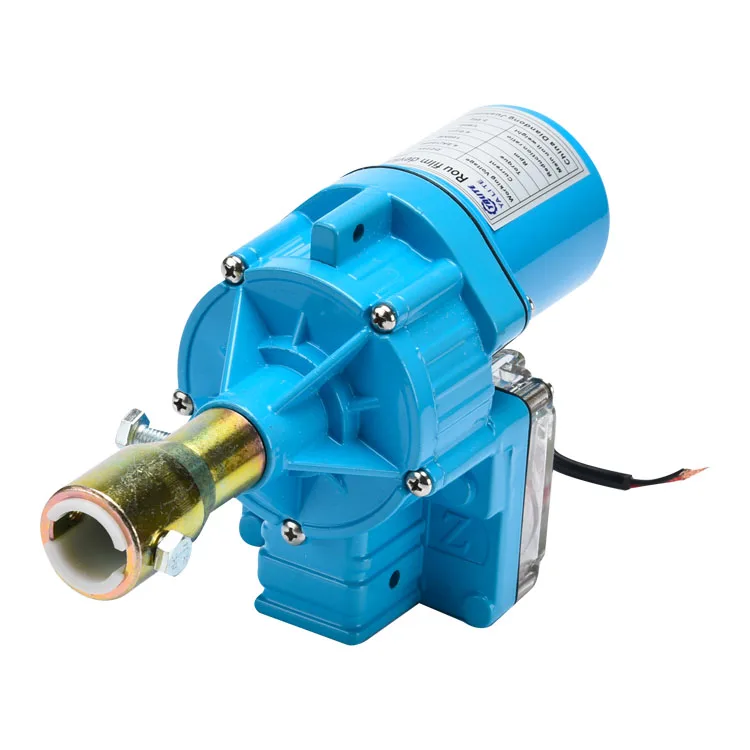

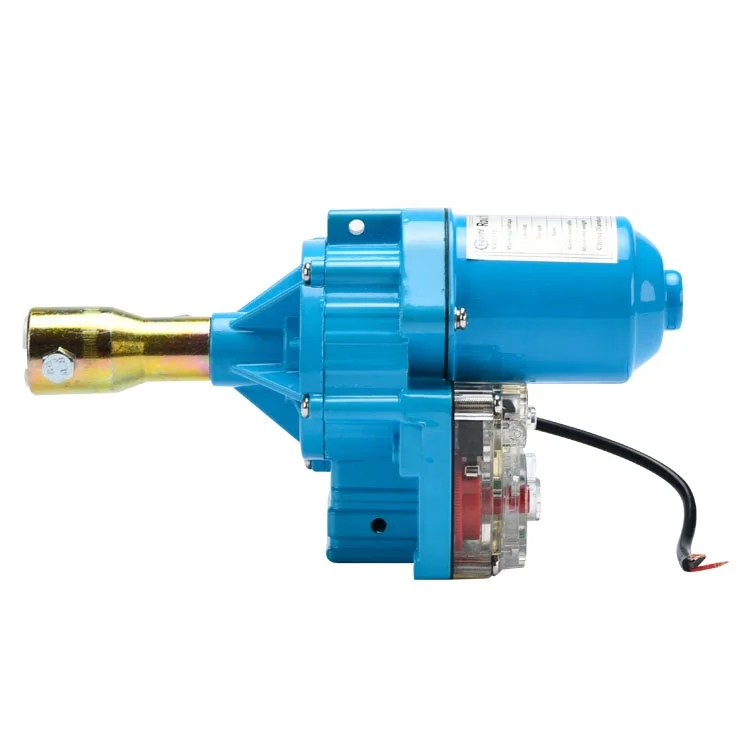

Product Name | Electric film coiler | Product model | YLT-100 | Working voltage | DC 24V |
Product weight | 2.8 KG | Torque | 100Nm | Reduction ratio | 1/830 |
Rated power | 100W | Speed | 3.0 rpm | Current | 4.2A |
Product Name | Electric film coiler | Product model | YLT-150 | Working voltage | DC 24V |
Product weight | 3.1 KG | Torque | 128Nm | Reduction ratio | 1/830 |
Rated power | 150W | Speed | 3.0 rpm | Current | 5.2A |
Note:
1. After the film coiler is installed, be sure to cover with a waterproof cover to prevent water from entering.
2. After the film coiler is installed, check whether the film coiler is straight, the whole shaft is accessible, and confirm that the driving shaft rotates smoothly before starting the motor.
2. After the film coiler is installed, check whether the film coiler is straight, the whole shaft is accessible, and confirm that the driving shaft rotates smoothly before starting the motor.
