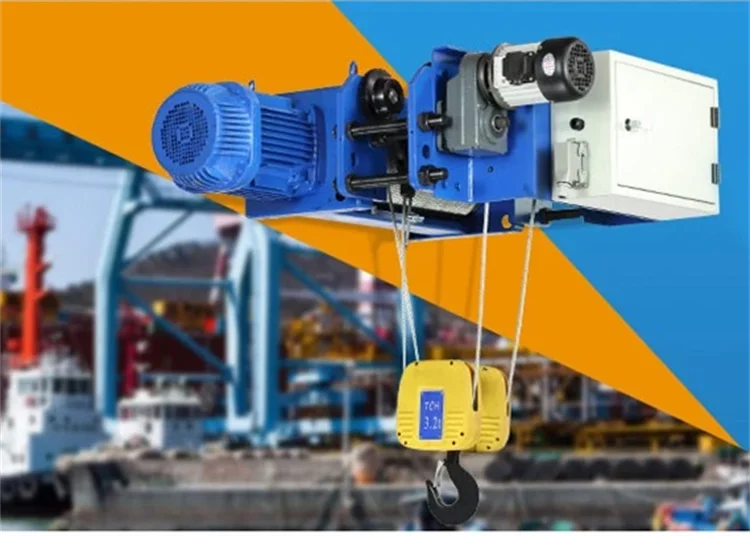

solid shaft output parallel multi speed helic gear motor reducer with brake for 10 tonne and 5 tonne gantry hoist
- Category: >>>
- Supplier: Pingyang Jinge Imp. & Exp. Co. Ltd.
Share on (1600331330552):
Product Overview
Description
Product Description

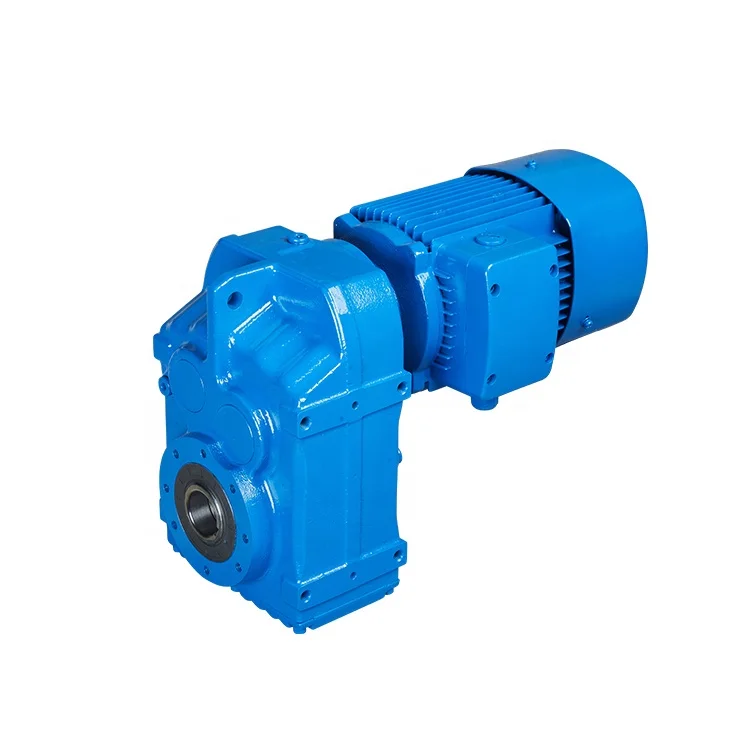

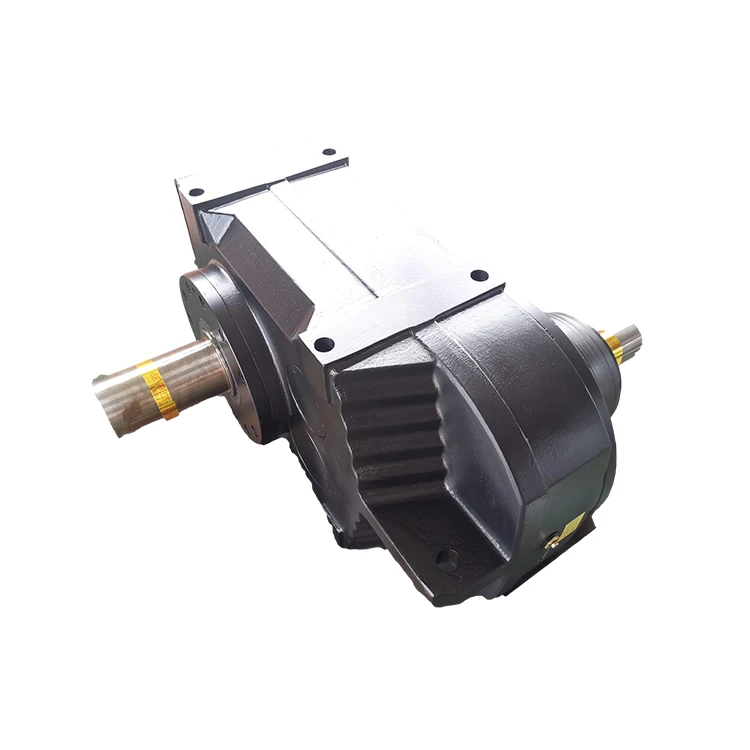

KINGEAR-transmission extra-slim parallel shaft helical geared motors are the perfect solution when space is limited. The many different sizes and designs ensure that the gearbox can be used a wide range of applications even under the most unfavorable conditions. KINGEAR Parallel shaft helical gear reducer are typically used in conveyor and materials processing applications.
Foot-mounted or Flange-mounted or shaft-mounted as installation options.
SPECIFICAITON
High-strength cast iron HT250 | |
Gear material | 20CrMnTi |
Input Power | 0.12-200KW |
Output Torque | 3.5-21700N.m |
Output Speed | 5-371 RPM |
Gear Accuracy | 7 to 6 level |
Gear Surface hardness | HRC58°-62° |
Input/Output shaft hardness | HB220-250 |
Noise(Max) | 60-70dB |
Tem.rise(Max) | 40°C |
Tem.rise(Oil Max) | 50°C |
Vibration | ≤20um |
Backlash | ≤20Arcmin |
Effeciency | Single stage 98%, Double-stage:96%, Three-stage:94% |
Mounting Position | Foot / Flange Mounting |
Motor | IP55,F Class |
OUR GEAR AND HOUSING
