ACME submerged arc chrome carbide overlay wear resistant steel plates
Product Description
* Chemical composition: ACME wear plates are manufactured by welding one or multiple abrasion
resistant layers on a medium or low carbon steel base plate . The overlay alloy has a high amount of
chromium carbide hard particles.
*Microstructure: The carbide (Cr7C3) volume fraction on the microstructure is above 50%.
*Hardness: Chromium carbide hard particles are distributed evenly throughout the layer, creating
a strong microstructure. The hardness is between HRC 58-65 and depends on the overlay's thickness.
*Wear resistance: Our test shows that the wear resistance of ACME plate is 30 times higher than mild
steel, 12 times higher than heat treated wear resistant steel and 5 times higher than Hardox plate.

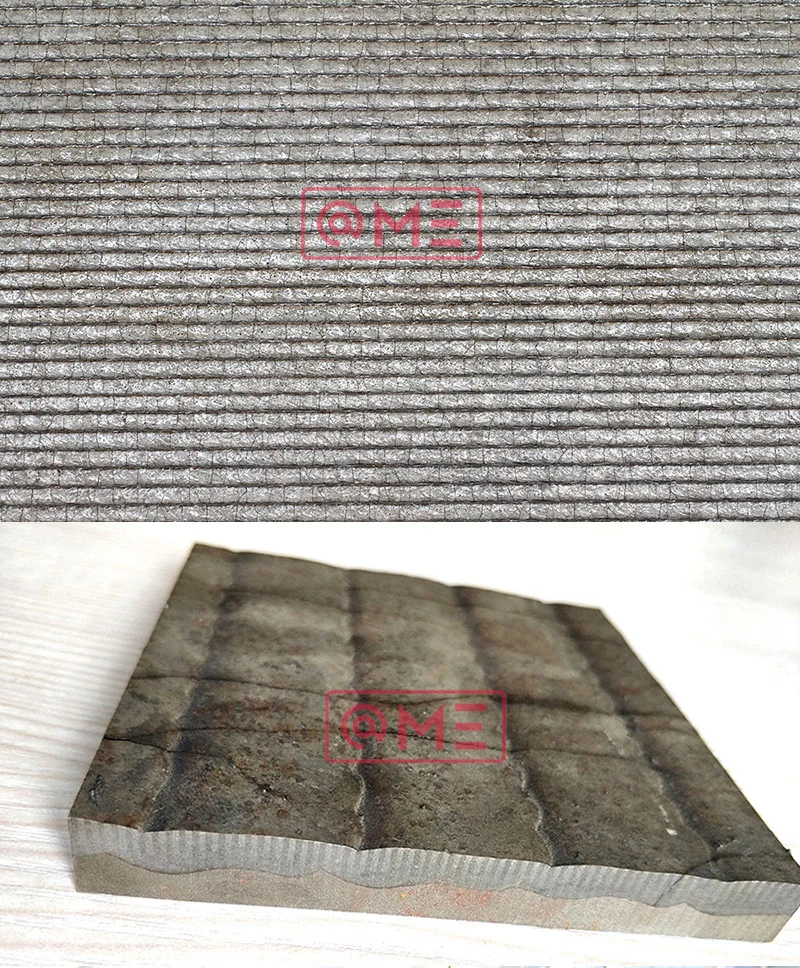

Submerged arc welding CCO wear plate
Open arc welding CCO wear plate

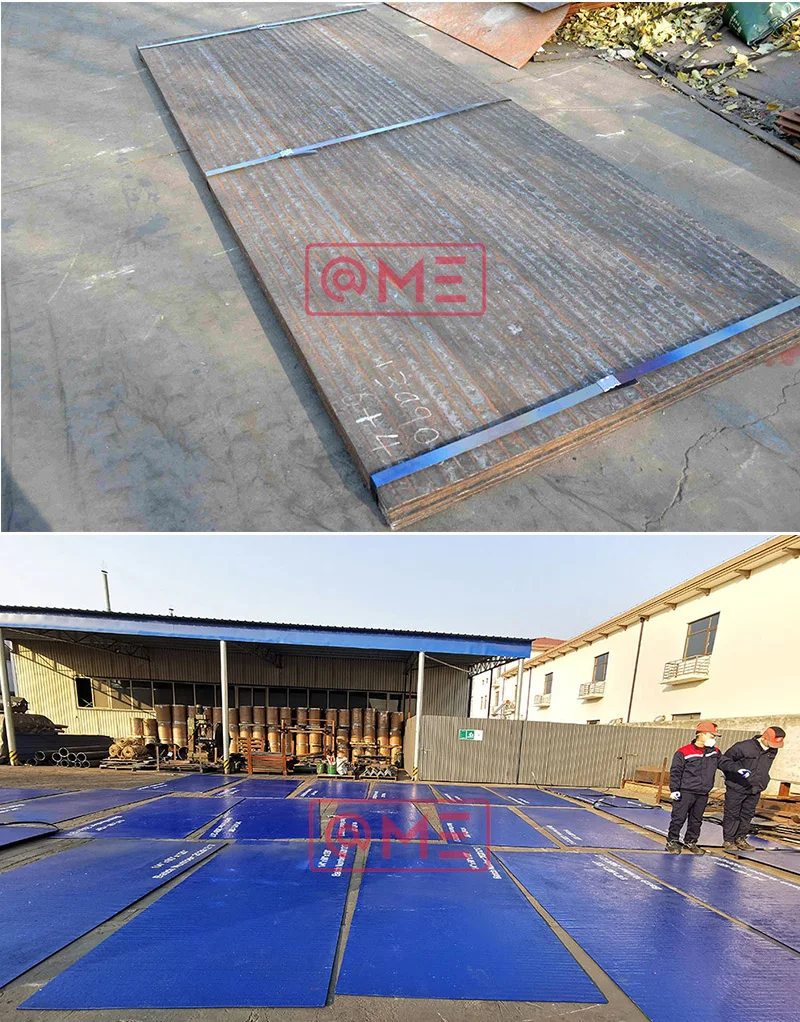

Packing Pictures
Specification
ACME Chromium carbide overlay wear plate
| Model | Characteristics | Hardness | Chemical Composition | Standard Thickness | Standard sheet size |
| (HRC) | (%) | (mm) | (mm) | ||
| AC-1000 | Common chromium carbide wear plate, suited for use in general wear applications involving low to medium impact | 58-65 | C: 3-5%; Cr: 17-27%; Mn: 1-3%; Si: 1-3%; Fe: balance; Other: - | 3+3; 4+4; 5+5; 6+4; 6+6; 8+4; 8+6; 8+8; 10+10; 12+12 etc (overlay thickness up to 50mm) | 1400*3400; 1500*3000; 2000*3000; Customized size |
| AC-1100 | |||||
| AC-1200 | High chromium version of common chromium carbide wear plates, Cr content is high up to above 40%,suited for use in severe abrasion applications, involving low to medium impact. | 58-65 | C: 3-6%; Cr: 25-45%; Mn: 1-3%; Si: 1-3%; Fe: balance; Other: - | 4+4; 5+5; 6+4; 6+6; 8+6; 8+8; 10+6; 10+8; 10+10; 12+12; 12+17 etc (overlay thickness up to 50mm) | 1400*3500; 2100*3500; Customized size |
| AC-1500 | |||||
| AC-1600 | Impact resistant wear plates, Independent R&D, suitable for medium to high impact. | 58-65 | C: 3.5-6.5%; Cr: 25-45%; Mn: 1-3%; Si: 1-3%; Mo+Nb: * ; Fe: balance; | 4+4; 5+5; 6+4; 6+6; 8+6; 8+8; 10+6; 10+8; 10+10; 12+12; 12+17 etc (overlay thickness up to 32mm) | 1400*3500; 2100*3500; Customized size |
| AC-1800 | Heat resistant wear plate, heat resistance maximum up to 900℃ | 58-65 | C: 4-7%; Cr: 25-40%; Mn: -; Si: -; Mo+Ni+V+Nb+W: * ; Fe: balance; | 6+6; 8+6; 8+8; 10+10; 12+12; 12+17; 14+26; 12+32 etc (overlay thickness up to 50mm) | 1400*3500; 2100*3500; Customized size |
| AC-NC100 | Crack free wear plate, mainly used as housing liner and side plate in steel mill | 50-55 | / | / | / |
| Other series | Customized on request, special chemical element included for special abrasion fields | / | / | / | / |
chromium carbide steel plate hardened steel plate heat resistant

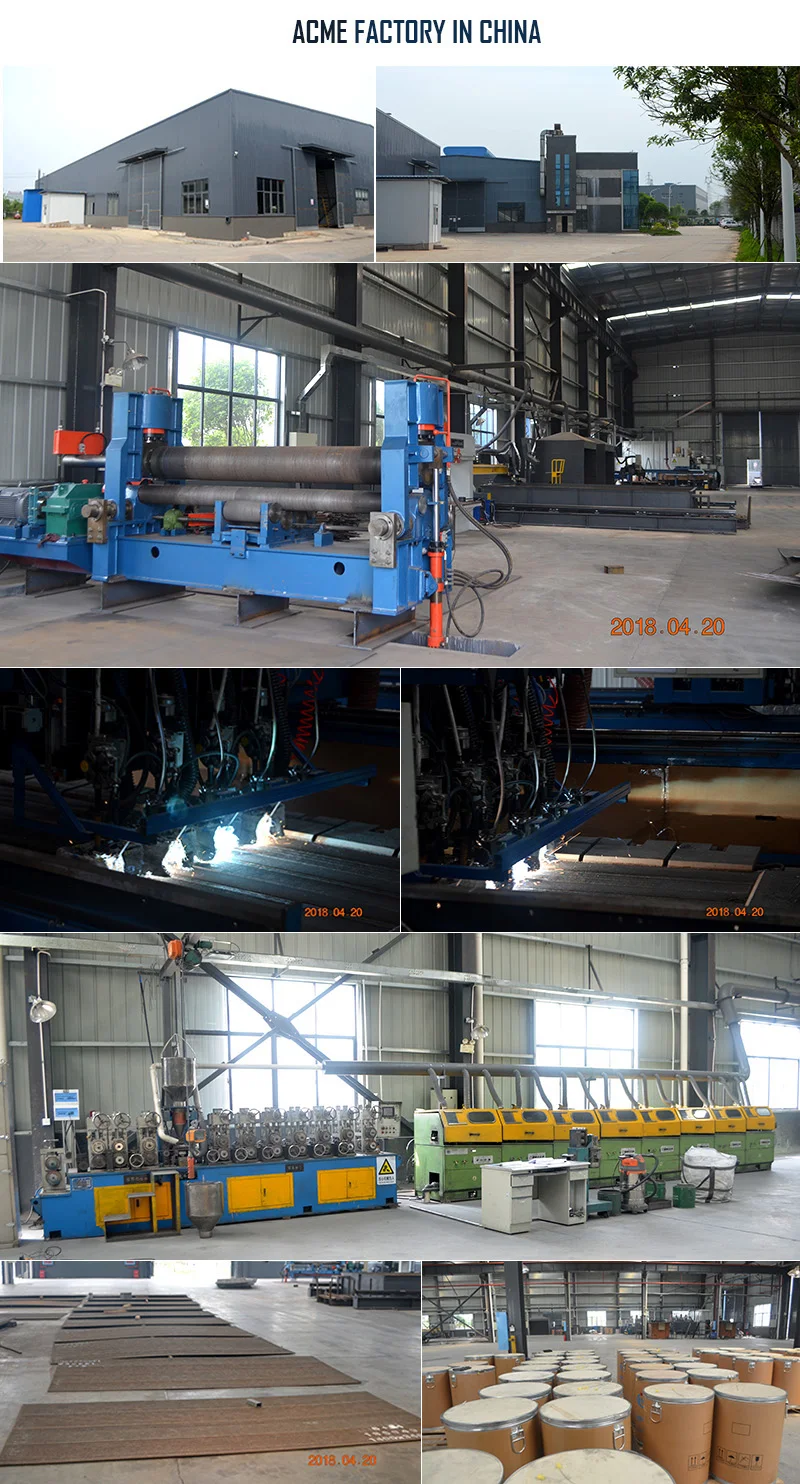

Company Information
Tianjin ACME International Trade Co., Ltd. is an expert in the supply of wear resistant materials in all fields to meet the customized requirements of various abrasion conditions in industry. For wear resistant hardfacing materials, heat treatment wear resistant steel, wear resistant castings and wear resistant ceramics and other wear resistant materials, we have professional technical personnel and experts to provide high quality and reasonable professional solutions. According to the various abrasion conditions of the industry, and long-term stable cooperation with well-known OEM factories in the industry, we provide services according to our high-quality product implementation standards.In addition, the professional inspection team conducts professional guidance and secondary inspection in the OEM factory, so as to provide customers with one-stop professional wear solutions and corresponding high-quality products.
Since its establishment, replying on the long-term support and cooperation of professional Technical experts and talents and well known OEM factories in the industry, we mainly serve the mining, cement,metallurgy, power, port and construction industries.
Application
FAQ
Q1: Are you trading company or manufacturer?
We are trading company with long-term stable cooperation with well-known OEM factories in the industry, and we have our own inspection teams.
Q2: Can you provide samples for test?
Yes, Free sample is available for our high-grade customer to test quality.
Q3: How can you guarantee quality?
Always a pre-production sample before mass production;
Always final inspection before shipment.
Q4: Can you make our own logo on the products and boxes?
Yes, we can make custom logo and box for production order.
Q5: Where is your loading port?
Normal Tianjin Xingang, China. Other port like Shanghai, Guangzhou, Shenzhen also acceptable.
Q6: Can you arrange the shippment?
Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q7: What is your Price Terms?
We can accept EXW, FOB, CFR, CIF, DDU.
