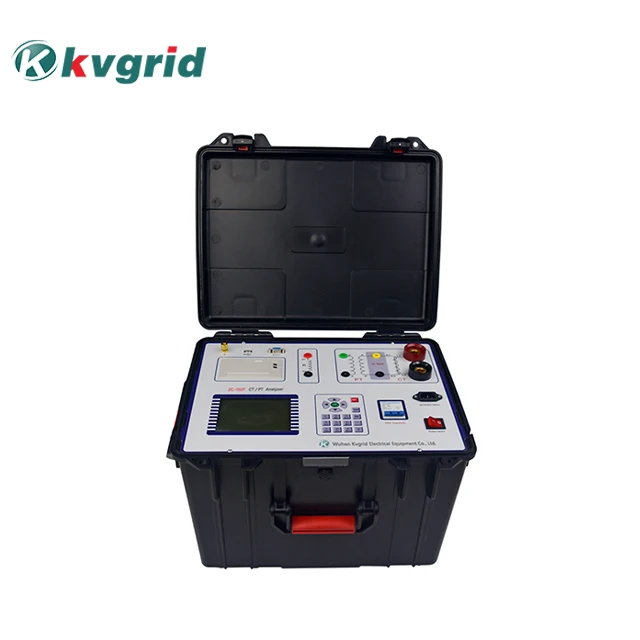

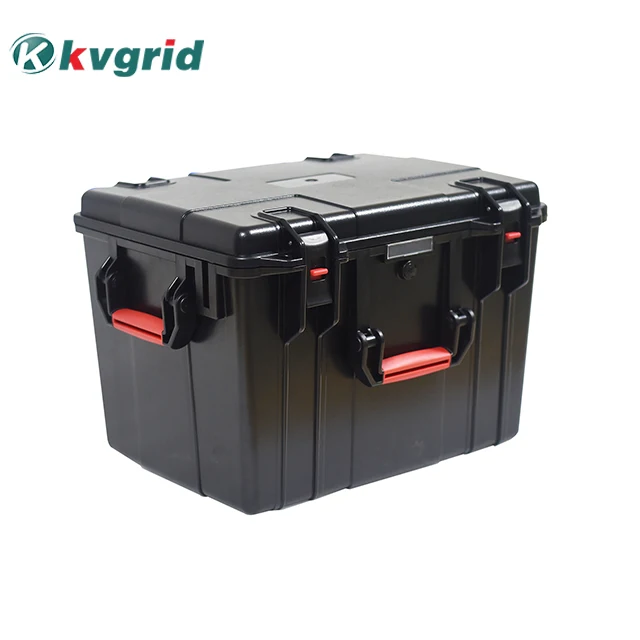

ZC-102F Current Transformer Volt Ampere Characteristic Tester Power Frequency CT PT Analyzer
- Category: Parameter Measuring Instrument >>>
- Supplier: Wuhan,Kvgrid,Electrical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Product name | Current Transformer Volt Ampere Characteristic Tester Power Frequency CT PT Analyzer |
Power | Electronic |
Function | CT/PT test |
Technical Parameter
Booster output current & voltage | 1A/2500V 2A/1500V 5A/600V 10A/220V 20A/30V | ||
Current generator output current | 600A | ||
Output power | 3000VA | ||
Voltage and current measurement accuracy | ±0.2% | ||
CT ratio tests Voltage method / current method | Range | 1~40000 | |
Accuracy | ±0.2% | ||
PT ratio tests | Range | 1~40000 | |
Accuracy | ±0.2% | ||
Phase measurement | Range | ±5min | |
Resolving power | 0.5min | ||
Secondary winding resistance tests | Range | 0~1kΩ | |
Accuracy | 0.5%±2mΩ | ||
AC load tests | Range | 0~1000VA | |
Accuracy | 0.5%±0.05VA | ||
Power supply | AC220V±10% ，50Hz | ||
Work environment | Temperature: -10℃~50℃,Humidity: ≤90% | ||
Size & Weight | Size: 425 mm×290 mm×310mm Weight: 30kg | ||
