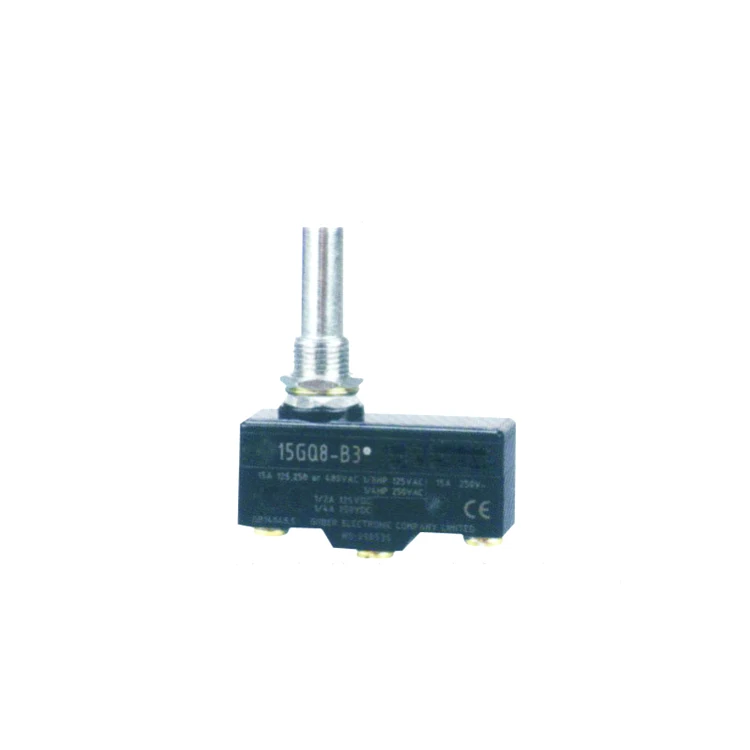

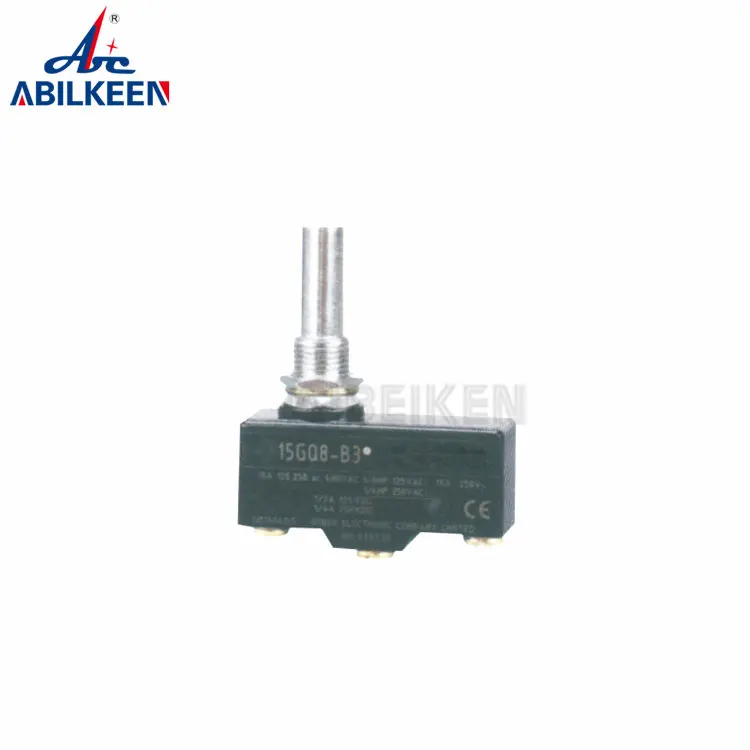

Micro Switch Simulated Lever Waterproof Electrical Momentary Push Button Micro Switch
- Category: Micro Switches >>>
- Supplier: Yueqing Aibeiken Electric Co. Ltd.
Share on (1600331553404):
Product Overview
Description
Products Description
Micro Switch Simulated Lever Waterproof Electrical Momentary Push Button Micro Switch
Description:
- Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration.
- Snap action contacts have different trip and reset points. The distance between the trip and reset point is called the travel to reset, hysteresis, or differential. Finite travel to reset helps to avoid multiple changes of state if the object actuating the switch is subject to vibration.
- Snap action contacts ensure repeatable performance in applications that involve low speed actuators. The amount of travel of the contacts is also not dependent on the amount of travel by the actuator.
- Durable material construction, long using life. Easy installation. Widely used in electronic equipments, automatic machines, etc.
Product Name | Micro Limit Switch |

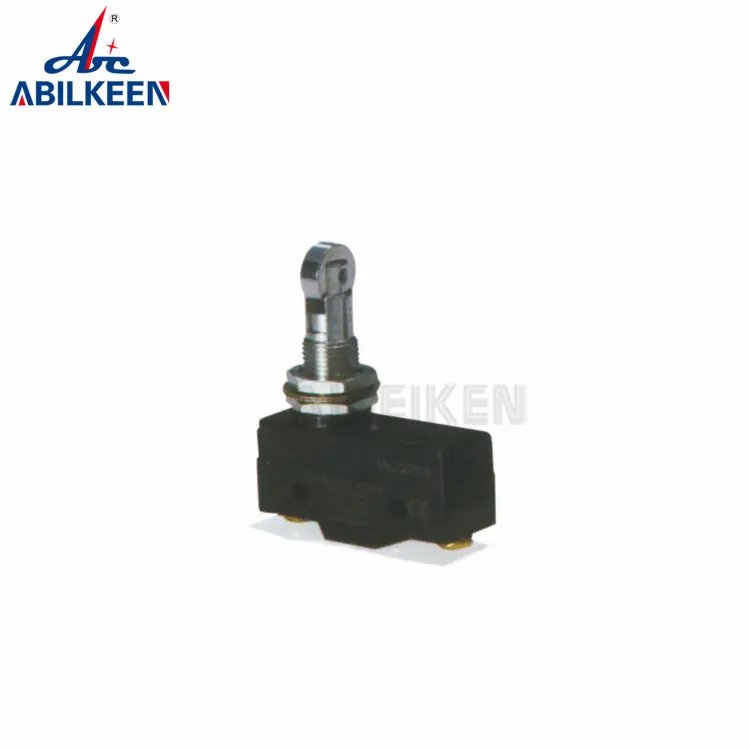

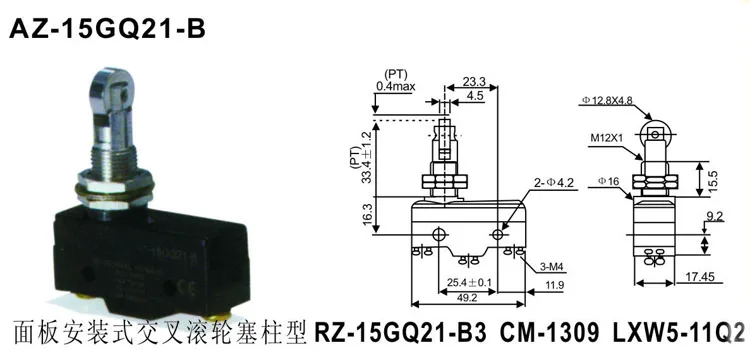

Model | AZ-15GQ21-B |
Contact Type | SPDT DPDT |
Max. Rating | DC 0. 6A 125V DC 0. 3A 250V AC 15A 1/2HP 125V/250V |
Material | Plastic, Metal |
Life expectancy | More than 500000（Life expectancy at switch testing machine for a continuous period of work,operating at frequencies below 60 times per mimute,the working conditions:DC 40V,50mA.) |
Temperature | 25~65℃ |
Relative humidity | below 85% |
Rate Voltage | 125V 250V AC |
Rated Current | 5A |
Insulation Resistance | 100MΩ Min |
Contact Resistance | Max.25Mohm |
Delivery Days | 3-7 days after payment received |
Wire Connector / Wire soldering | Acceptable and with fast shipping |
Accessories | 1*Pcs Mini Micro Limit Switch Roller Lever Arm SPDT Snap Actiong |
Details Images
Company Profile
Product packaging
FAQ
Q1. What is your terms of packing? IP67 waterproof push button micro switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? micro limit switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? micro limit switch
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
