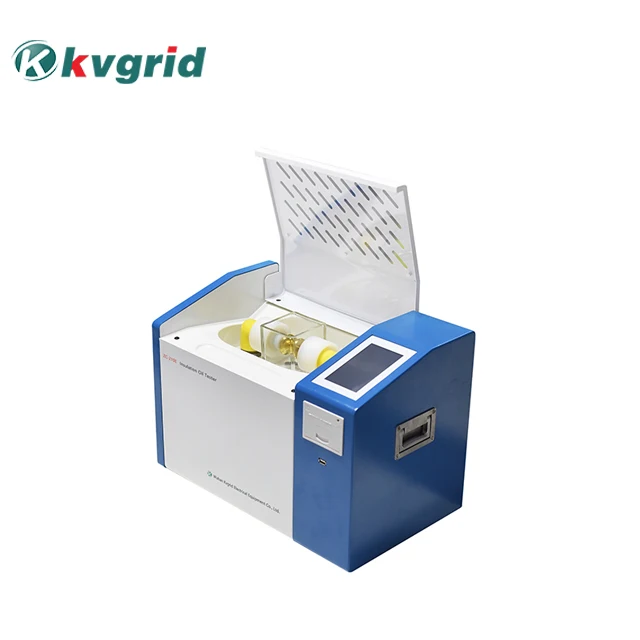

Full-automatic Insulating Breakdown Voltage Dielectric Strength Bdv Transformer Oil Tester
- Category: Parameter Measuring Instrument >>>
- Supplier: Wuhan,Kvgrid,Electrical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Product name | Insulation Oil Tester |
Type | ZC-210E |
Function | Test insulating oil dielectric strength |
Insulation Oil Tester by using a single-chip microcomputer as the core, can operate in full automation with high
accuracy,greatly,improving work efficiency and reducing the labor intensity of workers. Moreover, it is small in size and
convenient to carry.
accuracy,greatly,improving work efficiency and reducing the labor intensity of workers. Moreover, it is small in size and
convenient to carry.
Product Feature
1. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0～80KV (including
boosting, maintaining, mixing, standing, calculation, printing and other operations)
2. Display by large-screen LCD and prompt by English menu.
3. Simple operation. Insulation Oil Tester will automatically complete the withstand voltage test on one cup of sample oil after
simple setting by the operator. Breakdown voltage value of 1 to 9 times and recurrent times will be automatically saved. After the
test, the thermal printer will print each breakdown voltage value and average value.
4. Power-down preservation. It can save 100 tested results.
5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole
process easy for control.
6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.
7. With the function of displaying the measured temperature and system clock.
8. Communicate with computer with a standard RS232 interface.
9. USB， can export the test data.
boosting, maintaining, mixing, standing, calculation, printing and other operations)
2. Display by large-screen LCD and prompt by English menu.
3. Simple operation. Insulation Oil Tester will automatically complete the withstand voltage test on one cup of sample oil after
simple setting by the operator. Breakdown voltage value of 1 to 9 times and recurrent times will be automatically saved. After the
test, the thermal printer will print each breakdown voltage value and average value.
4. Power-down preservation. It can save 100 tested results.
5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole
process easy for control.
6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.
7. With the function of displaying the measured temperature and system clock.
8. Communicate with computer with a standard RS232 interface.
9. USB， can export the test data.
Technical Parameter
1. Output voltage: 0～80KV (optional)
2. Voltage distortion rate: ＜3%
3. Booster capacity: 1.5KVA
4. Measuring accuracy: ±3％
5. Supply voltage: AC220V±10% 50Hz±1 Hz
6. Power: 200W
7. Applicable temperature: 0℃～45℃
8. Applicable humidity: ＜75%RH
9. Overall dimension: 460mm×280mm×320mm
2. Voltage distortion rate: ＜3%
3. Booster capacity: 1.5KVA
4. Measuring accuracy: ±3％
5. Supply voltage: AC220V±10% 50Hz±1 Hz
6. Power: 200W
7. Applicable temperature: 0℃～45℃
8. Applicable humidity: ＜75%RH
9. Overall dimension: 460mm×280mm×320mm
