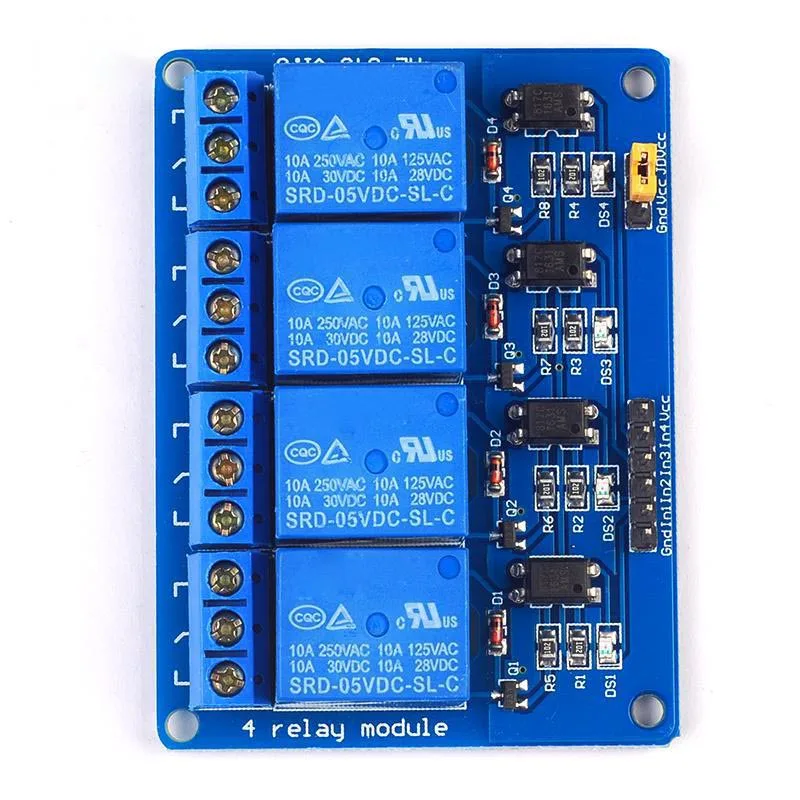

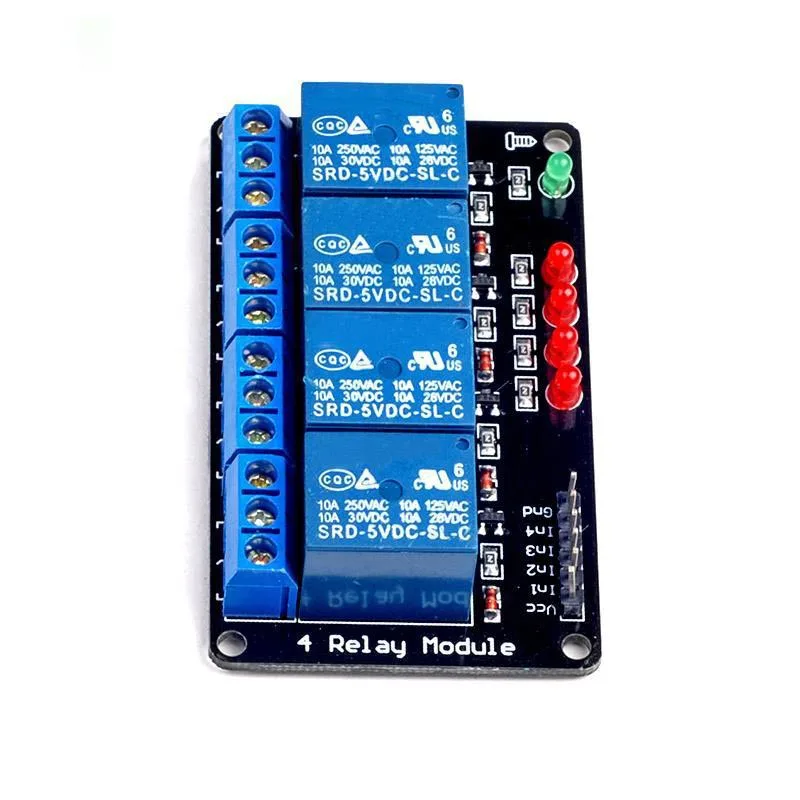

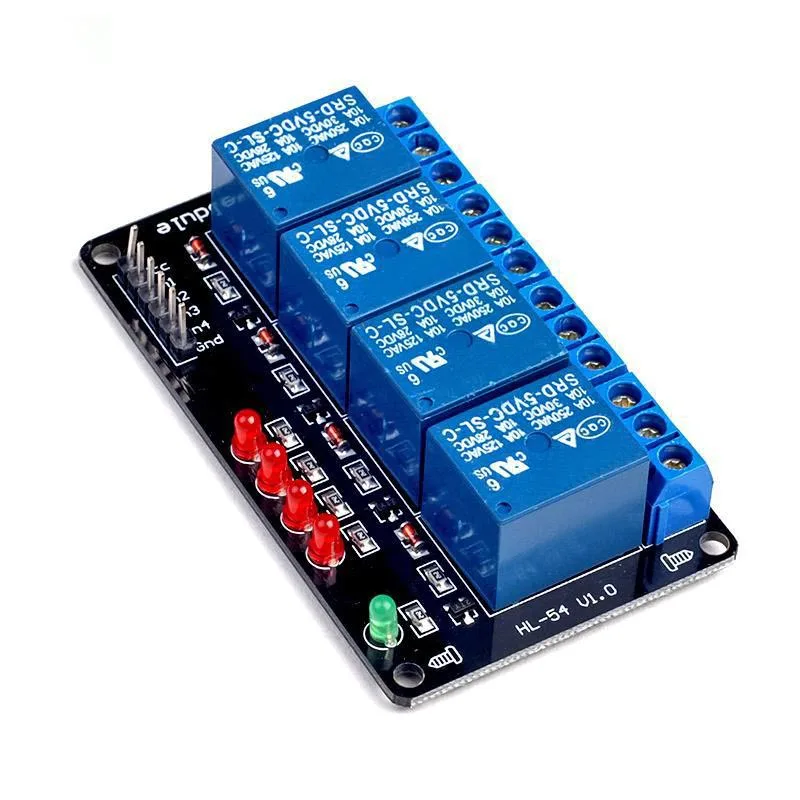

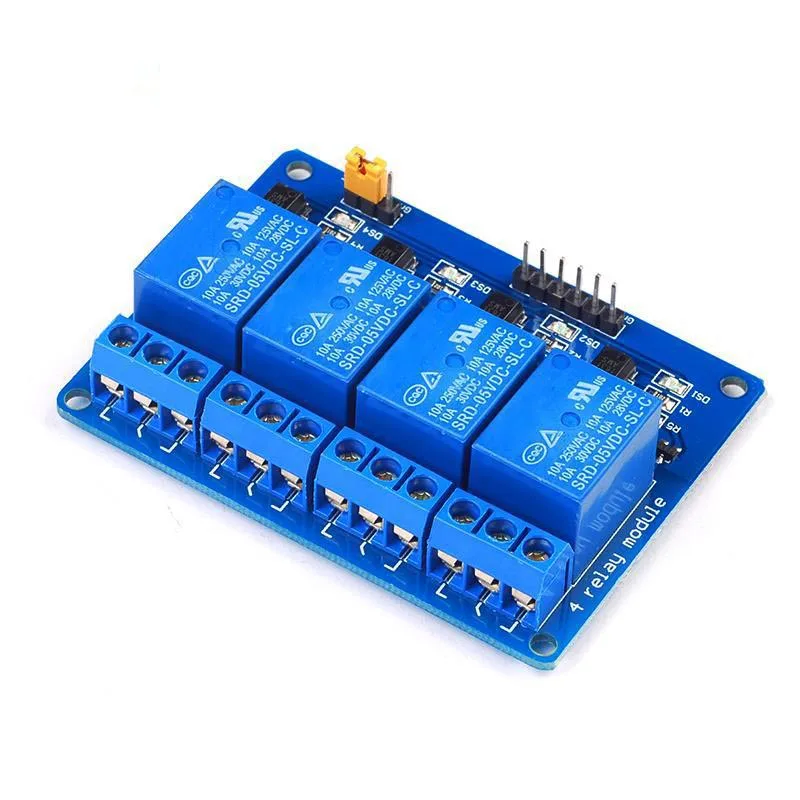

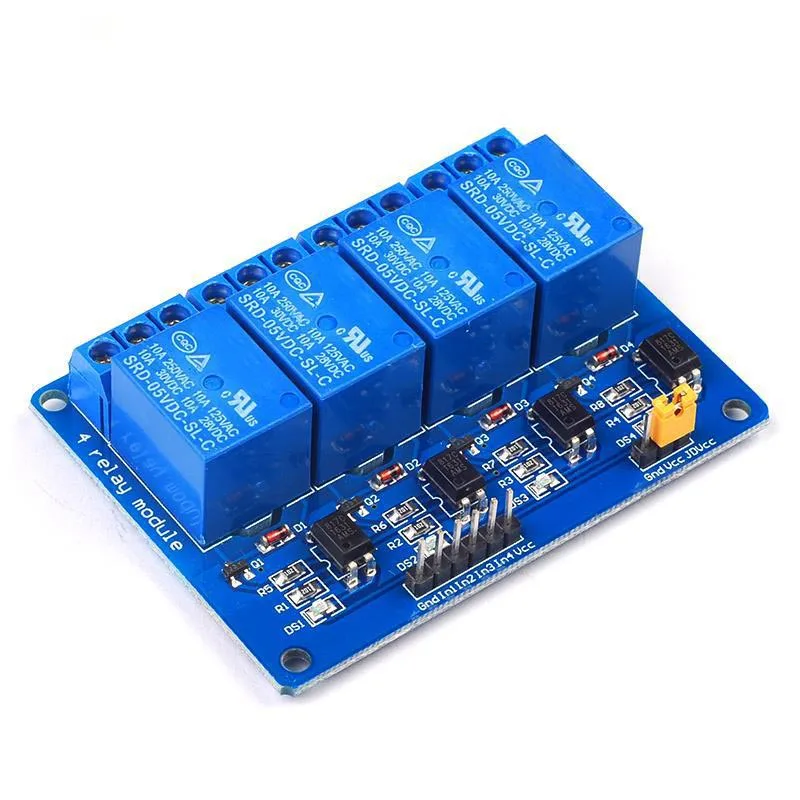

Dc5v 4 Channels Relay Module With Optocoupler Relay Output 4 Way Relay Module For Raspberry

 Application:

The first mock exam is as follows:

1. The module adopts genuine high-quality relay, and the maximum load of normally open interface: AC 250V / 10A, DC 30V / 10A;

2. Chip mounted optocoupler isolation, strong driving ability and stable performance; Trigger current 5mA;

3. The working voltage of the module is 5V, 12V and 24V;

4. Each circuit of the module can be triggered by setting high level or low level through jumper;

5. Fault tolerant design, even if the control line is broken, the relay will not act;

6. Power indicator (green), 4-way relay status indicator (red)

7. The interface design is user-friendly, and all interfaces can be led out directly through the wiring terminal, which is very convenient

8. Module size: 73mm * 50mm * 18.5mm (L * w * h)

9. Four fixing bolt holes are set, with holes of 3.1mm and spacing of 67mm * 44.5mm

Two module interface:

1. DC +: connected to the positive pole of the power supply (according to the relay voltage of 5V, 12V and 24V)

2. DC -: connected to negative pole of power supply

3. In1-in4: according to the setting of each circuit, the pull-in of corresponding relay can be controlled at high or low level

Relay output terminal: there are 12 wire interfaces, and all interfaces can be directly connected and led out, which is convenient for users

1. No1 -- No4: normally open interface of relay. The relay is suspended before closing, and is short circuited with com after closing

2. COM1 -- COM4 relay common interface

3. NC1 -- NC4: normally closed interface of relay, which is short circuited with com before pulling in and suspended after pulling in

High and low level trigger selection terminal:

1. S1-S4 are the high and low level trigger selection of relay 1-4 in turn;

2. When com and low are short circuited, the corresponding relay is triggered at low level, and when com and high are short circuited, it is triggered at high level
