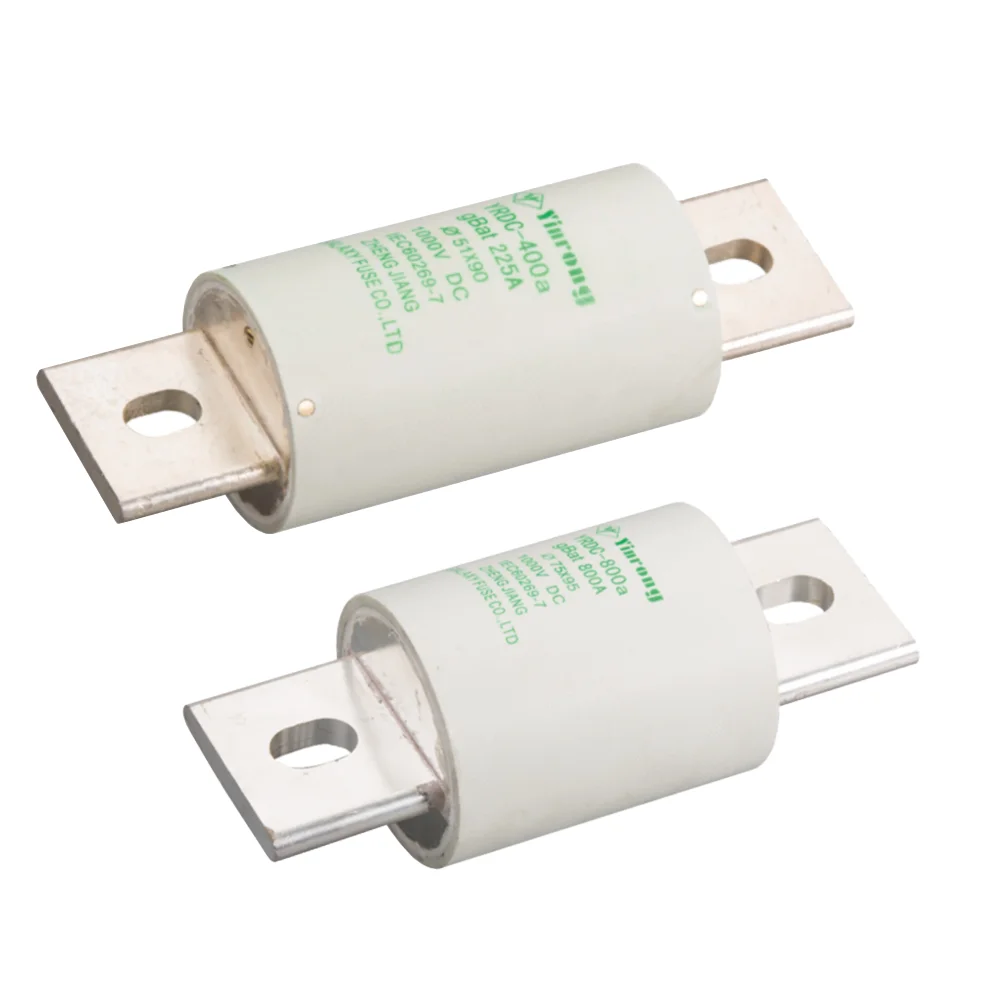

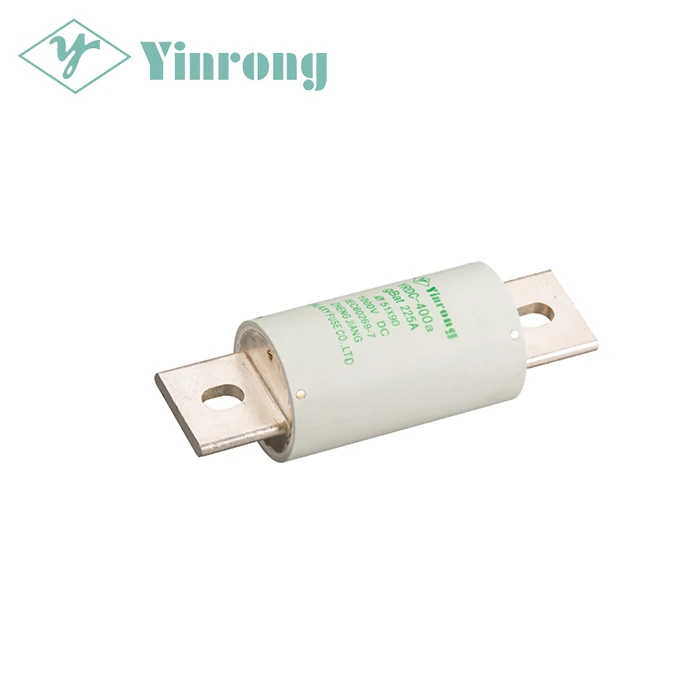

Battery fuse for DC protection of electric vehicles and batteries 1000A dc1600V YREVY A series
- Category: >>>
- Supplier: Zhejiang Galaxy Fuse Co. Ltd.
Share on (1600331996146):
Product Overview
Description
Product Description

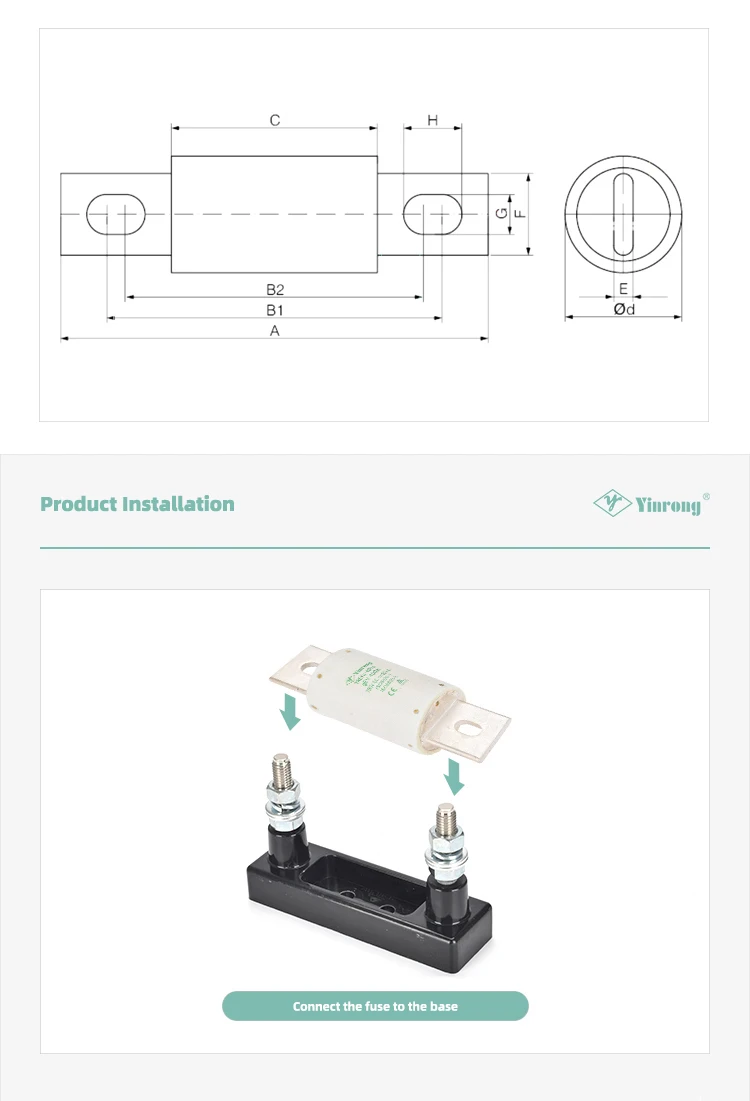

| Model/Size | Rated Voltage DC(V) | Rated Current (A) | Overall Dimension (mm) | |||||||
| A | B1 | B2 | C | Φd | E | F | G×H | |||
| YREVy-60a | 1,000 | 35,40,50,60 | 125.5 | 106.8 | 98.8 | 80 | 25.8 | 3 | 19.5 | 8.5×12 |
| YREVy-100a | 65,70,80,90,100 | 131 | 111.7 | 104.3 | 85 | 31.4 | 5 | 25 | 8.3×12 | |
| YREVy-200a | 125,150,200 | 148 | 124.2 | 114.8 | 90 | 39.3 | 6 | 25.4 | 10.3×15 | |
| YREVy-400a | 225,250,300,350,400 | 148 | 124.2 | 114.8 | 90 | 51 | 6 | 25.4 | 10.3×15 | |
| YREVy-600a | 450,500,550,600 | 198 | 155.8 | 142.2 | 100 | 63.5 | 10 | 39.8 | 14.3×21 | |
| YREVy-800a | 650,700,800 | 198 | 155.8 | 142.2 | 100 | 77 | 10 | 60 | 14.3×21 | |
| YREVy-1000a | 850,900,950,1000 | 198 | 155.8 | 142.2 | 100 | 95 | 11.5 | 80 | 14.3×21 | |
| YREVy-1200a | 1100,1200 | 204 | 163 | 147 | 106 | 108 | 12.8 | 80 | 16.2×24 | |
| YREVy-1600a | 1300,1400,1500,1600 | SEE DRAWINGS | ||||||||

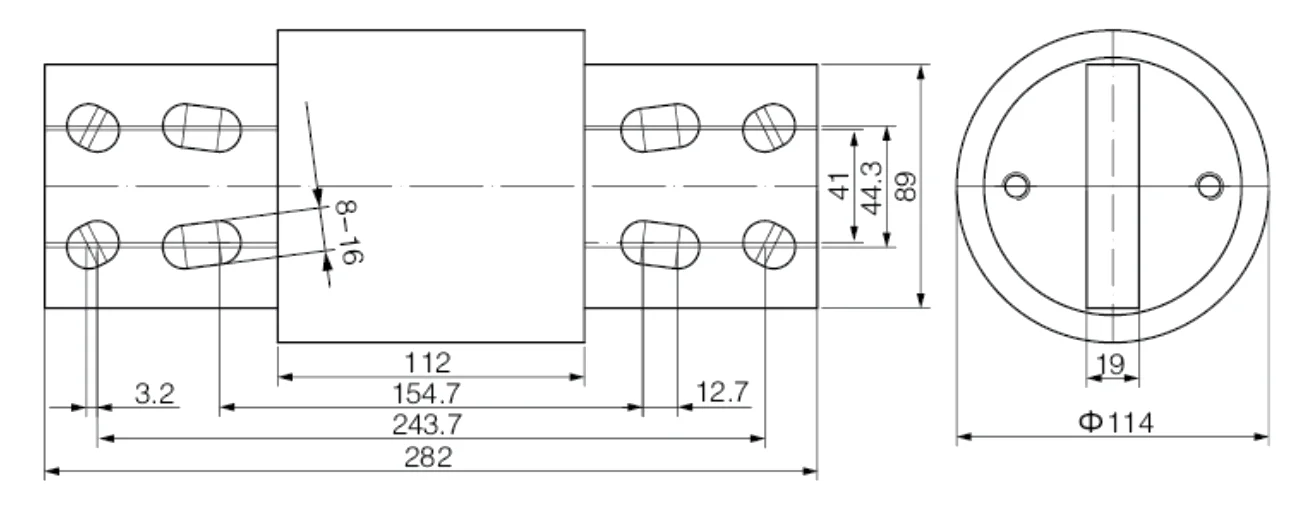

YREVy-1600a:
