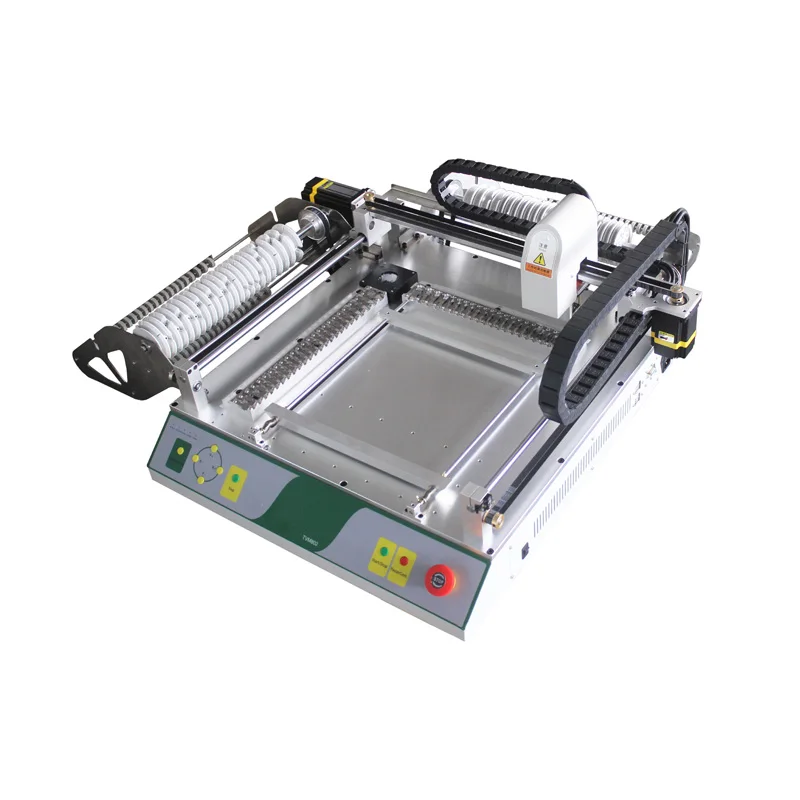

Mini Desktop Pick and Place SMD PCB Soldering Machine TVM802B with 46 Feeders
- Category: >>>
- Supplier: Beijing Huaweiguochuang Electronic Technology Co. Ltd.
Share on (1600332212964):
Product Overview
Description
Products Description
1.TVM802B is updated from TVM802A.
Newly second-generation roll feeder（46 Feeder positions meet your needs well）
Newly second-generation roll feeder（46 Feeder positions meet your needs well）
Model | TVM802B |
Max applicable PCB | 20*20mm----270*330mm |
Max XY Moving area | 395*445mm |
Placement head quantity | 2 |
Positioning accuracy | ±0.025mm |
Max mounting capability | 5000CPH (With camera)/ 7000CPH (Without camera) |
Motor | Closed-loop Motor |
Driver | Closed-loop Driver |
Applicable Components | 0402--5050, SOP, TQFP, QFN, BGA etc |
Components supply | Tape reel, bulk,Tray |
Tape width & Feeders number | Total=46PCS 8mm=38PCS, 12mm=6PCS, 16mm=2PCS |
UP Visual system | Identify angle deviations and position deviations |
Down Visual system | Automatic identify mark point of PCB |
Pump | 1 vacuum pump (-92KP), 1 blow pump |
Vacuum pump | 2 -92KPA (Mute type pump) and 1 positive pump |
Power | 125W |
Power supply | AC220V/AC110V |
Gross weight | 58KG |
Net Weight | 45KG |
Volume | 0.32CBM |
Support software | Protl99/ Altium Designer/ Eagle/ Pads/ Allegro |
Machine is of high quality with at least one-year warranty, lifetime maintenance.
Details
1.Main feeder
Standard configuration positions:8mm-22pcs,12,mm-3pcs,16mm-1pcs.
2.The second feeder (TVM802A WITHOUT second feeder position)
Standard equipment positions:8mm-18pcs,12mm-3pcs,16mm-1pcs(Can be customized)
3.Industrial-strength up visual system
With professional visual algorithms to determine the center of the components, calculate the position offset and angel offset so that machine can work efficiently.
4.Mute vacuum pump
With 2 built-in imported mute vacuum pump and a blow air pump.
5.Manual operation interface
6.Area for chips
Put the chips here, just need to set the corresponding coordinates.
7.PCB place zone
Place the PCB here while the SMT processing.
8.Exclusive development of Ethernet Device interface
Industrial strength Ethernet interface connect conveniently to guarantee the machine reliable operation.
9. Industrial-strength under visual system
It's able to identify the Mark point and determine the coordinates of component by manual or automatic control.
10.Intelligent placement heads
The well-designed placement heads with double suction, vacuum test, missing part check, automatic dialing materials functions.
Standard configuration positions:8mm-22pcs,12,mm-3pcs,16mm-1pcs.
2.The second feeder (TVM802A WITHOUT second feeder position)
Standard equipment positions:8mm-18pcs,12mm-3pcs,16mm-1pcs(Can be customized)
3.Industrial-strength up visual system
With professional visual algorithms to determine the center of the components, calculate the position offset and angel offset so that machine can work efficiently.
4.Mute vacuum pump
With 2 built-in imported mute vacuum pump and a blow air pump.
5.Manual operation interface
6.Area for chips
Put the chips here, just need to set the corresponding coordinates.
7.PCB place zone
Place the PCB here while the SMT processing.
8.Exclusive development of Ethernet Device interface
Industrial strength Ethernet interface connect conveniently to guarantee the machine reliable operation.
9. Industrial-strength under visual system
It's able to identify the Mark point and determine the coordinates of component by manual or automatic control.
10.Intelligent placement heads
The well-designed placement heads with double suction, vacuum test, missing part check, automatic dialing materials functions.

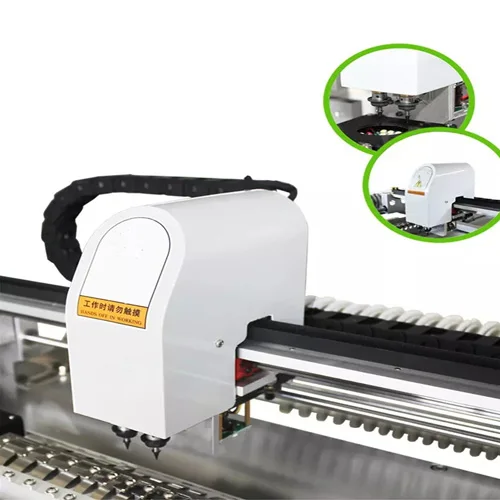

Picking Heads

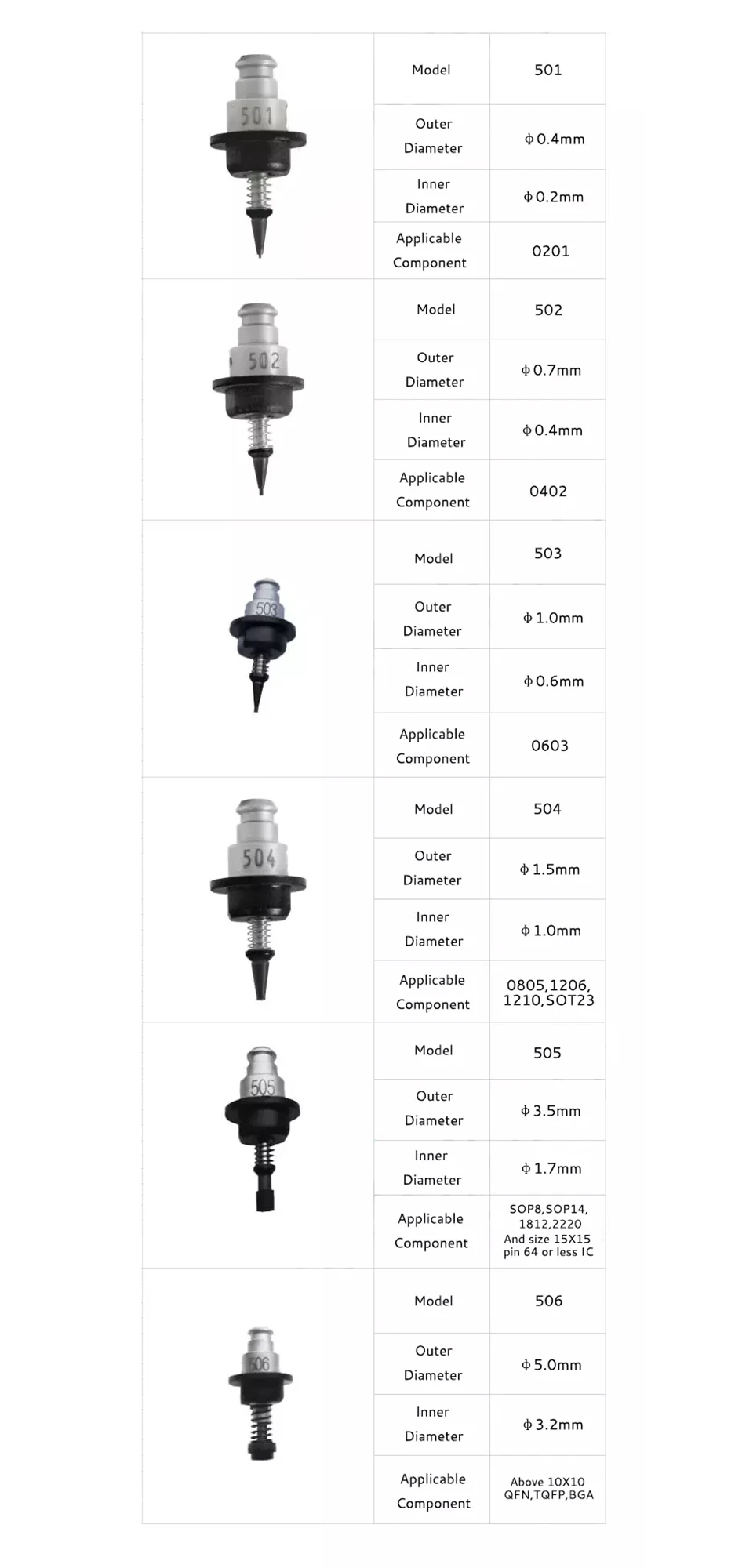

Nozzle details
Nozzles details for your reference, to choose suitable model for your components

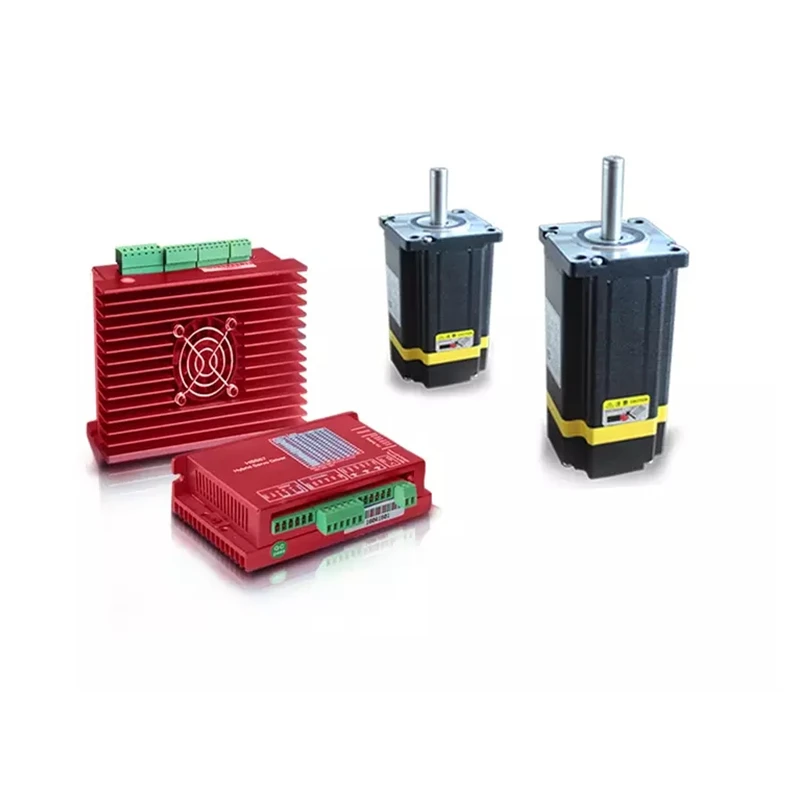

Closed-loop motor+Closed-loop driver
More precious+faster

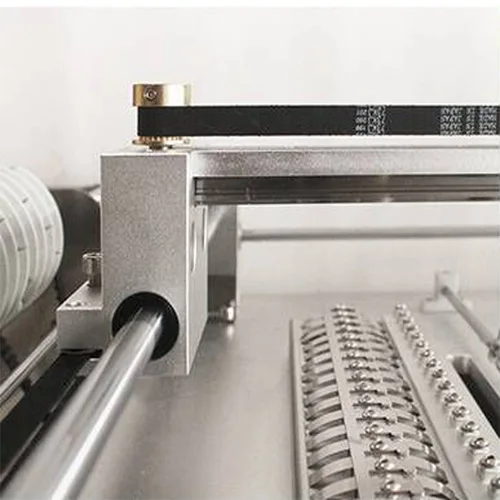

Imported polished rod and HIWIN straight line guide rail
Stable+high speed+accurate

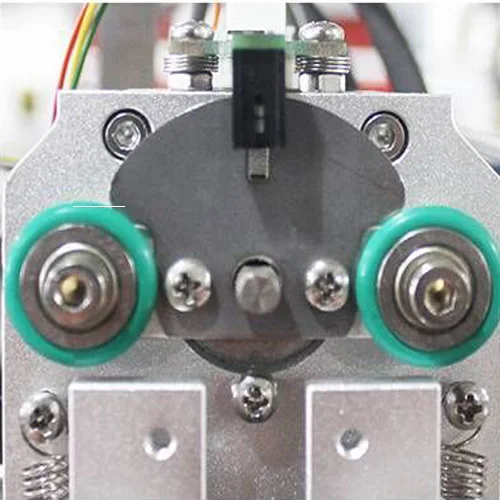

Z-AXIS Detection
Can help self-check the height and angle of double-headed
Ensure the stability
Ensure the stability

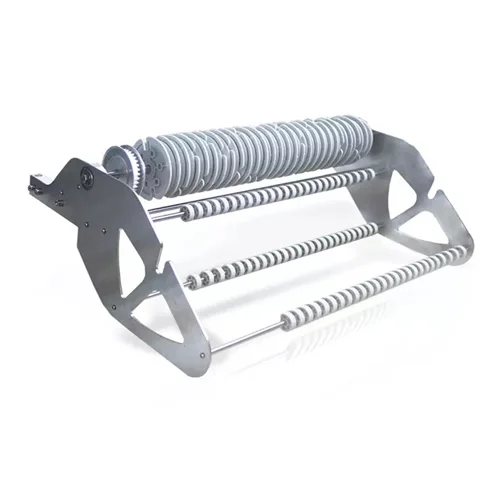

Newly updatedsecond-generation reels
The material stack can be customized as well

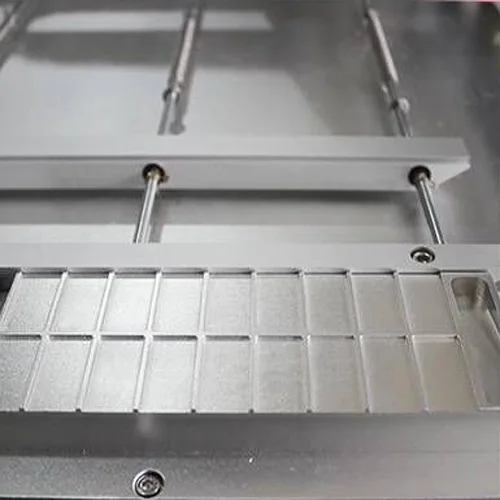

IC Tray （Can be customized）
Preset 18 kinds of general IC components

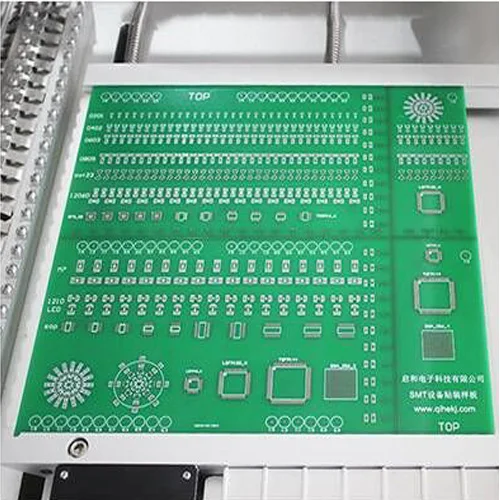

PCB Board area

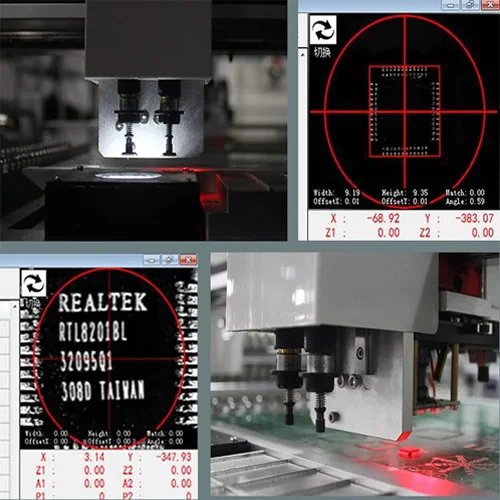

Dual version calibration
2 high-precious CCD camera automatically correct the picking error more accurate

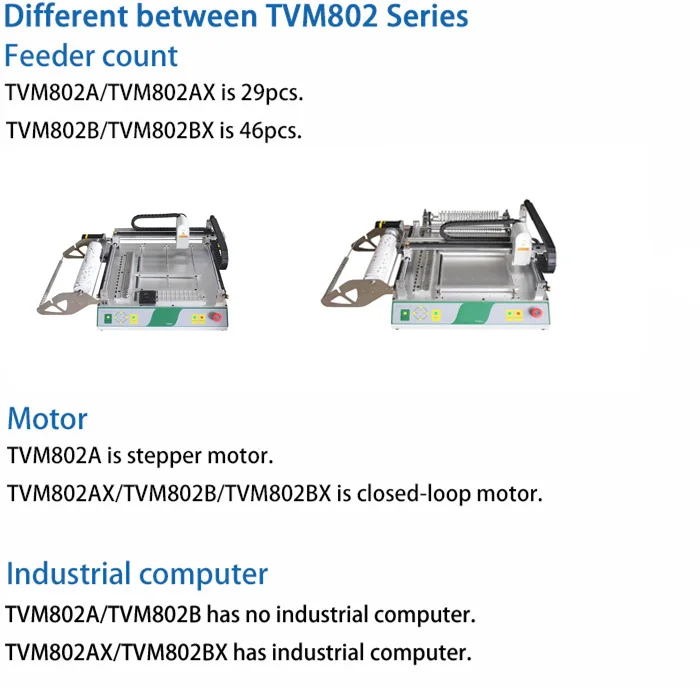

The difference between 802 SERIES
FAQ
Q: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training
video and user manual, the user manual will come with the machine together.
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the training
video and user manual, the user manual will come with the machine together.
Q:Is it hard to use these machines?
A: No, not hard at all For our previous clients, just about 2 days for learning operation
Q: Is there any quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET)
Q:The Warranty of the machine?
A:AT LEAST One year,then the parts will be free for the buyer WITNIN the warranty.
Q:English version for these machines?
A:Yes
Q:Are machines can meet software update?
A:YES, we will update machine and will send you at first time
Q:Do you have any operation videos to watch?
A:We provide customers with special operation videos. If you don't understand anything, you can contact us and will arrange
engineers to shoot the specified videos.
A: No, not hard at all For our previous clients, just about 2 days for learning operation
Q: Is there any quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET)
Q:The Warranty of the machine?
A:AT LEAST One year,then the parts will be free for the buyer WITNIN the warranty.
Q:English version for these machines?
A:Yes
Q:Are machines can meet software update?
A:YES, we will update machine and will send you at first time
Q:Do you have any operation videos to watch?
A:We provide customers with special operation videos. If you don't understand anything, you can contact us and will arrange
engineers to shoot the specified videos.

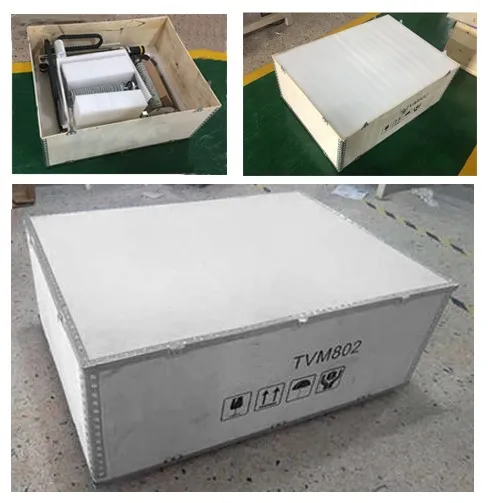

Package
Strong wooden package
