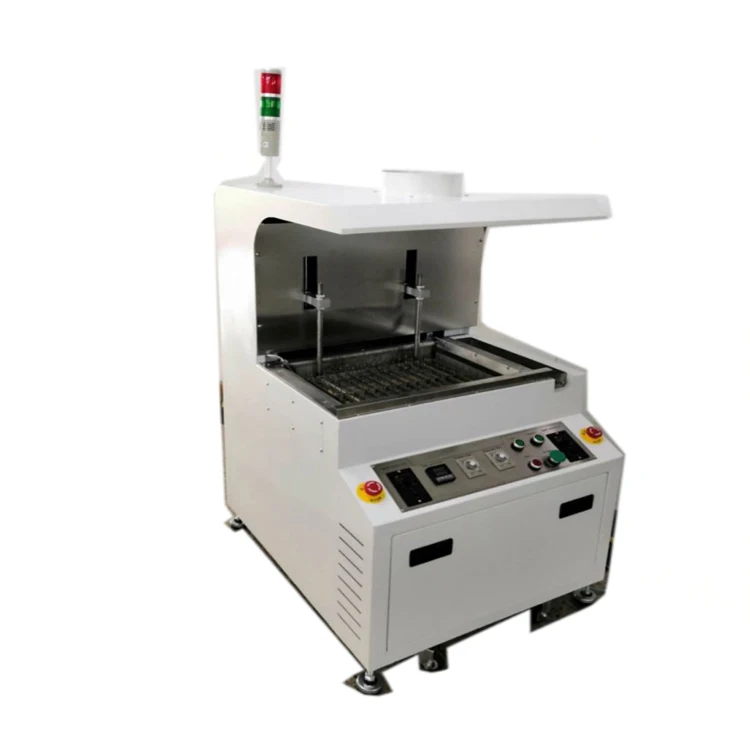

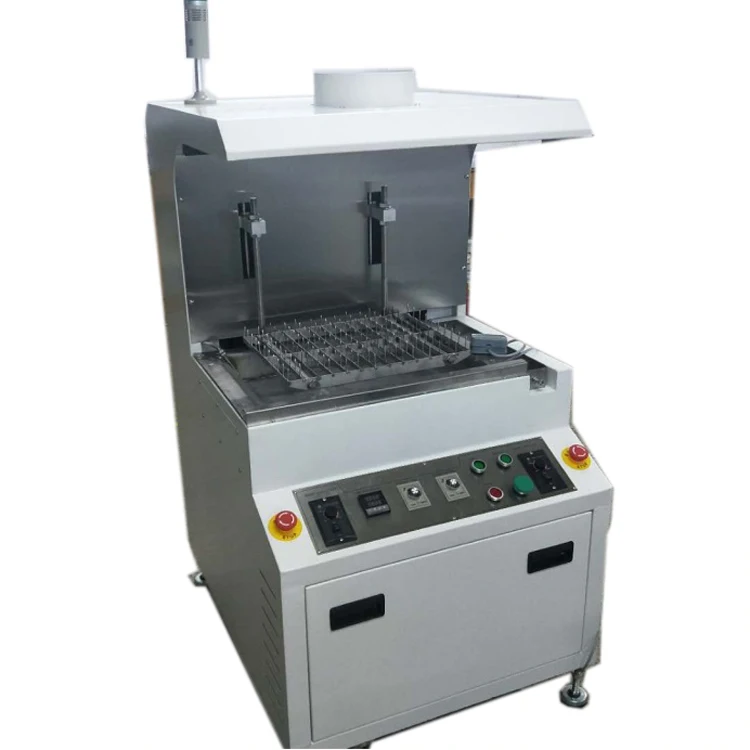

DIP Small Wave Soldering Machine for Led Production Assembly line

Product Overview

Description

DIP Small Wave Soldering Machine for Led Production Assembly line

Desktop semi-automatic tin furnace

*Model: SF-820P

*Voltage: 220V Maximum power: 450W

* Furnace specification: 450*300*70MM, melting tin amount 65KG

*Lifting frame lifting method: motor + screw

*Dimensions: 700*700*700MM

Features:

1. Up and down movement adopts motor and screw rod, precision 0.1MM

2. With automatic tin scraping function

3. Constant temperature function, adjustable temperature range of 0-600℃

4. High temperature accuracy ±20℃

5. Increase preheating function, foot spray system

6. Adjustable up and down speed and tin scraping speed

7. Adjustable immersion tin angle

8. Adjustable preheating time, adjustable tin immersion time

9. Using ceramic heating plate for heating, uniform heat and long service life

10. The furnace is made of lead-free titanium alloy, which is resistant to high temperature and corrosion

11. Each product supports customization
