Polyethylene Fully Automatic PPR PVC Pipe Manufacturing Bending Extruder Machine Making Plant
- Category: >>>
- Supplier: Zhangjiagang Kiwex Machinery Co. Ltd.
Share on (1600332376074):
Product Overview
Description

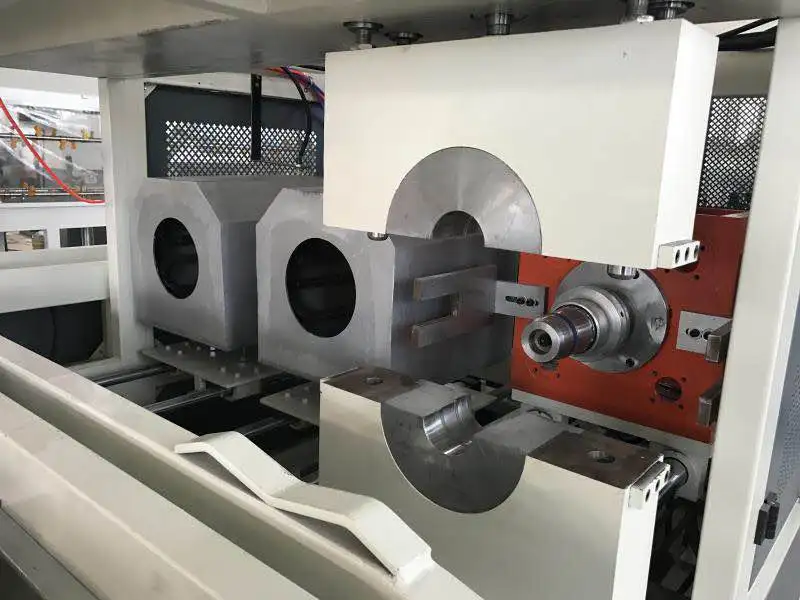

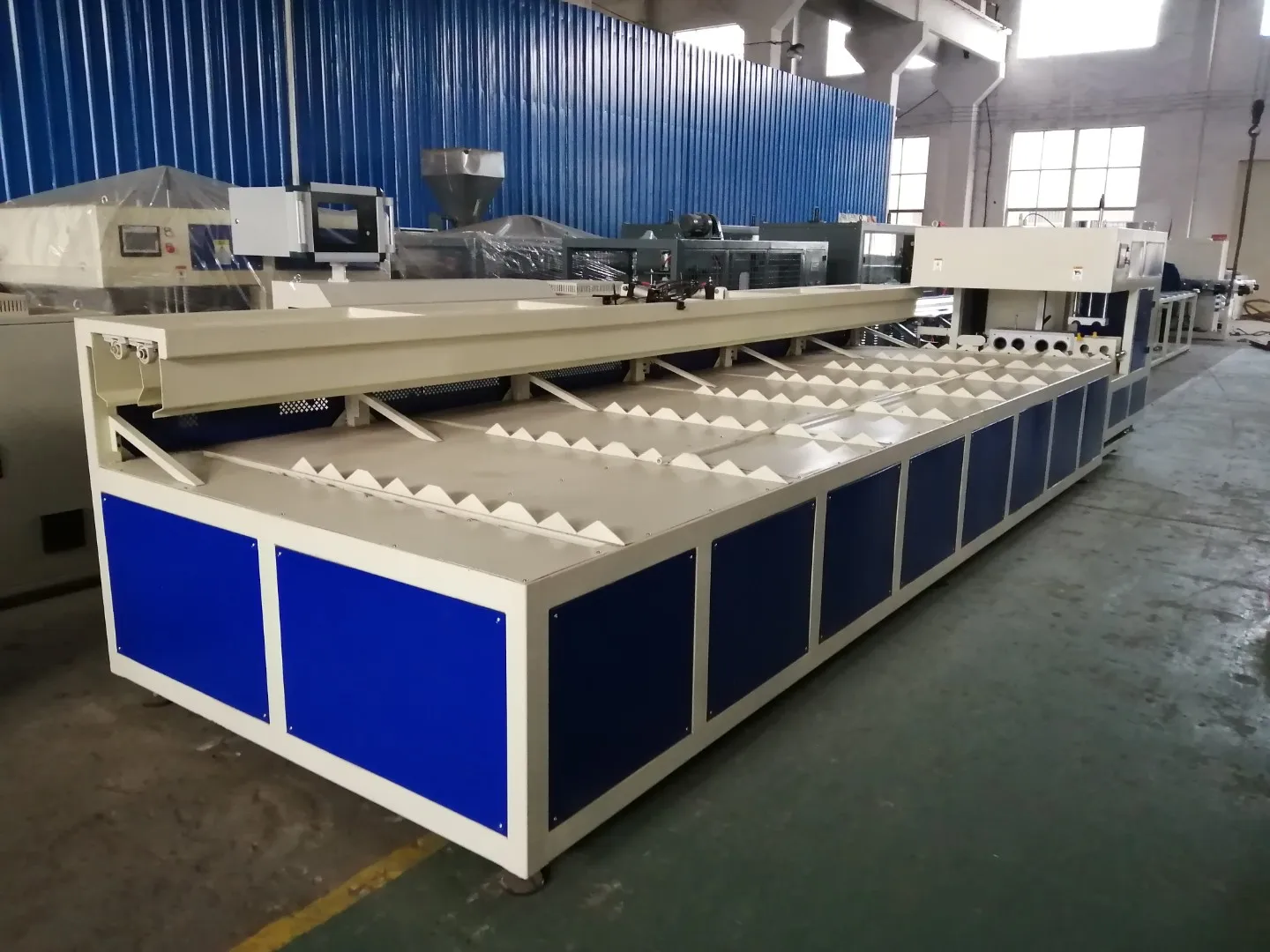

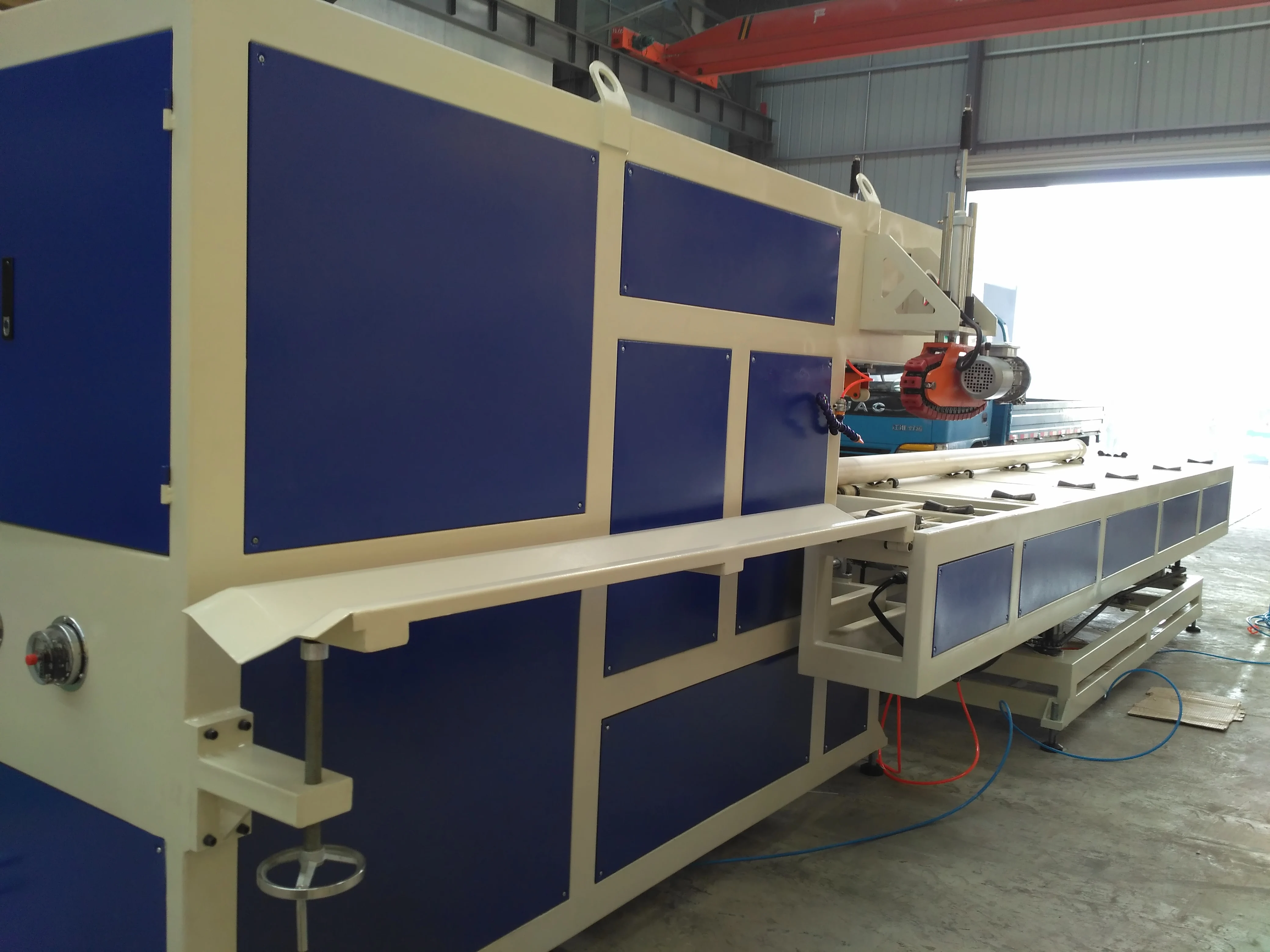

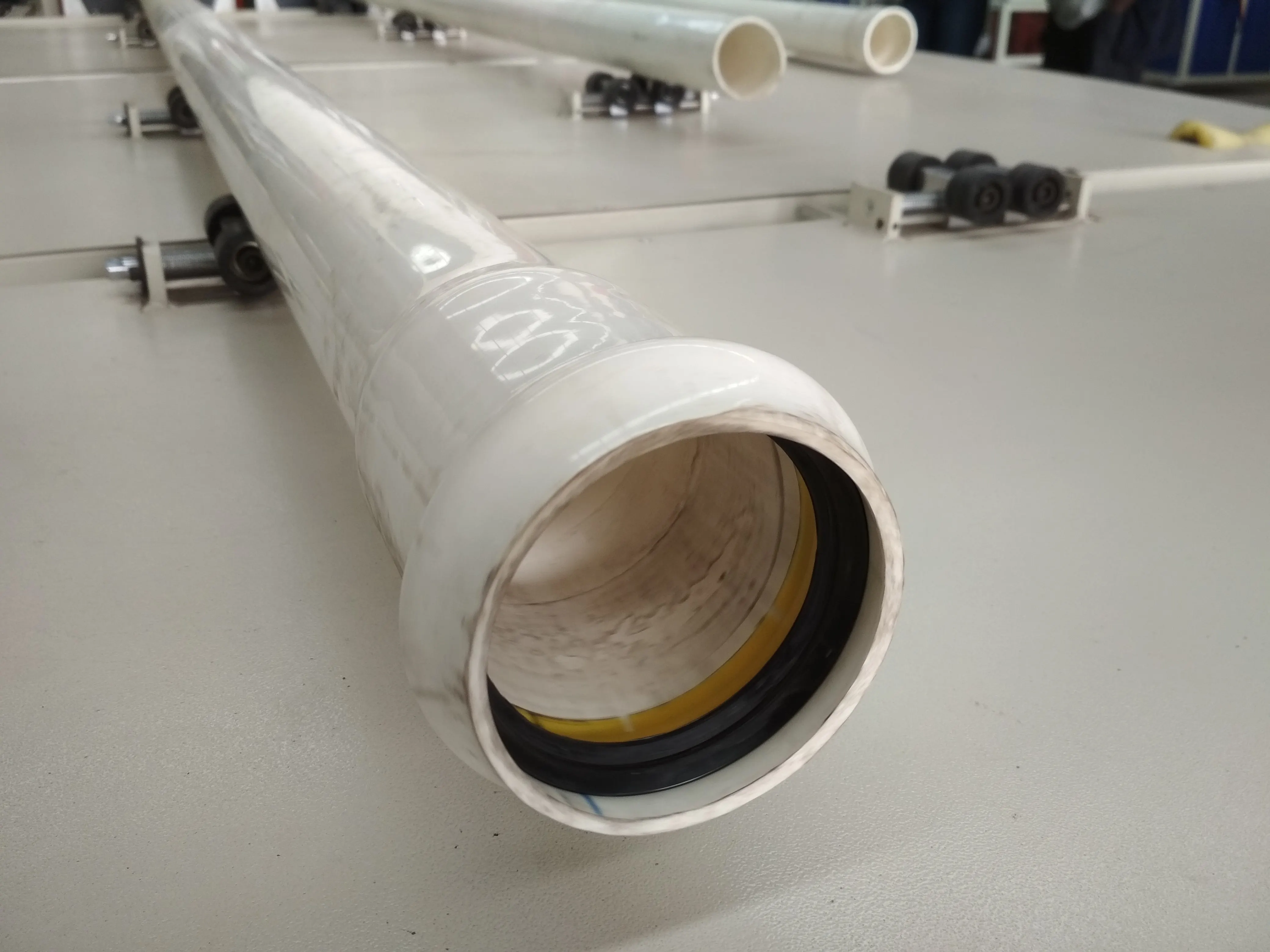

Automatic PVC pipe belling machine
1.low price/good quality
2.belling type:"U","R"
3.adapt diameter:16-630mm
4.CE approved
Automatic PVC pipe belling machine
Feature:
1. Used for plastic pipe belling, such as PVC, PE, PP-R pipe
2. Important auxiliary machine for pipe extrusion line, it can be operated separately,also be a part of extrusion line.
3. Full-automatic control.
1.low price/good quality
2.belling type:"U","R"
3.adapt diameter:16-630mm
4.CE approved
Automatic PVC pipe belling machine
Feature:
1. Used for plastic pipe belling, such as PVC, PE, PP-R pipe
2. Important auxiliary machine for pipe extrusion line, it can be operated separately,also be a part of extrusion line.
3. Full-automatic control.
Model：SGK
Belling Scope：Φ16mm-Φ630mm
Belling-type：R-type, U-type
Pipe Length：3m-8m
Use Voltage：AC 380V; 50Hz (Or according to customer's request)
Central Height：According to customer's request
Molding mode：（1）R-type with collapsible core
（2） Smooth type with pushing mould directly into pipe
Belling Scope：Φ16mm-Φ630mm
Belling-type：R-type, U-type
Pipe Length：3m-8m
Use Voltage：AC 380V; 50Hz (Or according to customer's request)
Central Height：According to customer's request
Molding mode：（1）R-type with collapsible core
（2） Smooth type with pushing mould directly into pipe
Cooling mode：Air-cooled or Water cooled
Model | Pipe Diameter | Heating Method | Belling Method | Heating power | Dimension |
SGK110 | 50-110mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
SGK160 | 50-160mm | Electric heating | Mould physical expansion | 10.5kw | 7500x1400x1750mm |
SGK200 | 50-200mm | Electric heating | Mould physical expansion | 10.5kw | 7855x1350x1900mm |
SGK250 | 110-250mm | Electric heating | Mould physical expansion | 10.5kw | 7830x1620x1700mm |
SGK315 | 160-315mm | Electric heating | Mould physical expansion | 14kw | 8050x1750x1900mm |
SGK450 | 200-450mm | Electric heating | Mould physical expansion | 18kw | 8290x2090x2080mm |
SGK500 | 315-500mm | Electric heating | Mould physical expansion | 18kw | 8500x3050x2100mm |
SGK630 | 400-630mm | Electric heating | Mould physical expansion | 22.5kw | 8615x3125x2500mm |
