Cylinder marine airbag Diving Underwater Air Lifting Bag and Cylinder buoyancy airbags
- Category: >>>
- Supplier: Hangzhou Flexpert Material Technology Co. Ltd.
Share on (1600332394828):
Product Overview
Description

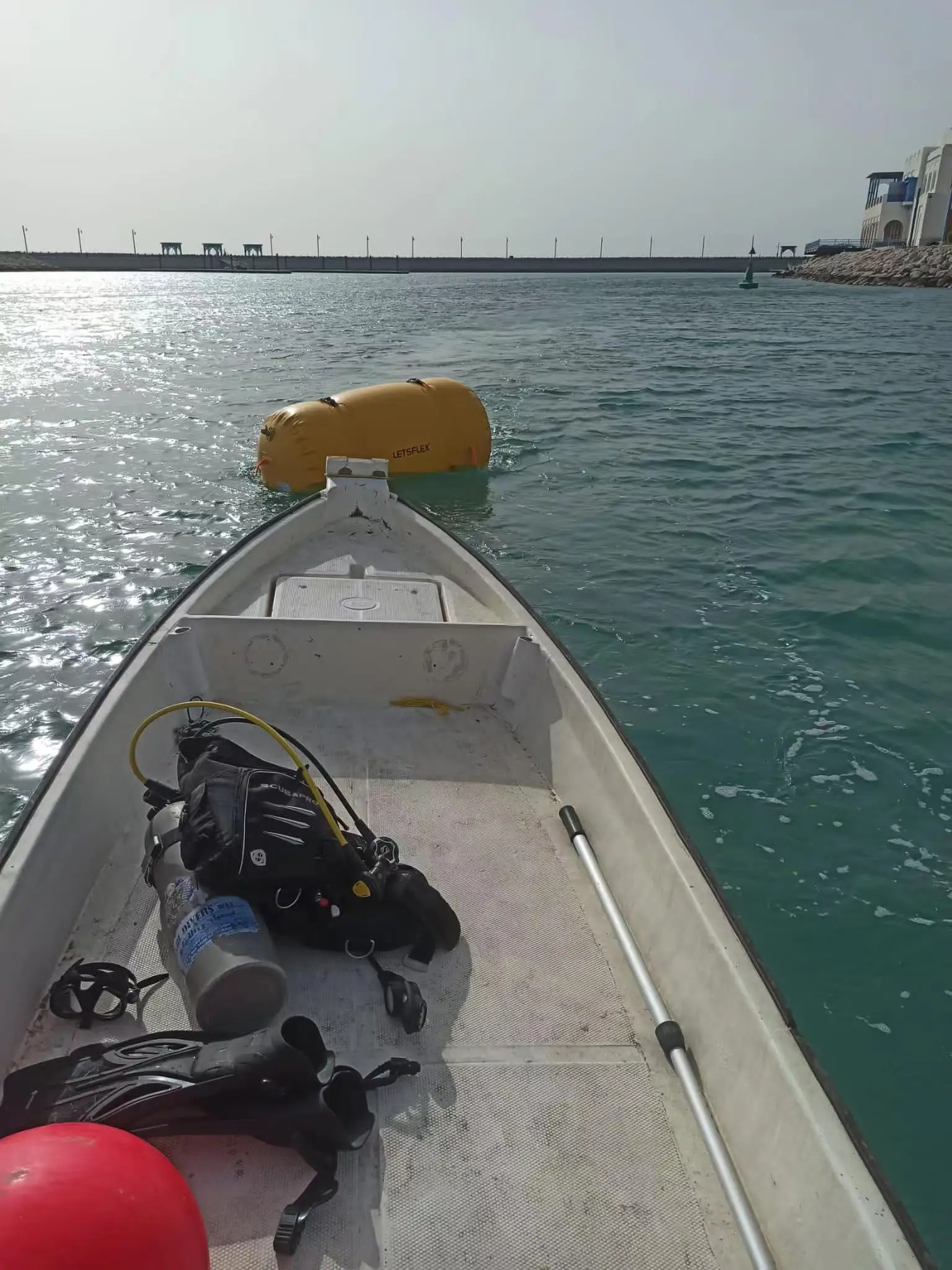

Air Lifting Bag for Buoyancy, Diving Salvage

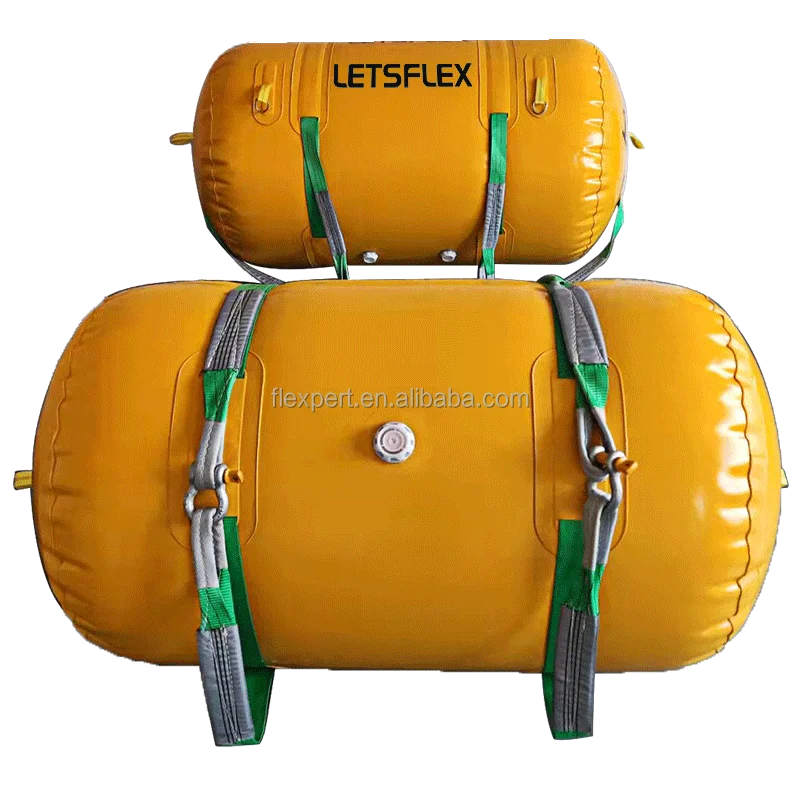

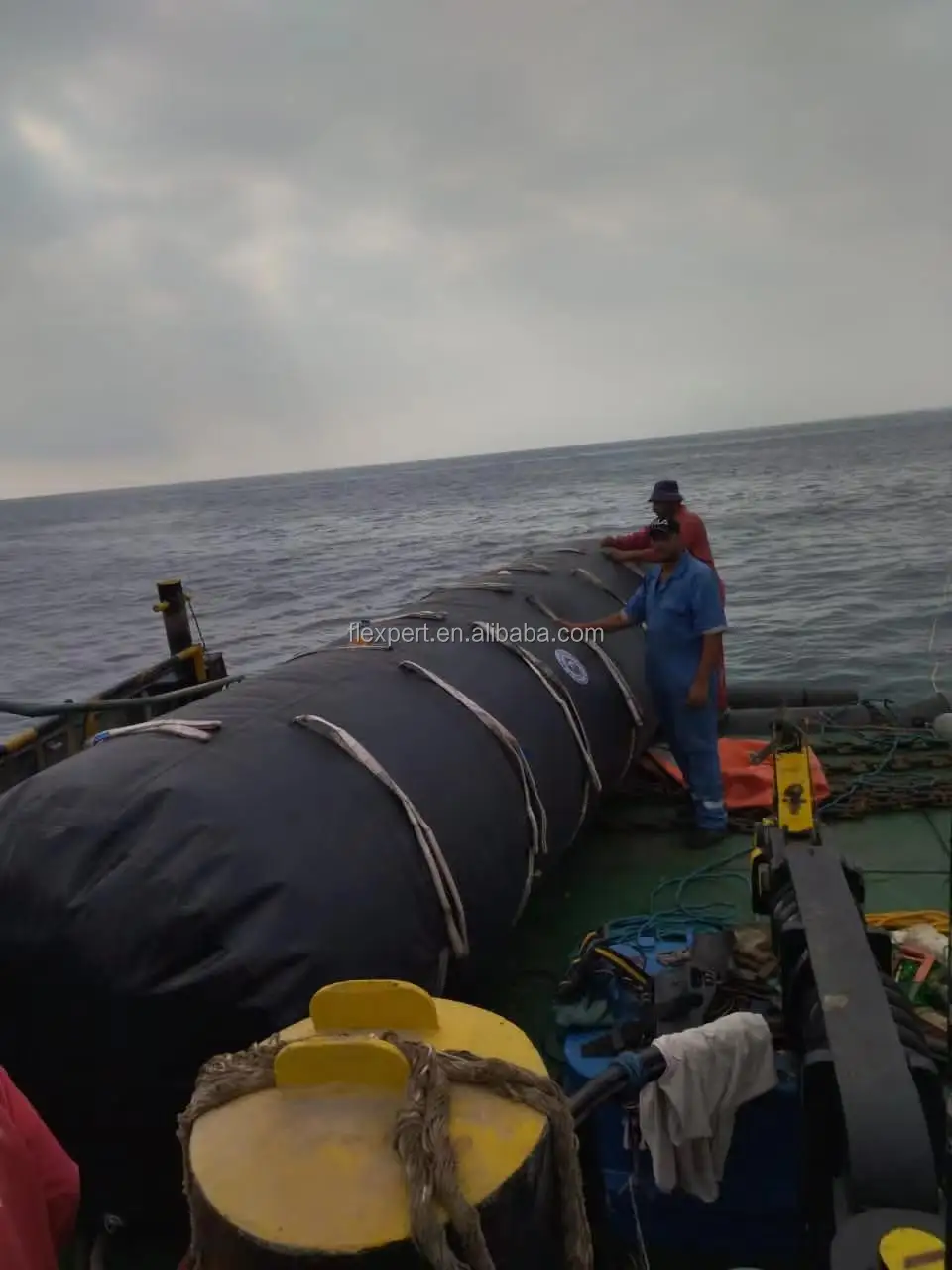

Cylinder marine airbag Diving Underwater Air Lifting Bag and Cylinder buoyancy airbags
Advantages and Specifications

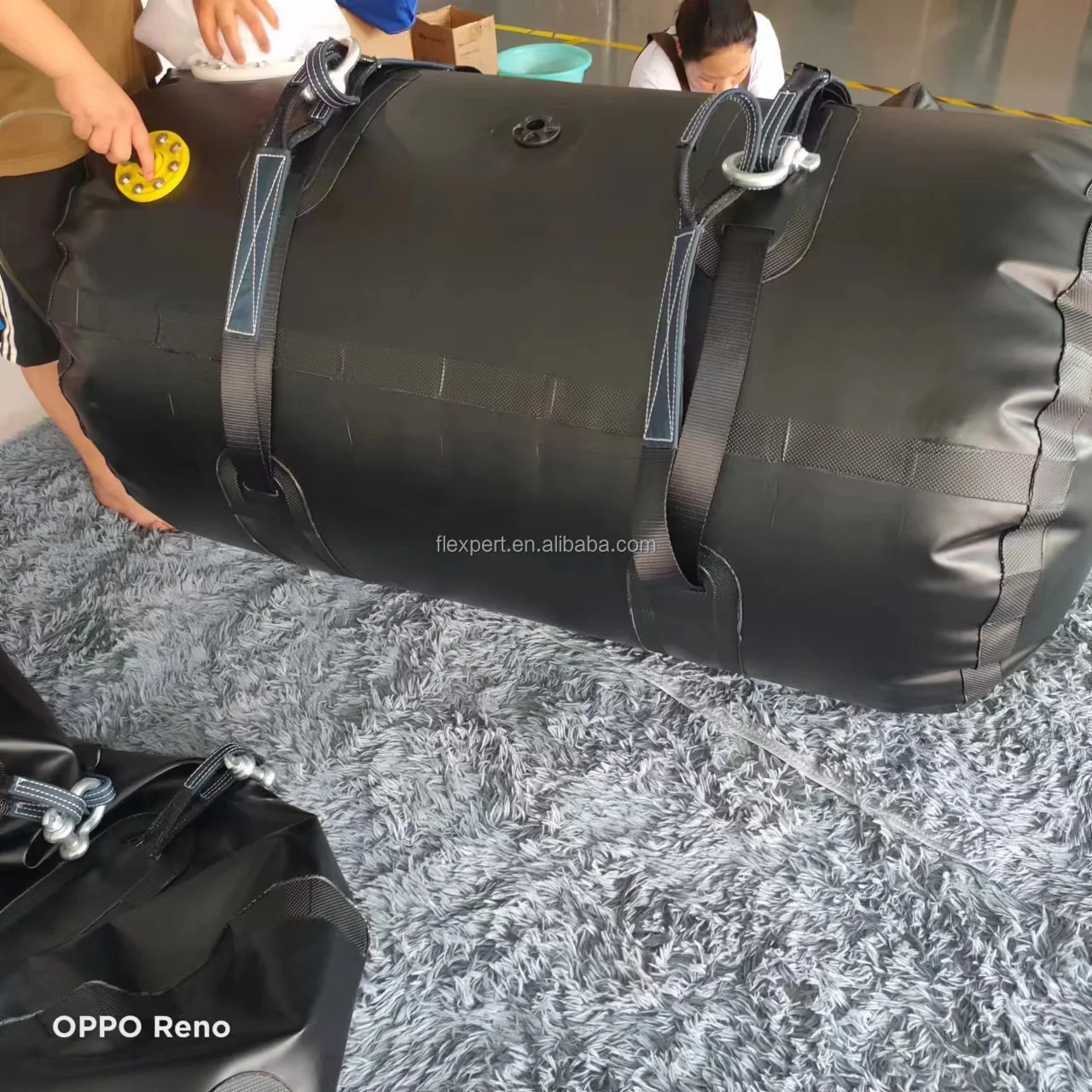

- All bags from 100kg-50000KG upwards are manufactured from FLEXPERT produced heavy duty 3x3 weave PVC coated polyester, with a total weight of 1200-1680g/m2, and come with stitched polyester webbing straps and single attachment load shackle.
- Each bag comes with the following as standard:

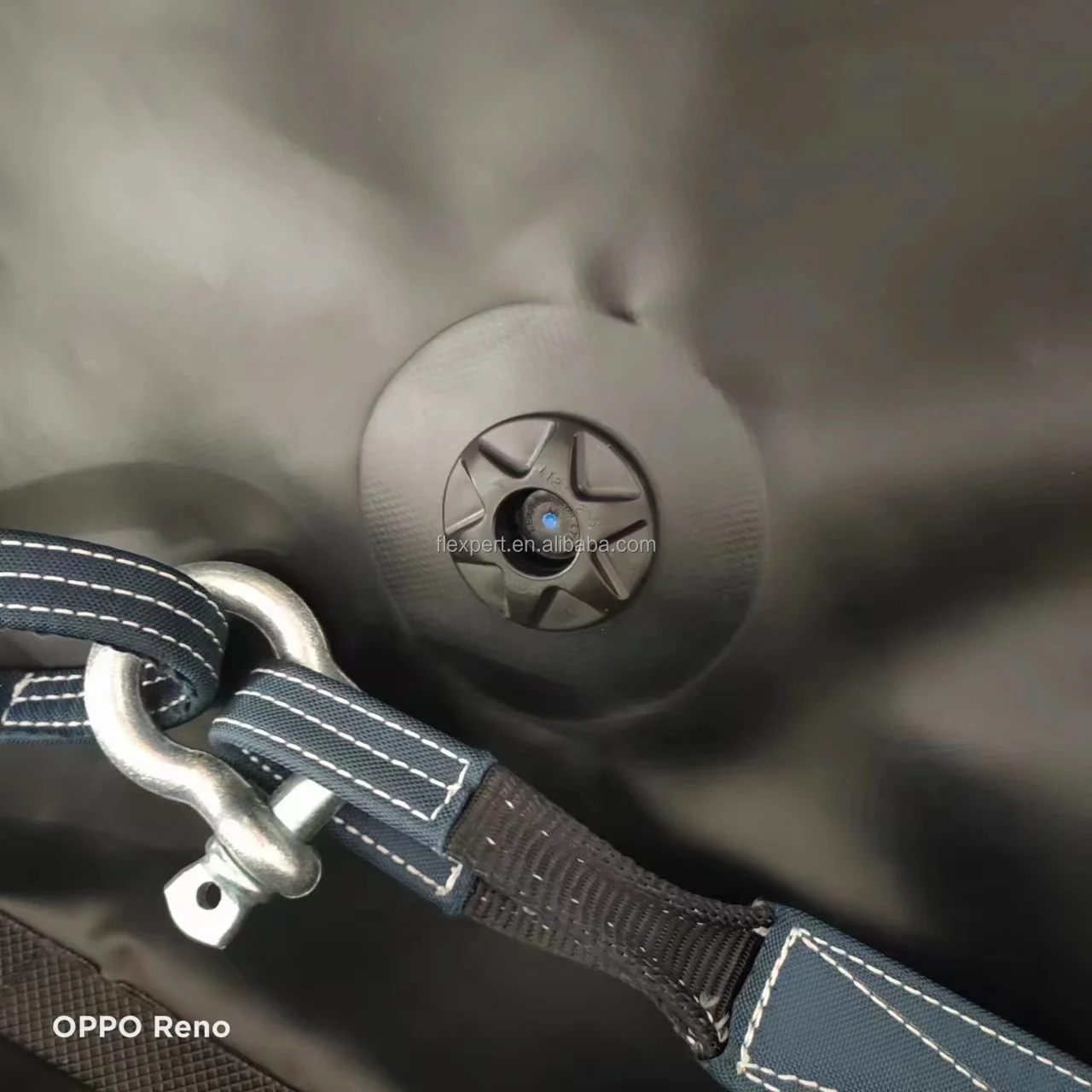

- Top mounted manual dump valve with lanyard, operated from the bottom of the bag
Clearly labelled inversion line attachment point
Model NO. | Capacity (KG) | Bag Height （mm/inch) | Bag Diameter (mm/inch) | Material Specification | Dump valve |
FL-100 | 100 | 770/30 | 610/24 | 2x2 pvc 900gsm | Small |
FL-250 | 250 | 1000/39 | 810/32 | 3x3 pvc 1250gsm | Small |
FL-1000 | 1000 | 1490/59 | 1325/52 | 3x3 pvc 1250gsm | Large |
FL-5000 | 5000 | 2590/102 | 2250/89 | 3x3 pvc 1680gsm | Large |
FL-20000 | 20000 | 4400/173 | 3500/138 | 3x3 pvc 1680gsm | Large and 3/4" fill Valve |
Air Lifting/ lift Bag Kits
Standard Accessories
-Inflate valves
-Dump valves
-Inverter line point
-Handles
-Lifting Belts
-Inverter line
-Open/Closed bottom
-Bow shackles
-Inflate valves
-Dump valves
-Inverter line point
-Handles
-Lifting Belts
-Inverter line
-Open/Closed bottom
-Bow shackles
-Masterlink
Features and Advantages
. Bags from 3,000kg/6,600lbs benefit from a top mounted 3/4" inlet pump valve assembly，less than 3,000kg is for small and large pump
Features and Advantages
. Bags from 3,000kg/6,600lbs benefit from a top mounted 3/4" inlet pump valve assembly，less than 3,000kg is for small and large pump
. valve and quick release camlock coupling and 100kg-50000KG capacities are available in a wide choice of colours to match corporate branding or diving club colours.
Specification | Floating Capacity (KG) | Diameter (m) | Length (m) | Net weight (KG) | Color |
FL-50L | 50 | 0.3 | 0.6 | 5 | Yellow or customized |
FL-250L | 100 | 0.4 | 0.9 | 6 | Yellow or customized |
FL-500L | 250 | 0.6 | 1.1 | 8 | Yellow or customized |
FL-1 | 500 | 0.8 | 1.5 | 14 | Yellow or customized |
FL-2 | 1,000 | 1.0 | 1.8 | 20 | Yellow or customized |
FL-5 | 2,000 | 1.3 | 2.0 | 29 | Yellow or customized |
FL-10 | 3,000 | 1.4 | 2.4 | 35 | Yellow or customized |
FL-15 | 5,000 | 1.5 | 3.5 | 52 | Yellow or customized |
FL-20 | 8,000 | 1.8 | 3.8 | 78 | Yellow or customized |
FL-25 | 20,000 | 2.4 | 5.6 | 170 | Yellow or customized |
FL-35 | 35,000 | 2.9 | 6.7 | 255 | Yellow or customized |
FL-50 | 50,000 | 2.9 | 8.5 | 380 | Yellow or customized |

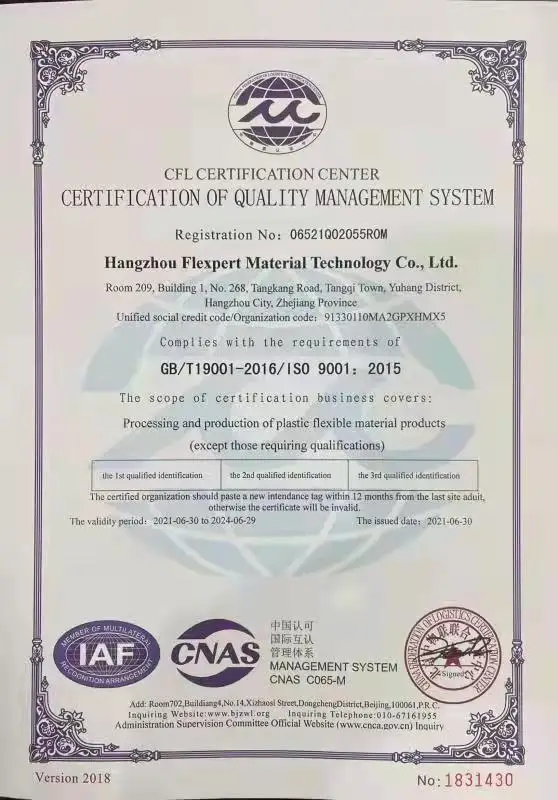

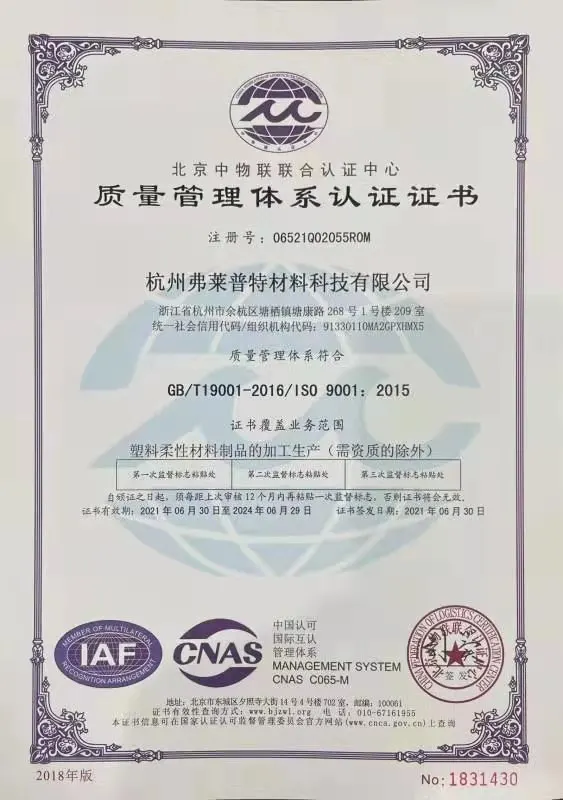

Air Lifting Bags Quality Certificates
Air lifting bags for diving Salvage use the highest quality PVC coating fabric material with SGS certificate. At the same time, we did burst test of air lifting bags in order to prove its high quality and strength. Most importantly, we can provide BV, ABS, LR third-party certificate upon request.
Company Profile
Hangzhou Flexpert Material Technology Co., Ltd.
Flexpert company is professional manufacturer in the design, production, and development of a wide range of flexible
products.Flexpert company specializes in the use of PVC and high-frequency fabric welding technology to manufacture many industry
products. For example, flexible Liquid container, tension lorry curtains etc.Another main material is PP/PE woven fabric for manufacturing FIBCs and Dry bulk container liner.We have been supplying for Europe, Middle East and North America market for many years
products.Flexpert company specializes in the use of PVC and high-frequency fabric welding technology to manufacture many industry
products. For example, flexible Liquid container, tension lorry curtains etc.Another main material is PP/PE woven fabric for manufacturing FIBCs and Dry bulk container liner.We have been supplying for Europe, Middle East and North America market for many years

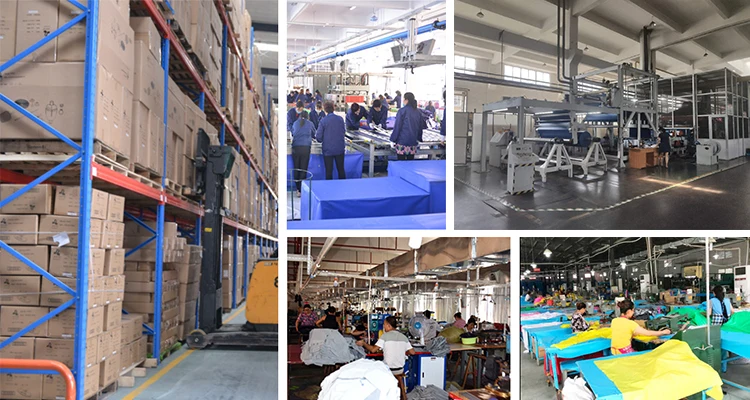

Factory Display
Shipment
FAQ
1. Q: Are you a manufacturer?
Yes,we have our own factory, focusing on the research and development, design and production of flexible material products such as PVC coated cloth and TPU coated cloth, which are professionally used in industrial packaging, engineering testing, advertising display, outdoor products and home decoration and other fields. Welcome to visit Our factory
2. Q: How to Order?
You can send us an inquiry through Alibaba, or you can tell us your purchasing needs by email. After the two parties reach an agreement, we can customize samples for you, and continue to negotiate for follow-up cooperation
3. Q:Do you accept customization?
Yes, we support customization. Customize products packaging, logos, etc. according to customer needs.
4. Q:What's the payment?
Usually we accept L/C,T/T. We also accept Western Union
Yes,we have our own factory, focusing on the research and development, design and production of flexible material products such as PVC coated cloth and TPU coated cloth, which are professionally used in industrial packaging, engineering testing, advertising display, outdoor products and home decoration and other fields. Welcome to visit Our factory
2. Q: How to Order?
You can send us an inquiry through Alibaba, or you can tell us your purchasing needs by email. After the two parties reach an agreement, we can customize samples for you, and continue to negotiate for follow-up cooperation
3. Q:Do you accept customization?
Yes, we support customization. Customize products packaging, logos, etc. according to customer needs.
4. Q:What's the payment?
Usually we accept L/C,T/T. We also accept Western Union
