Product Overview

Description





Ultra Small 401012 3.7V 25mAh 30mAh Lithium Polymer Battery for Earphone/Headset




Main parameters:

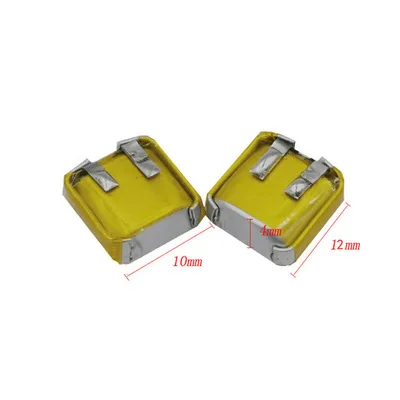

Max dimension:4*10*12mm
Capacity:25mAh

Voltage:3.7 Volt


Weight: 3g

































































































Item


Parameter


Battery model


401012


Nominal voltage


3.7V


Minimum capacity


25-30mAh (0.2C discharge)


Charging voltage


4.2V


Discharging cut-off voltage


3.0V


Standard charging


0.2C /4.2V


Max charging


0.5C /4.2V


Standard discharging


0.2C/3.0V


Max discharging


continuous discharge


1.0C/3.0V


non-continuous discharge


2.0C/3.0V


Shipment voltage


≥3.85V


Battery pack impedance


≤280mΩ


Operating temperature


Charging: 0°C ~ 45°C


Discharging: -20°C ~60°C


Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time )


-10℃~25℃


(12 months ≥85% )


-10℃ ~45℃


(6 months ≥85% )


-10℃~55℃


(1 month ≥90% )


20±5℃ is the recommended storage temperature


Visual Inspection


There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell.


Reference standard


GB/T 18287-2013,KC CE ROHS IEC/EN61960, UL1642
