Product Overview
Description

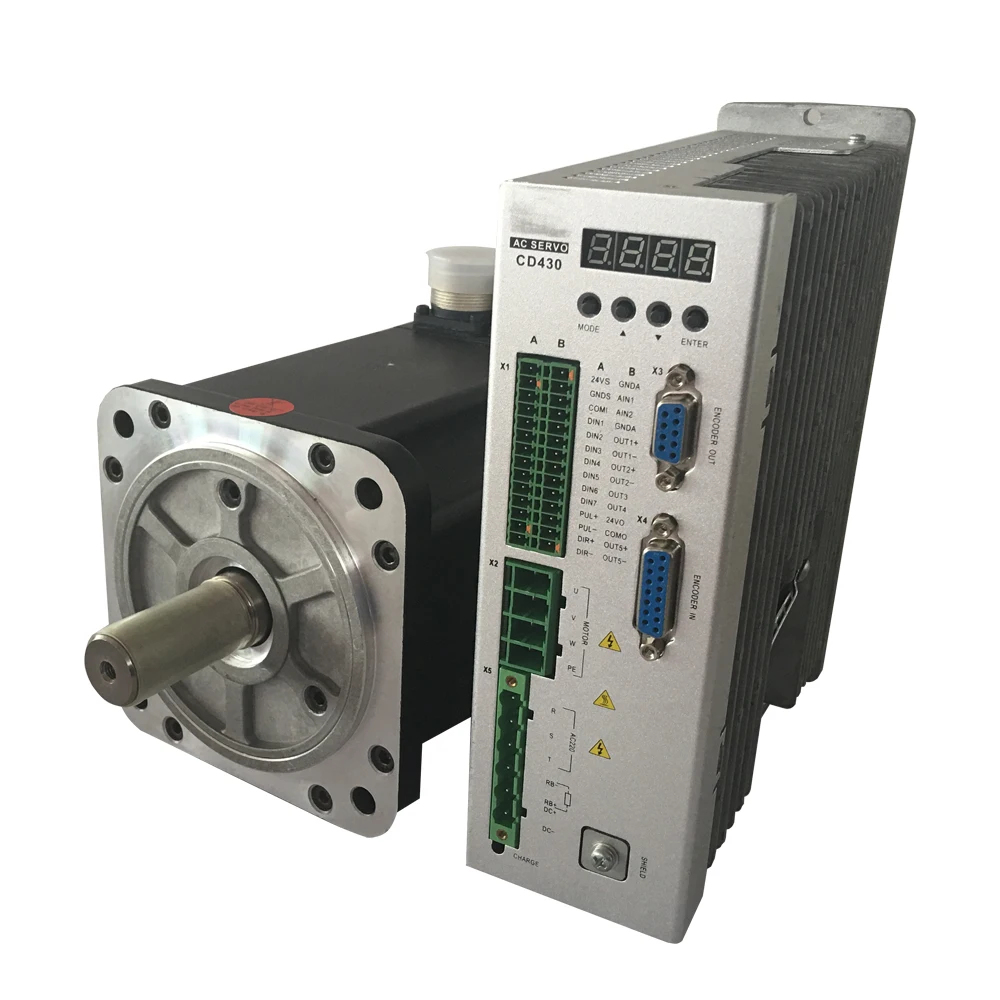

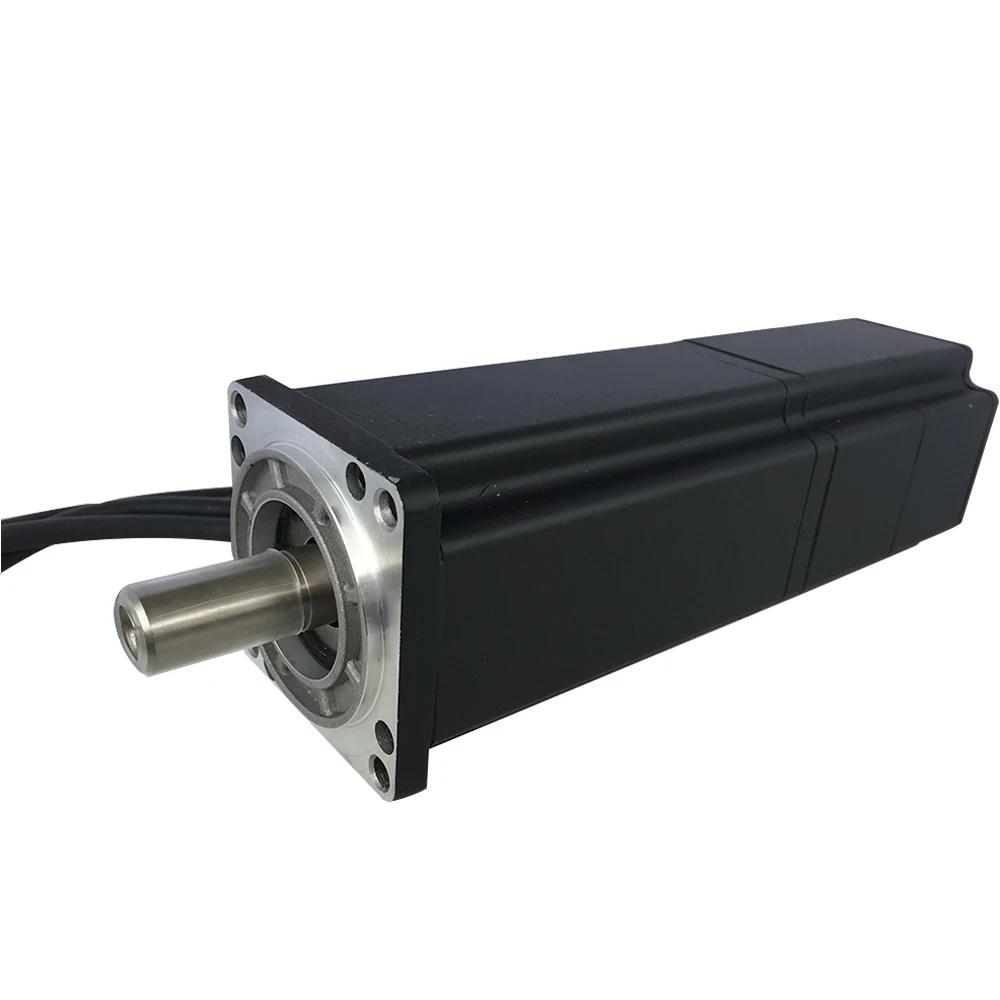

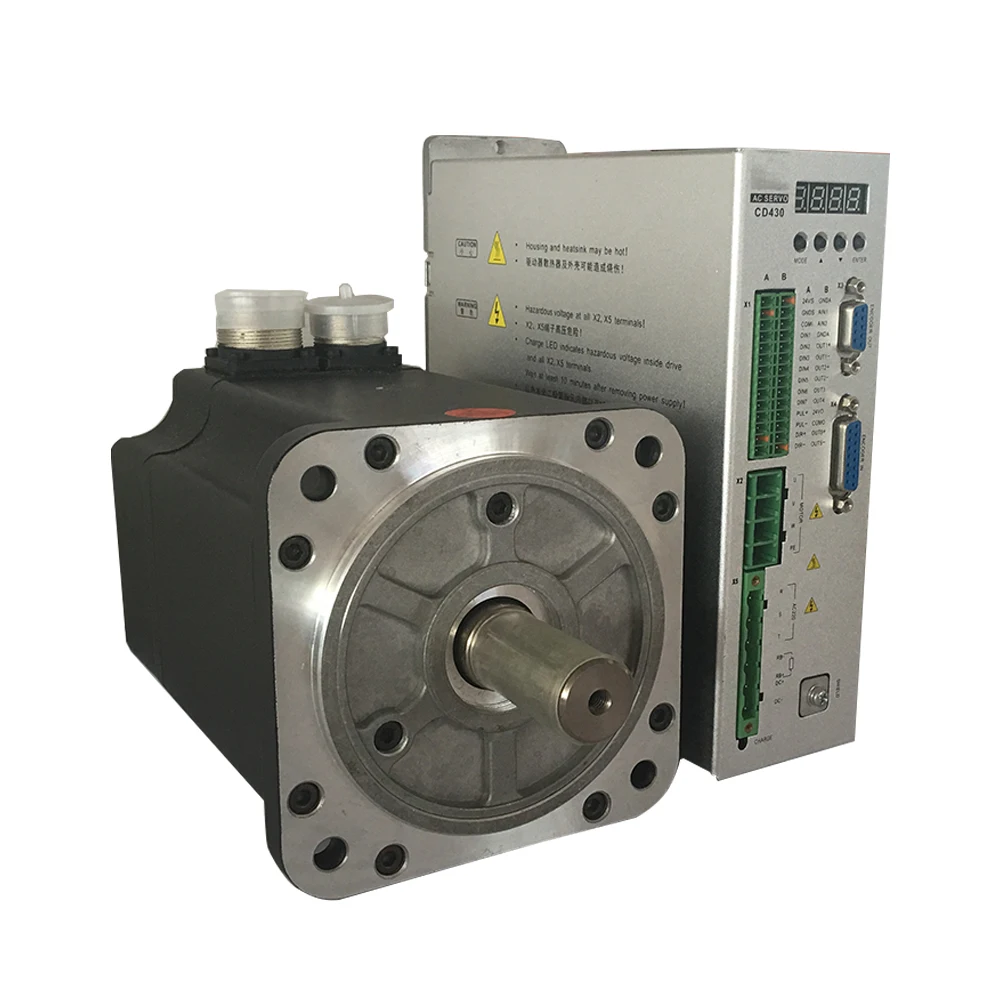

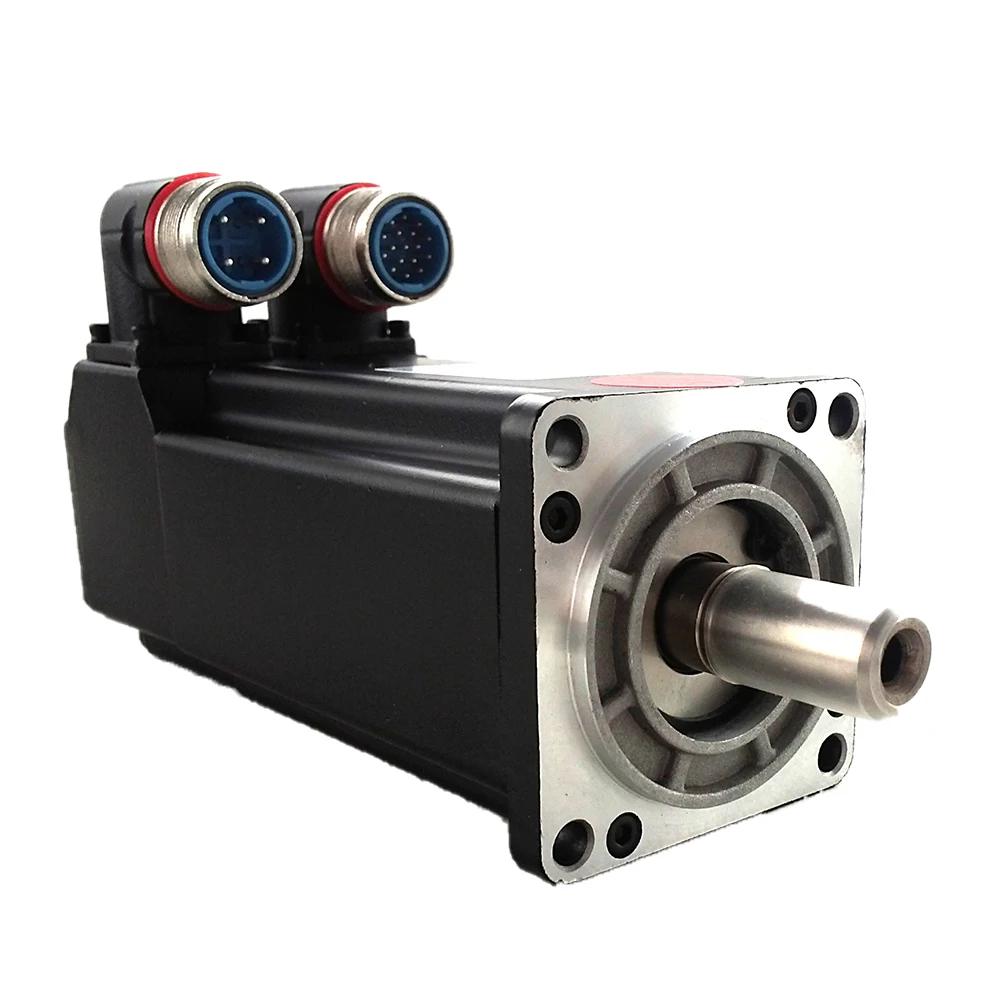

Brief description of SMG AC servo motor
SMG series AC permanent magnet synchronous servo motors have independent intellectual property rights. The use of high-performance rare earth permanent magnet materials has outstanding advantages such as low inertia, high power density, super overload capacity, extremely low torque ripple, and low noise.
·Suitable for harsh environments, high cost performance;
· High-performance rare earth permanent magnet rotor, high torque and low inertia, good dynamic response;
· Three-phase sine wave design, with excellent low-speed smoothing characteristics;
· Class F insulation, internal temperature protector;
· Photoelectric encoder (incremental or absolute, resolver is optional);
· IP6 high protection level.
·Suitable for harsh environments, high cost performance;
· High-performance rare earth permanent magnet rotor, high torque and low inertia, good dynamic response;
· Three-phase sine wave design, with excellent low-speed smoothing characteristics;
· Class F insulation, internal temperature protector;
· Photoelectric encoder (incremental or absolute, resolver is optional);
· IP6 high protection level.
SMG servo motor storage and transportation instructions；
Storage temperature: -25°～+55°C, no freezing;
Relative humidity: 5% to 95%, no condensation; keep away from corrosive, flammable gas, oil droplets and dust.
Transportation: The packaging should not be heavy, handle with care.
Storage temperature: -25°～+55°C, no freezing;
Relative humidity: 5% to 95%, no condensation; keep away from corrosive, flammable gas, oil droplets and dust.
Transportation: The packaging should not be heavy, handle with care.
Brief introduction of SMG servo motor technical characteristics
General technical characteristics;
Applicable environmental characteristics: The motor can meet the rated output power at an altitude of not more than 1000 meters at 5～+40°C and normal pressure.
Power loss: at 40～+50°C, and the altitude exceeds 1000 meters, the power will decrease by 1.5% for every 100 meters.
Power-off brake (optional): When the motor is de-energized or suddenly powered off, the brake works to keep the motor shaft from rotating to avoid personal injury or equipment damage.
Bearing characteristics: All SMG servo motors adopt imported single-row double-sided dust-proof ball bearings, high and low temperature grease, and their service life is not less than 20,000 hours under normal load conditions.
Electrical technical characteristics;
The electrical technical characteristics include that the servo unit avoids interference from peripheral electromagnetic equipment and other equipment, and requires good shielding measures. The ground wire of the motor must be thick and short for reliable grounding (standard ground), and the shielded wire must be connected to a large enough metal plane to prevent high-frequency interference. The shielded wire and the ground wire must be strictly distinguished and cannot be confused. The connecting wire between the motor and the servo drive must be shielded wire, its reactance capacity, motor power cable is not less than 150pF/m, and the position feedback cable is not less than 120pF/m.
Mechanical technical characteristics;
There should be no heavy pressure or external impact on the motor shell, so as not to damage the motor. It is forbidden to clean the surface of the mechanism during the operation of the mechanism to avoid injury. The servo motor must ensure the concentricity of the load shaft system and the motor shaft during the installation process to prevent the motor shaft from breaking and damaging the load part. If the shaft end of the motor is equipped with synchronous belt wheels, gears, helical gears and planetary gears, it must be checked against the technical parameters of the axial (Fa) and radial (Fr) loads of the motor to avoid damage to the motor; the calibration standards are as follows: synchronous belt The diameters of wheels, gears, helical gears and planetary gears are ≥2Tm, and Tm is the peak torque of the servo motor.
General technical characteristics;
Applicable environmental characteristics: The motor can meet the rated output power at an altitude of not more than 1000 meters at 5～+40°C and normal pressure.
Power loss: at 40～+50°C, and the altitude exceeds 1000 meters, the power will decrease by 1.5% for every 100 meters.
Power-off brake (optional): When the motor is de-energized or suddenly powered off, the brake works to keep the motor shaft from rotating to avoid personal injury or equipment damage.
Bearing characteristics: All SMG servo motors adopt imported single-row double-sided dust-proof ball bearings, high and low temperature grease, and their service life is not less than 20,000 hours under normal load conditions.
Electrical technical characteristics;
The electrical technical characteristics include that the servo unit avoids interference from peripheral electromagnetic equipment and other equipment, and requires good shielding measures. The ground wire of the motor must be thick and short for reliable grounding (standard ground), and the shielded wire must be connected to a large enough metal plane to prevent high-frequency interference. The shielded wire and the ground wire must be strictly distinguished and cannot be confused. The connecting wire between the motor and the servo drive must be shielded wire, its reactance capacity, motor power cable is not less than 150pF/m, and the position feedback cable is not less than 120pF/m.
Mechanical technical characteristics;
There should be no heavy pressure or external impact on the motor shell, so as not to damage the motor. It is forbidden to clean the surface of the mechanism during the operation of the mechanism to avoid injury. The servo motor must ensure the concentricity of the load shaft system and the motor shaft during the installation process to prevent the motor shaft from breaking and damaging the load part. If the shaft end of the motor is equipped with synchronous belt wheels, gears, helical gears and planetary gears, it must be checked against the technical parameters of the axial (Fa) and radial (Fr) loads of the motor to avoid damage to the motor; the calibration standards are as follows: synchronous belt The diameters of wheels, gears, helical gears and planetary gears are ≥2Tm, and Tm is the peak torque of the servo motor.
Technical Parameters
Servo motor model | Motor Length L(mm) | 60SMG0220306ENC-XX 60SMG0220306ENL-XX | 60SMG0240306ENC-XX 60SMG0240306ENL-XX | ||
Rated power Pn (W) | 200 | 400 | |||
Rated torque Tn (N.m) | 0.64 | 1.27 | |||
Rated speed n (rpm) | 3000 | 3000 | |||
Rated current In (A) | 1.63 | 3.08 | |||
Maximum instantaneous torque Tm (N.m) | 1.82 | 3.92 | |||
Instantaneous maximum current Im (A) | 4.89 | 9.24 | |||
Continuous static torque Tm (N.m) | 0.7 | 1.39 | |||
Continuous quiescent current Im (A) | 1.79 | 3.38 | |||
Back electromotive force constant Ke (V/kr pm) | 29 | 29 | |||
Torque constant Tt (N.m/A) | 0.48 | 0.48 | |||
Line resistance RL (Ω) | 8.02 | 3.52 | |||
Line inductance LL (Mh) | 16.3 | 7.8 | |||
Electrical time constant τe (ms) | 2.03 | 2.22 | |||
Mechanical time constant τm (ms) | 2.26 | 1.35 | |||
Moment of inertia Jm (Kg cm) | 0.375 | 0.51 | |||
Number of electrodes | 6 | 6 | |||
Maximum allowable du/dt (KV/μs) | 8 | 8 | |||
Insulation class | F | F | |||
Bearing radial force Fr (N) | 180 | 180 | |||
Bearing axial force Fa (N) | 90 | 90 | |||
Weight Kg | 1.3 | 1.8 | |||
Position feedback device | 2500ppr photoelectric encoder (incremental) or sin cosine rotary encoder | ||||
Temperature flue | can choose | ||||
cooling method | Fully enclosed, self-cooling | ||||
Protection level | IP65, shaft end IP54 | ||||
Use environment | Temperature | -25～+40°C (no freezing) | |||
Humidity | Below 95%RH (no condensation) | ||||
Surroundings | Keep away from corrosive, flammable gas, oil drop, dust | ||||
Altitude | The highest altitude is 4000 meters, and the altitude is more than 1000 meters. For every additional 100 meters, the power is reduced by 1.5% | ||||
Temperature rise | When the ambient temperature is 40°C, the surface temperature of the case rises 60K | ||||

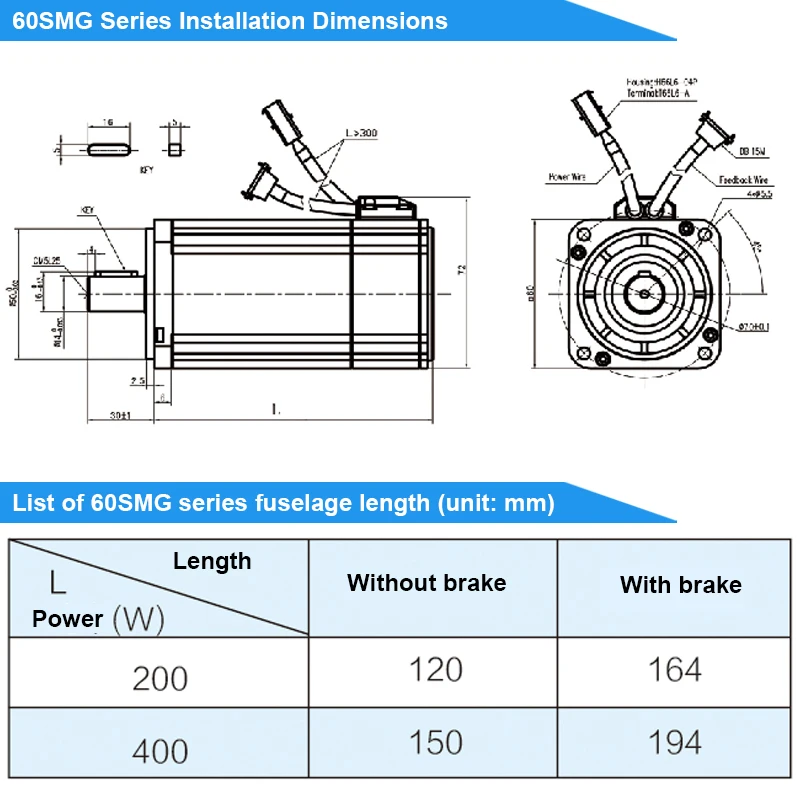

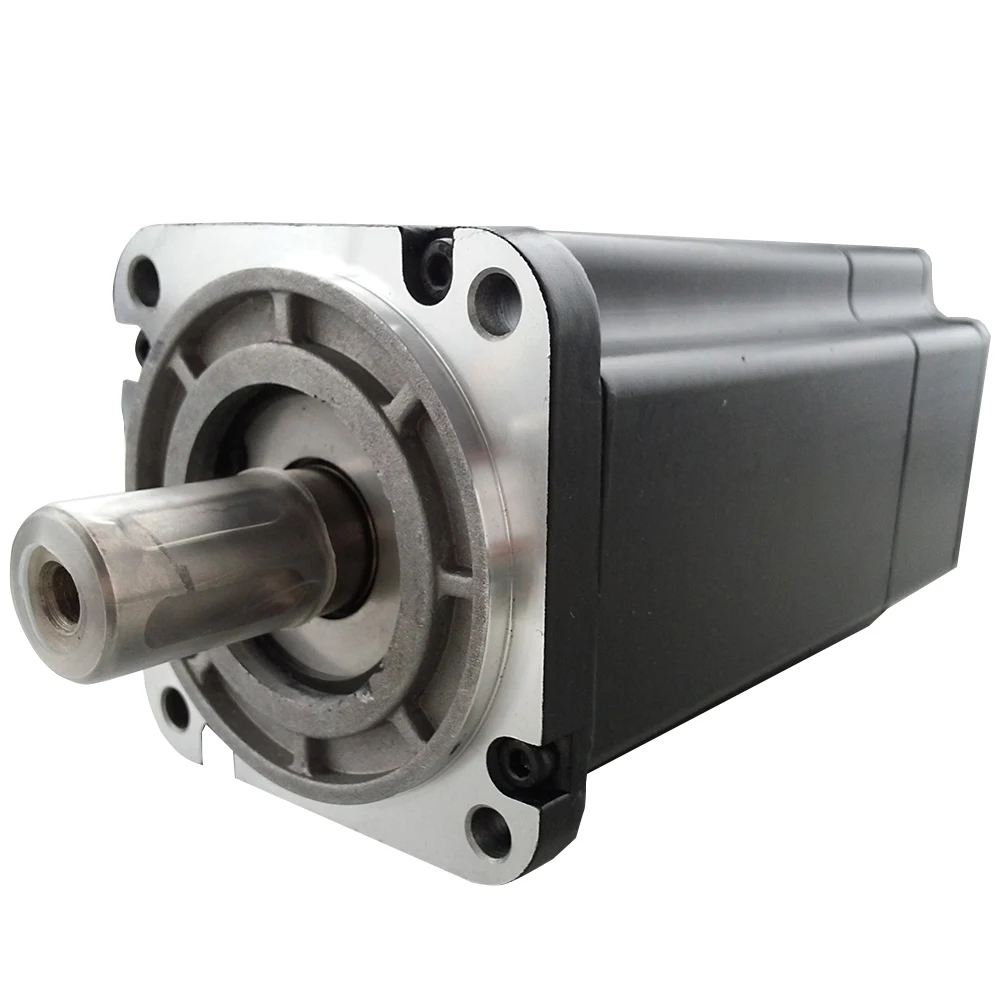

OUTPUT SHAFT METHOD:
