Drilling rig machines ZDY 3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
Drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
Drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
Drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
Drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
Drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
Drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine

Drilling rig machines ZDY 3200s Mining Full Hydraulic Tunnel Drilling Rig Machine

Share on (1600333339117):


Price:$5,380.00 - $5,600.00

Quantity:


Product Overview

Description

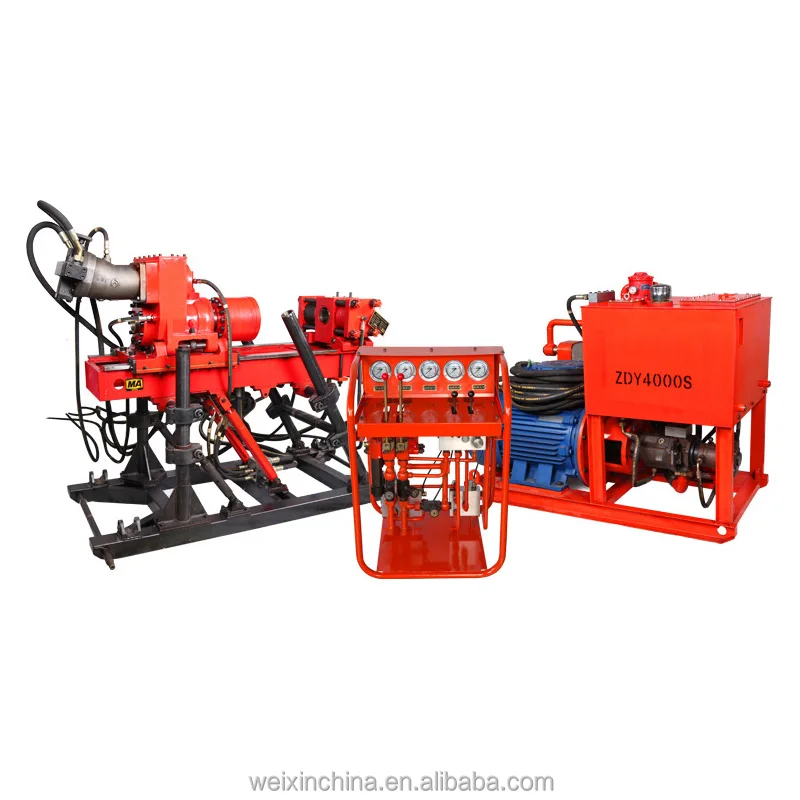

Hydraulic mine drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine
ZDY-3200s mining full hydraulic tunnel drilling rig is suitable for the soft coal seam, roadway or drilling scene with rock solidity
coefficient f≤1.5. The coal mine under the coal seam with a diameter greater than 7m2 and a height greater than 2.8m is drilled
into the soft coal seam gas drainage (row). It is an ideal equipment for drilling gas drainage (discharge) in soft coal seams
under coal mines, solving the problems of abnormal drilling caused by collapse, stuck, and drill, and low porosity. ZDY-3200s mining
full hydraulic tunnel drilling rig is mainly used for drilling underground coal mine gas drainage (row), grouting fire hole, coal
seam water injection hole, anti-burst pressure relief hole, geological exploration hole and other engineering holes. It is
especially suitable for horizontal drilling of ±30° in coal mines and is suitable for ±90°.


Hydraulic mine drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine



Item
unit
ZDY660
ZDY1250S
ZDY1900S
ZDY3200S
ZDY4000S
Rated torque
N.m
660
1250N.m
1900N.m
3200N.m
4000N.m
Drilling depth
m
150/100
300/200/100M
300/200/100M
300/200/100M
350/200/100
Drill pipe diameter
mm
Φ42/Φ50
Φ42/Φ50/Φ63.5
Φ63.5/Φ73
Φ63.5/Φ73
Φ63.5/Φ73
Drilling angle
°
±90°
0～±90°
0～±90°
0～±90°
0～±90°
Rated Rotating speed
r/min
50-300
50-250r/min
50~270r/min
50~210r/min
50~280r/min
Pushing ability
KN
27
36KN
77KN
77KN
100KN
Pulling ability
KN
40
52KN
112KN
112KN
150KN
Push/Pull stroke
mm
650
600
600
800
800
Min. working height
mm
1000
1000
1000
1000
1100
Max.Working height
mm
2100
2100
2100
2100
2100
power
KW
15
22KW
37KW
37KW|45KW
55KW
Whole Machinery weight
kg
1100kg
1350kg
2100kg
2200KG
2500kg
Drill machine weight
kg
600kg
800kg
1250kg
1200KG
1500kg



Hydraulic mine drilling rig machines ZDY-3200s Mining Full Hydraulic Tunnel Drilling Rig Machine

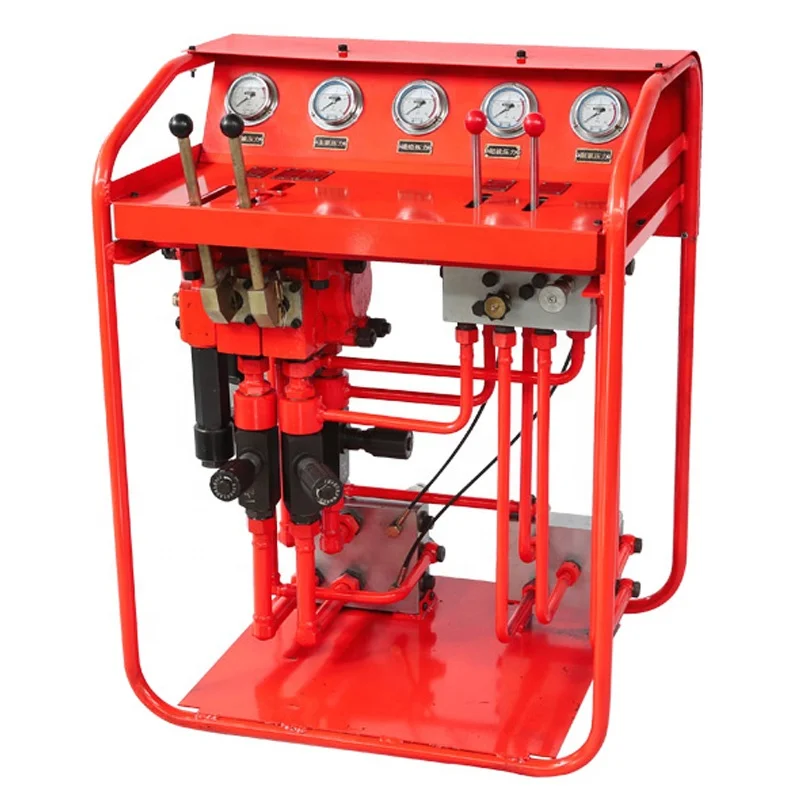

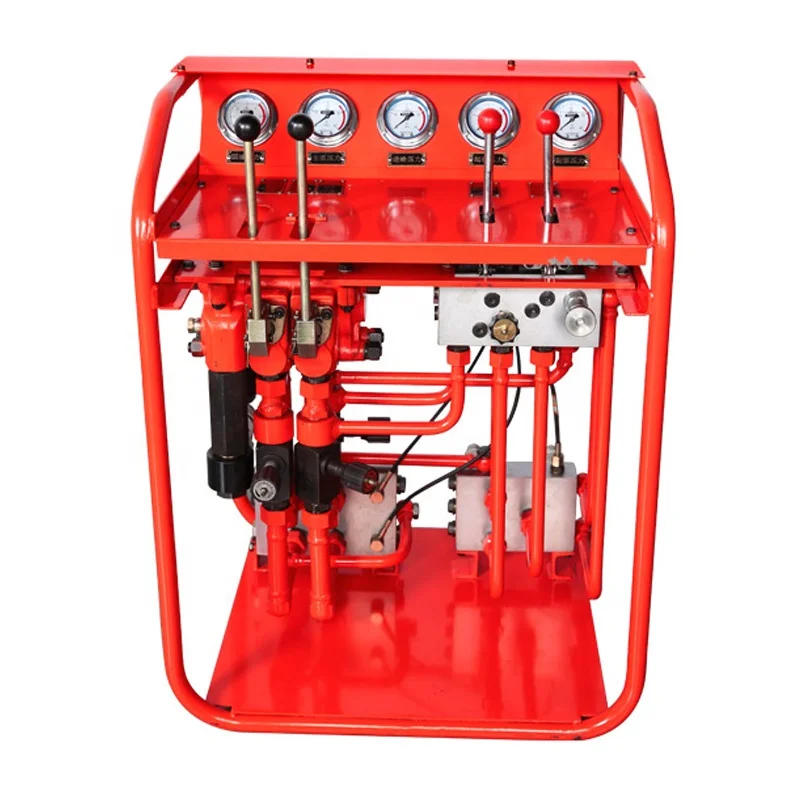

control console
power head

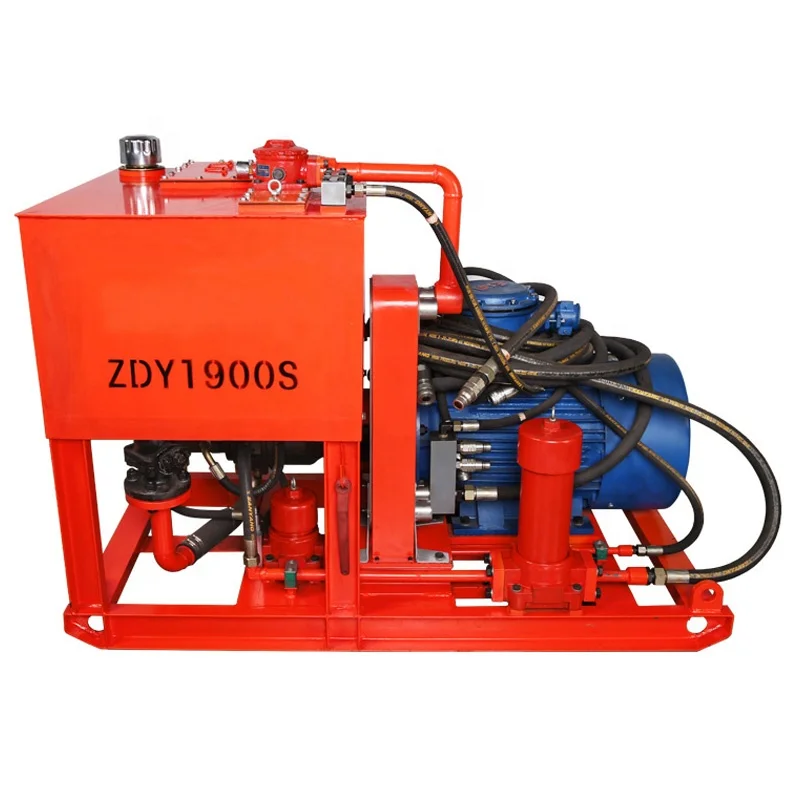

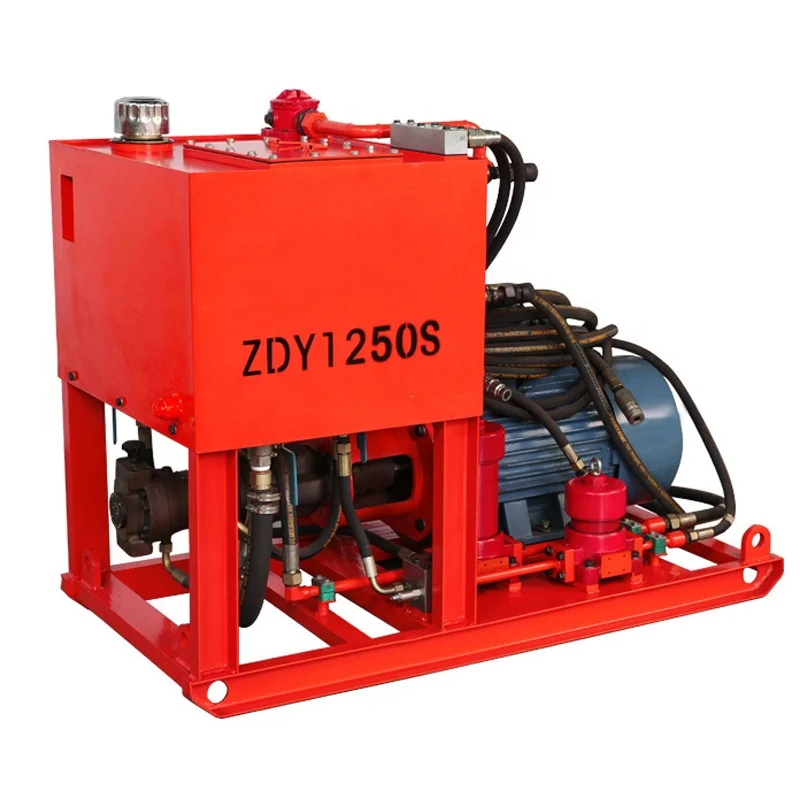

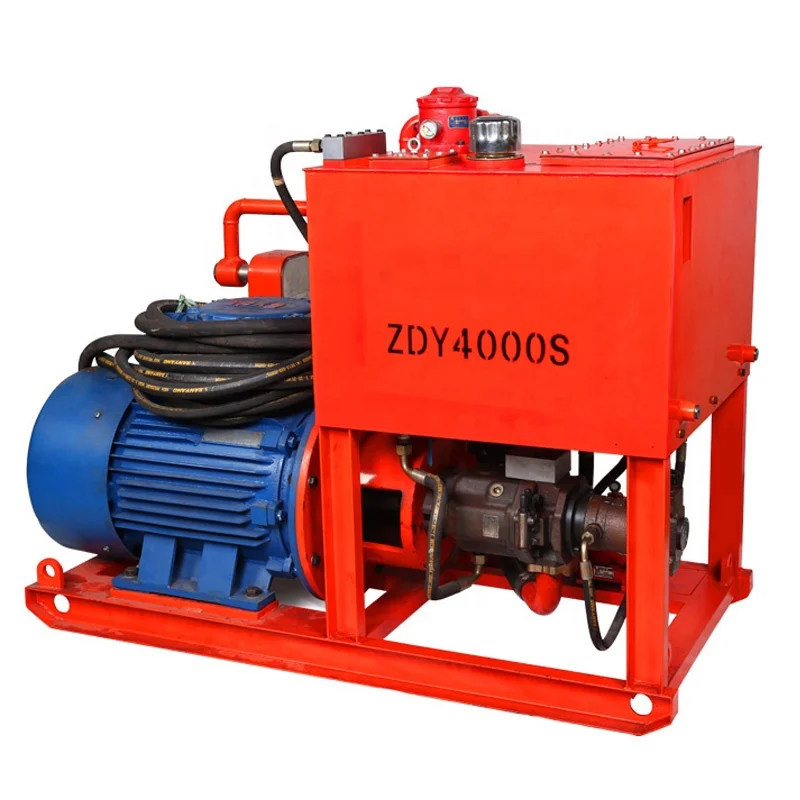

hydraulic pump station


General accessories
General accessories
.General accessories
