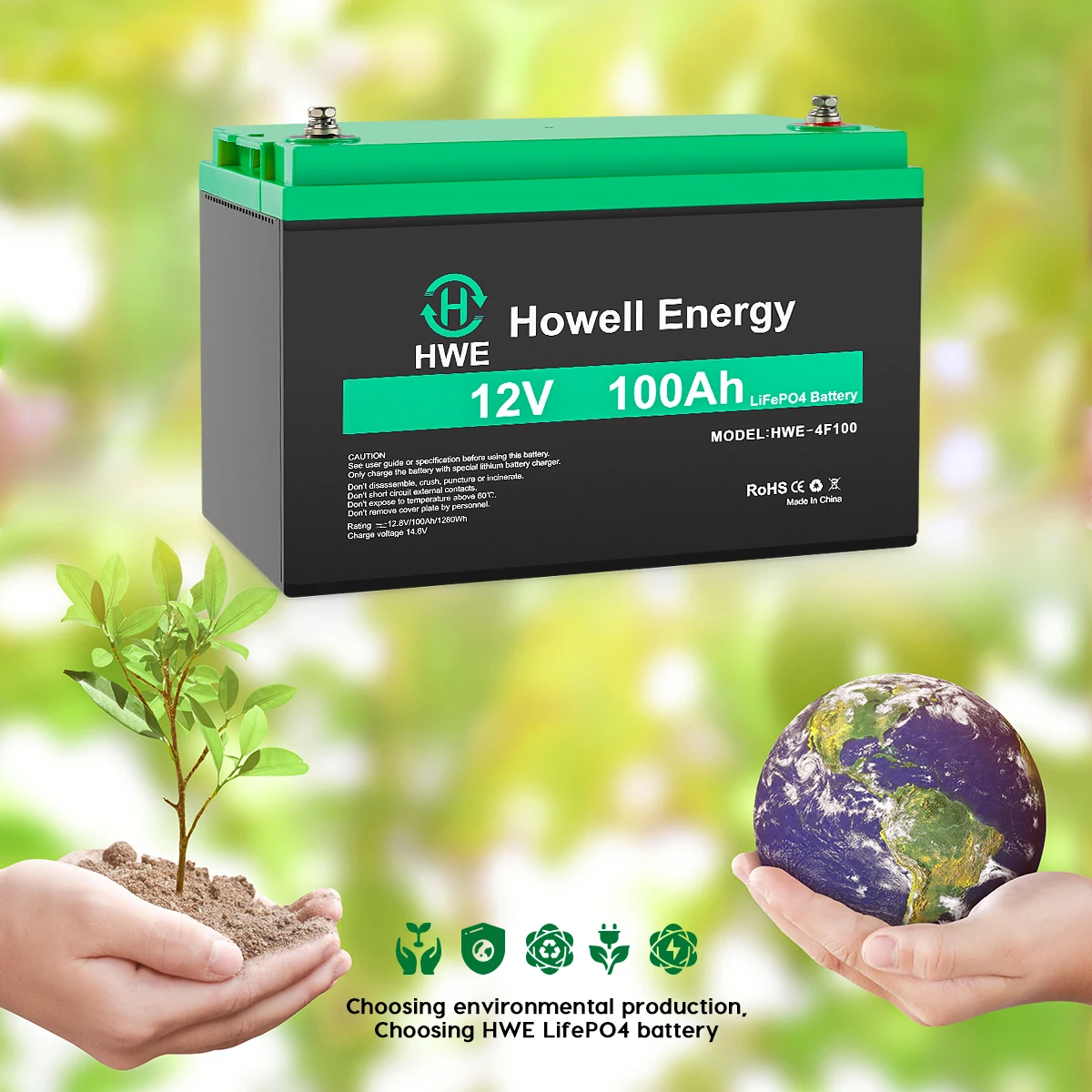

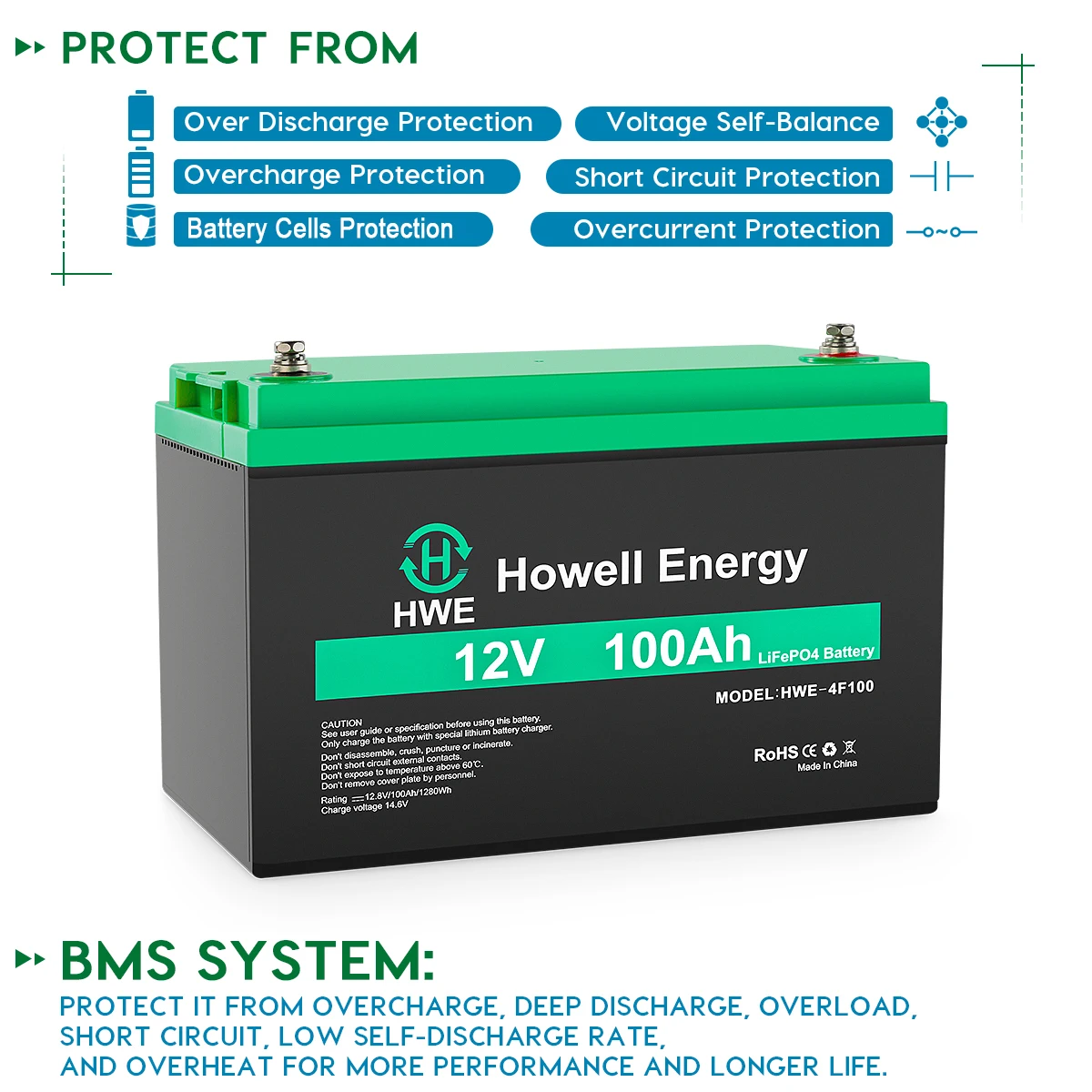

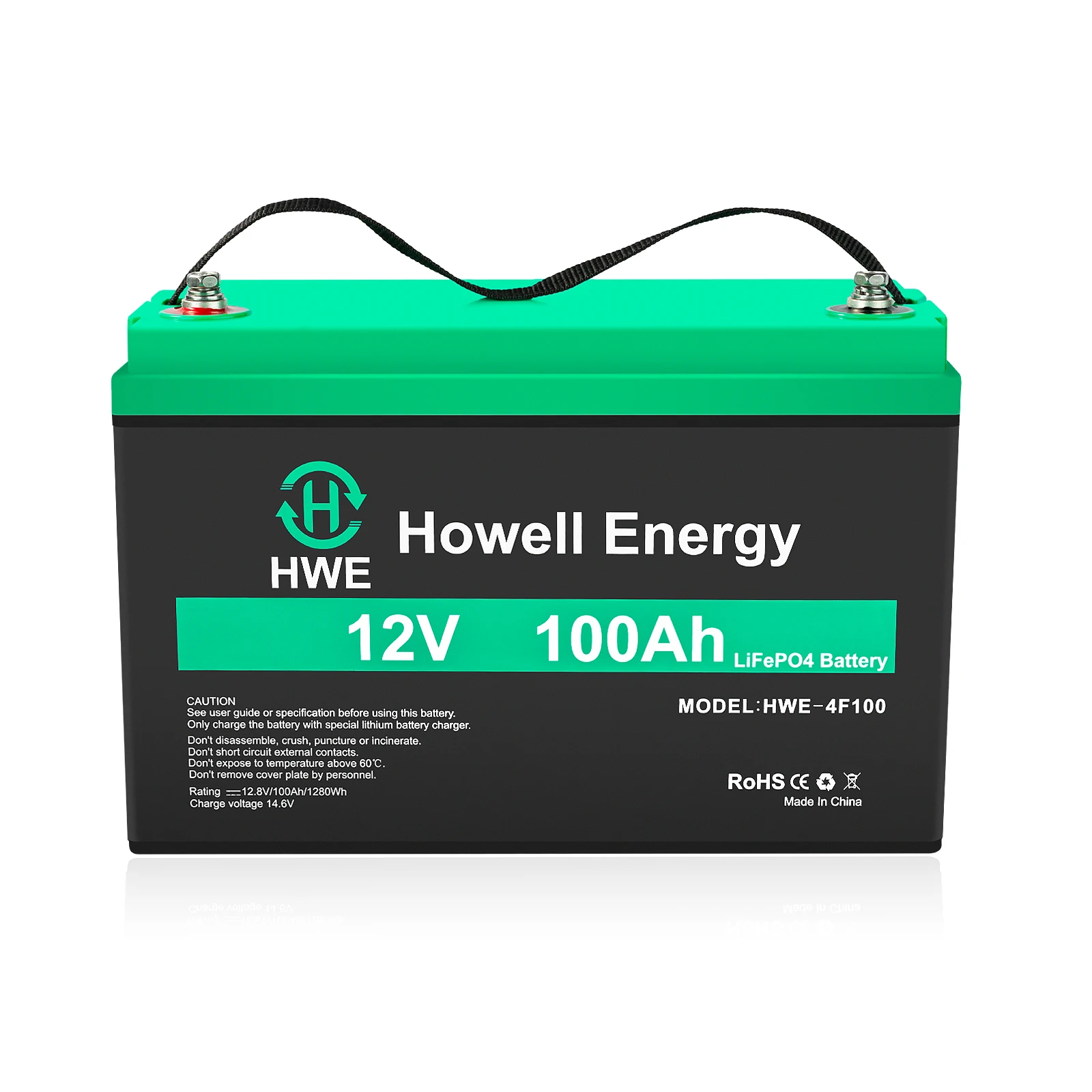

Howell New Arrival Solar Batteries 12V 100Ah Lithium Iron Phosphate Battery Pack Backup Power System With Built in BMS

No.

Item

General Parameter

Remark

1

Rated Capacity

100Ah

Standard discharge(0.2 C₅A)after standard charge(0.2 C₅A)

2

Minimal Rate Capacity

95Ah

3

Nominal Voltage

12.8V

4

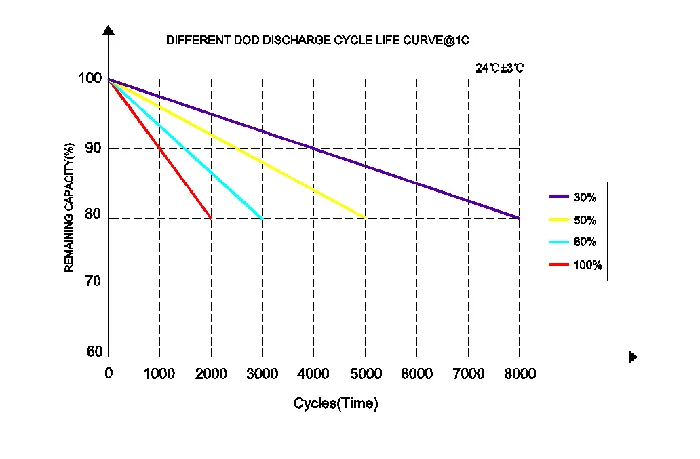

Cycle Life

Higher than 70% of the Initial Capacity of the Cells

Charge: CC at 0.2 C5A  to 14.6V, then CV till current to 0.05C₅A

Rest: 30min.

    Discharge: 0.2C₅A to 9.2V

Temperature:20±5℃

Carry out 2000cycles

5

Discharge cut-off voltage

9.2V

6

Charging cut-off voltage

14.6±0.2V

7

Cell and assembly method

PL84136230-4S5P

Cell:3.2V/20Ah (custom)

8

Housing material

ABS+PC housing

9

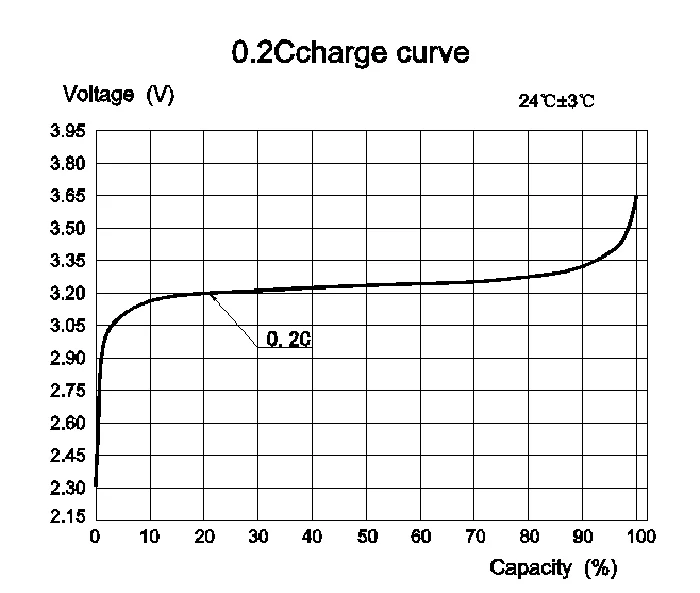

Standard charge

0.2C₅A constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05 C₅A

Charge time : Approx 7h

10

Maximum Charge Current

0.5C₅A constant current(CC) charge to 14.6V,then constant voltage (CV)14.6V charge till charge current decline to ≤0.05 C₅A

Charge time : Approx 3h

11

Standard discharge

20A

12

Continuous Discharge Current

50A

Or custom

13

Peak Current

80A

Discharge: -20~60℃

14

Weight

Approx: 11.4Kg

15

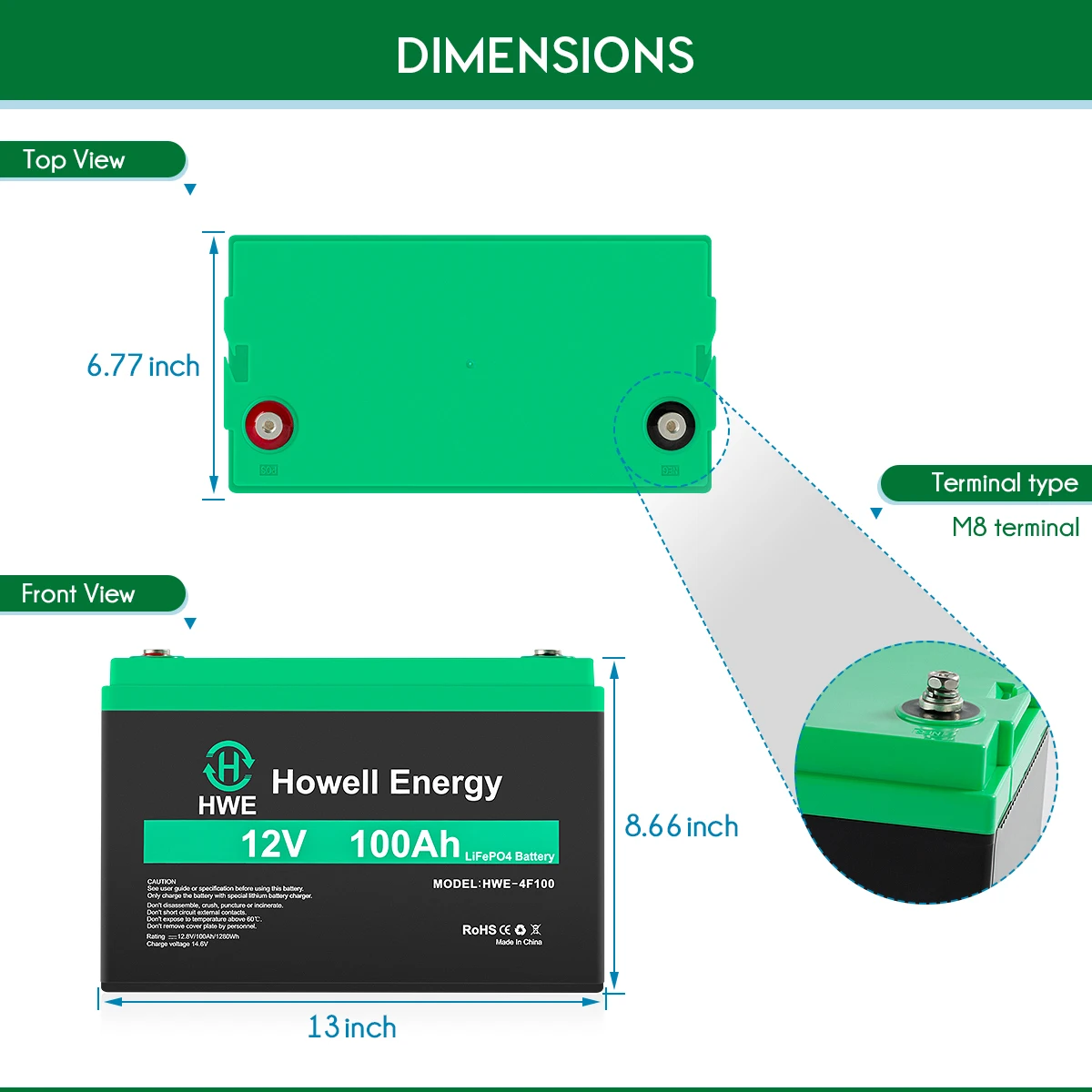

Dimension

306x168x210mm
