UNI T UT526 Multifunction Electrical Meter 1000V Display Count 10000 Installation Tester
- Category: >>>
- Supplier: Uni-Trend Technology (China) Co. Ltd.
Share on (1600334361237):
Product Overview
Description

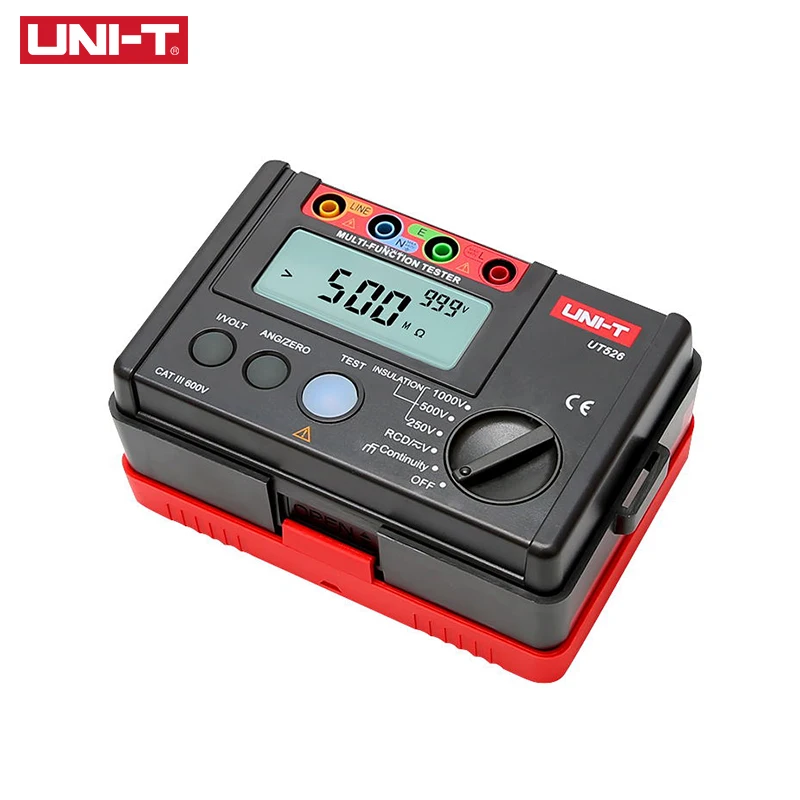

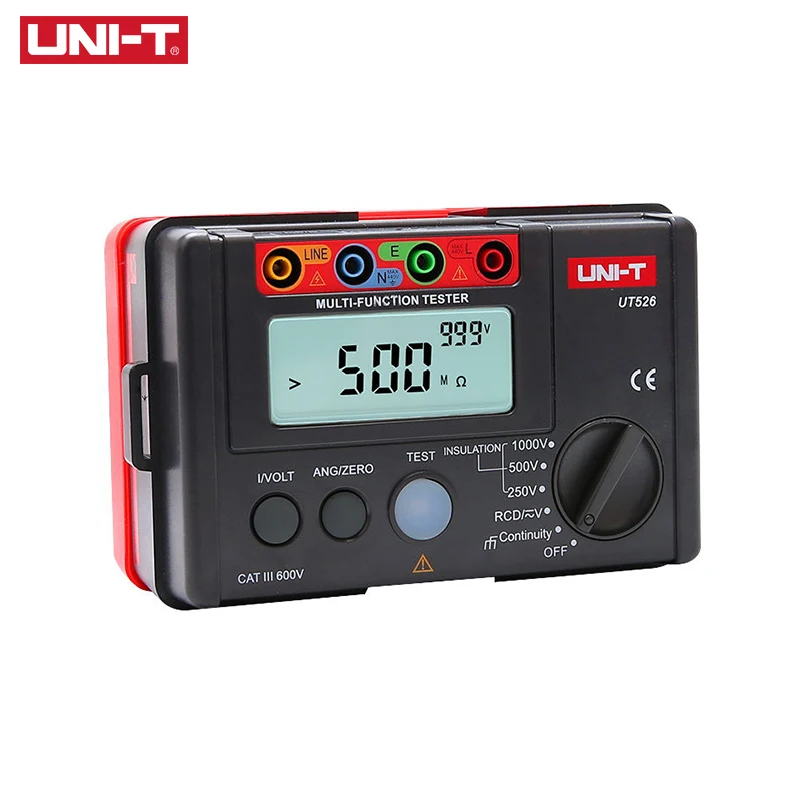

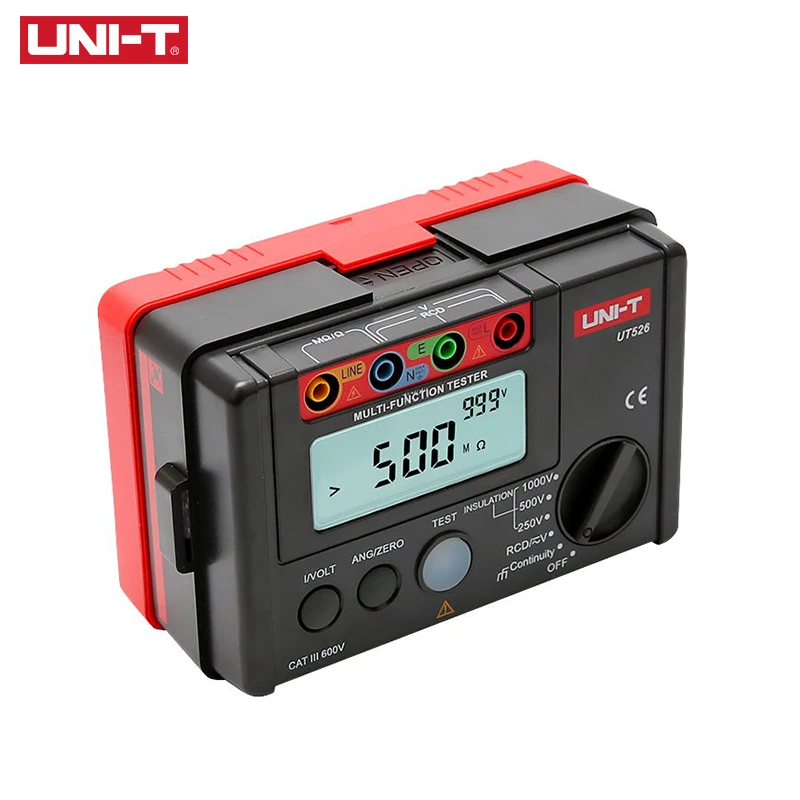

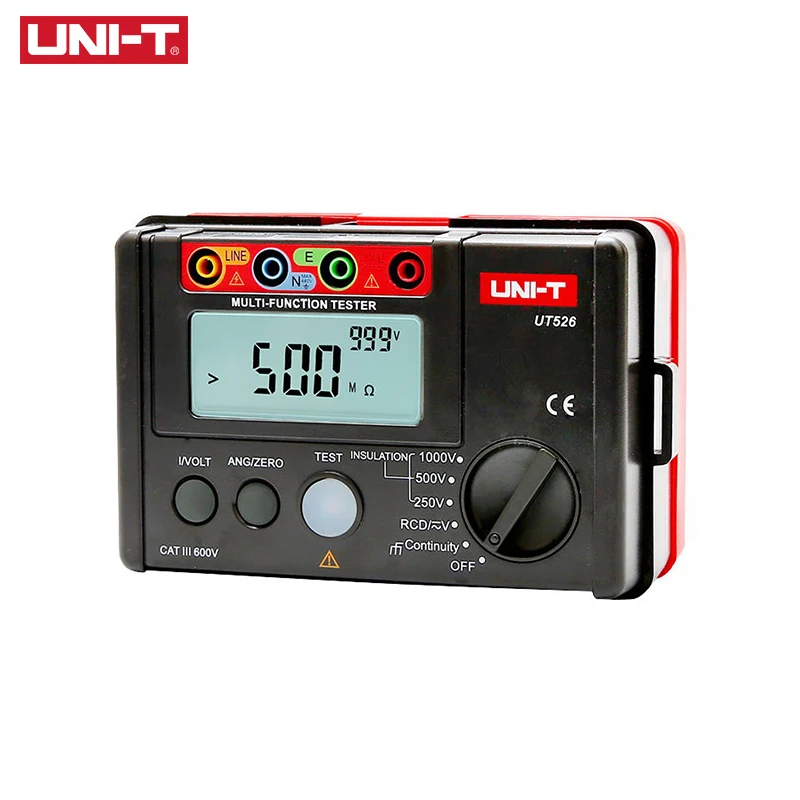

UT526 Multifunction Electrical Meter
UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low
resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.
Applications:
It widely used to measure insulation and continuity of various kinds of electrical equipments, and an ideal tool for maintenance,inspection and tests for RCD in those equipments.
UT526 is a multifunctional electrical installation tester. It can be used to test insulation resistance, RCD status, low
resistance continuity, and voltage measurements. UT526 can be used to test power distribution system, lightning protection system and wiring systems to ensure safe operations.
Applications:
It widely used to measure insulation and continuity of various kinds of electrical equipments, and an ideal tool for maintenance,inspection and tests for RCD in those equipments.
Product Description
Specifications | Range | UT526 | ||||
Insulation resistance (Ω) | Test voltages | 250V/500V/1000V | ±10% | |||
250V | 0.05MΩ~200MΩ | ±(5%+5) | ||||
500V | 0.05MΩ~300MΩ | ±(5%+5) | ||||
1000V | 0.05MΩ~500MΩ | ±(5%+5) | ||||
Load current | 250V (R=250kΩ) 1mA | ±10% | ||||
500V (R=500kΩ) 1mA | ±10% | |||||
1000V (R=1MΩ) 1mA | ±10% | |||||
Short circuit current | <2mA | √ | ||||
RCD | Operating voltage (Freq.) | 220V (45Hz~65Hz) | ±10% | |||
Test current | 10mA/30mA/100mA/300mA | 0~20% | ||||
Trip time | 0ms~2000ms, 1Δn general (10mA) | ±(5%+2) | ||||
0ms~500ms, 1Δn general | ||||||
0ms~300ms, 1Δn general (100mA, 300mA) | ||||||
Low resistance continuity | Range | 0Ω~2000Ω | ±(2%+5) | |||
Test voltage | Around 5V | √ | ||||
Test current | >200mA (R<2Ω) | √ | ||||
Voltage measurement (V) | DC voltage | 0~440V | ±(5%+2) | |||
AC voltage | 0~440V | |||||
Frequency (For reference only) | √ | |||||
Features | ||||||
Display count | 10000 | |||||
Manual range | √ | |||||
Phase switch (RCD) | 0°and 180° | √ | ||||
Low battery indication | √ | |||||
Auto AC/DC voltage identification | √ | |||||
Red warning lights | √ | |||||
General Characterisitics | ||||||
Power | 1.5V battery (LR6) x 6 | |||||
Display | 71mm x 34mm | |||||
Product color | Red and grey | |||||
Product net weight | 380g | |||||
Product size | 160mm x 100mm x 71mm | |||||
Standard accessories | Batteries, carrying bag, gallus, test leads, alligator clips, test line | |||||
Standard individual packing | Gift box, English manual | |||||
Standard quantity per carton | 10pcs | |||||
Standard carton measurement | 445mm x 440mm x 180mm (0.063 CBM per standard carton) | |||||
Standard carton gross weight | 12.8kg | |||||
