Nitrous Oxide Sedation System For Dental Clinic Use Model:S8800B

Product Overview

Description

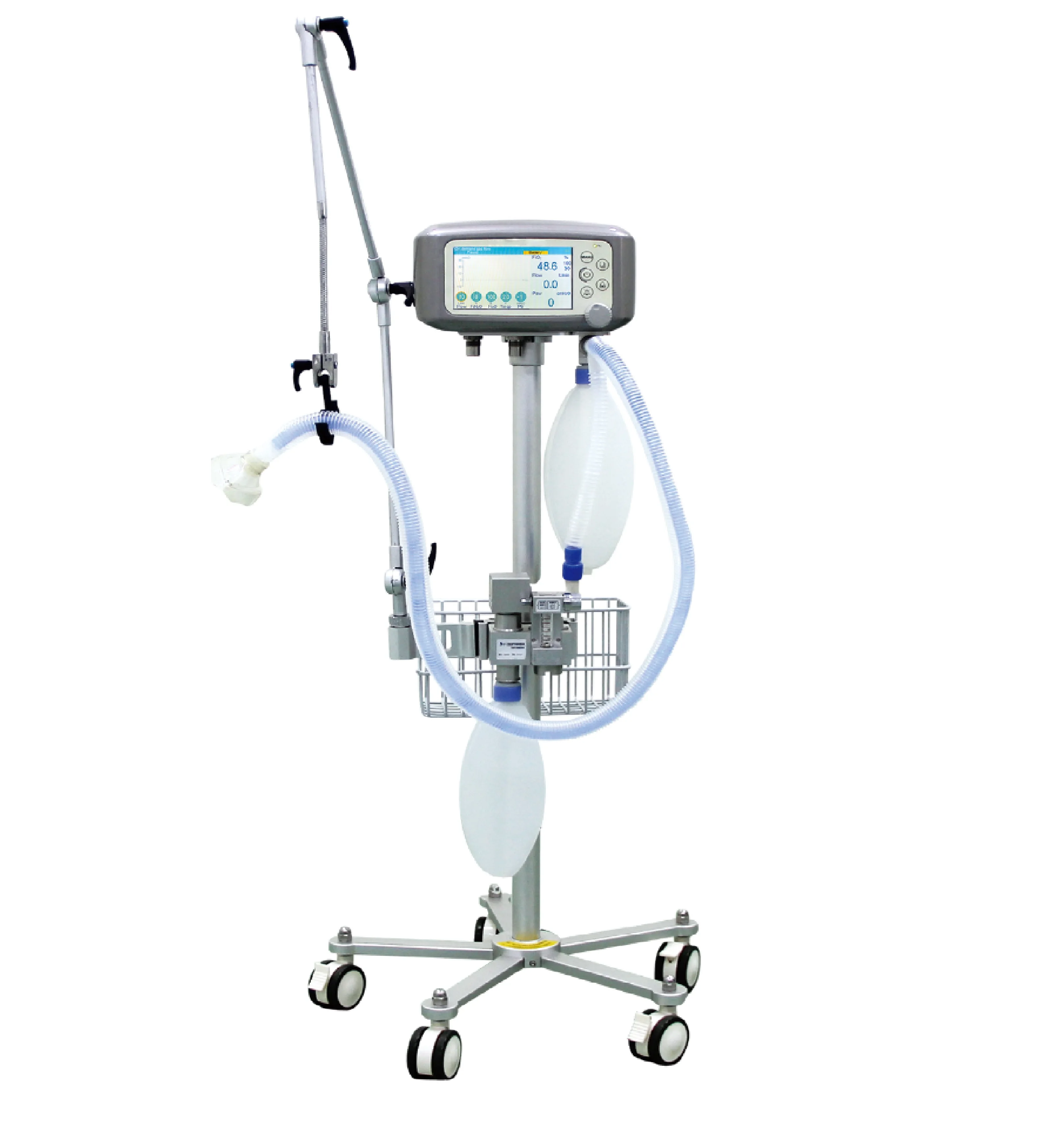

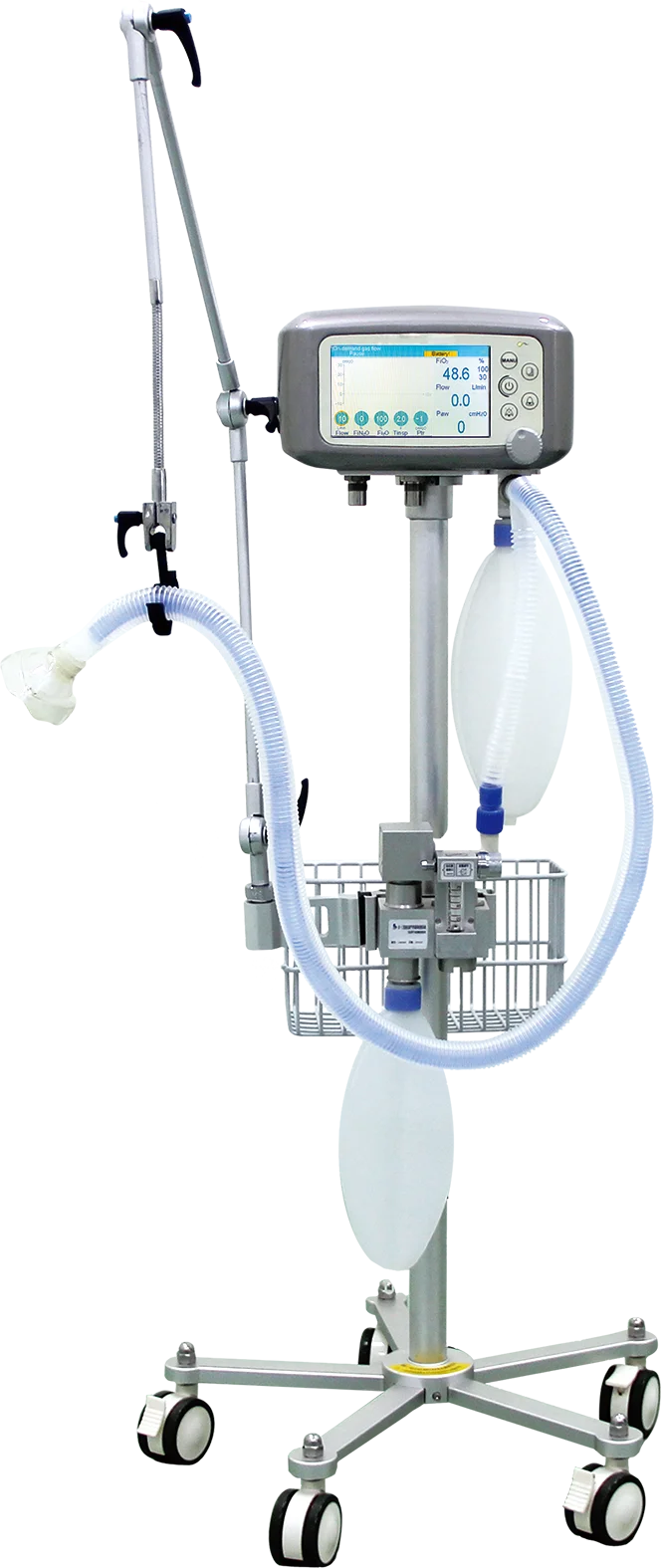

S8800B 7" TFT LCD Dental Equipment Nitrous oxide sedation system

Model:S8800B

Product Description

Application:

The N2O Sedation System makes a good performance in gastrointestinal endoscope department, obstetrics department, dentistry department and other departments. From high to low acuity, simple to complex cases, pediatric to geriatric patients,Superstar Medical N2O Sedation Systems offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.

Trust Points

l Simplicity: easy to use, easy to move with 4 wheels.

l Choice: adapt the equipment to your patients and procedures freely

l Designed and manufactured by Superstar Medical with over 23 years experience in this area.

l Flexible configurations to suit your needs.

l International standard and advanced technology suitable for wide range use.

l Compact interface and big screen give you better operating experience.

l Over 2,000 units installed in the world.

Features

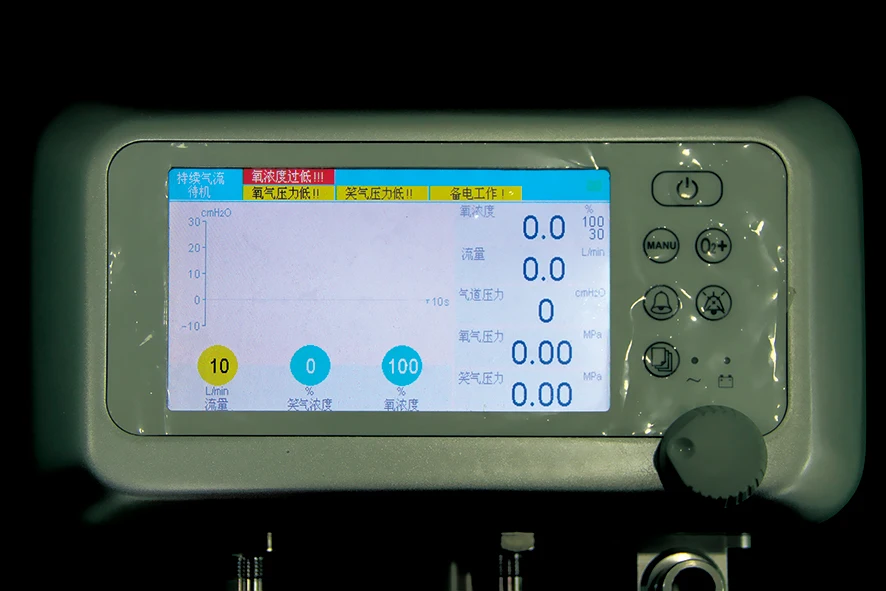

lTFT LCD screen displays the Ventilation parameters, Alarming information and Waveform.

l Integration breathing circuit design, ensure easy operating and keep tidy.

l Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects.

l Multiple Ventilation mode, suitable for different clinical need.

l Electronic control mixed gas blender, high precision adjustment.

l Built-in concentration monitoring system, real-time monitoring of airway pressure.

Safety

l Three level alarming system, visual and sound alarm information.

l With lots of alarming, reminding and protection functions.

l Advanced power management control technology.

l With built-in backup power source, when outside power source goes off, back-up power source starts to work.

Specification





Ventilation Modes	Continuous gas supply	Alarm and protection
	On-demand gas supply	The AC Power Failure alarm	Power failure or no connection
	Rapid oxygen supply	Built-in backup battery low voltage alarm	<11.3±0.3V
	Manual	High oxygen concentration alarm	31%-100%
Ventilator Parameter Range		Low oxygen concentration alarm	30%-99%
Oxygen concentration	30% - 100%	High airway  pressure alarm	5cmH2O-60cmH2O
Nitrous oxide concentration	0% - 70%	Pressure limit	0cmH2O-60cmH2O
On-demand gas	0-30L/min	Emergency air input	When machine malfunction
Pressure Trigger (Ptr)	-1cmH2O- -10cmH2O	Nitrous oxide closure function	When oxygen pressure ≤200k Pa
Gas supply time	1s-6s	Low gas source input pressure	pressure ≤200k Pa
Peak flow	≥60L/min	Working condition
Manual ventilation flow	0-30L/min	Gas source	O2,N2O
Rapid oxygen flow	25L/min-75L/min	Pressure	280kPa-600kPa
Pressure limit	5cmH2O-60cmH2O	Voltage	-220±22V
Monitoring parameter		Power Frequency	50Hz±1Hz
Oxygen concentration	30% - 100%	Size
Airway pressure	0-60cmH2O	Wooden case packing size	L700*W800*H420mm
Flow	0-30L/min	G.W. N.W.	40KG 20KG
Oscillogram		Wooden case packing size	L1100*W160*H195mm
P-T(pressure-time)		G.W. N.W.	6.7KG 2KG

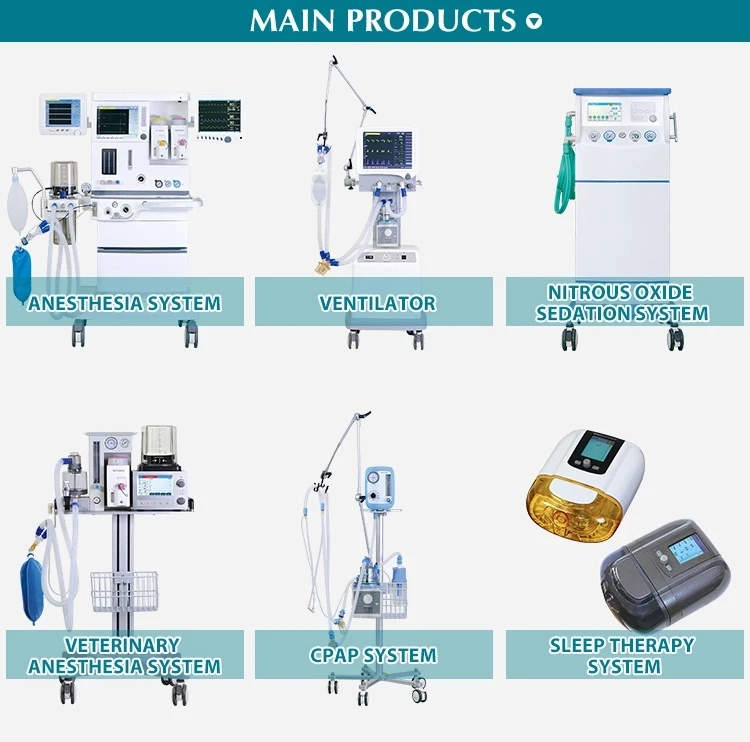

Our Services
