Factory Direct Dual Lens 1080P Camera Board OEM MIPI CSI 2MP Camera Module for Security Monitoring
- Category: Mini Camera >>>
- Supplier: Shenzhen Jinshikang Technology Co. Ltd.
Share on (1600334636622):
Product Overview
Description
If you want free samples, you can contact our customer service for consultation.
Specification
31Models（k01） | Aiwinn-A100-850(K01) Binocular Face Anti-spoofing Camera Module |
Image Sensor | GC2053(1/2.9” CMOS)*2 |
Focal length | 4.3mm(optional) |
Aperture Range | 2 |
Angle of View | 73° |
Object distance | 50‐150cm |
AGC | Auto |
Color Filter | RGB Bayer pattern |
Shutter Type | Electronic Rolling Shutter |
Wide Dynamic Range | TBD |
White Balance | Auto |
Max Frame Rate | 30fps@1080P |
Image Resolution | 1920 (H) x 1080 (V) |
Protocols | UVC |
Compliance | USB‐IF WHQL CE RoHS |
Video Output | MJPG/YUY2 |
Interface | MIPI-CSI2 |
Power Supply | 5V±5% |
Dimensions(PCBA) | 80mm*16mm*10.3mm± 0.3mm |
Temperature(Operation) | ‐20~70 ℃ |
1. First-class quality and advanced technology: Our factory is a professional manufacturer of CMOS camera module products. We provide high-quality and compatible CMOS camera module products for customers' different requirements and wishes.
2. Specializing in the production of camera modules with different pixels: CIF, VGA, 2 million, 3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million, 24 million pixel camera modules. We can also do it according to the specific requirements of customers.
3. Widely used: mobile phones, artificial intelligence, drones, smart homes, iris reorganization, gesture recognition, machine vision, 3D printer camera solutions, two-dimensional barcode recognition, optical imaging systems, industrial infrared imagers, digital cameras, DV , PDA/handheld devices, smart toys, PC cameras, security cameras, car cameras, etc.
4. Different sensors: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, Sony sensor and some sensors made in China. We also have SMT production lines, CSP production lines and COB production lines.
2. Specializing in the production of camera modules with different pixels: CIF, VGA, 2 million, 3 million, 5 million, 8 million, 12 million, 16 million, 21 million, 22 million, 23 million, 24 million pixel camera modules. We can also do it according to the specific requirements of customers.
3. Widely used: mobile phones, artificial intelligence, drones, smart homes, iris reorganization, gesture recognition, machine vision, 3D printer camera solutions, two-dimensional barcode recognition, optical imaging systems, industrial infrared imagers, digital cameras, DV , PDA/handheld devices, smart toys, PC cameras, security cameras, car cameras, etc.
4. Different sensors: OVT sensor, Aptina sensor, Samsung sensor, Panasonic sensor, Sony sensor and some sensors made in China. We also have SMT production lines, CSP production lines and COB production lines.
Product Description

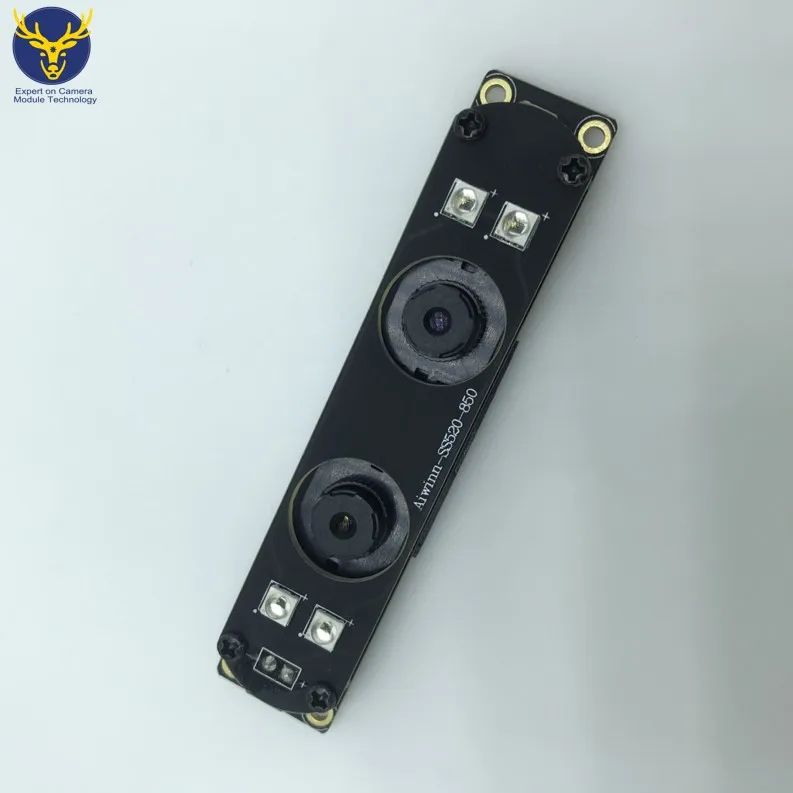

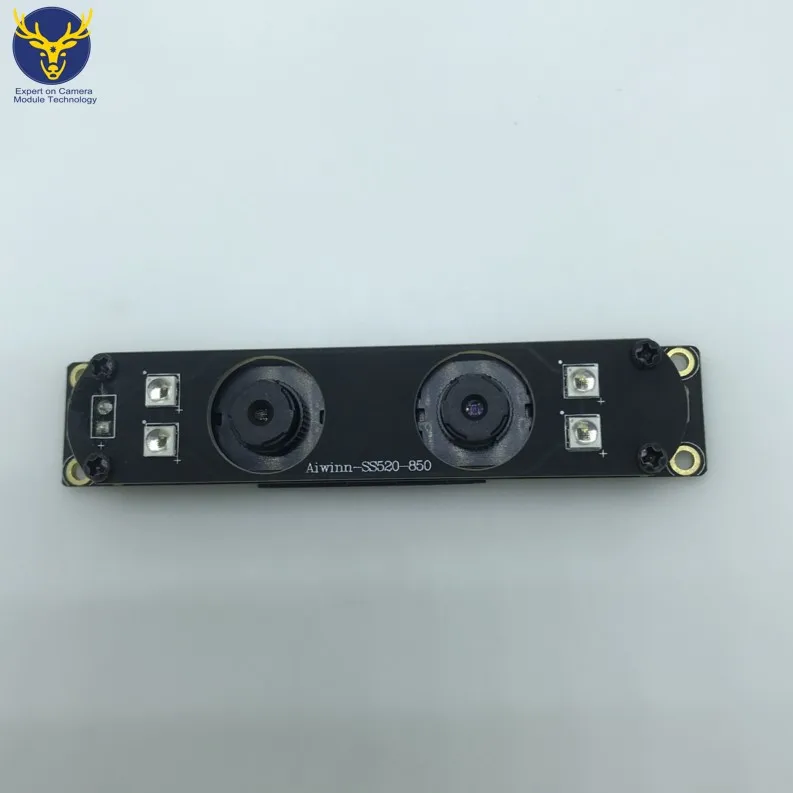

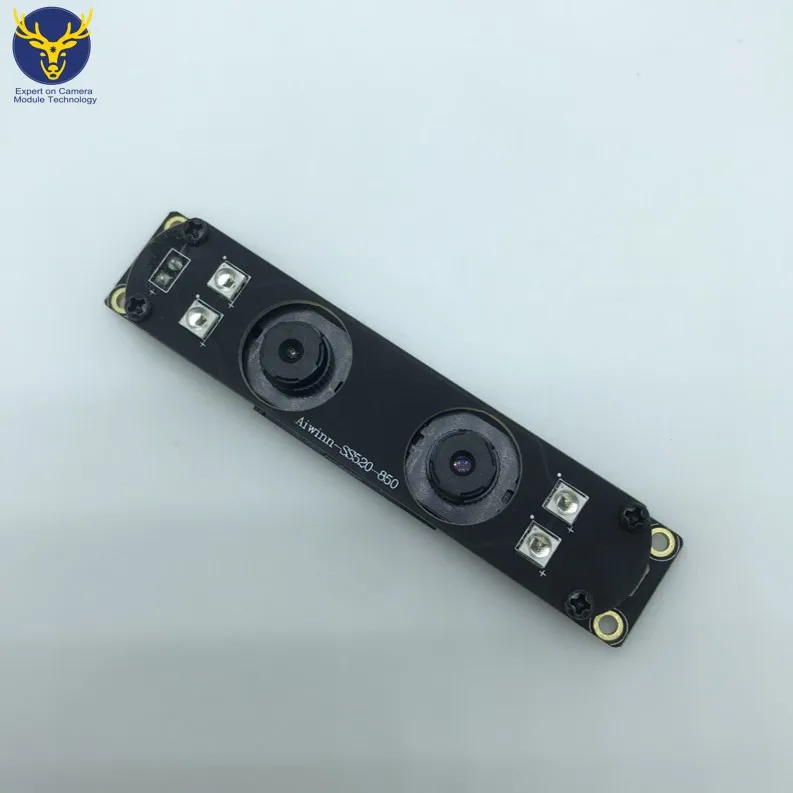

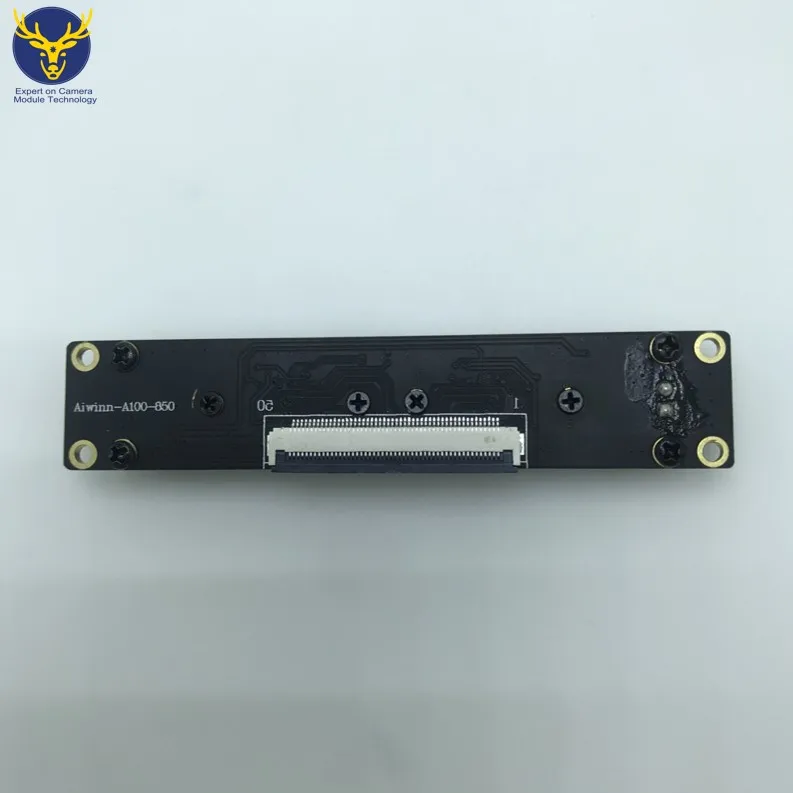

Aiwinn-A100-850(K01)
MIPI Binocular Face Recognition Camera Module
2 Mega Pixels High Resolution MIPI CSI Camera Module for Face Recognition
Features:
* High Definition 1920(H)*1080(V) resolution MIPI Camera module
* GC2053(1/2.9” CMOS) sensor for high quality image
* With HD 73 degree no distortion lens(Optional)
* With Dual lens for video recording
* High frame rate - MJPEG 1920*1080 30fps
* MJPEG/YUY2 dual output format optional
* Mini board size 80mm*16mm*10.3mm for embedded application
* Low power consumption - ideal for portable equipment.
* Support Linux system with UVC
Specially designed for the research and development of face recognition
High-precision algorithm face data
Accurately identify some key construction parts such as eyes, ears and nose
High-precision algorithm face data
Accurately identify some key construction parts such as eyes, ears and nose
Adopt USB communication interface
Transmission speed is greater than 400MB/S
Say goodbye to the traditional slow lag
Transmission speed is greater than 400MB/S
Say goodbye to the traditional slow lag
Use 1/2.9” inch COMS Sensor
High signal-to-noise ratio
2 Mega Pixels
It supports 30FPS at 1920*1080 resolution, and the imaging quality is quite excellent
Aperture：F2.40
FOV: 73 Degree
Wide Dynamic Range: TBD

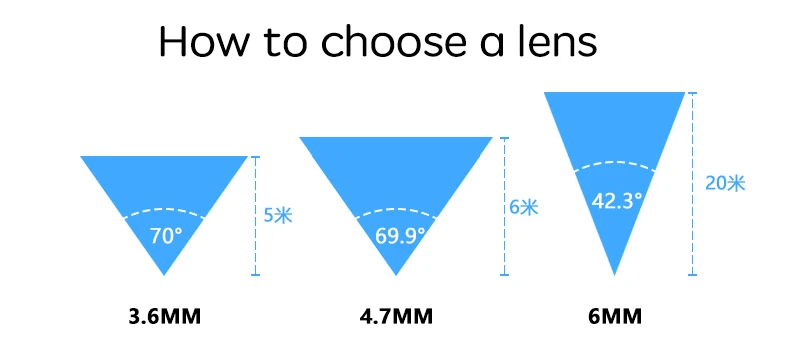

A wide range of different FOV Lenses are available
Our camera module matching solution is an embedded product that can realize intelligence, application, and storage.
If your product is to provide access to various front-end devices such as IPC, access control, etc., support image analysis, identity verification, structured analysis mainstream algorithms and garbage detection, high-altitude parabolic, helmet detection and other long-tail algorithms, support Algorithm App flexibly loads, runs, upgrades, supports intelligent sensing event linkage video playback, and also has video storage and preview playback, alarm linkage, data privacy protection and other functions, with data edge aggregation, edge autonomy and cloud edge collaboration capabilities, applicable It provides a variety of intelligent products for industry solution providers, integrators, and agents in various industry scenarios such as comprehensive public security, safety supervision and emergency response, park buildings, retail stores, residential communities, and construction sites.
Product Features
Accessibility support
Support network camera ONVIF, RTSP, GB28181 standard protocol;
Support adaptive H.265/H.264 compression standard;
Smart business
Support the detection of attributes such as gender, age, glasses, masks, and hats;
Support alarm linkage;
Preview function supports up to 25 channels of screen split-screen preview;
Support alarm event preview;
Recording and playback
Support 1/16 to 512 times speed synchronous playback;
Support smart recording,
Support intelligent playback of post-event recording;
Data Security
Data security push, encrypted storage, desensitization display;
If your product is to provide access to various front-end devices such as IPC, access control, etc., support image analysis, identity verification, structured analysis mainstream algorithms and garbage detection, high-altitude parabolic, helmet detection and other long-tail algorithms, support Algorithm App flexibly loads, runs, upgrades, supports intelligent sensing event linkage video playback, and also has video storage and preview playback, alarm linkage, data privacy protection and other functions, with data edge aggregation, edge autonomy and cloud edge collaboration capabilities, applicable It provides a variety of intelligent products for industry solution providers, integrators, and agents in various industry scenarios such as comprehensive public security, safety supervision and emergency response, park buildings, retail stores, residential communities, and construction sites.
Product Features
Accessibility support
Support network camera ONVIF, RTSP, GB28181 standard protocol;
Support adaptive H.265/H.264 compression standard;
Smart business
Support the detection of attributes such as gender, age, glasses, masks, and hats;
Support alarm linkage;
Preview function supports up to 25 channels of screen split-screen preview;
Support alarm event preview;
Recording and playback
Support 1/16 to 512 times speed synchronous playback;
Support smart recording,
Support intelligent playback of post-event recording;
Data Security
Data security push, encrypted storage, desensitization display;
Certifications
Production Process
1. Raw Meterials
2. Workshop
3. Clean Booth
4. Sensor Cleaning
5. Assemble
6. Focusing
7. Temperature Test
8. Aging Test
Company Profile
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Why choose us?
1. Leading and professional manufacturer in CCTV industry since 2005.
2. 6 years of R&D and production experience
3. OEM & ODM
4. High Quality(material)
5. Competitive and reasonable price
6. Fast Delivery
7. Best pre-sale, sale and after-sale service
8. 2 year warranty and lifetime maintenance
9. CE,FCC,RoHS,ISO9001-2008 passed
1. Leading and professional manufacturer in CCTV industry since 2005.
2. 6 years of R&D and production experience
3. OEM & ODM
4. High Quality(material)
5. Competitive and reasonable price
6. Fast Delivery
7. Best pre-sale, sale and after-sale service
8. 2 year warranty and lifetime maintenance
9. CE,FCC,RoHS,ISO9001-2008 passed
