Product Overview
Description
Welcome To KiTech
Products Description
GENERALDESCRIPTION >>

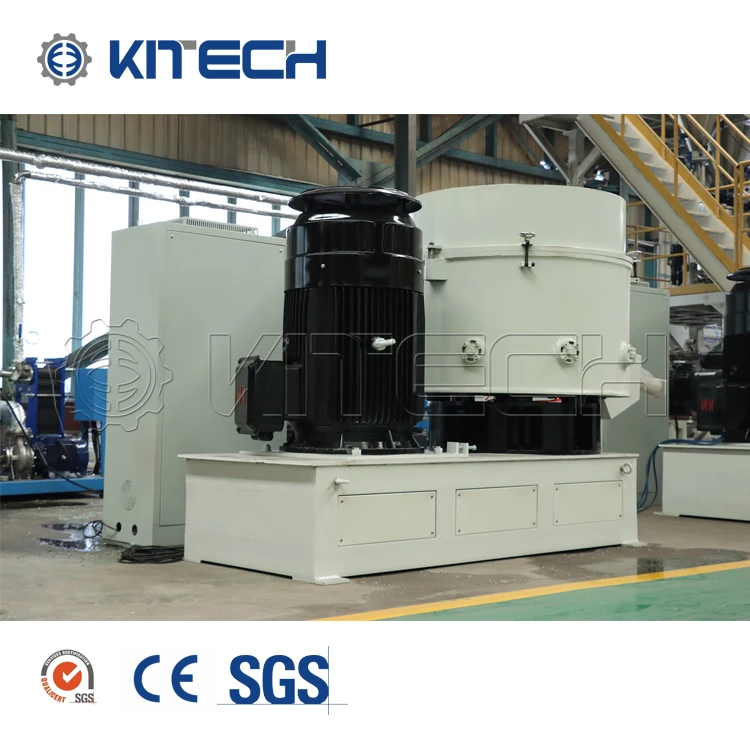

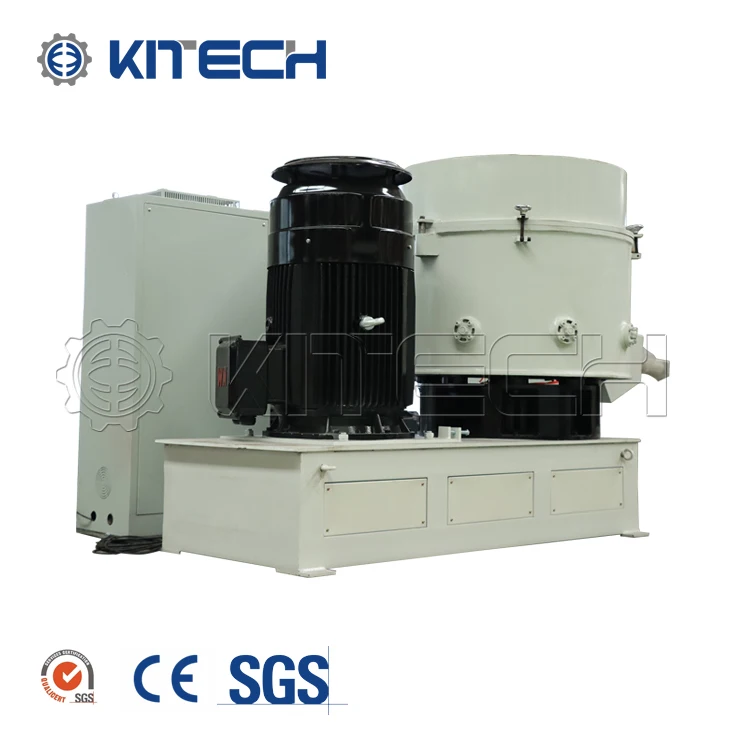

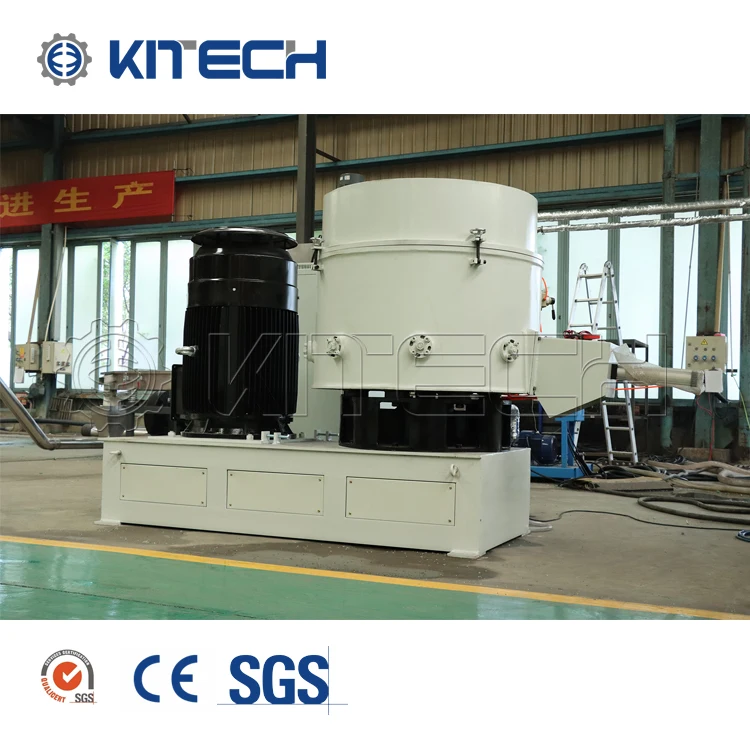

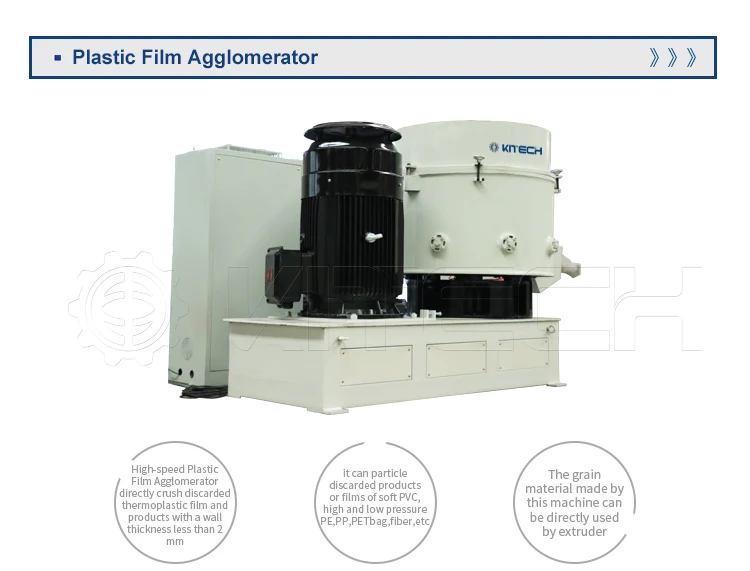

>>High-speed Plastic Film Agglomerator is a device that directly crush discarded thermoplastic film and products with a wall thickness less than 2 mm.
>>it can particle discarded products or films of soft PVC, high and low pressure PE,PP,PVC,PET,etc, film film ,bag fiber and other thermoplastic plastics or waste products of foaming polystyrene.
>>The grain material made by this machine can be directly used by extruder. Strict products can also be molded by extrusion granuder and used after granulation.

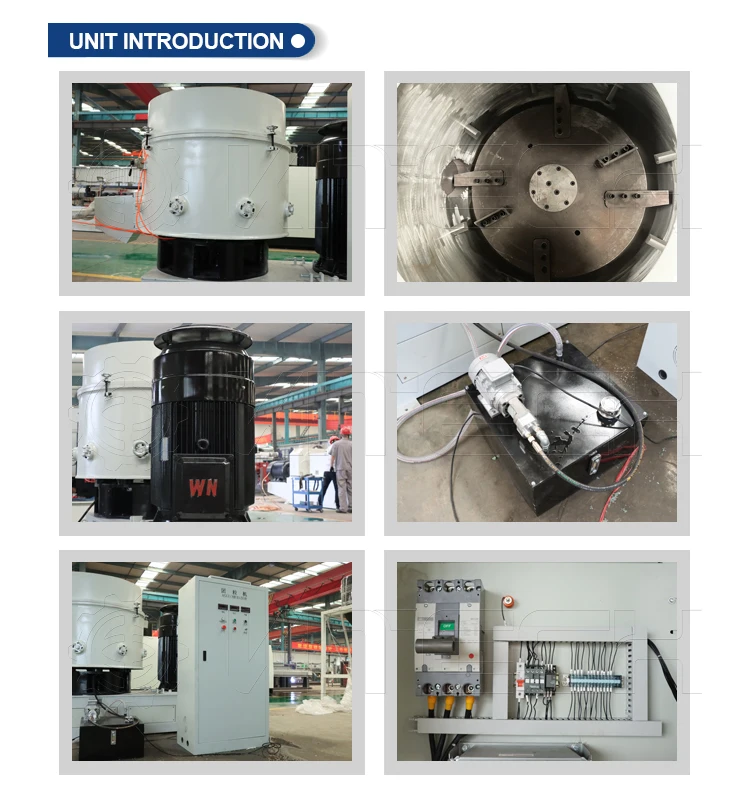

>>Blade can be disassembly, it is easy to clean and maintenance.
>>it can particle discarded products or films of soft PVC, high and low pressure PE,PP,PVC,PET,etc, film film ,bag fiber and other thermoplastic plastics or waste products of foaming polystyrene.
>>The grain material made by this machine can be directly used by extruder. Strict products can also be molded by extrusion granuder and used after granulation.
>>Blade can be disassembly, it is easy to clean and maintenance.
KEY FEATURES >>
>> Capacity:80-450KG/H
>>Volume(L): 200-800L
>>Motor Power: 45-132KW
>>Volume(L): 200-800L
>>Motor Power: 45-132KW
Technology Data
Type | GHX-200 | GHX-300 | GHX-500 | GHX-800 |
Total Volume(L) | 200L | 300L | 500L | 800L |
Effective Volume(L) | 175L | 225L | 375L | 675L |
Rotary blade pcs | 2 | 2 | 4 | 4 |
main shaft rotary speed rpm | 850 | 850 | 850 | 850 |
fixed blade pcs | 6 | 7 | 8 | 8 |
Motor power | 45KW | 55KW | 90KW | 132KW |
machine weight | 1800KG | 2000KG | 3000KG | 4000KG |
Dimensions | 1700*850*1600mm | 2000*850*1600mm | 2500*1250*180mm | 2500*1400*1800mm |
CAPACITY | 80---120KG/H | 150---180KG/H | 300-350KG/H | 450---550KG/H |
