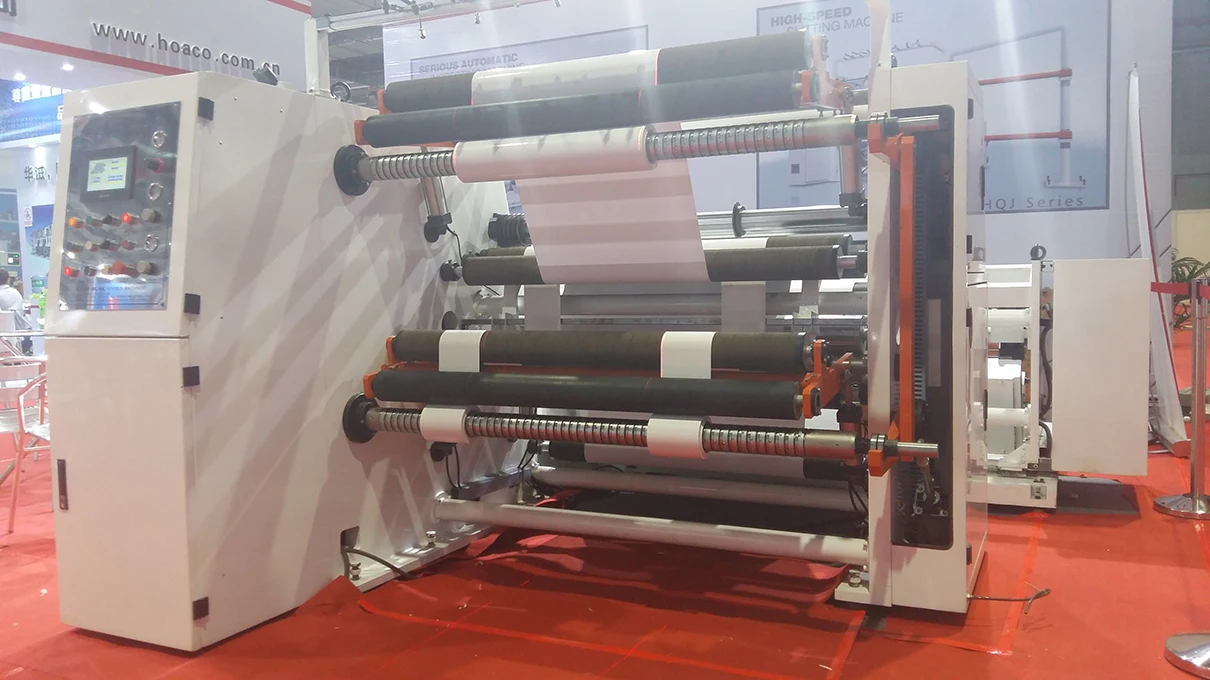

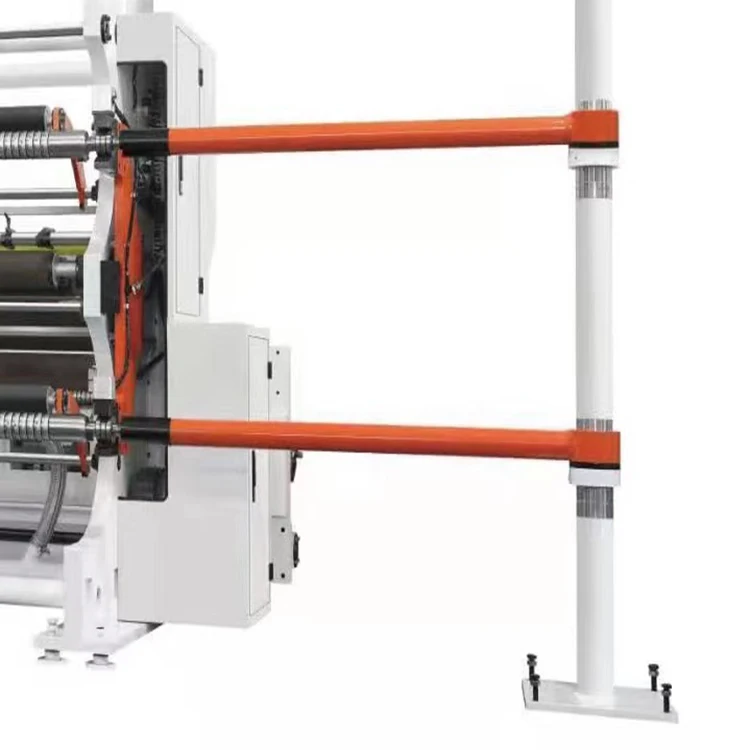

Полностью автоматическая высокоскоростная машина для резки и перемотки алюминиевой фольги
- Category: >>>
- Supplier: Zhejiang Newsun Machinery Technology Co. Ltd.
Share on (1600334948883):
Product Overview
Description
Product Description
Use
This machine is used to slit all kinds of roll materials such as aluminum foil,paper.
Note:
1.Max unwinding diameter1200mm.
2.Max material diameter:1600mm.
3.Max slitting speed 400 m/min.
Main Technical Parameters | |

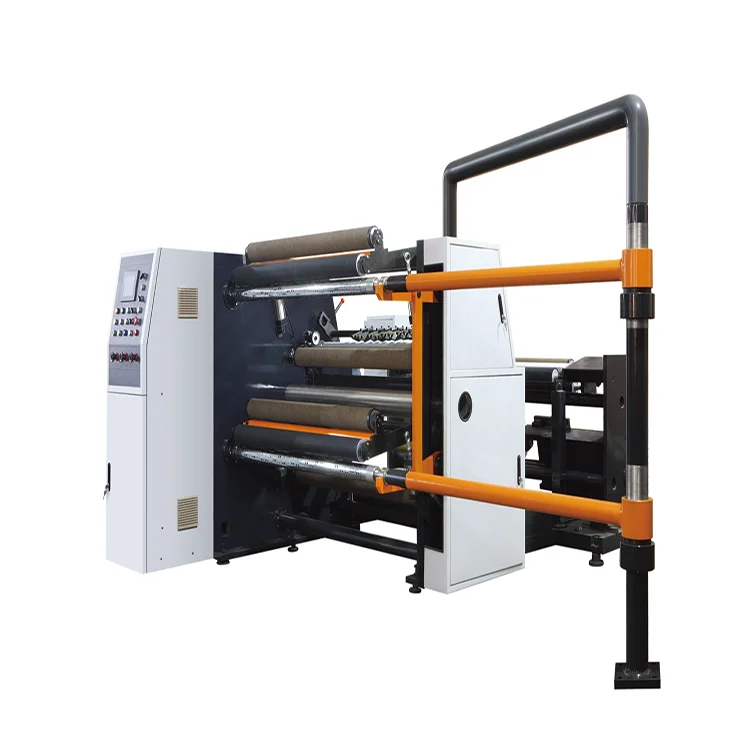

Model | FHQE-1300 |
Max material width | 1600 mm |
Suitable material | Paper,alumiunm foil , etc |
Max. Diameter of unwinding | Φ1200mm |
Unwinding paper core diameter | 6" |
Max. Diameter of rewinding | Φ800 mm |
Rewinding paper core diameter | 3" |
Max speed | 400 m/min |
Min slitting width | 40 mm |
Winding motor power | 7.5 kw(2 sets) |
Unwinding motor power | 11 kw |
Correction accuracy | ±0.4 mm |
Weight of machine | 5000 kg |
Total power | 30kw |
Overall dimensions(L×W×H) | 3900×4500×1850mm |
Electrical and Electronic Components
PLC:Simens
Inverter:Yaskawa, Japan
Touch screen:Weilun,Taiwan
Corrector controller:Chongqing Bianfu
Main motor:Simens
Rewinder motor:Simens
Main pneumatic part:Taiwan Airtac
Main Bearing :Japan NSK
Low-voltage apparatus :Schneider
