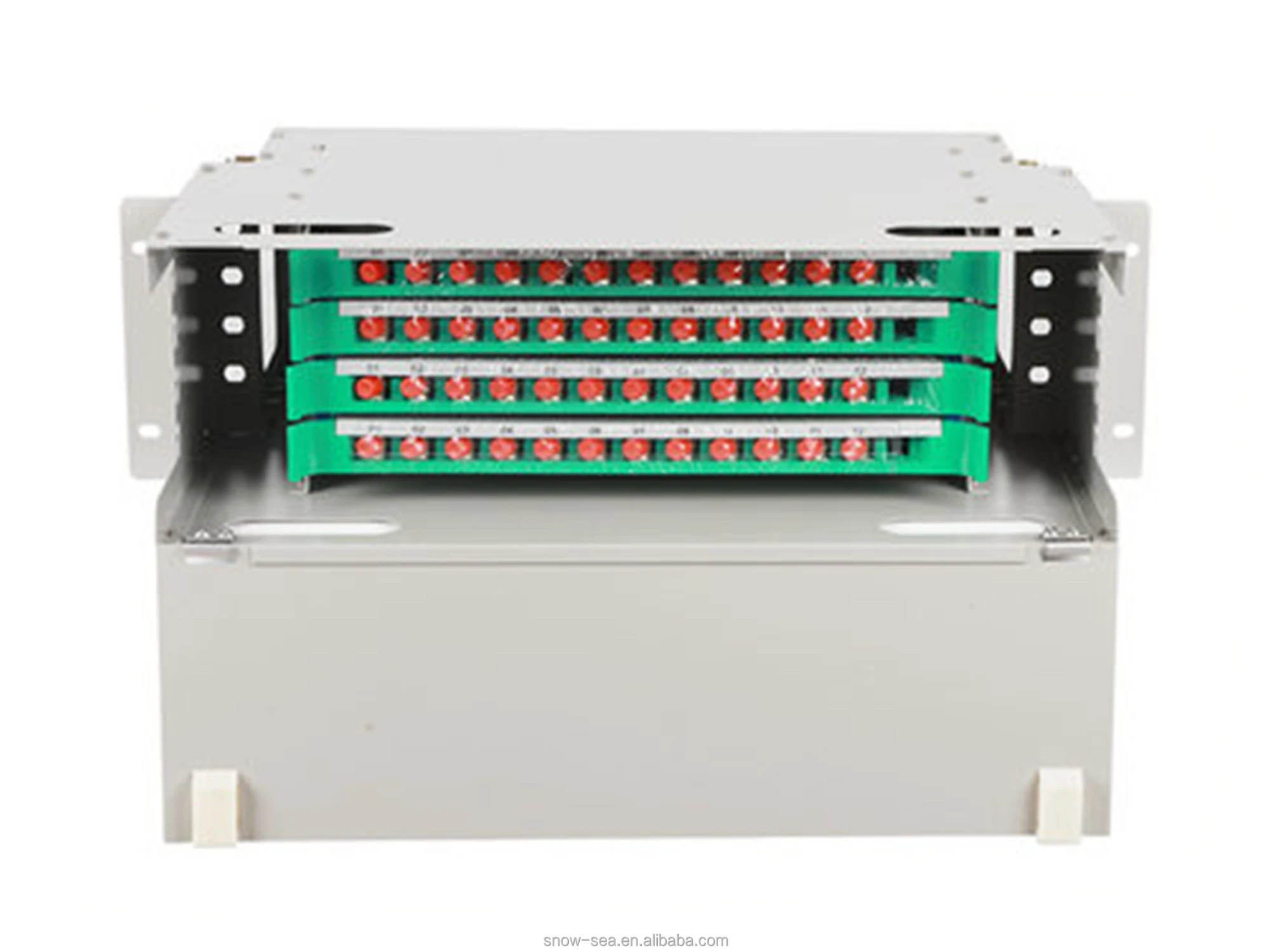

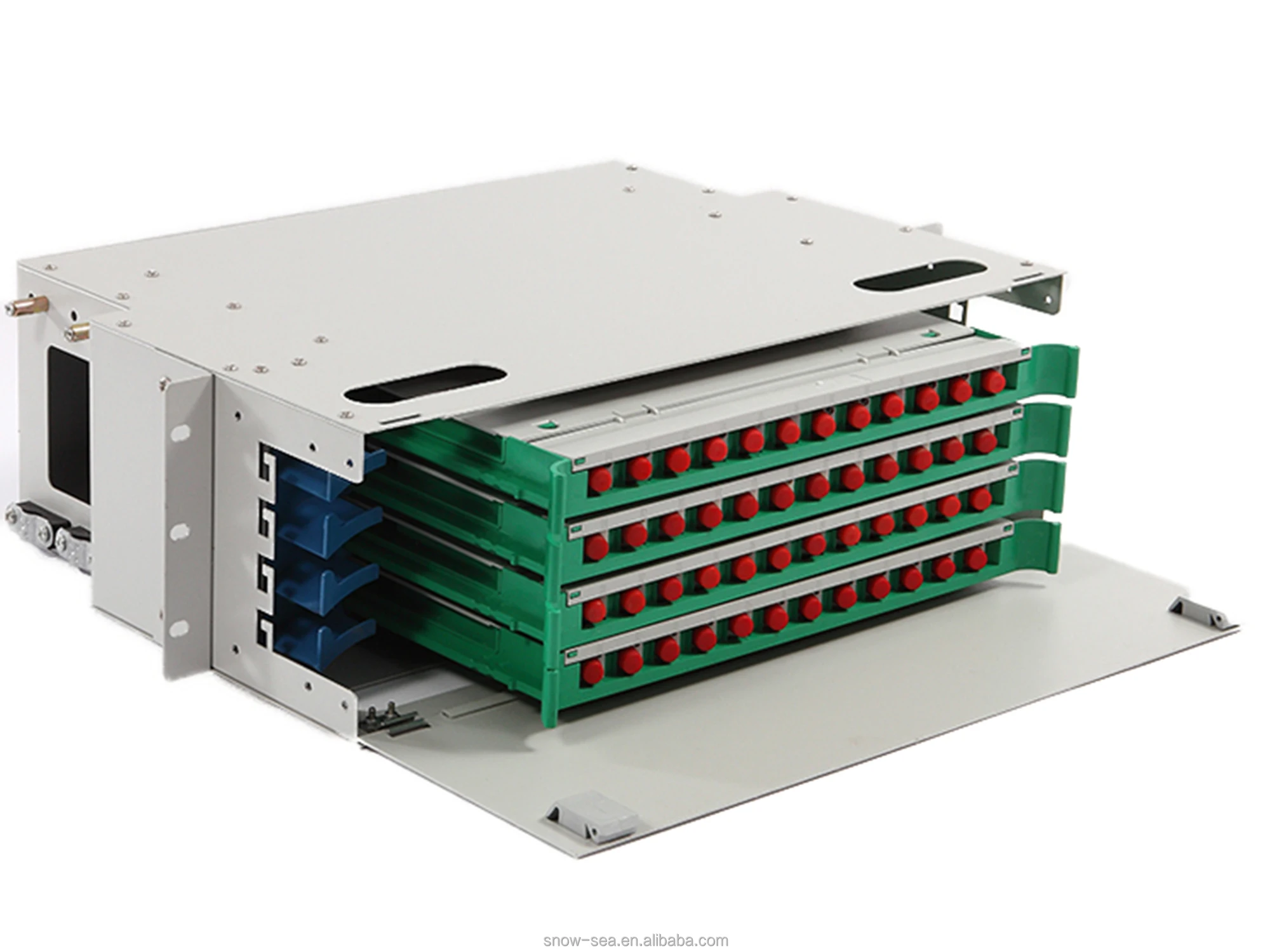

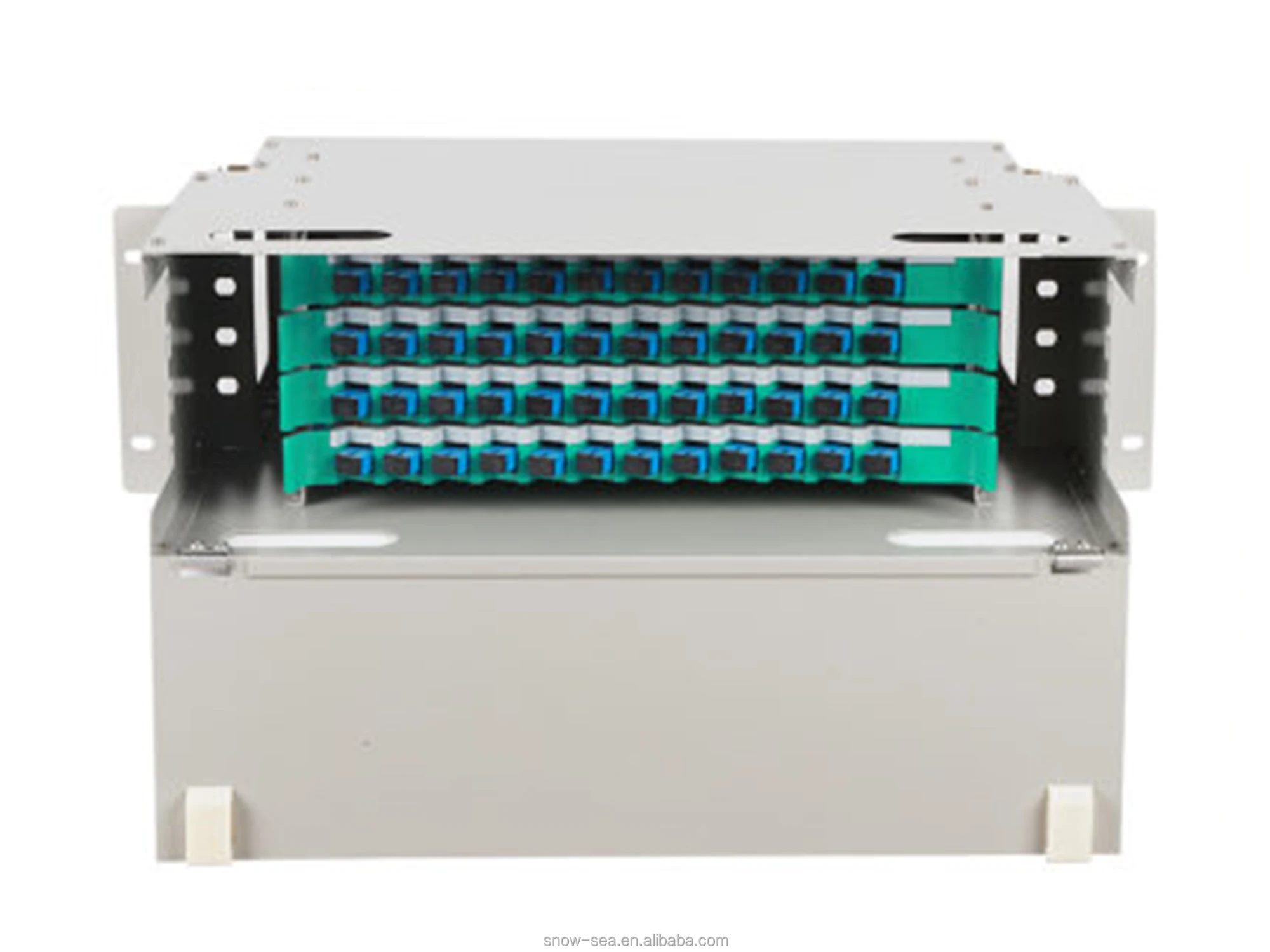

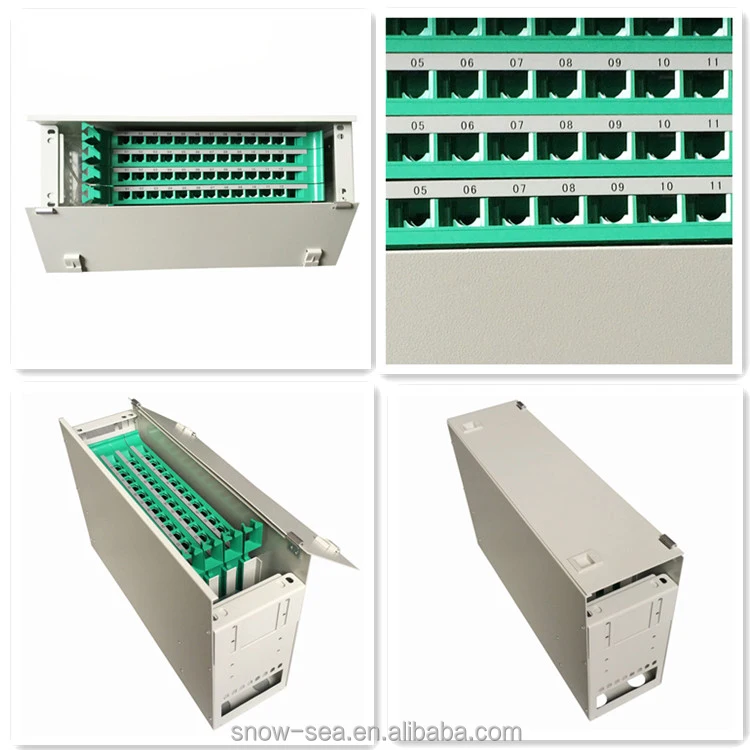

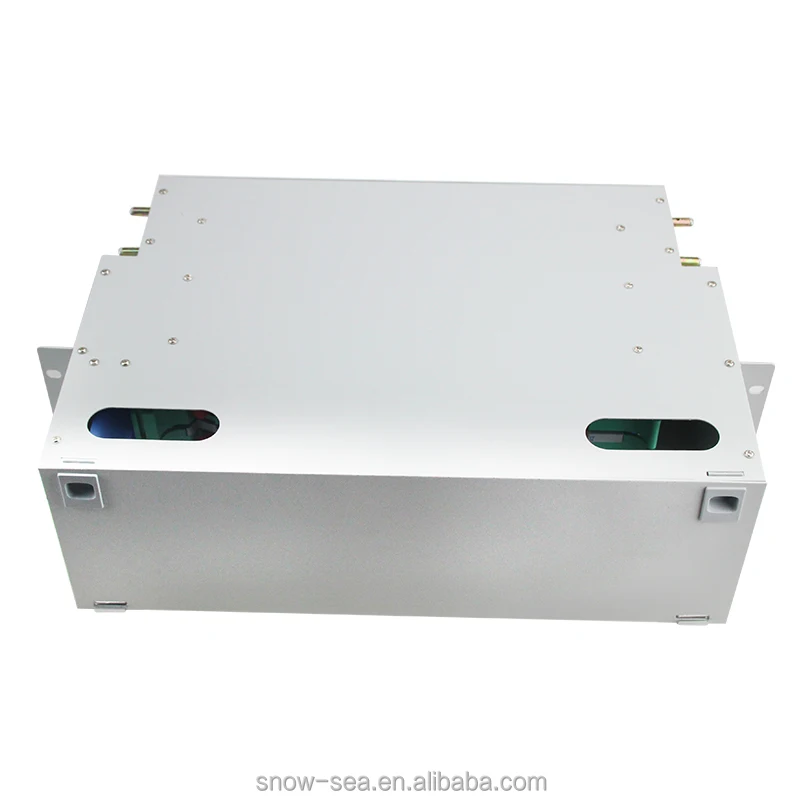

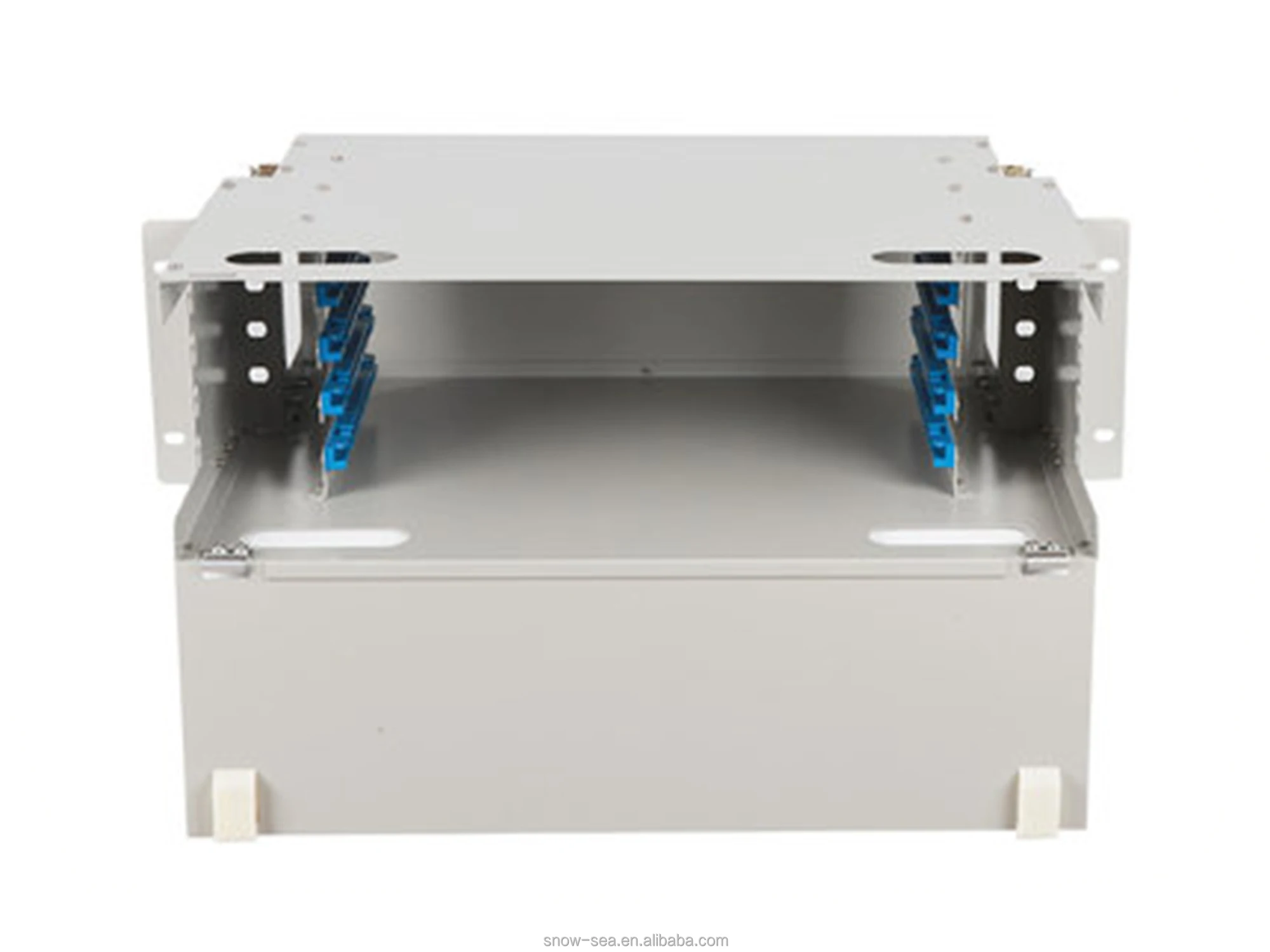

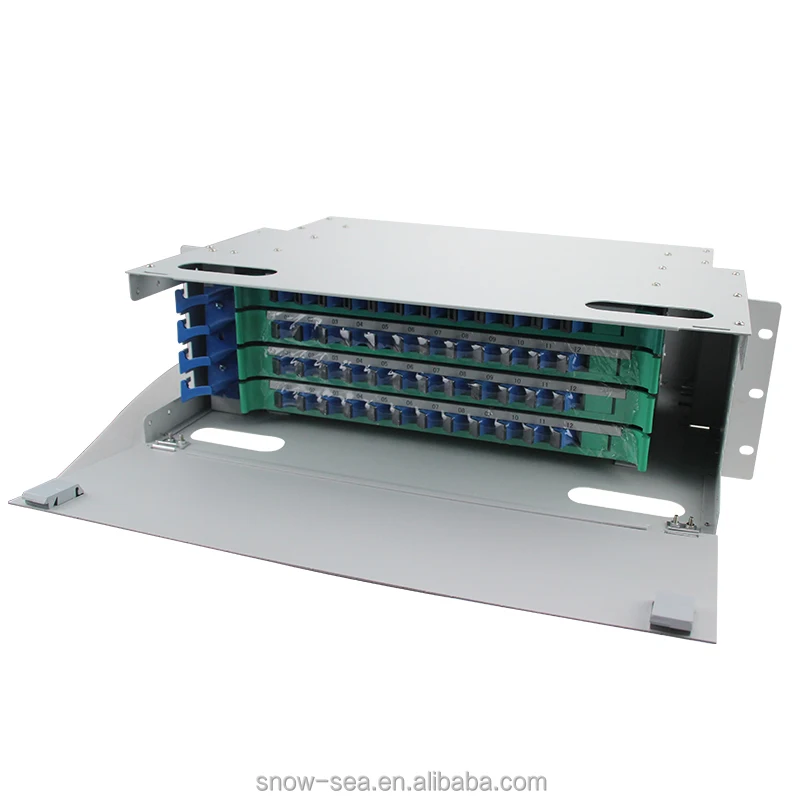

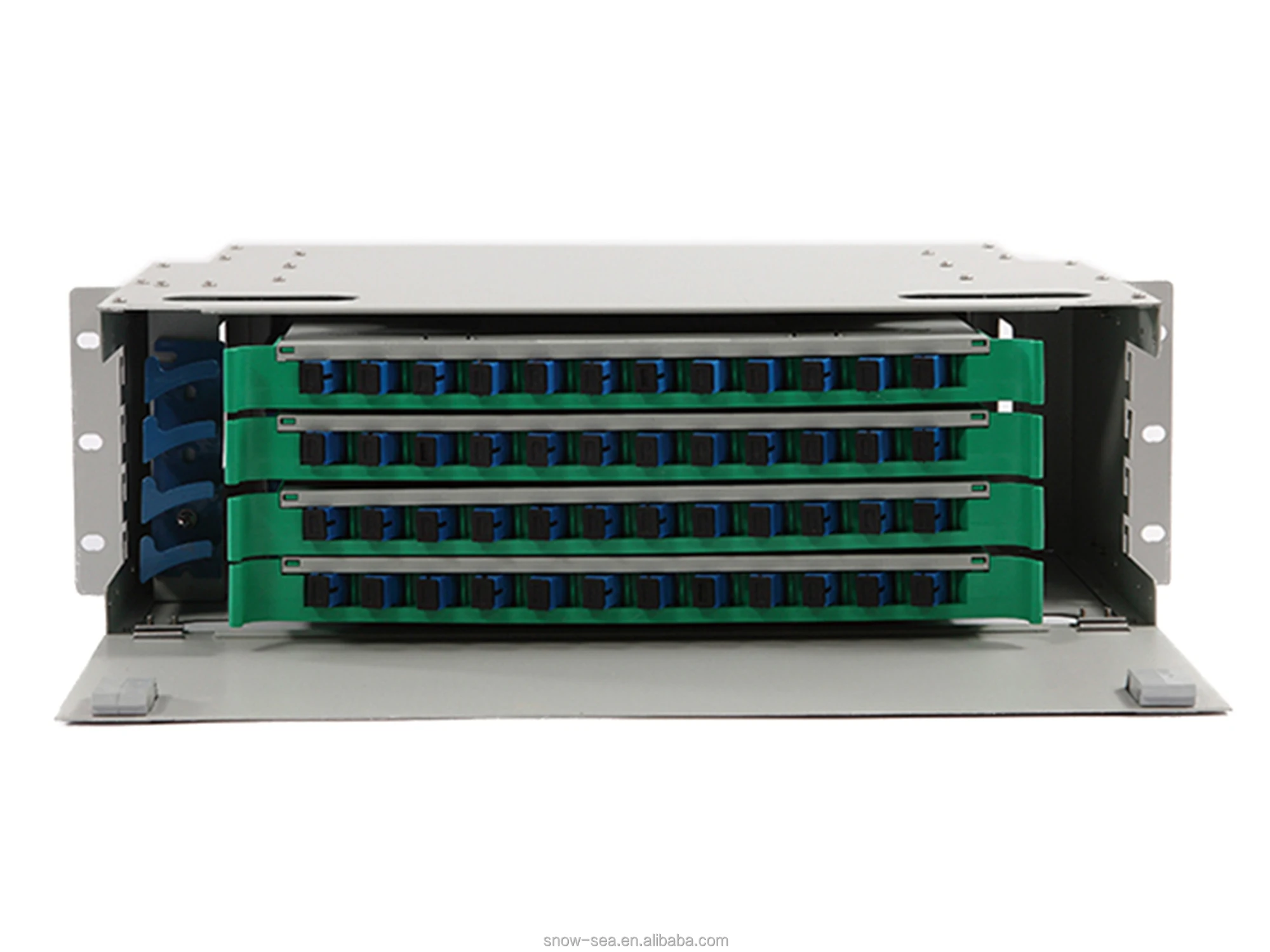

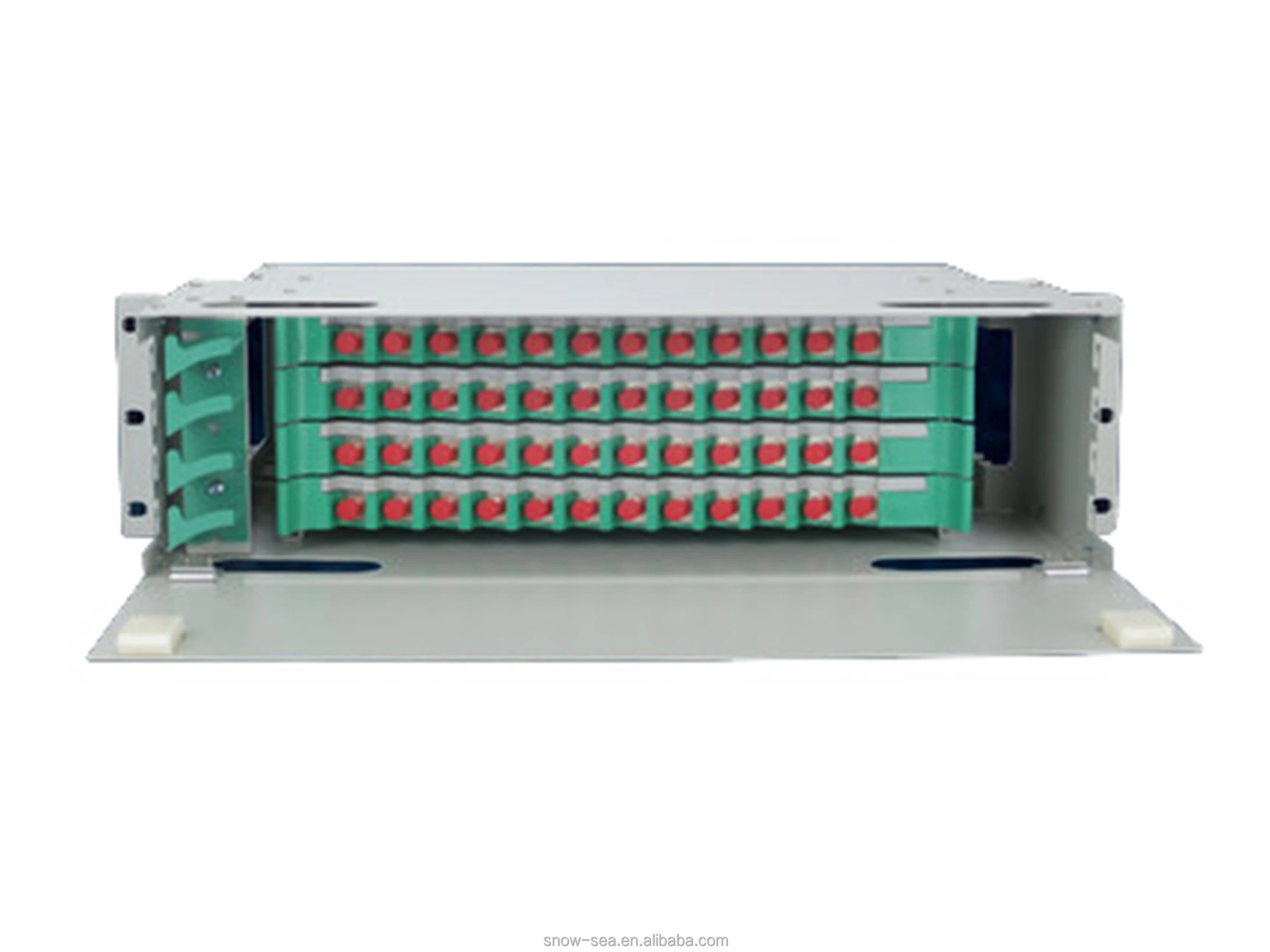

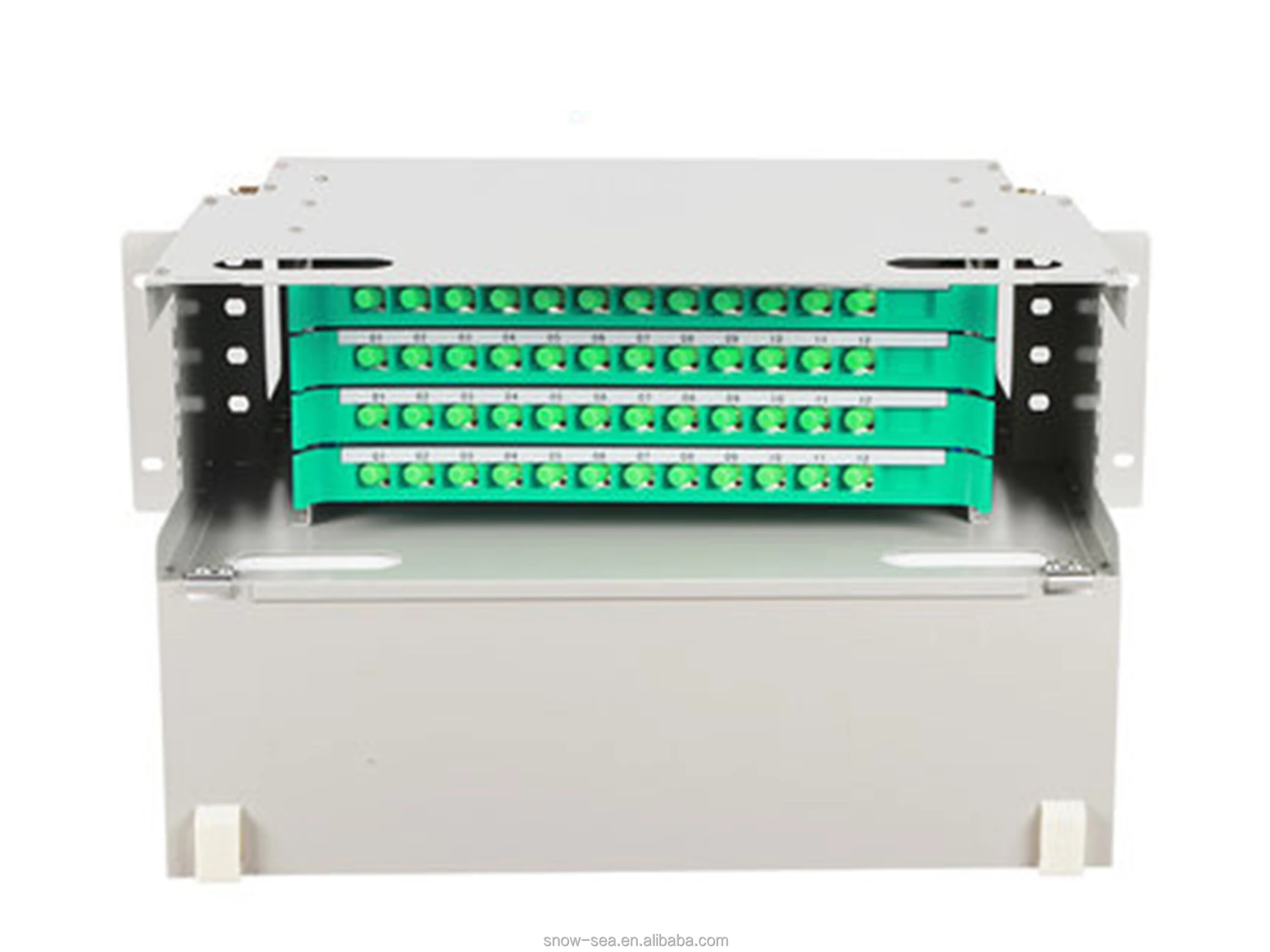

48 Core SC FC ST Full Load ODF Optical Distribution Frame with 48pcs Adapter and 48pcs Pigtail

Product Overview

Description

48 Core SC FC ST Full-Load ODF Optical Distribution Frame with 48pcs Adapter and 48pcs Pigtail

Description

ODF includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment. It has the functions of protecting fiber cables, splicing fiber and storing extra pigtails.



Features

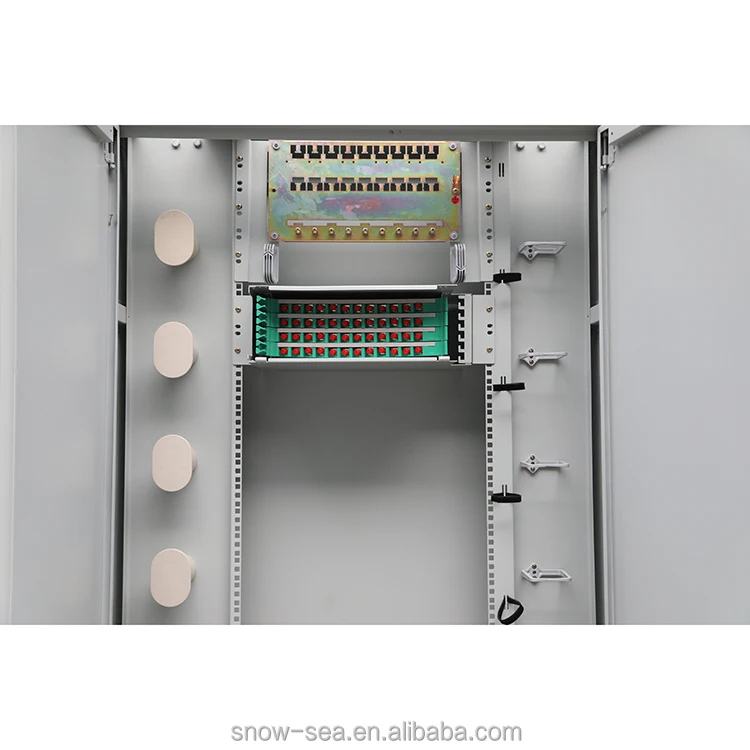

Used for patch panel, ODF, rack and so on.

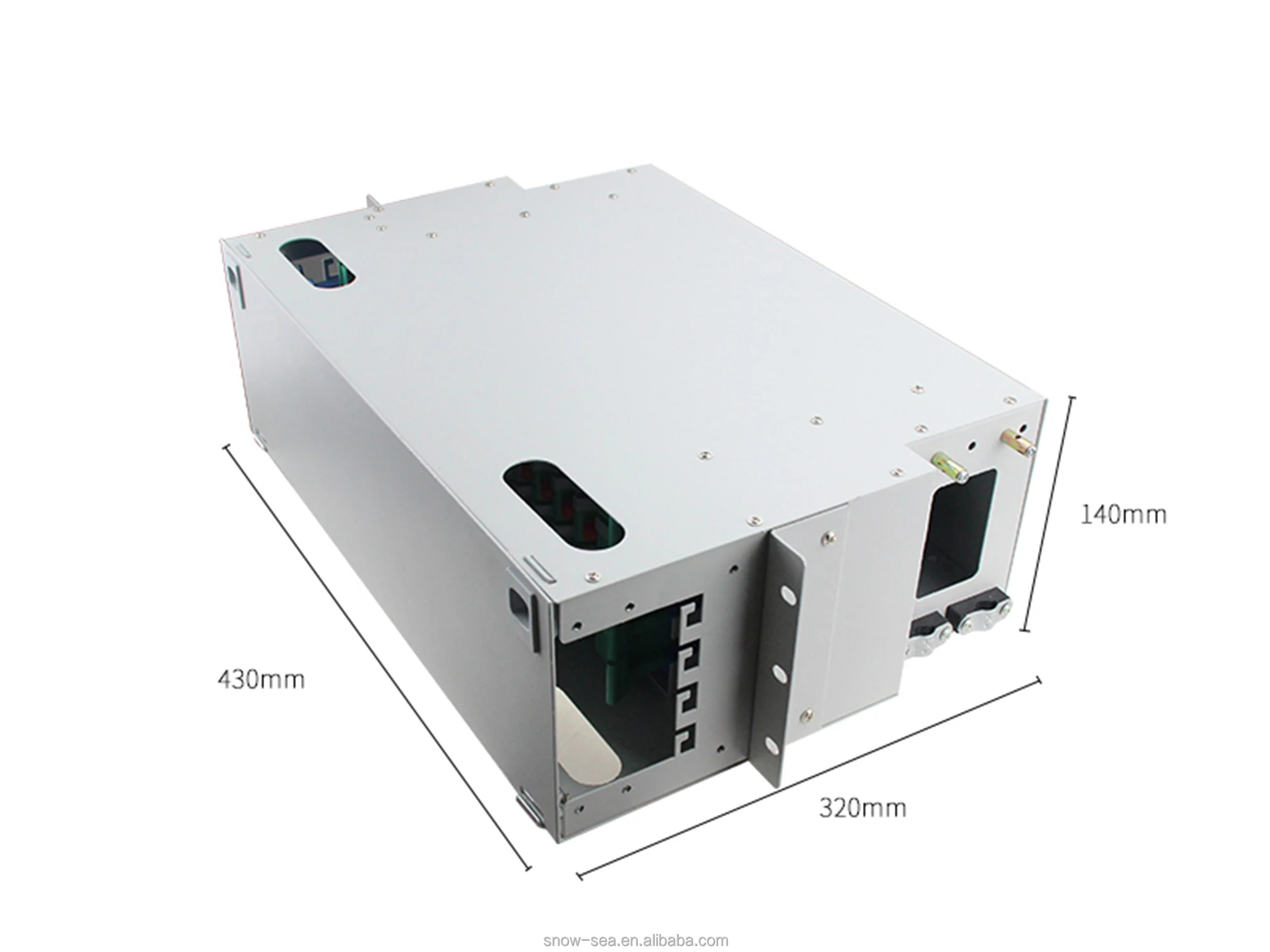

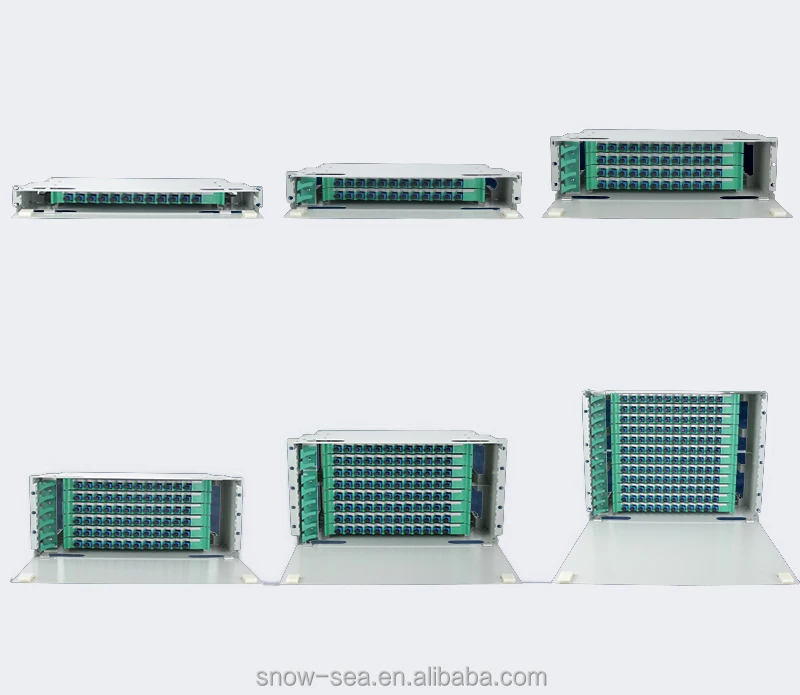

19 inches 1/2/3/4U standard installation.

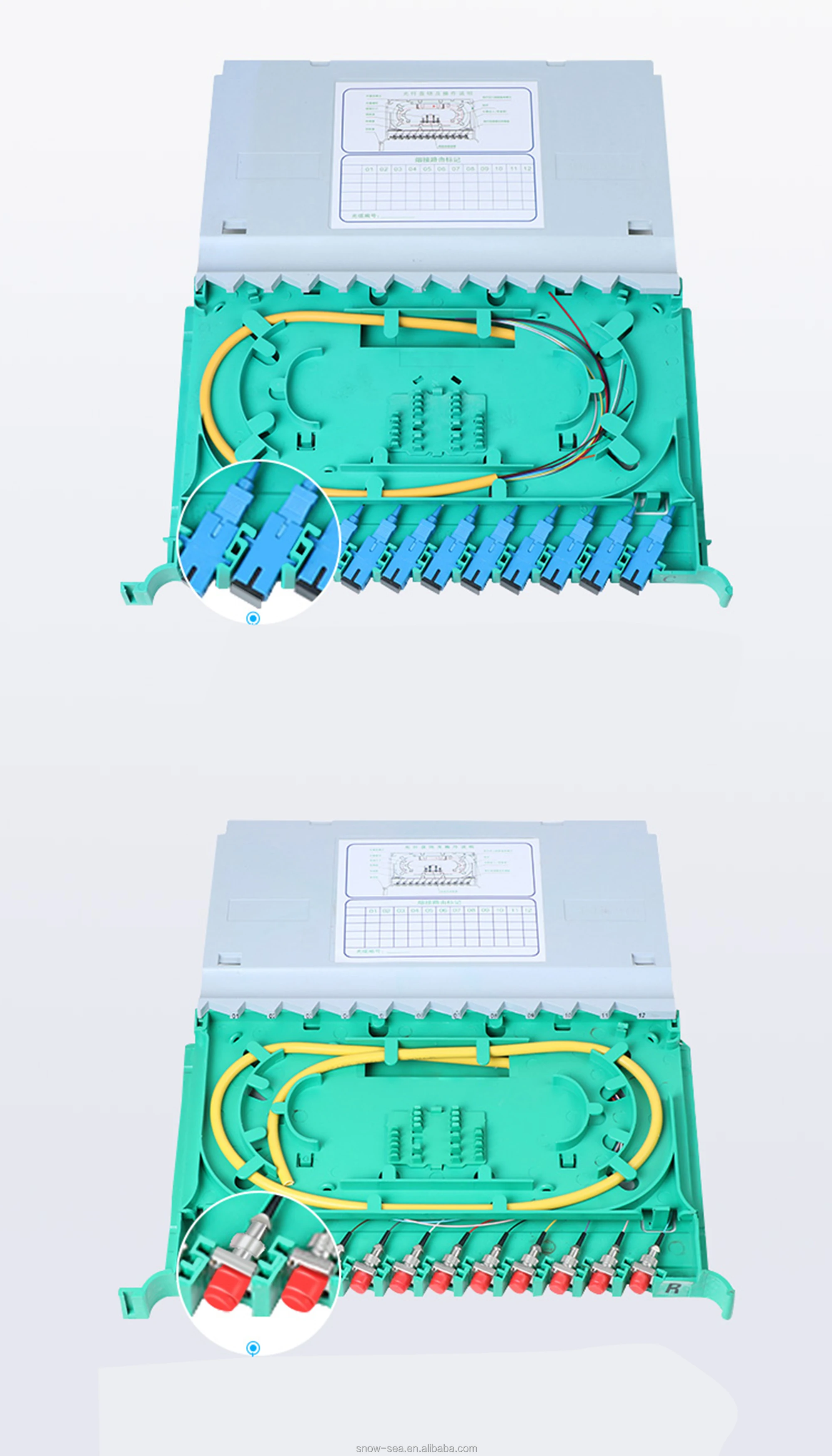

Two-layer structure (under layer is for pigtails connection with adaptor and storage.)

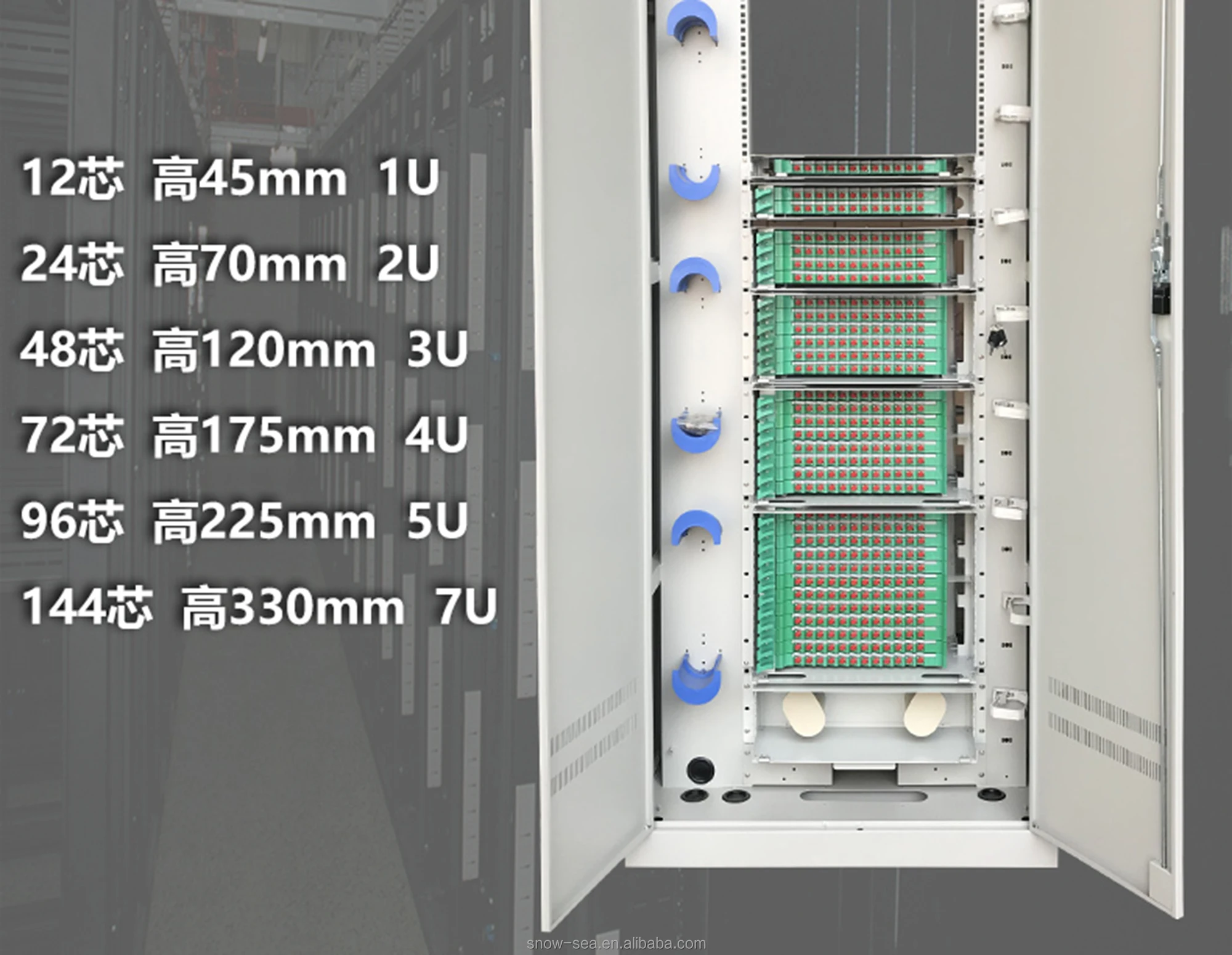

Several capacity: 12, 24, 36, 48, 72, 96, splices.

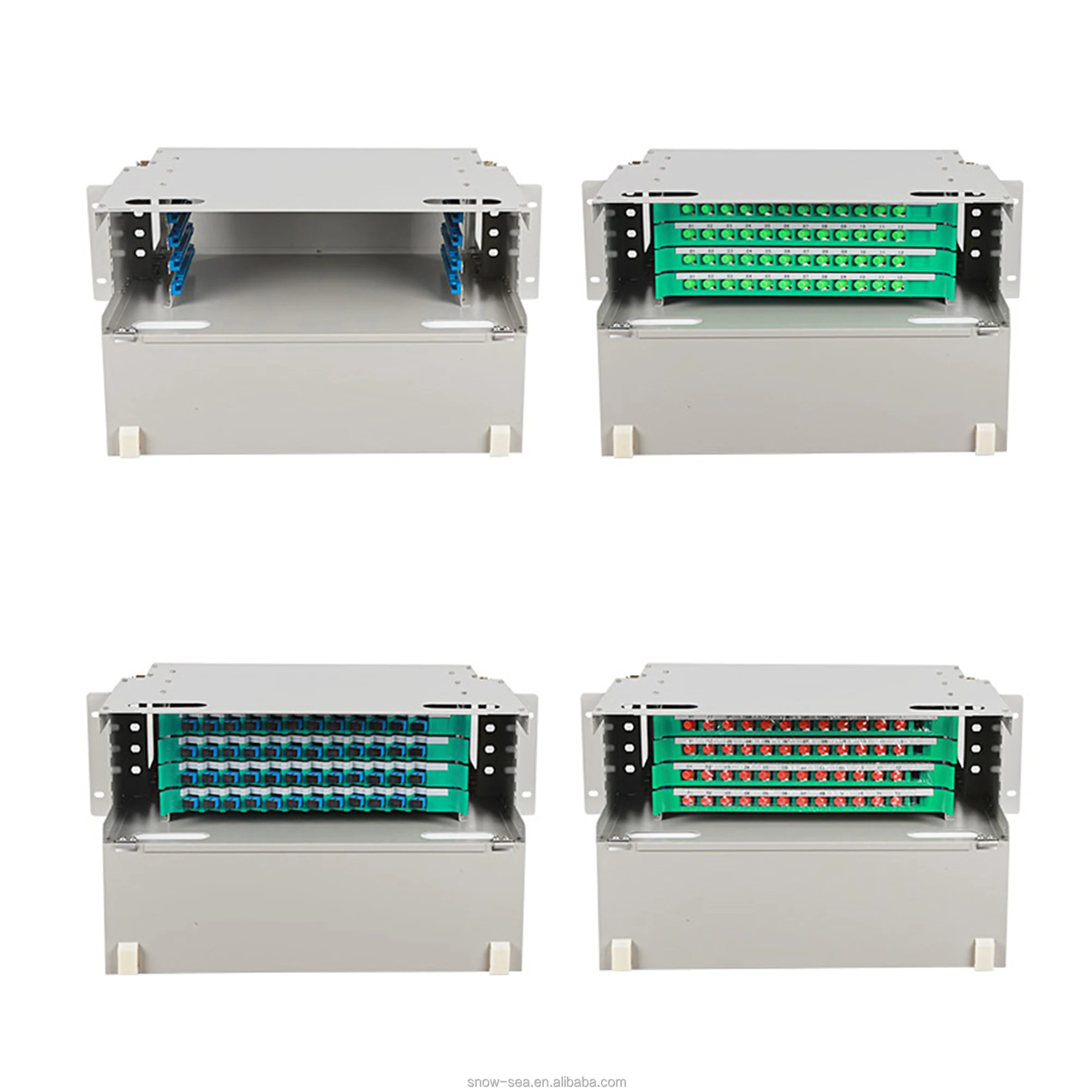

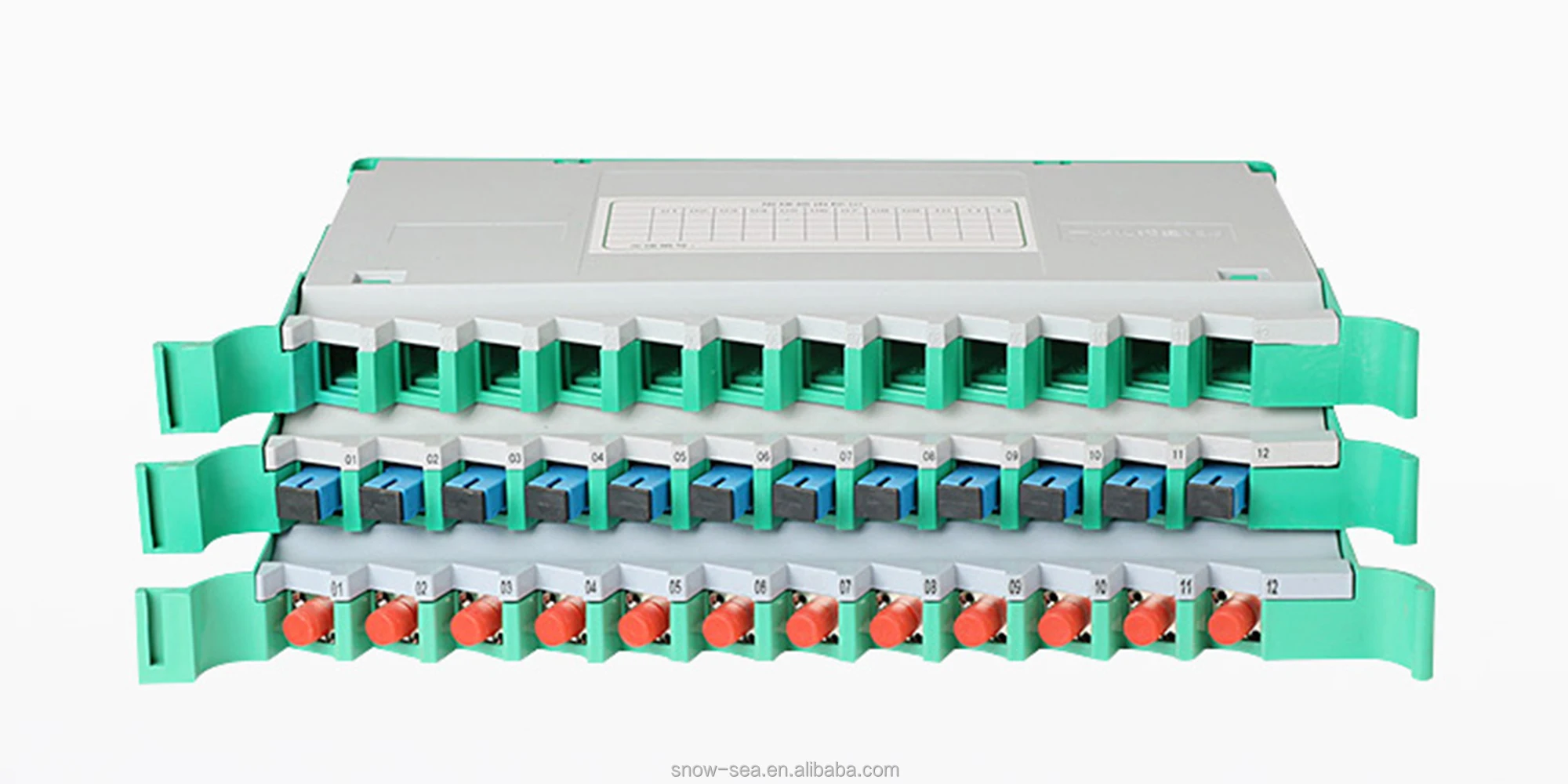

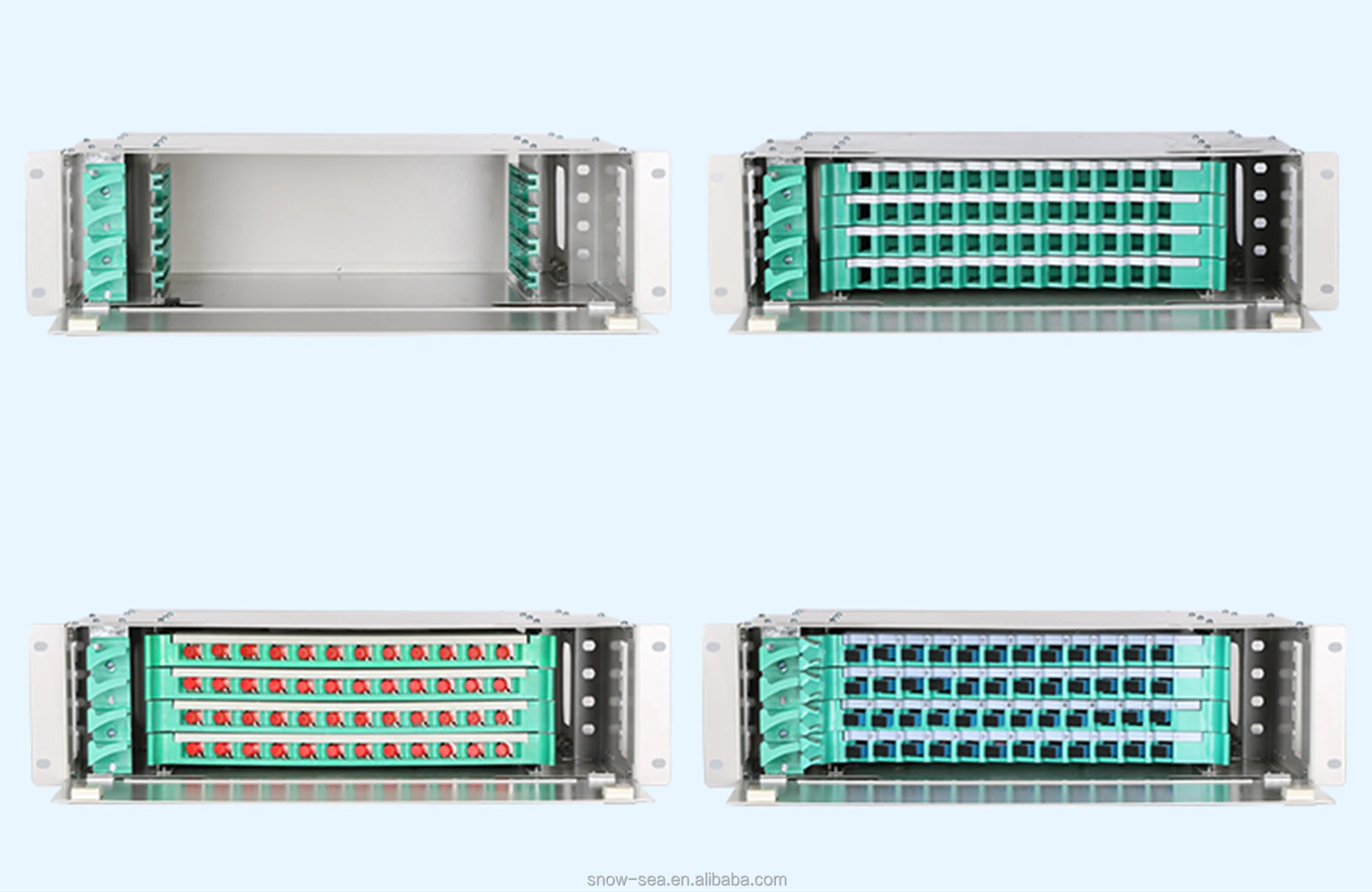

Several adapters can be installed: FC, SC, ST, duplex LC

Suitable for ribbon and bunchy fiber optic cable.



Specification

Optical Performance	Single Mode			Multi Mode
Insertion Loss(dB)	≤0.2			≤0.3
Return Loss(dB)	≥50 (PC)			N/A
	≥60 (APC)
Repeatability(dB)	≤0.1dB
Durability(dB)	≤0.2dB Typical Change, 1000 Matings
Tensile Strength(N)	100
Operating Temperature(°C)	-40~+80
Storage Temperature(°C)	-40~+85
Endface Geometry
Parameter	2.5um Ferrule		1.25 um Ferrule
	PC	APC	PC		APC
Radius of Curvature(mm)	10~25	5~15	7~15		5~15
Apex Offset(mm)	0~50	0~50	0~50		0~50
Fiber Height(nm)	±50	±50	±50		±50
Angle(°)	----	7.7-8.3	----		7.7-8.3



Application

Telecommunications subscriber loop

Fiber to the home (FTTH)

LAN/WAN

CATV
