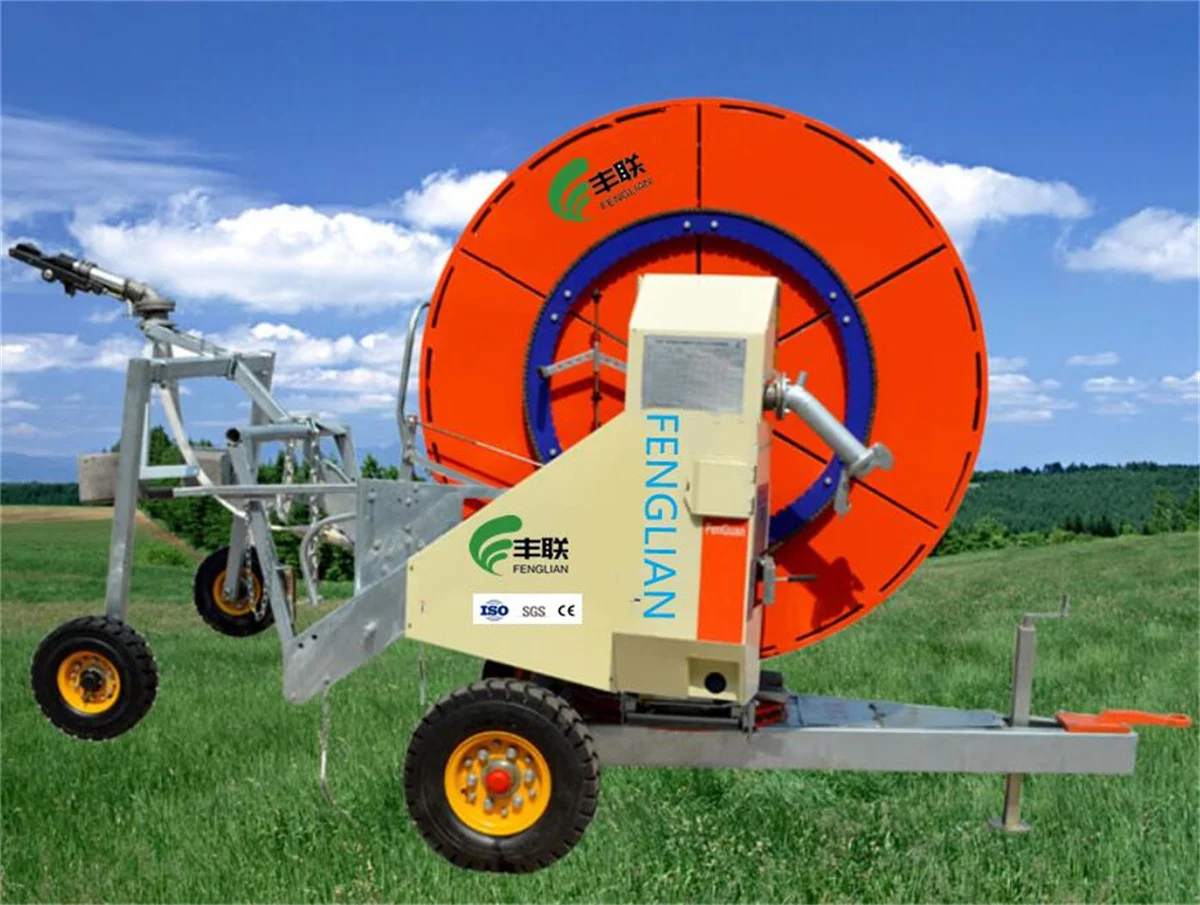

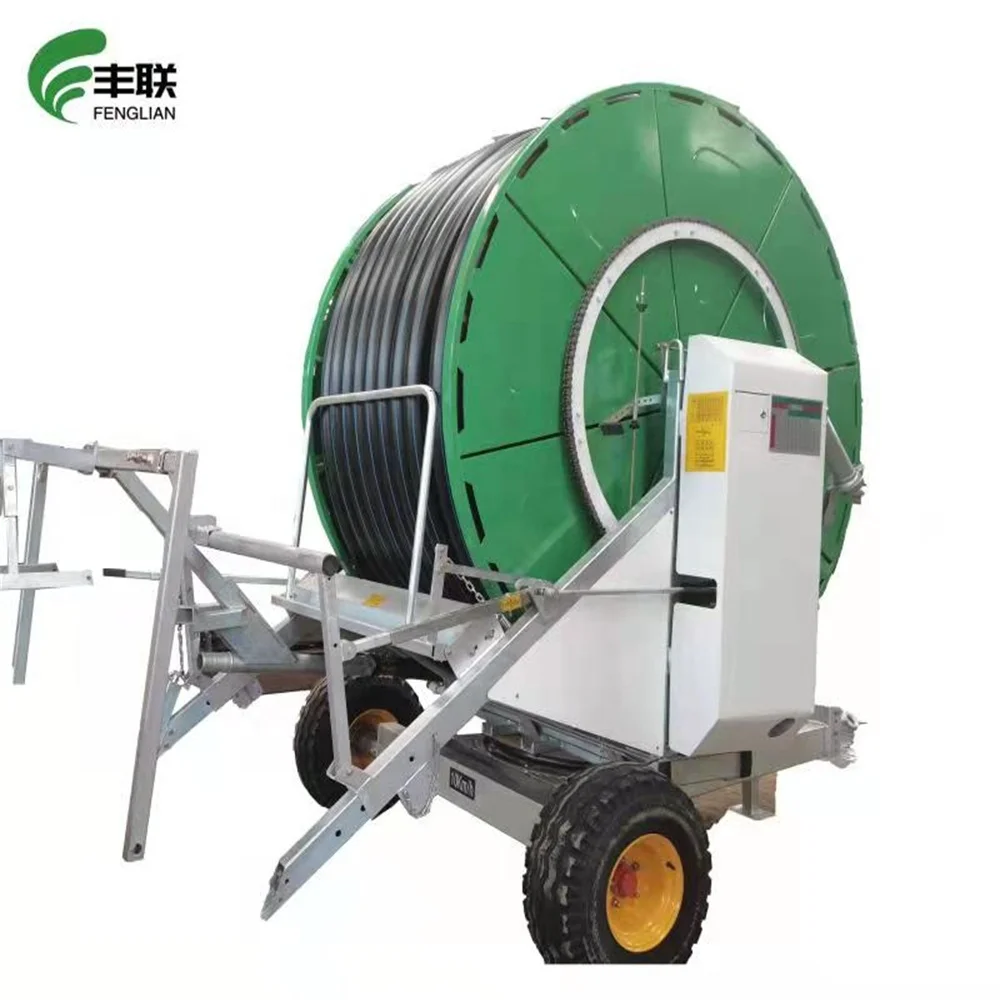

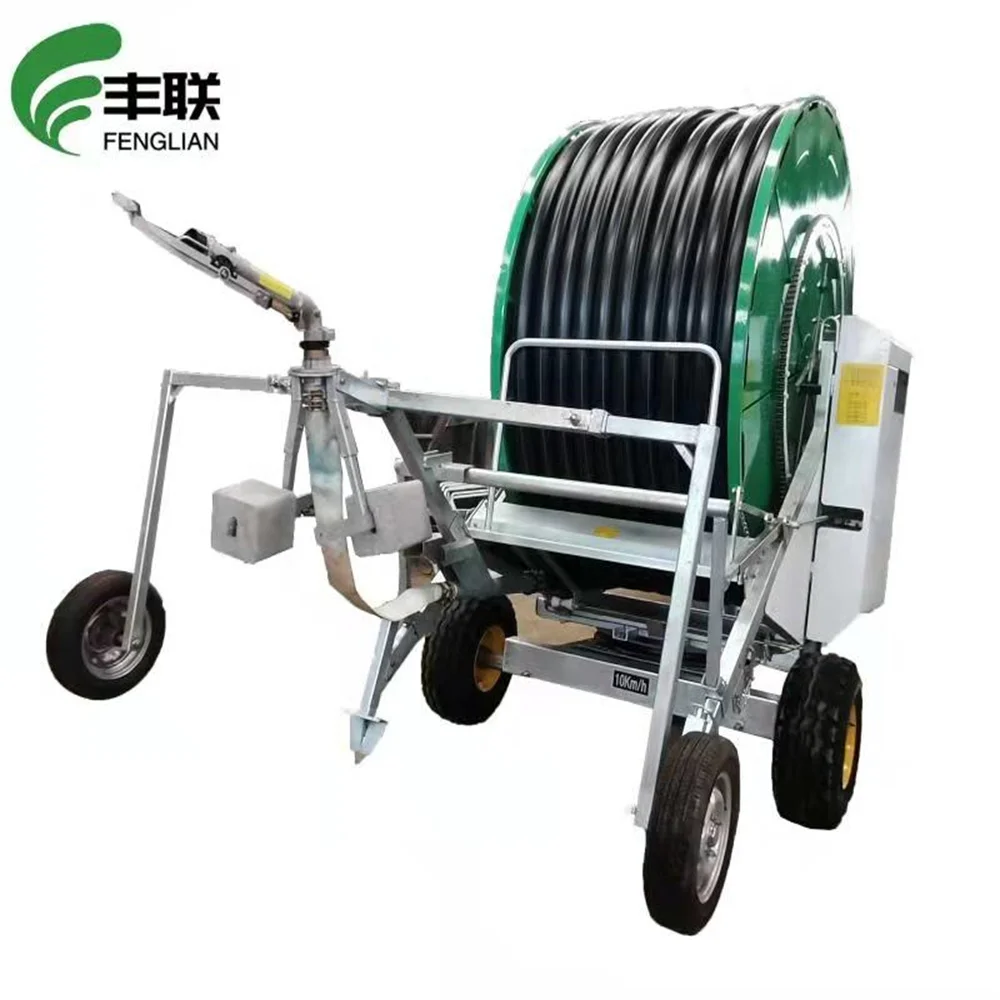

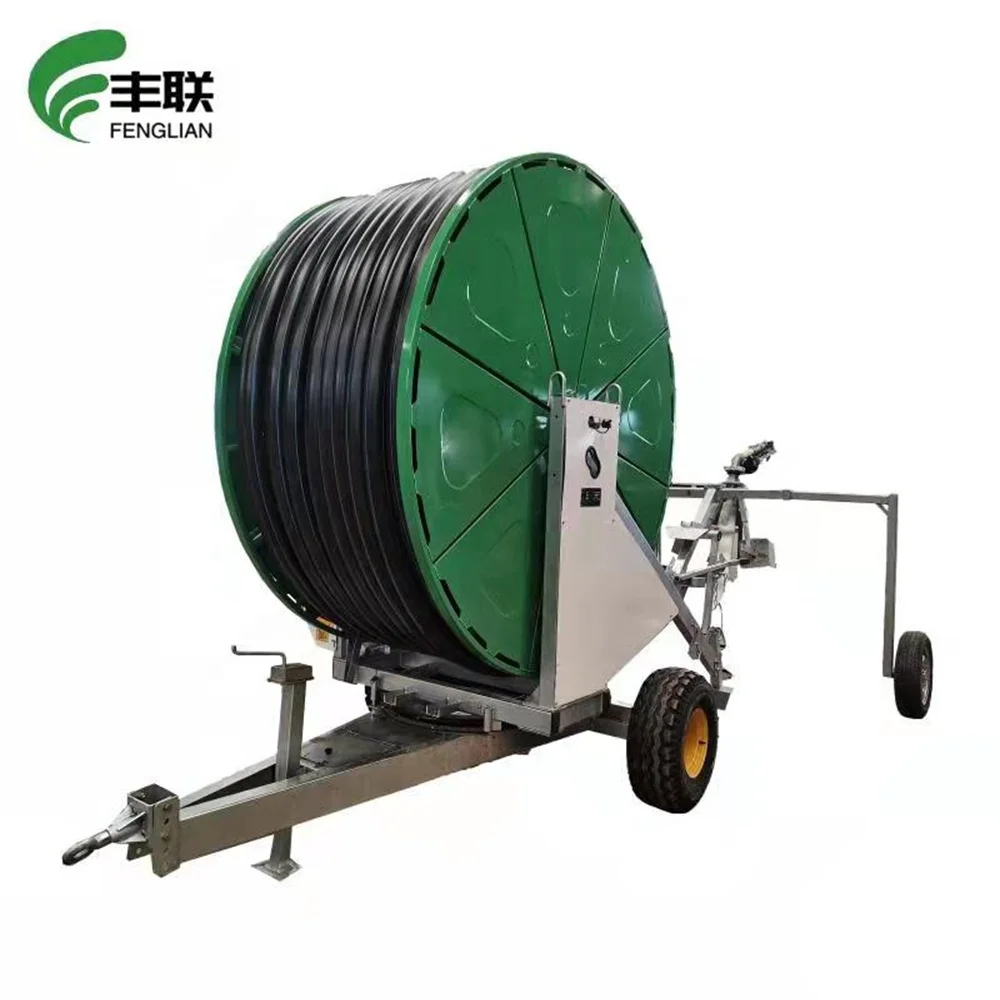

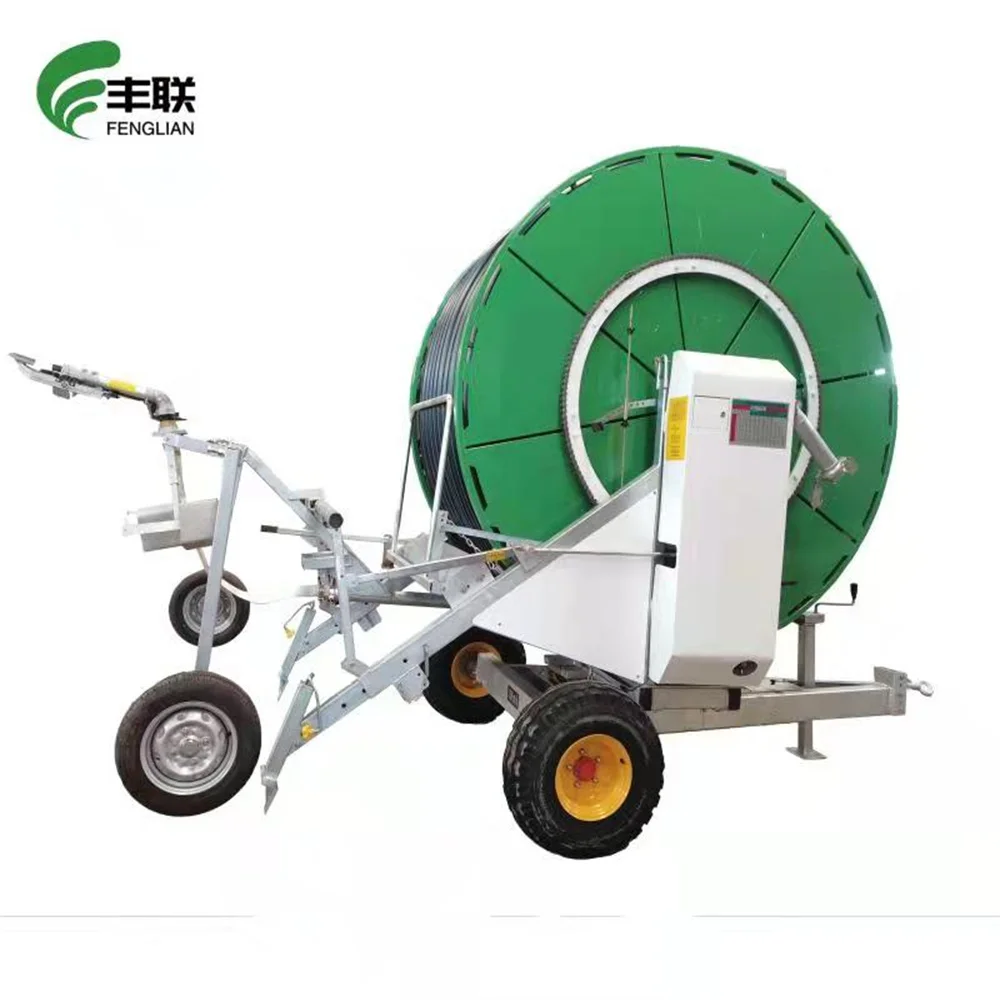

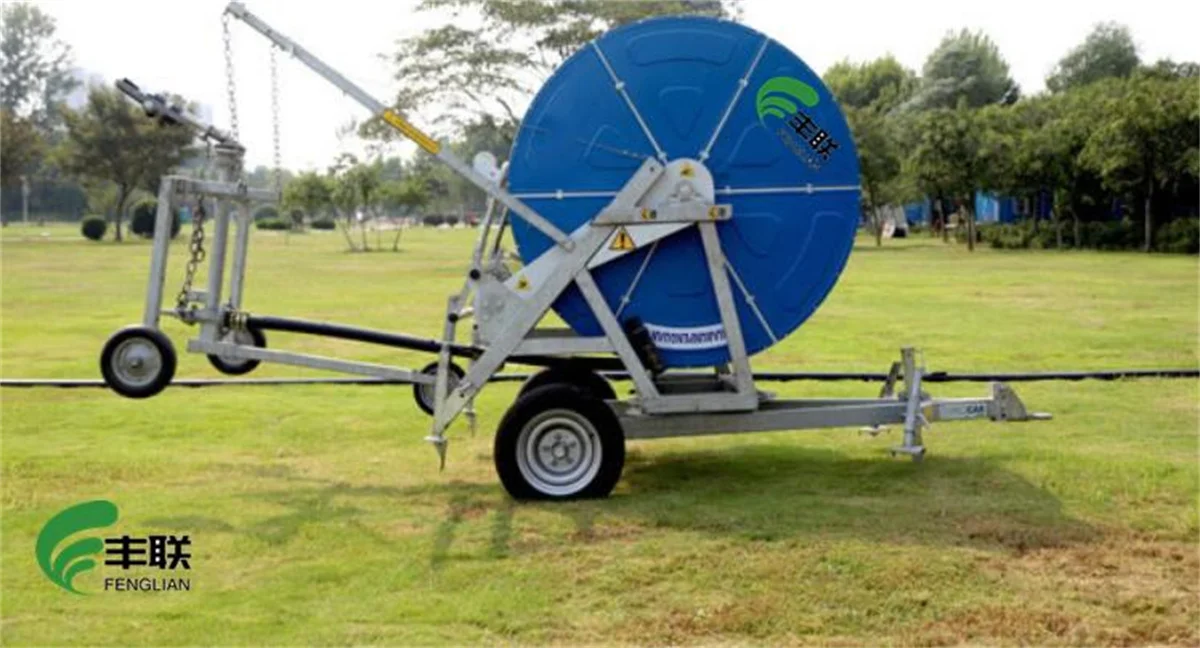

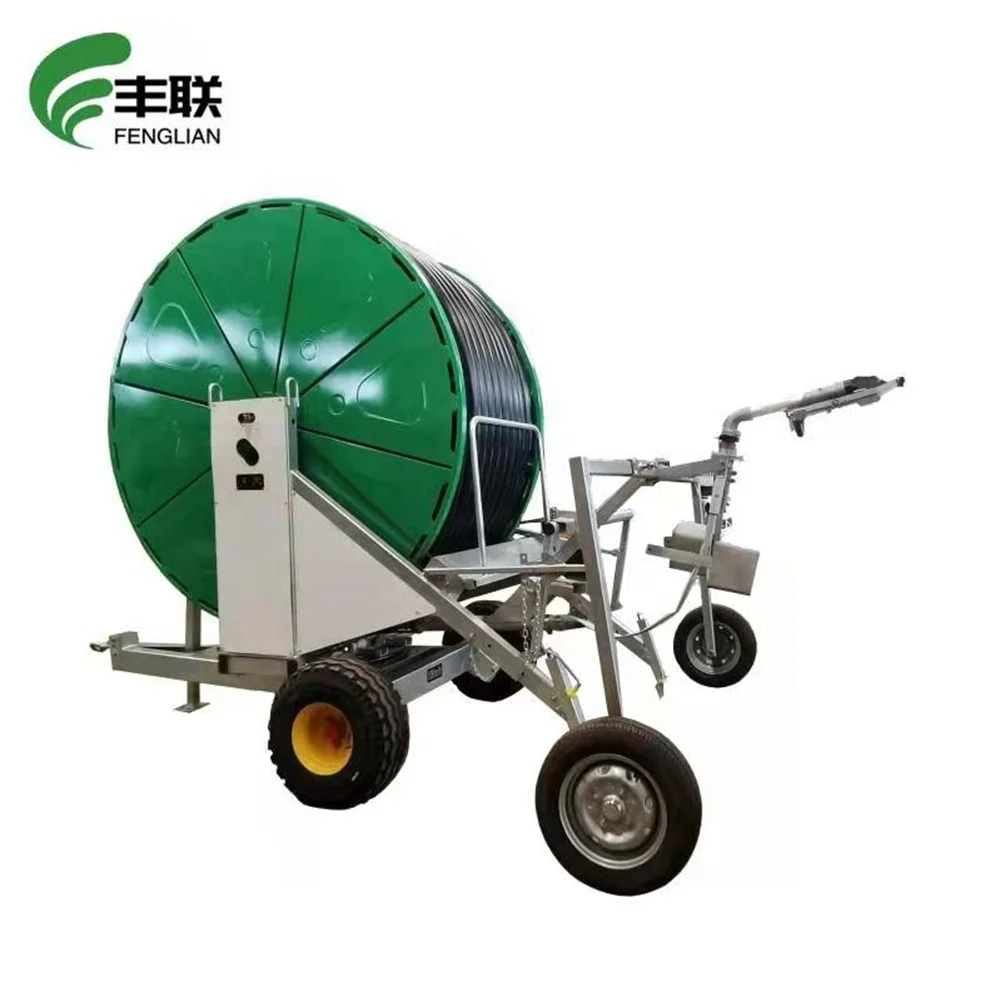

hose reel irrigation system with Agriculture Rain Gun Sprinkler Irrigation PY30 PY40 PY50 Rain Gun Sprinkler
- Category: >>>
- Supplier: Xuzhou Fenglian Agricultural Machinery Co. Ltd.
Share on (1600335240397):
Product Overview
Description
Products Description
The sprinkler size, trajectory, and nozzle options from Fenglian provide a customizable solution for your hose reel traveler. The
most popular Big Gun Sprinklers for hose reel traveler irrigation are the 100 Series and 150 Series. These water cannons pair to
the most common hose reel machines for application rate, flow, and operating pressure. For smaller machines, the 75 Series may be
better suited. The 200 Series Big Gun is best suited for the largest hose reel traveler machines and its high volume and long
radius of throw are as impressive as they are effective.
most popular Big Gun Sprinklers for hose reel traveler irrigation are the 100 Series and 150 Series. These water cannons pair to
the most common hose reel machines for application rate, flow, and operating pressure. For smaller machines, the 75 Series may be
better suited. The 200 Series Big Gun is best suited for the largest hose reel traveler machines and its high volume and long
radius of throw are as impressive as they are effective.
Series Model | JP65, JP75 ,JP90, JP110 |
Pipe dia(mm) | 65, 75, 90, 110 |
PE Pipe Length(m) | 200-500 |
Into the machine pressure(MPa) | 0.4-1.0 |
Nozzle Pressure(MPa) | 0.2-0.8 |
Nozzle Diameter(mm) | 14-32 |
Flow Rate(m/h) | 11-106 |
Range(m) | 28-68 |
Spray Width | 47-116 |
Combination Uniformity Coefficient(%) | ≥85 |
Interlayer Velocity Difference(%) | ＜20/D＜15 |
Precipitation(mm) | 8-92 |
nozzle Type | PYC50,PYC50,PYC50,PYC75 |
Nozzle Car Track(mm) | 1300-3000 |
Car Climbing(%) | 20 |
Traction Height(mm) | 300-500 |
Ground Clearance(mm) | 300 |
Wheel Tire Rim Maximum Width(mm) | 2000-2400 |
Details Images
water turbin
The water turbine adopts high speed: 1050 R / s and ordinary water turbine 800 R / S; The gear box adopts gear grinding gear box; The spray gun adopts a high-quality large spray gun that can be replaced within two years.
Water turbine it is the power-drive system of machine, also can regulate water flow,
ensure PE tube recovery speed uniform.
It composes elbow, vortex shell, turbine and other parts. Water flow can reach 13-68m3/h, rotating speed can reach 200-800r/min.
With automatic speed adjustment function, to ensure the sprinkler car walking speed deviation less than 20%.
Water turbine it is the power-drive system of machine, also can regulate water flow,
ensure PE tube recovery speed uniform.
It composes elbow, vortex shell, turbine and other parts. Water flow can reach 13-68m3/h, rotating speed can reach 200-800r/min.
With automatic speed adjustment function, to ensure the sprinkler car walking speed deviation less than 20%.

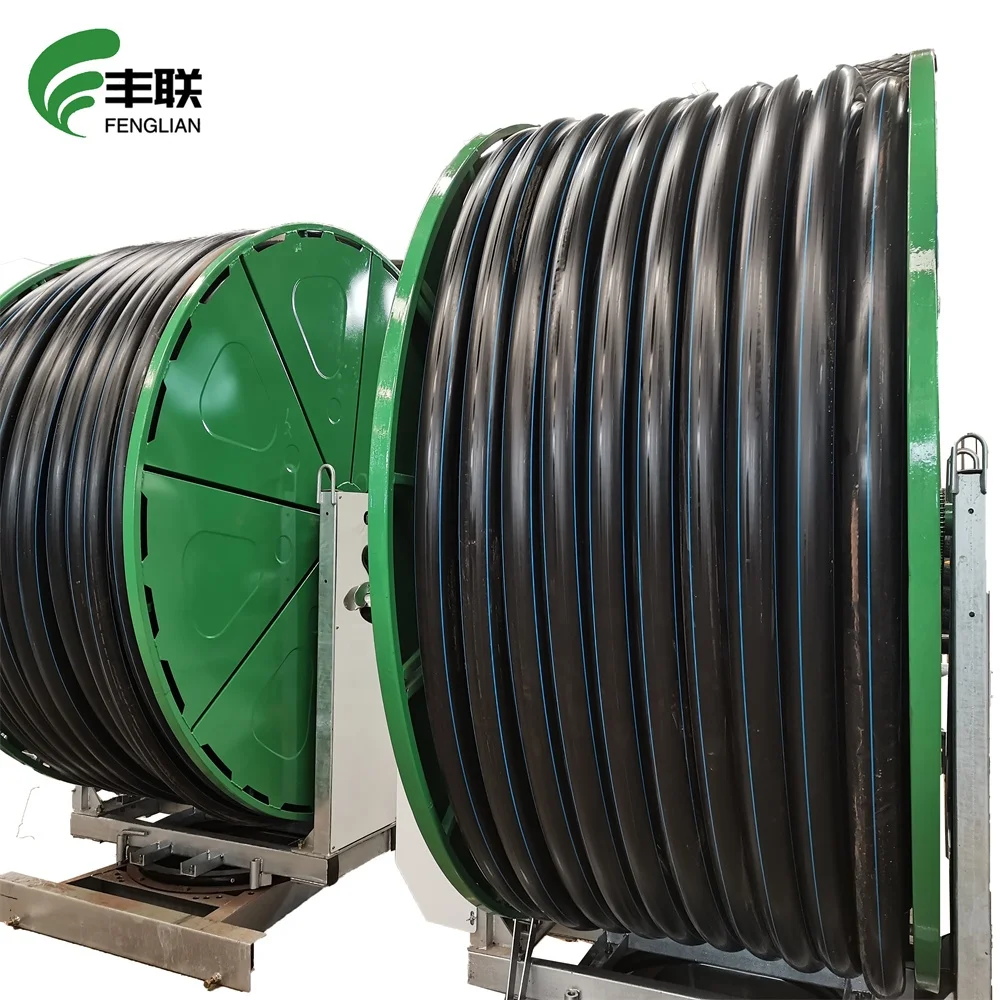

Material
All products adopt integral laser cutting technology to ensure the universality, standardization and interchangeability of spare parts.All reels adopt pickling, phosphating, electrophoresis and paint baking technology to ensure high color fastness of reel painting and no corrosion as a whole.Frame and winchThe frame and winch is made by low carbon alloy steel stamping welded together. The frame and winch is connected by
turn plate, which rotates flexible and portable. It can rotate 360°, make the sprinkler car to work on different orientation
field, reduce the machine movement frequency, and increase the reclamation index.
turn plate, which rotates flexible and portable. It can rotate 360°, make the sprinkler car to work on different orientation
field, reduce the machine movement frequency, and increase the reclamation index.

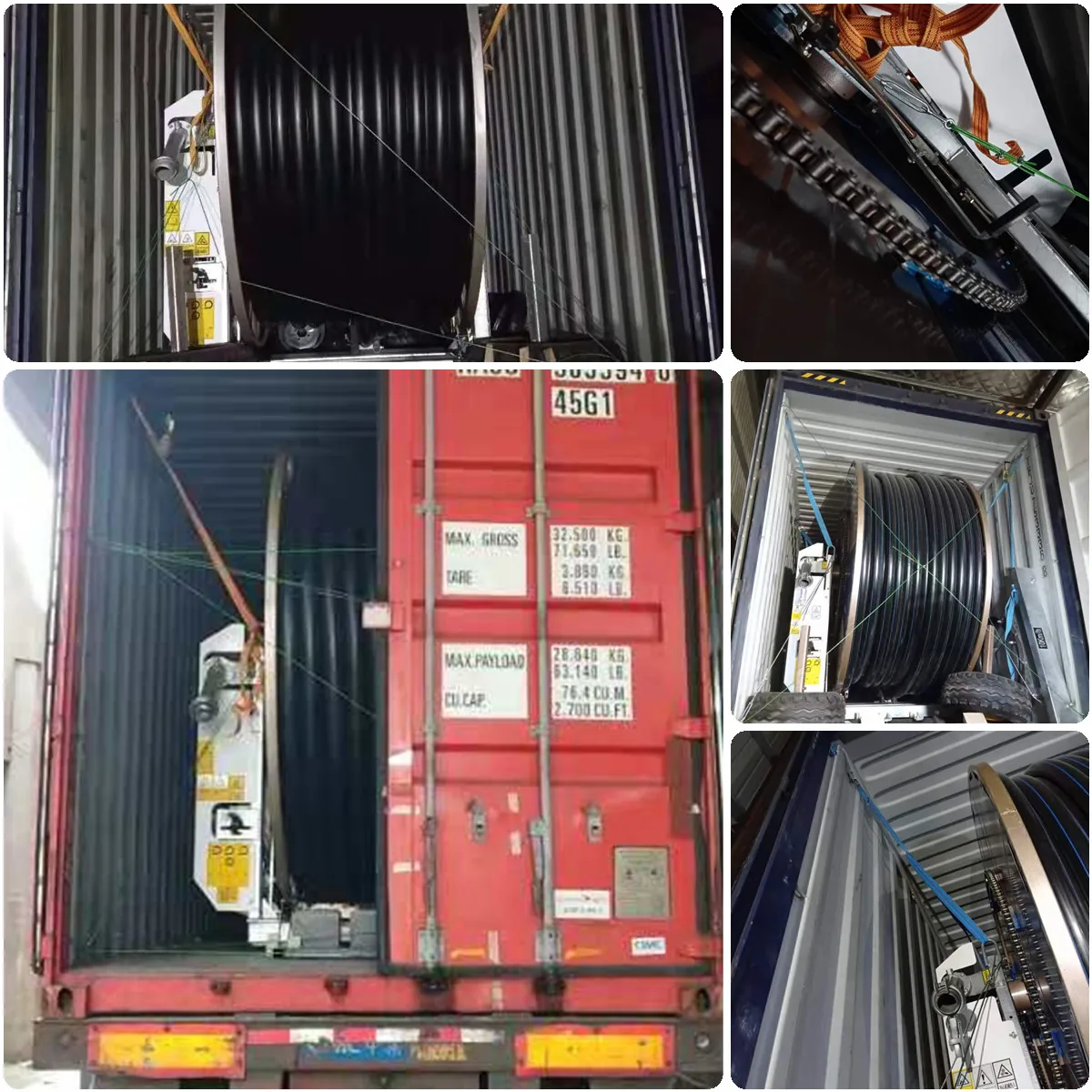

Product packaging
hose reel irrigation machine used with nude packing ,All machines are fixed with cables to ensure that the machine will not be
damaged during long-term transportation. At the same time, all accessories and tools are also placed in the toolbox for our
customers to use. Therefore, in short, our packaging and transportation is very complete to ensure that the goods received by
customers are intact. At the same time, we also support the packaging requirements according to customers' requirements, Customersatisfaction.
damaged during long-term transportation. At the same time, all accessories and tools are also placed in the toolbox for our
customers to use. Therefore, in short, our packaging and transportation is very complete to ensure that the goods received by
customers are intact. At the same time, we also support the packaging requirements according to customers' requirements, Customersatisfaction.
Certifications
As a professional manufacturer of reel sprinkler irrigation machines, Fenglian has been following the production specifications
since the first day of its establishment, producing in compliance with the regulations and leading the industry. This is our
concept.
In order to make our products benefit more farmers and more agencies
our products have successively obtained ISO quality management certification and are provided according to customer requirements,
GS certification and CE certification
with perfect certification system, make customers satisfied and moved.
since the first day of its establishment, producing in compliance with the regulations and leading the industry. This is our
concept.
In order to make our products benefit more farmers and more agencies
our products have successively obtained ISO quality management certification and are provided according to customer requirements,
GS certification and CE certification
with perfect certification system, make customers satisfied and moved.
Exhibition
Since 2000, the company has actively participated in various exhibitions at home and abroad
from Guangzhou and Shanghai to Dubai, Sydney and Munich. Fenglian people have traveled all over the world to communicate withpeers, shoulder to shoulder with the top of the industry, listen to customer needs and walk into local farmland in person.
Through the exhibition, we have made more and more friends at home and abroad, which is of great help to our own improvement and
the promotion of enterprises.
In the future, after the epidemic is over, we will continue to promote the exhibition, so that our high-quality products can
benefit more people.
from Guangzhou and Shanghai to Dubai, Sydney and Munich. Fenglian people have traveled all over the world to communicate withpeers, shoulder to shoulder with the top of the industry, listen to customer needs and walk into local farmland in person.
Through the exhibition, we have made more and more friends at home and abroad, which is of great help to our own improvement and
the promotion of enterprises.
In the future, after the epidemic is over, we will continue to promote the exhibition, so that our high-quality products can
benefit more people.
the understanding between employees through activities, enhance the cohesion of employees improve the competitiveness of the
enterprise. Enrich employees' life, make employees work better and work happily
