Easy to install freezer room/cold storage/cold room for medical
- Category: >>>
- Supplier: Changzhou Changxue Refrigeration Equipment Company Limited
Share on (1600335258609):
Product Overview
Description
Product description
Cold room applications
Changxue cold room consists of cold room panel (PU sandwich panel), cold room door, condensing unit, evaporator (air cooler),temperature controller, air curtain, copper pipe, expansion valve and other refrigeration fittings.
Cold room applications
Cold room is widely used in food industry, medical industry, and other related industries.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
Design principle
1.What is the application of the cold room?
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with bigger evaporation area.
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with bigger evaporation area.
Application for example | Room Temperature | ||||
Fruit & Vegetable | -5 to 10 ℃ | ||||
Chemical factory,medicine | 0 to 5 ℃ | ||||
Ice cream, ice storage room | -10 to -5 ℃ | ||||
Frozen meat storage | -25 to -18 ℃ | ||||
Fresh meat storage | -40 to -30 ℃ | ||||
Solution and catalog
Parameter | ||||||
Brand | Changxue or OEM / ODM | |||||
Size | Customized | |||||
Temperature | -50°C to 50 °C | |||||
Voltage | 380V, 220V or Customized | |||||
Main parts | Polyurethane(PU) sandwich panel | |||||
Cold room door | ||||||
Condensing unit——German Bitzer, American Emerson, GREE, etc. | ||||||
Air cooler——GREE, Gaoxiang, Jinhao, etc. | ||||||
Fittings | Valves, copper pipe, thermal insulation pipe, wire, PVC pipe for wire, PVC door curtain for sliding door, LED light, switch,electrode, insulating tape, belting, etc. | |||||
Certification | ISO9001:2015, BV, SGS, TÜV | |||||

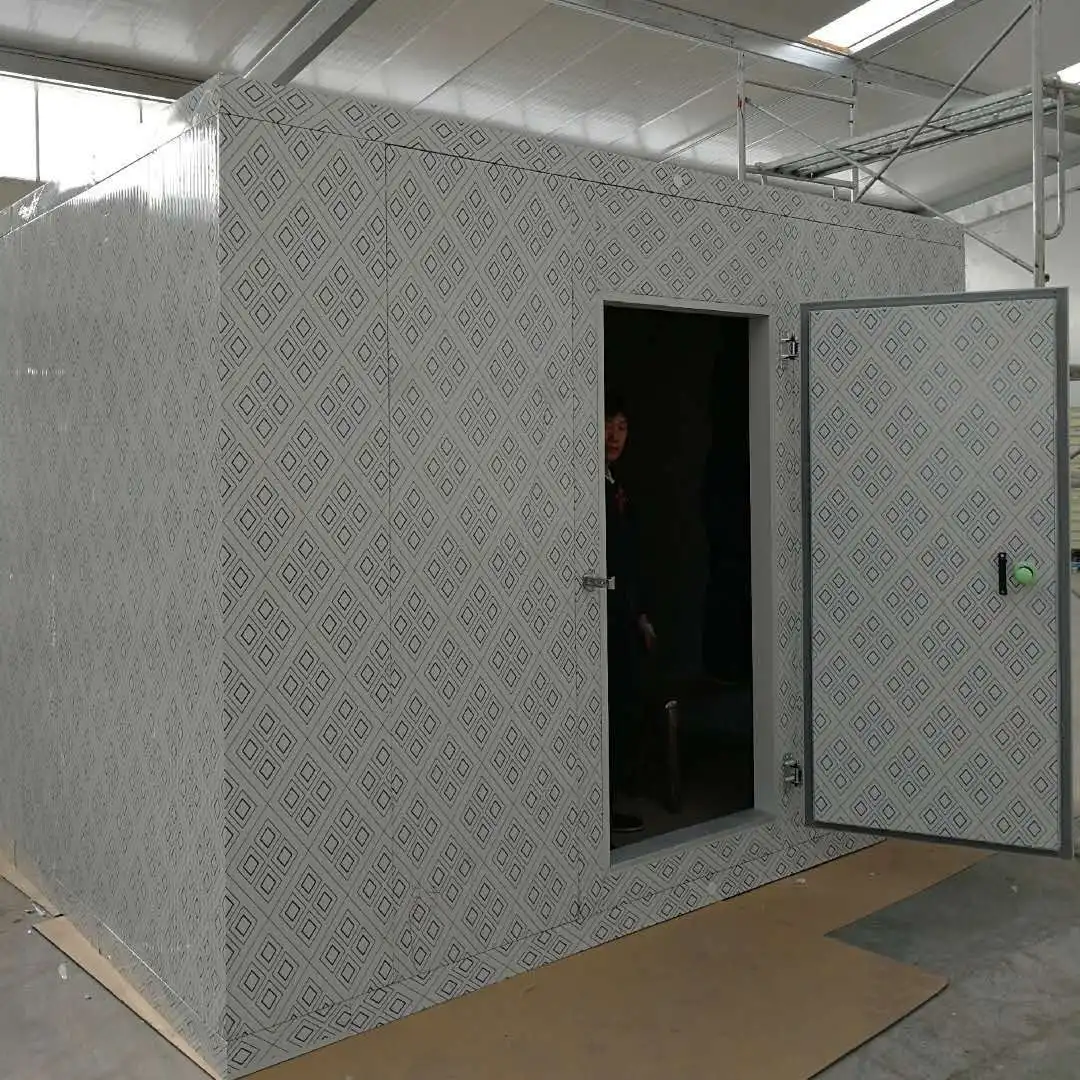

Cold chamber panel
We use fluoride-free material, it is more environment-friendly. Our cold room panels can reach fireproof level B2.
Polyurethane panel is foamed by high pressure with density of 38-42 kg/m3. So the thermal insulation will be good.

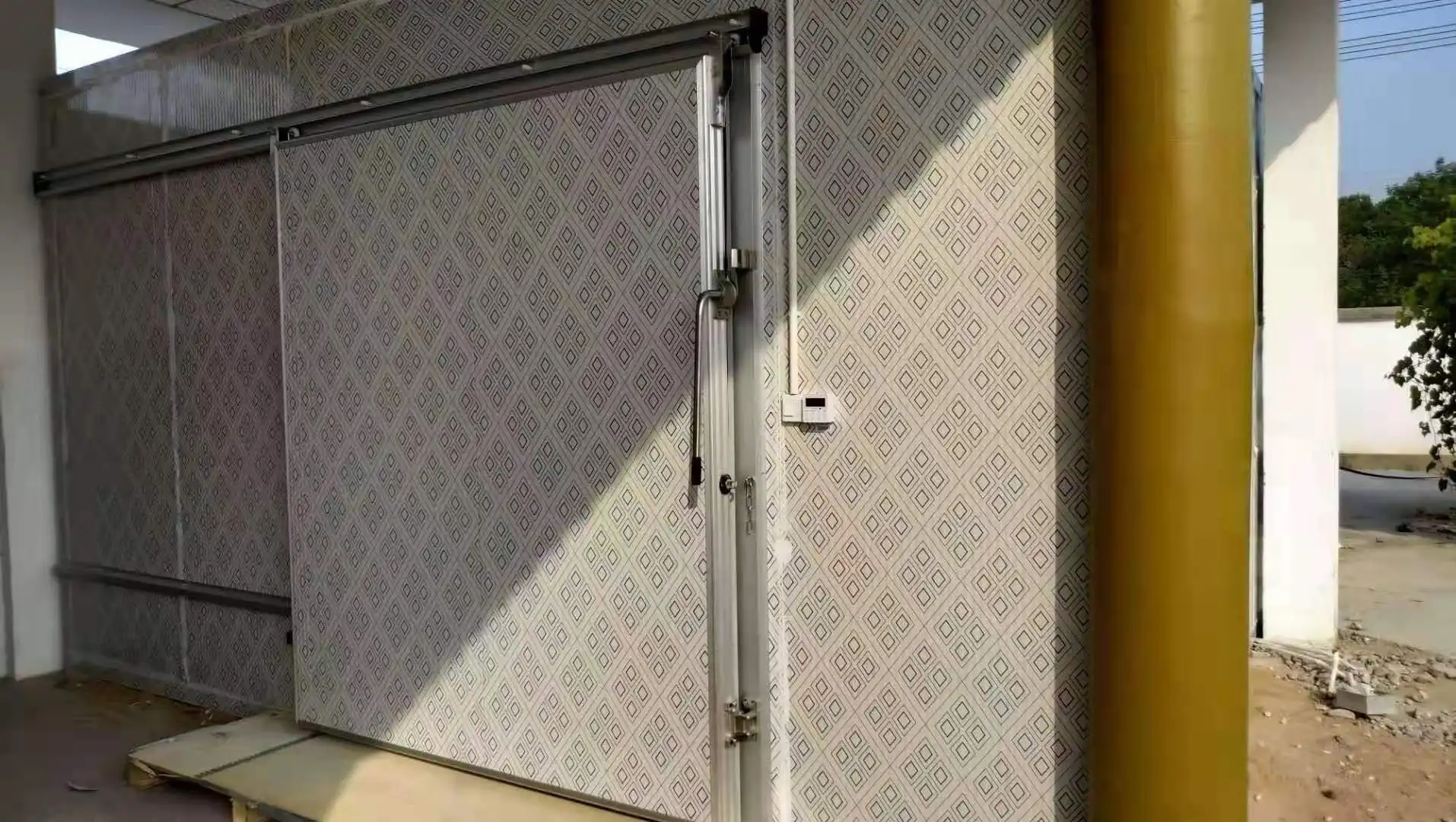

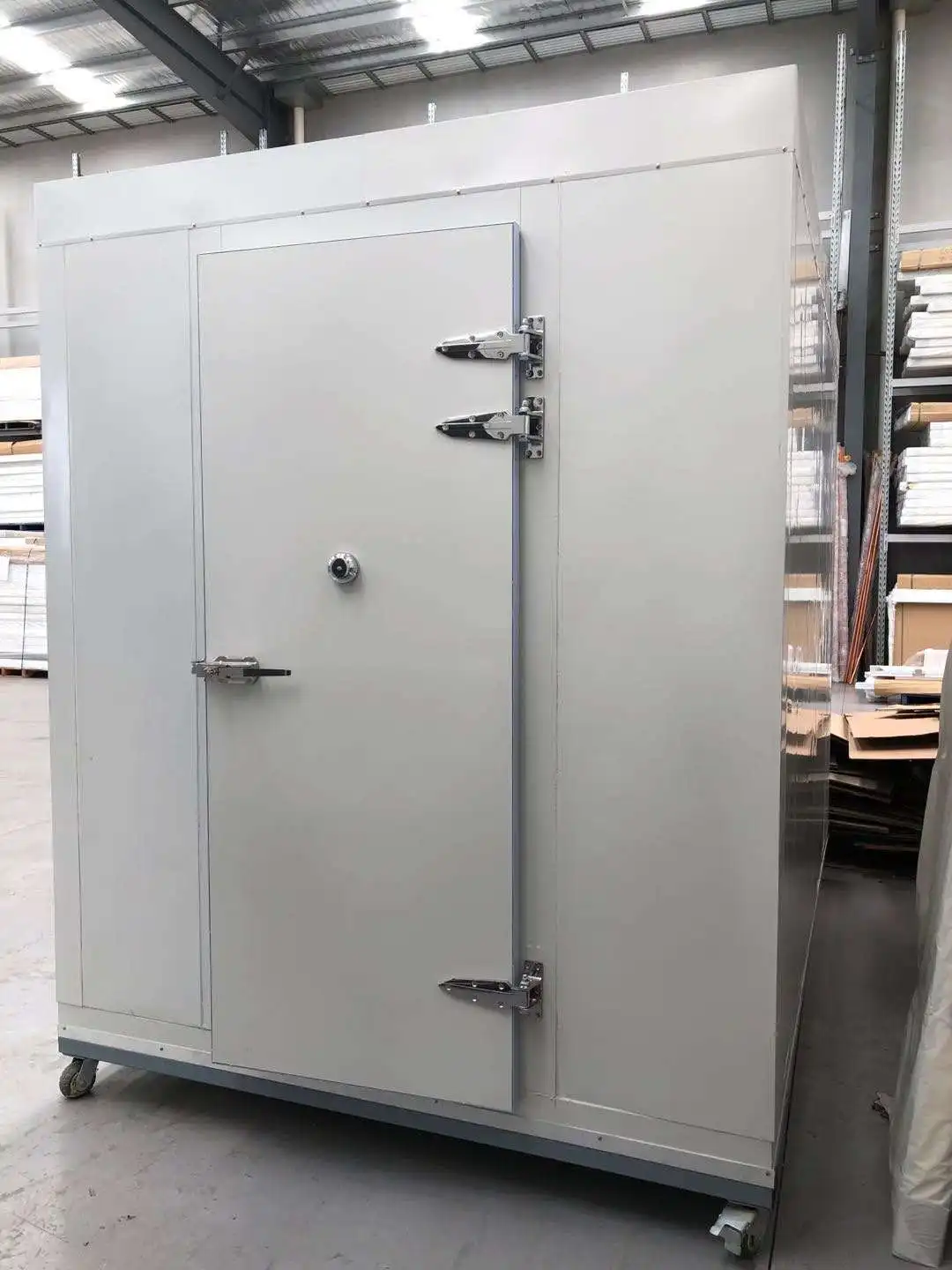

Cold chamber door
We have different types of cold room door, such as hinged door, sliding door, free door and other types of doors according to your requirement.

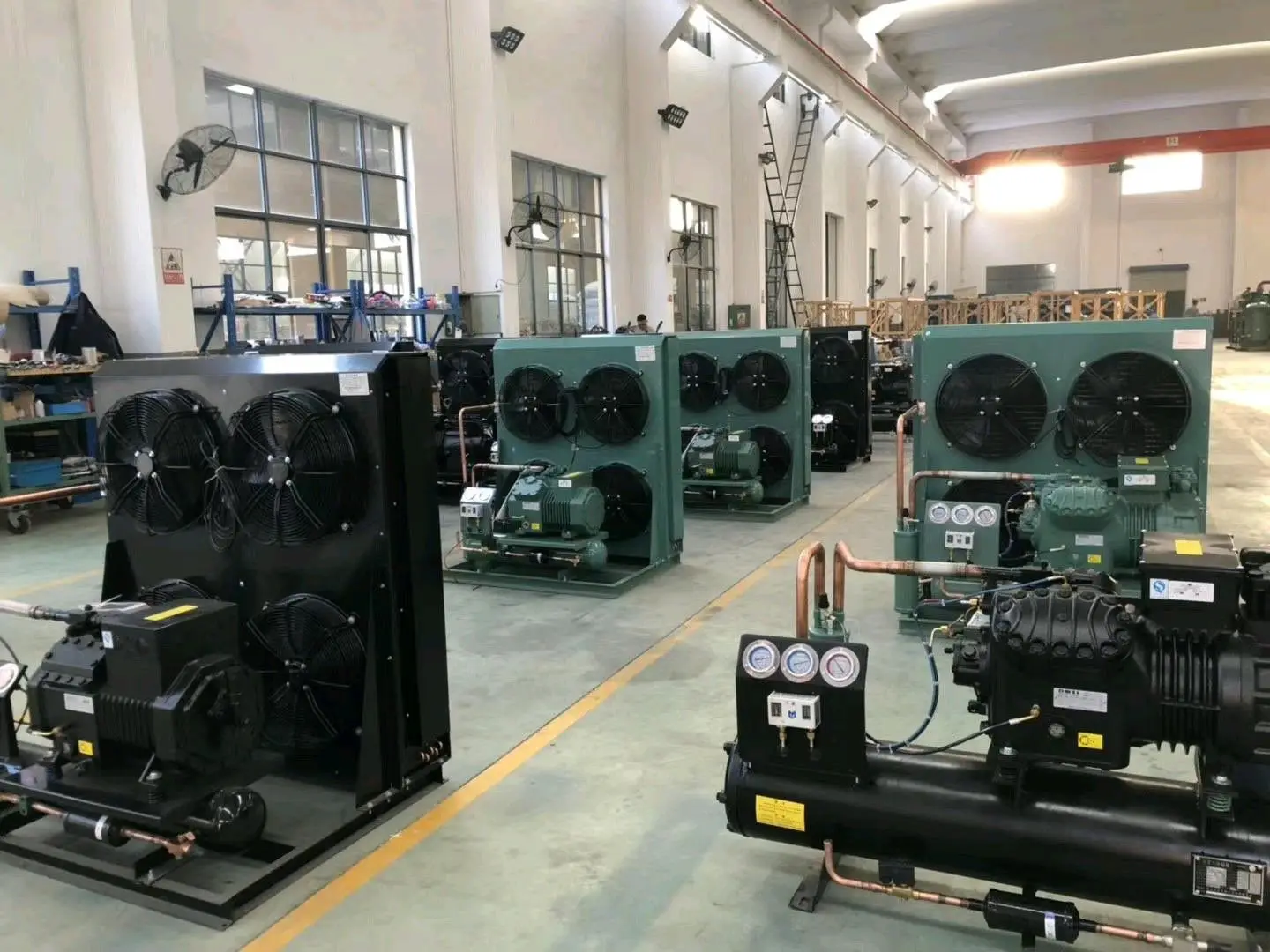

Condensing unit
We use the world famous compressor like German Bitzer, American Emerson, etc.
It is easy to operate the automatic high-precision digital controller with high efficiency.

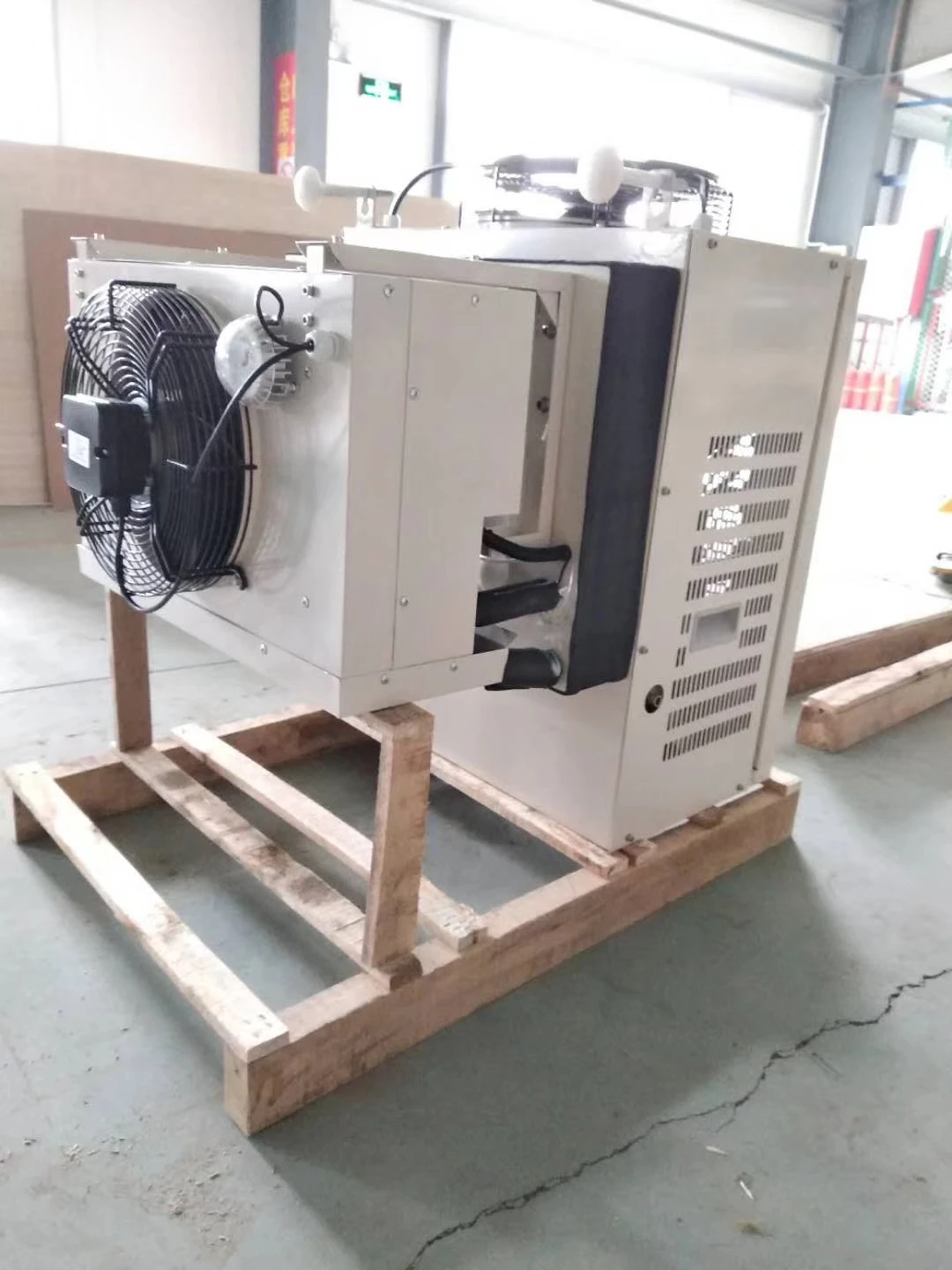

Evaporator(Air cooler)
Model:
DD series, DJ series, DL series.
DD series is suitable for medium temperature;
DJ series is suitable for low temperature;
DL series is suitable for high temperature.
Refrigeration fittings
(1)Temperature controller
Famous brand: Italy Dixell with DELIXI or Korean LG, French Schneider
(2)Valve Parts
Famous brand: Denmark Danfoss
(3)Copper pipe and connection
(4)Thermal insulation pipe, wire, PVC pipe, PVC door curtain for sliding door, LED light, switch, electrode, insulating tape,
belting, etc.
Installation
Step 1:Floor panel
Step 2: Wall panel
Step 3: Ceiling panel
Panels will be marked according to drawing and connected by cam locks, you just need to lock different panels together, then seal them with sealant to keep sealed.You can watch this following video about how to install cold room.
Step 2: Wall panel
Step 3: Ceiling panel
Panels will be marked according to drawing and connected by cam locks, you just need to lock different panels together, then seal them with sealant to keep sealed.You can watch this following video about how to install cold room.
For safety and stability of large cold room, we will supply accessories to make roof panel fixed to steel structure outside cold room. There are mushroom head, screw rod and regulating parts or other accessories with same function according to cold room situation.
Packing and delivery
Cold room panels(PU sandwich panel) and doors will be packed by PVC film, refrigeration equipment will be packed by wooden case.
We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Your cargos will be delivered to you safely and quickly. We'll also choose the most suitable way and lowest delivery cost for you.
About us
We not only own factory producing cold room since 1995, but also continuously integrate the upstream and downstream supporting suppliers of the cold chain, and have polyurethane insulation panel, cold room doors, industrial doors,hermetic and semi-hermetic compressor units, large scale parallel units, air cooler, mobile cold room, freeze-drying equipment and other cold chain products.We are committed to providing a professional one-stop cold chain service platform to minimize the cost of our customers, and we have already provided customers all over the world with professional cold chain solutions and products.
Size:29.5m*21.4m*5m
Usage:Fruit and vegetable
Country: Uzbekistan
Size:4.5m*2.5m*2.8m
Usage:Blood storage
Country: America
Size:100.8m*31.68m*5.05m
Usage:Fish and other seafood
Country:Angola
Size:0.99m*1.5m*1.2m
Usage:Vaccine
Coutry:Germany
Size:50m*10m*3.5m
Usage: banana
Country: Ghana
Size:25m*15m*6m
Usage:Ice sculpture
Coutry: China
Our services
We will offer you:
1. Good quality & price.
2. Customization.
3. Door-to-door service under a paid partnership.
4. Visit to our factory.
5. Inspection from your side any time during the production process or before loading.
