Product Overview

Description



Why Choose Us




Well-chosen parts
all the spare parts and materials are from internationally renowned supplier.
Strict quality control
from material selection, to production, assembly, quality inspection, the whole process is under our strict supervision.
Excellent service
1 year warranty, lifelong Maintenance.

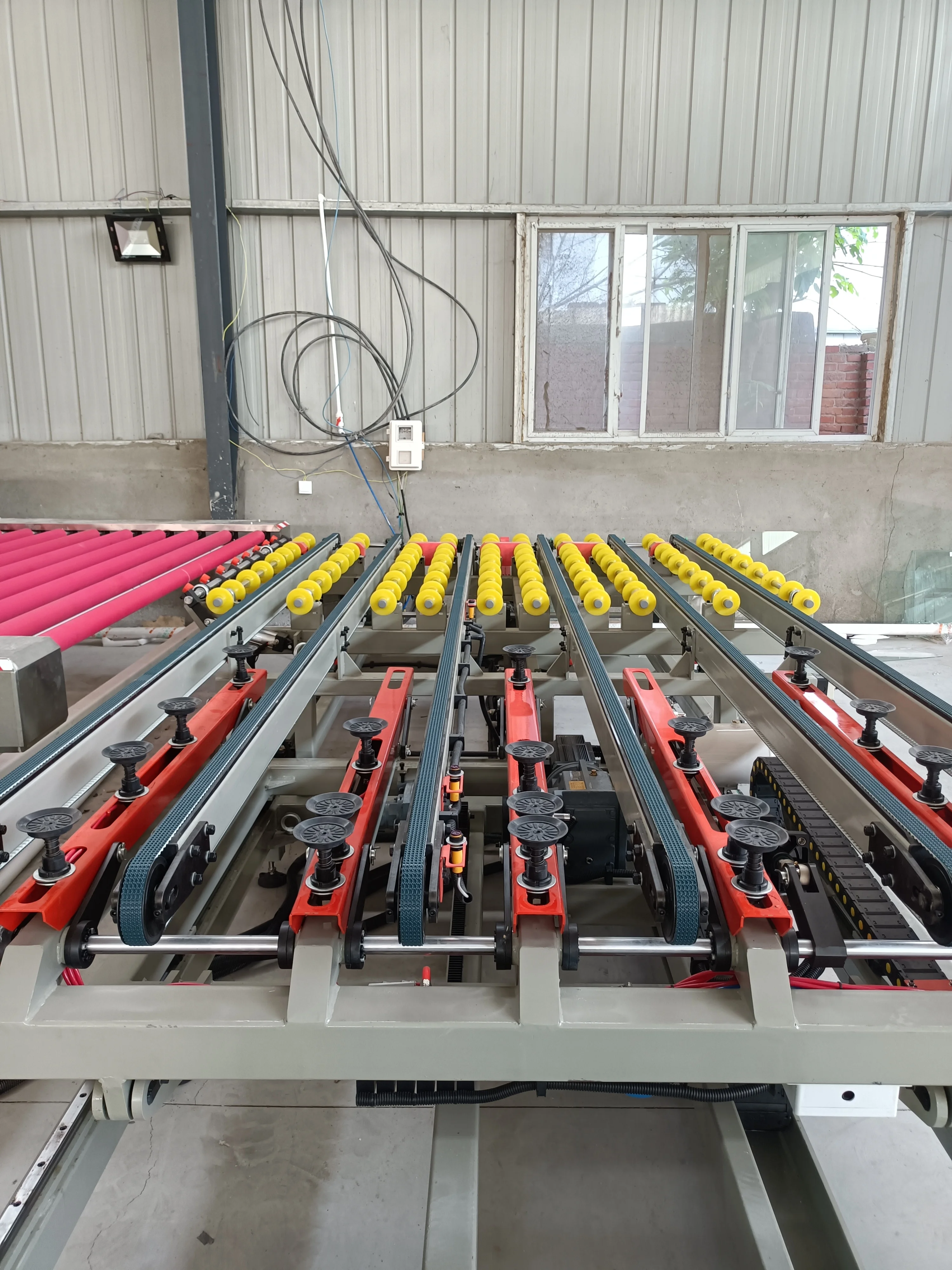

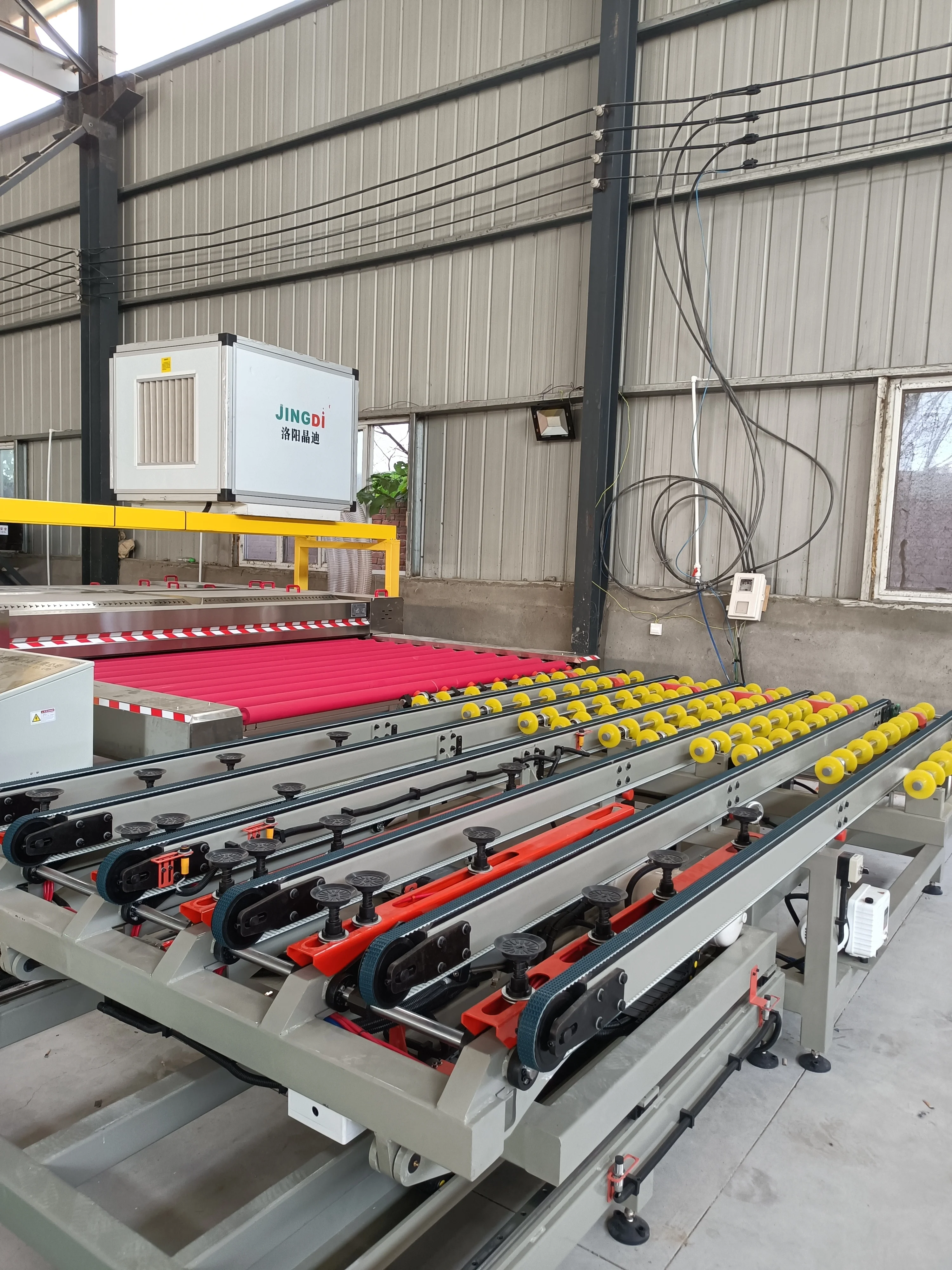

Product Display




DN-KSXP2516 Automatic Glass Loading and Unloading Machines




Product advantage
1.Adopting OMRON PLC, full-automatic intelligent loading →safety and productivity.
2.Intelligent automatic identification of glass size.
3.The transmission motion accurately controlled by the servo motors avoid the glass collision phenomenon

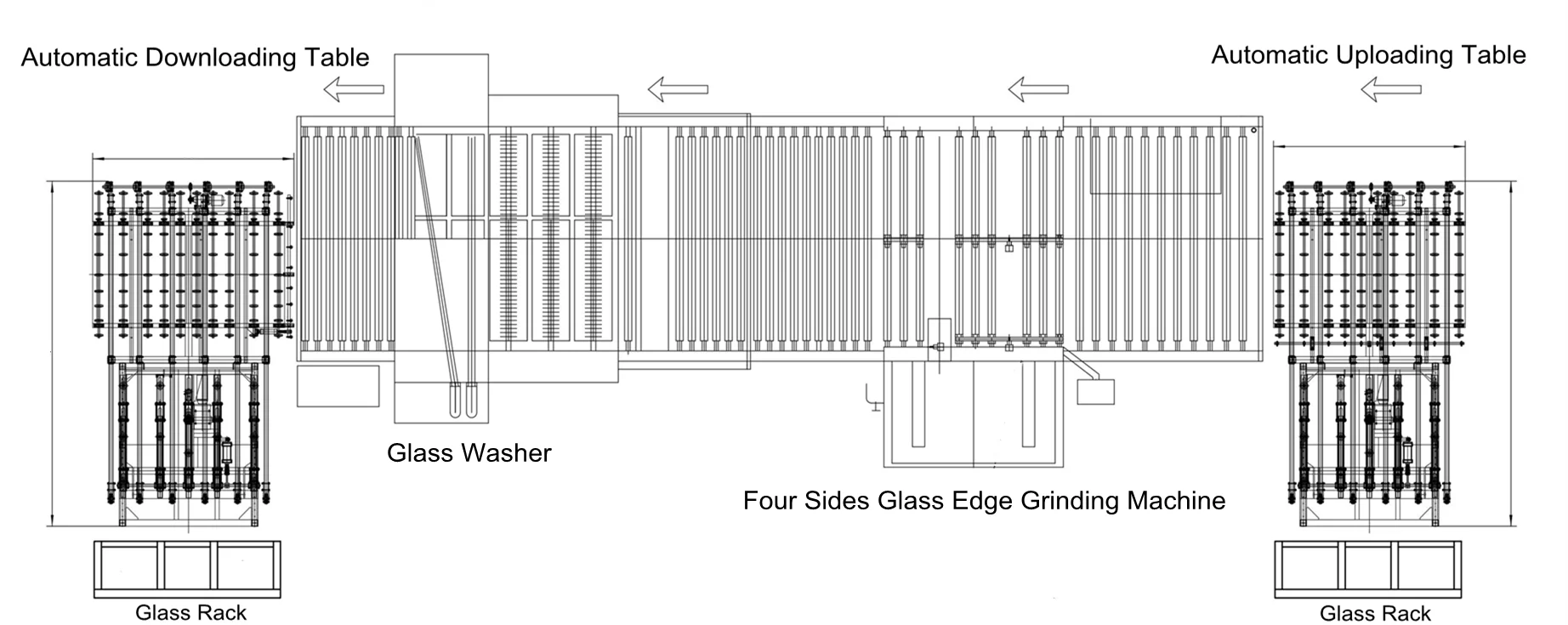

4.Can be matched with glass edging, washing, tempering, silver mirror production line.










Key Components
Brands
PLC
OMRON JAPAN
Frequency Converter
INOVANCE CHINA
10 inch Touch Screen
MCGS CHINA
Servo Motor
INOVANCE/XINJIE CHINA
Photo Cell
OMRON JAPAN
Proximity Switch
OMRON JAPAN
Pneumatic Control Valve
AirTAC CHINA
Pressure sensor
CKD JAPAN
Air suction and deflation valve
CKD JAPAN
Vacuum Pump
VALUE CHINA
Suction Cup
Premium Silicon


Product Details




Parameters


Technical Parameters of DN-KSXP 2516  Automatic Glass Loading and Unloading Machines
Model
DN-KSXP 2516
Max. Loading Glass Size
2500 mm x 1600 mm
Min. Loading Glass Size
380 mm x 650 mm
Glass Thickness
4-12 mm
Maximum Loading Speed
4-5 pcs/min
Maximum Loading Glass Weight
250 KG
Dimension
4060 mm x 2470 mm x 900 mm
Conveyor Speed
0~60 m/min （Adjustable）
Glass Loading Depth From Glass Rack
800 mm
Flip Arms
5
Loading Position
Double Stations
Air Source
0.5~0.8 Mpa
Vacuum Pressure
-70~90 Kpa
Table Height
900±20 mm
Votage
380V/50HZ
Power
11 KW
Weight
3000 KG






General needs: In containers, to be packed with standard packing-materials which is suitable for long-distance sea freight shipping.

Special needs: If you want a customized packaging service, we are very pleased to serve you.




FAQ


Q: Are you Original Equipment Manufacturer ?
A: Yes, we are professional Original Equipment Manufacturer and we honestly welcome you to our factory to check the quality.

Q: Can you make the product as per client's requirement?
A: Yes, we can make customized orders according your special needs. Any individual appealis welcome here.

Q: how about your service ?
A:
1. We will reply your message in 1 hour from Ali-trade manager and within 8 hours if by email.
2. We can send professional engineer to your working site for equipment installation, adjustment, operation training and
repairing.
3. 24 hours online after-sales service

Q: How can you guarantee the quality or any warranty?
A: we provide 1 year warranty and lifelong maintenance for all our customers.


About Us




Luoyang DISAI Mechanical Equipment Co., Ltd is a professional high-tech enterprise which is engaged in glass cutting equipment design, R&D, manufacturing, sales and after-sales service. With high R&D level and mature manufacturing technologies in the field of automatic glass cutting equipment, our company has been booming rapidly in the world glass processing industry.

Choosing DISAI, Choosing the future.




Contact Us


Luoyang DISAI Mechanical Equipment Co.,Ltd
Mobile: +86 18616813289
Whats App/wechat: +86 18616813289
Add: Suhutuo Industrial Zone, Laocheng District, Luoyang City, Henan Province, China
