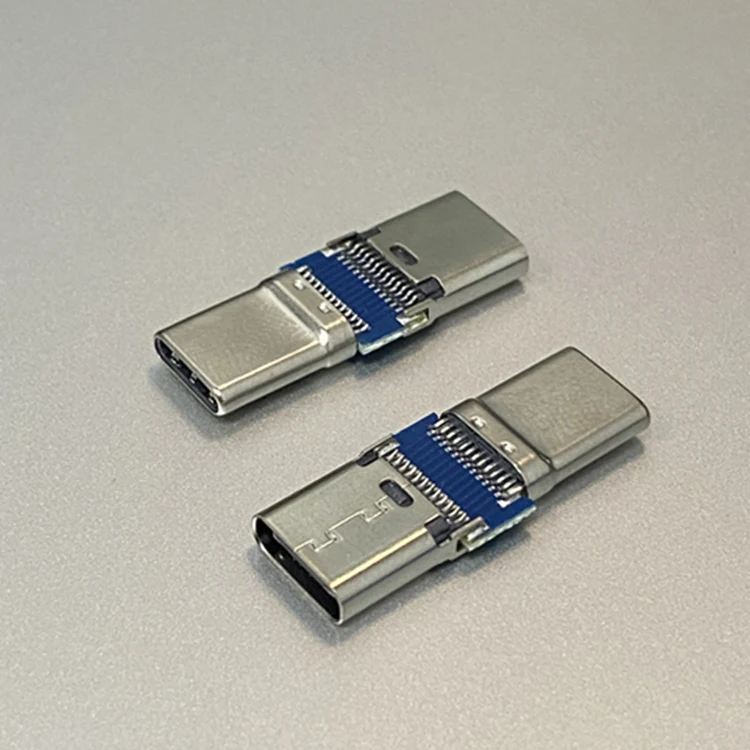

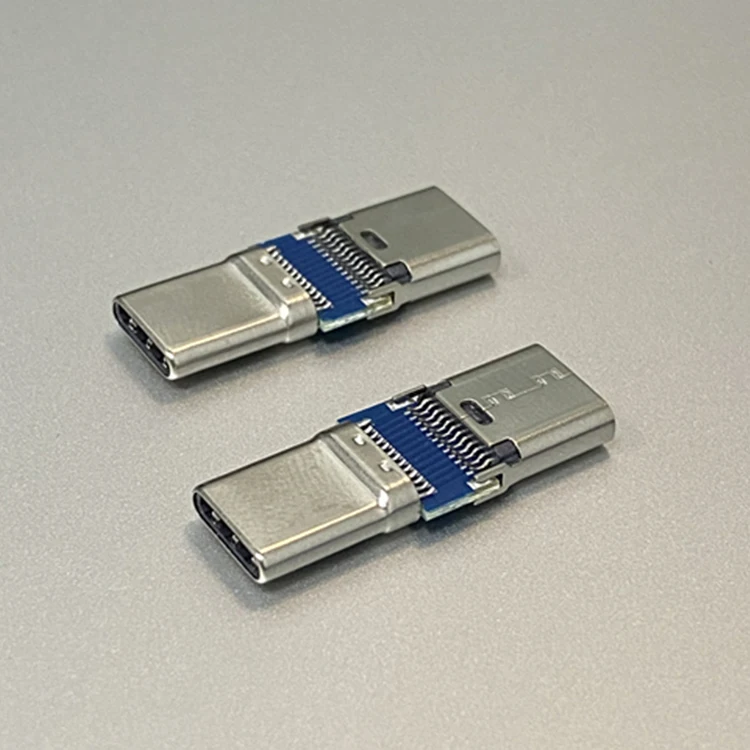

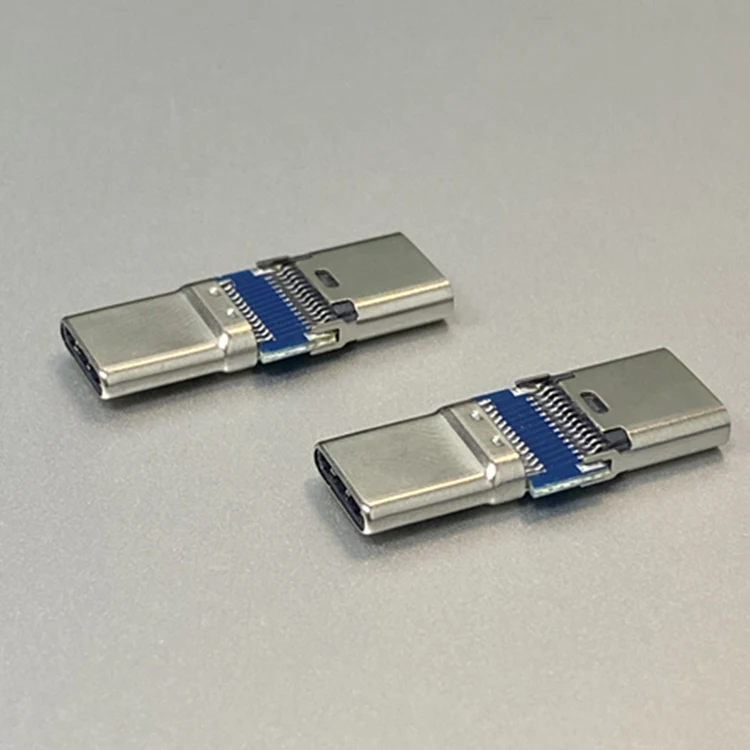

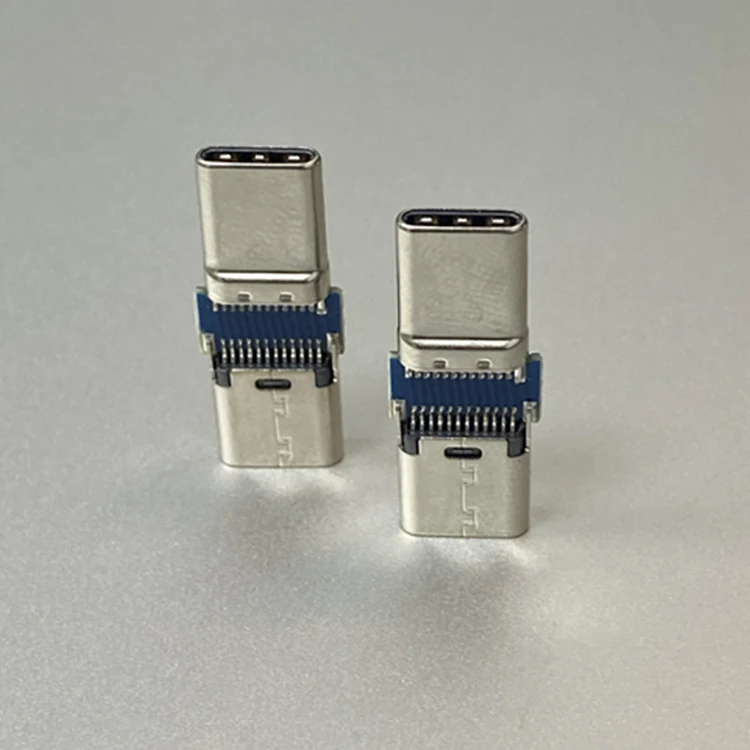

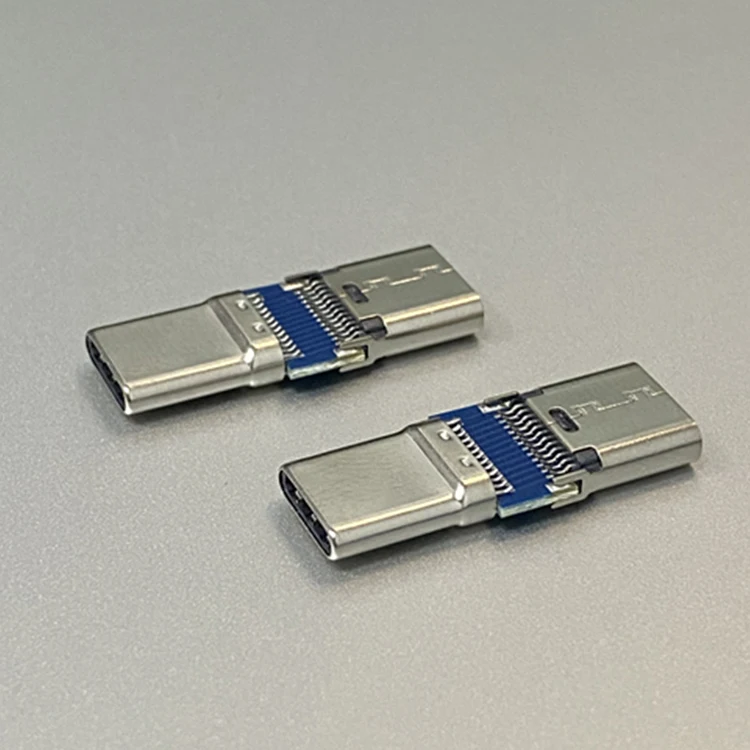

Factory manufactory usb 3.1 type c male connector to c female adaptor
Factory manufactory usb 3.1 type c male connector to c female adaptor
Factory manufactory usb 3.1 type c male connector to c female adaptor
Factory manufactory usb 3.1 type c male connector to c female adaptor
Factory manufactory usb 3.1 type c male connector to c female adaptor
Factory manufactory usb 3.1 type c male connector to c female adaptor
Factory manufactory usb 3.1 type c male connector to c female adaptor

Factory manufactory usb 3.1 type c male connector to c female adaptor

Share on (1600335361997):


Price:

Quantity:


Product Overview

Description



Products Description


USB TYPE C 90 degree male connector , 24pin with 56KΩ resistor & 10nf capacitor ,8 padsUSB TYPE C 90 degree male connector , 24pin with 56KΩ resistor & 10nf capacitor ,8 pads

MECHANICAL:
1 .MATING FORCE: 5-20N .
2 .UNMATING FORCE: 8-20N .
3 .DURABILITY: 10000 CYCLES

ELECTRICAL:
1 CONTACT CURRENT RATING: 1.25A/PIN FOR VBUS AND GND, 0.9A/PIN FOR ALL OTHER CONTACT.
2 DIELECTRIC WITHSTANDING VOLTAGE: 100V AC AT SEA LEVEL.
3 LOW LEVEL CONTACT RESISTANCE: 40mΩ MAX FOR VBUS AND GND, 50mΩ MAX FOR OTHER CONTACTS。
4 INSULATION RESISTANCE: 100MΩ MIN AT 250VDC.
5.OPERATING TEMPRATUR: -55°~85°

Materials&Plating ：
1.Contact: High performance copper alloy C7025, 3u"Min Au ON CONTACT AREA,120u"Min TIN ON SOLDER AREA.60u"NICKEL UNDERPLATING OVERALL.
2.Housing: LCP E130I UL94V-0.
3.Shell: Stainless Steel SUS316L;60u" NICKEL PLATING OVER ALL.
4.Retention Latch:Stainless Steel SUS301;50u" NICKEL PLATING 100u"Min TIN ON SOLDER AREA.
5.EMC Shielding Spring：Stainless Steel SUS304;rines 6.PCB:FR-4 H


Name
USB CONNECTOR

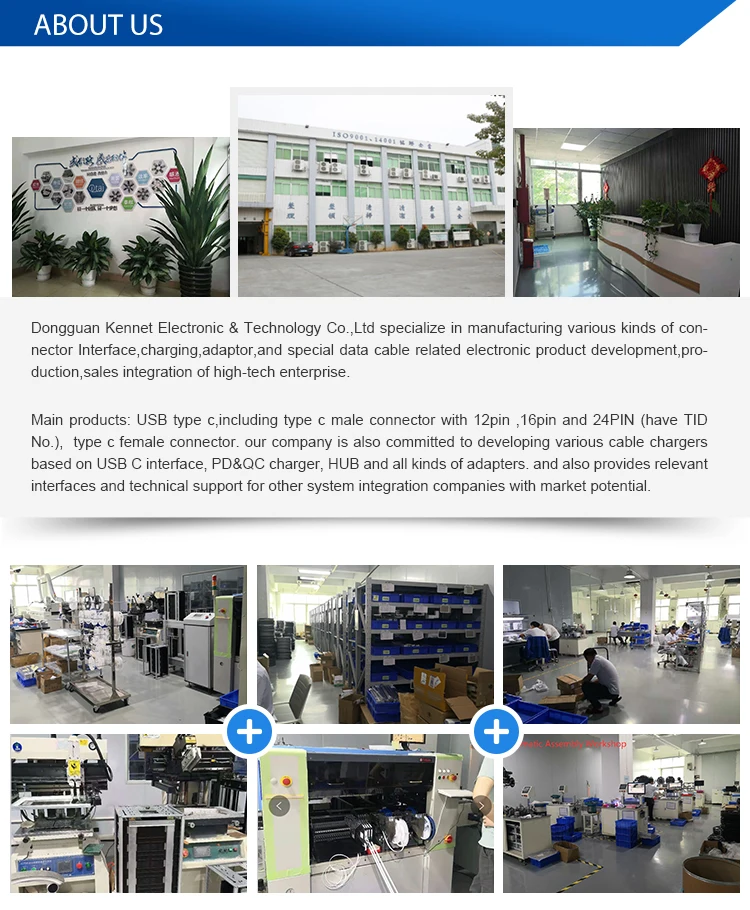

Company Profile
