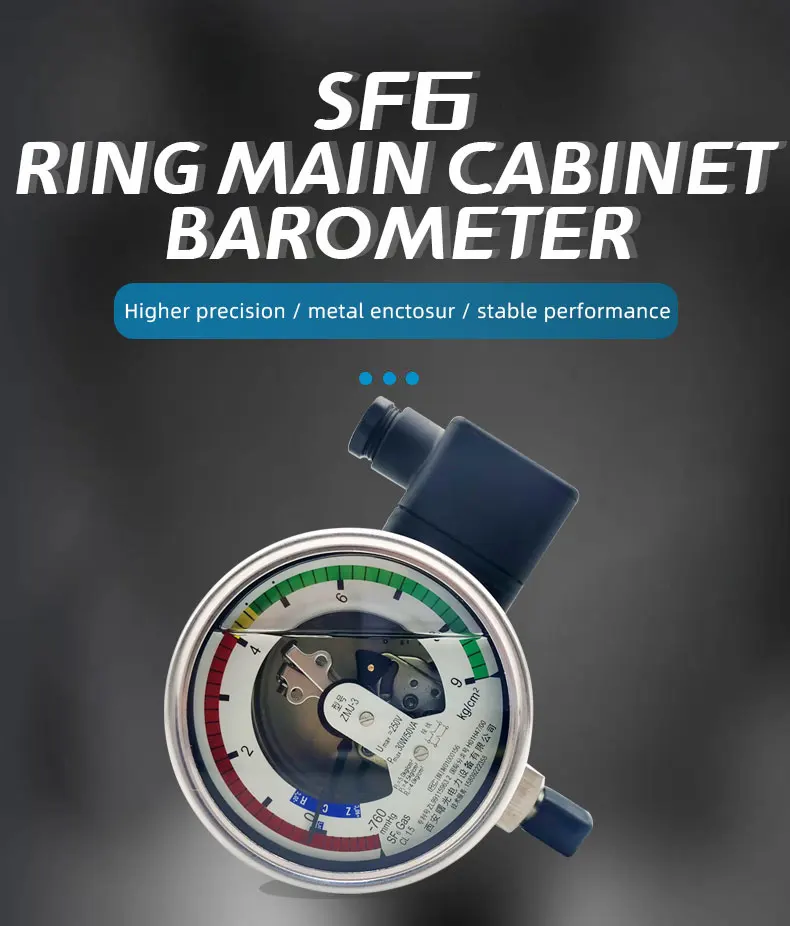

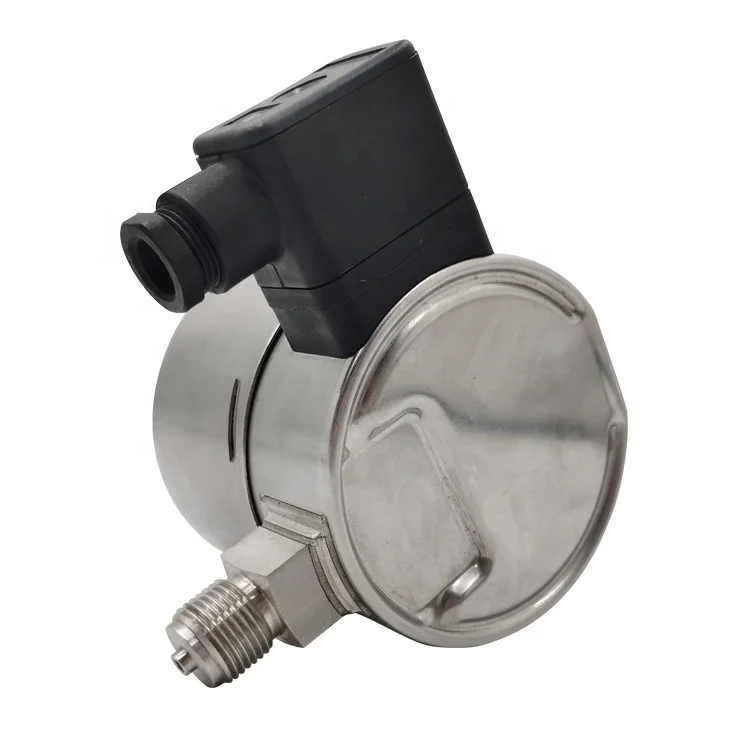

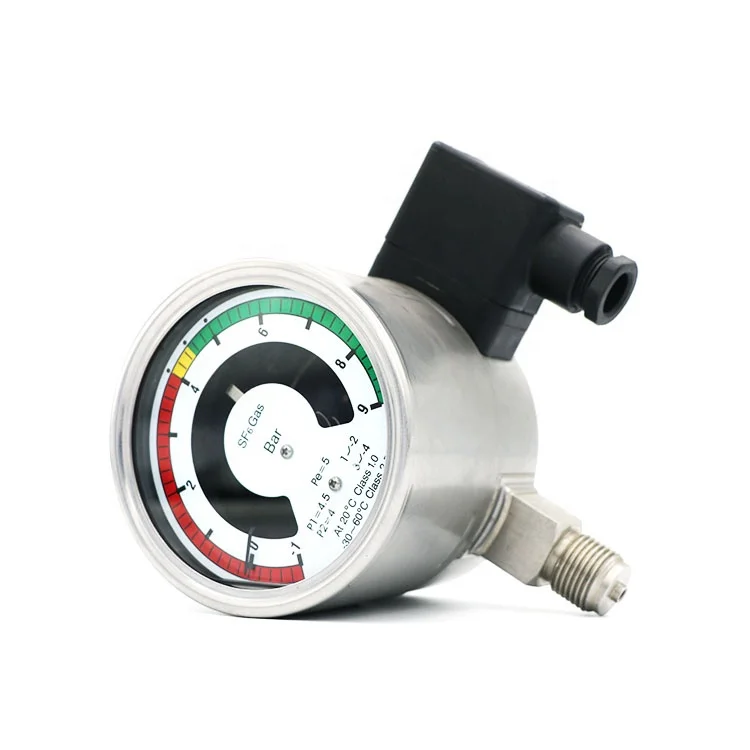

customizable 4inch sf6 test manometer density monitor density meter measuring instrument
- Category: >>>
- Supplier: Xian Supurui Electric Co. Ltd.
Share on (1600335533657):
Product Overview
Description
Product Paramenters
Size | Scale range | Ingress protection | Gas-tight |
63mm | -0.1 ～ 0.9MPa(customized) | IP 65 | leak rate ≤ 1 · 10-9 mbar · l / s |
Process connection | Mounting | Operating temperature |
M20*1.5/G1/2(customized) | Back or Bottom(customized) | -30 … +60 °C,Relative humidity ≤ 95%RH |
Window | Weight | Pressure parts |
safety glass | approx. 1kg | Imported burden tube |
±1 % at ambient temperature +20 °C | |
±2.5 % at ambient temperature -30 … +60 °C |
Insulation resistance | voltage | Type and Material of the contacts | |
>100MΩ (500V DC) Working | 2kv, 50/60hz 1min | 80 % Ag / 20 % Ni, 10 mm gold plated |
30 V / 50 VA, max. 1 A | |
220VDC/380V 50/60HZ（max） |

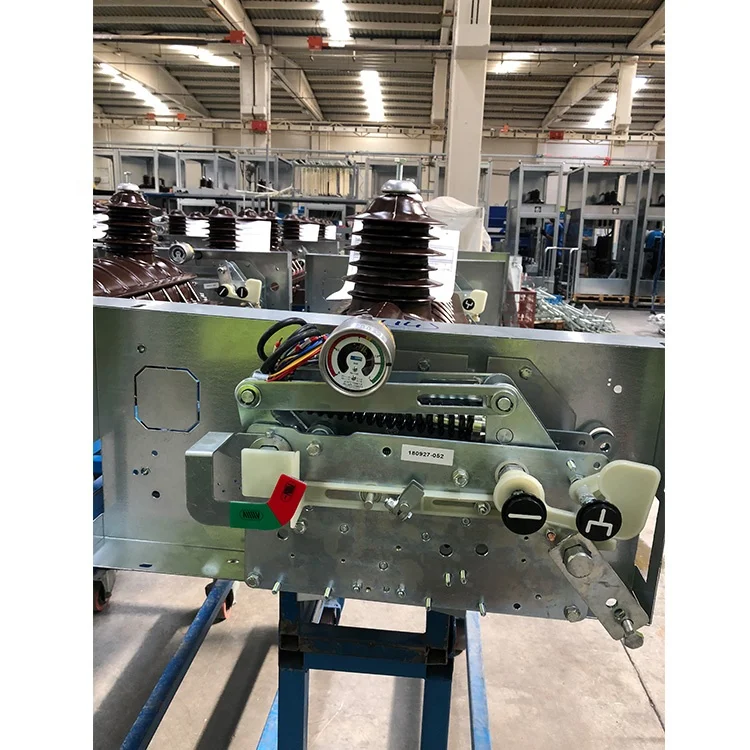

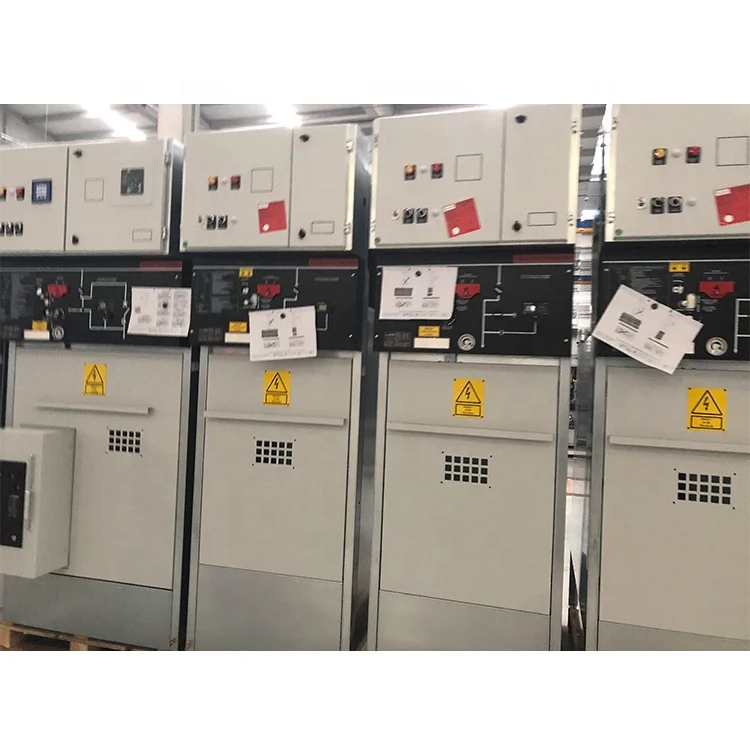

Scene display
Company introduction
Xian Supurui Electric Co., Ltd.
For over 15 years, Supreme has been an expert in electric power equipment, electrical apparatuses and lighting fitting solutions . With steadily growing efficiency, innovative technologies are applied when developing new products and system solutions. Within the Supreme, currently over 200 employees are dedicated to produce SF6 gas density monitors, high and low voltage switchgears, vacuum switch accessories, transformers, Surge arrester and other electrical system equipments and accessories. Over 20 experienced employees within the sales department consult customers and users competently on a partnership basis. More than 10 engineers and technicians are searching continually to provide innovative product solutions, improved materials and profitable production methods. In close cooperation with institutes and industrial companies, solutions for specific applications are developed.
Certificate display
Logistics transportation
FAQ
Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, measuring range , accuracy, connection and other related parameters. so we can choose model and quote for you quickly.
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
A: Please provide us: application field, measuring range , accuracy, connection and other related parameters. so we can choose model and quote for you quickly.
Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
