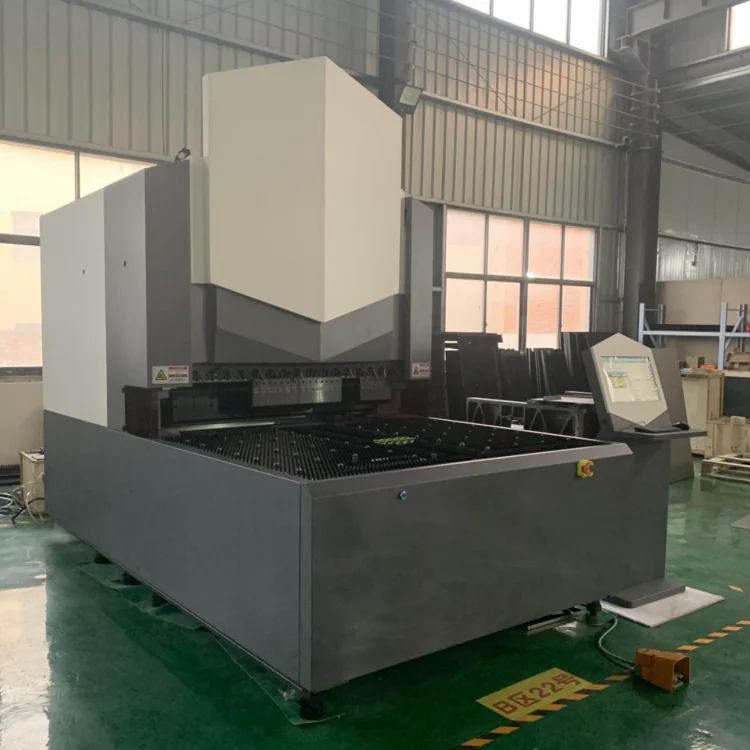

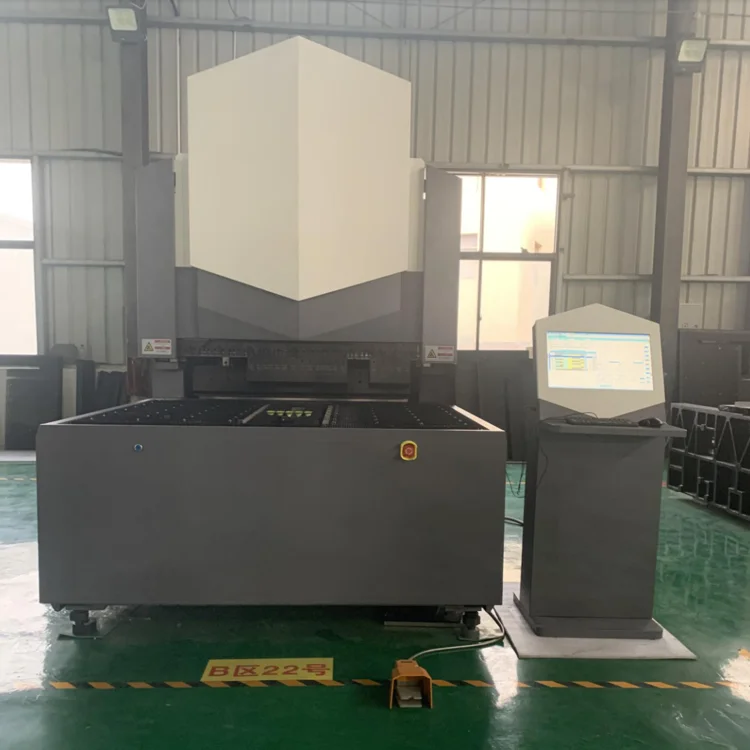

15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm
15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm
15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm
15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm
15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm
15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm
15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm

15 Axis Automatic Press Brake Bending Machine Panel Bender 1400mm

Share on (1600335741201):


Price:$100,000.00

Quantity:


Product Overview

Description



Product Overview


1400P Panel Bender
Automatic Panel bender is a high-tech product developed and produced to improve production efficiency, reduce labor cost.


PRODUCT SPECIFICATIONS


No
Item
Data
1
Maximum bending speed
0.2 s/time
2
Maximum bending width
1400mm
3
Maximum bending size
1400*1400mm
4
Bending height
170mm
5
The rated voltage
380V
6
Peak power
18KW
7
CNC system
PC-Base New Independent Research and Development 9 Axis Linkage Full Servo CNC System
8
Lathe bed
Casting bed


PRODUCT CONFIGURATION




Product Paramenters


Name
Brands
Operating system
Above Windows 7
Control system
9 axis + concurrent linkage control system
Servo motor
Independent R&D, full closed-loop control
Screw
Taiwan-HIWIN
Bearing
NSK or NACHI
Linear guide
Taiwan-HIWIN／Nanjing Gongyi
Machine bed
High grade casting integral forming
Bending knife
Patented ball cutter head, more wear-resistant, longer service life
Sucker
AIRBEST
Pneumatic component
Japan SMC/Taiwan Yadec
Oil system
Taiwan Yuxiang
