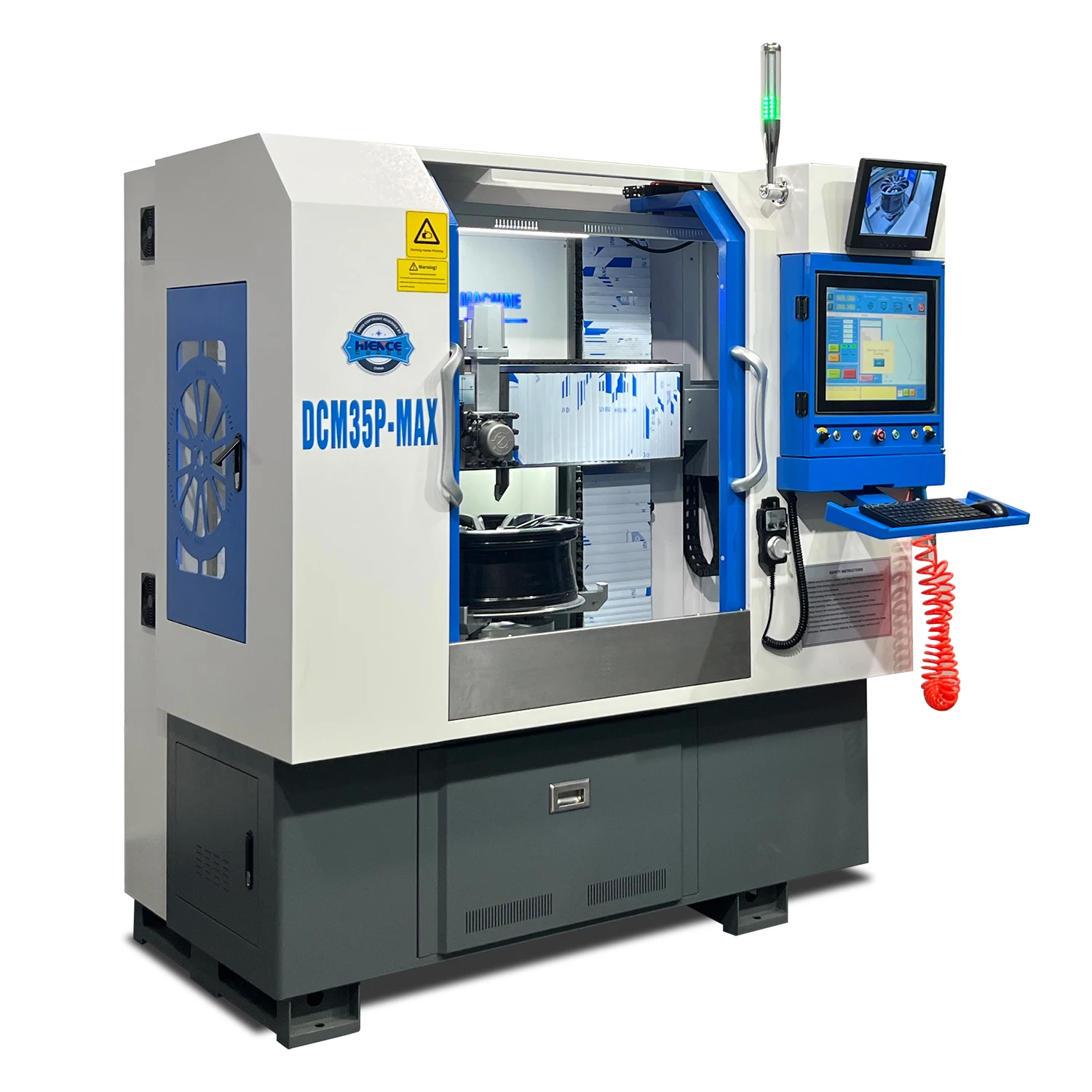

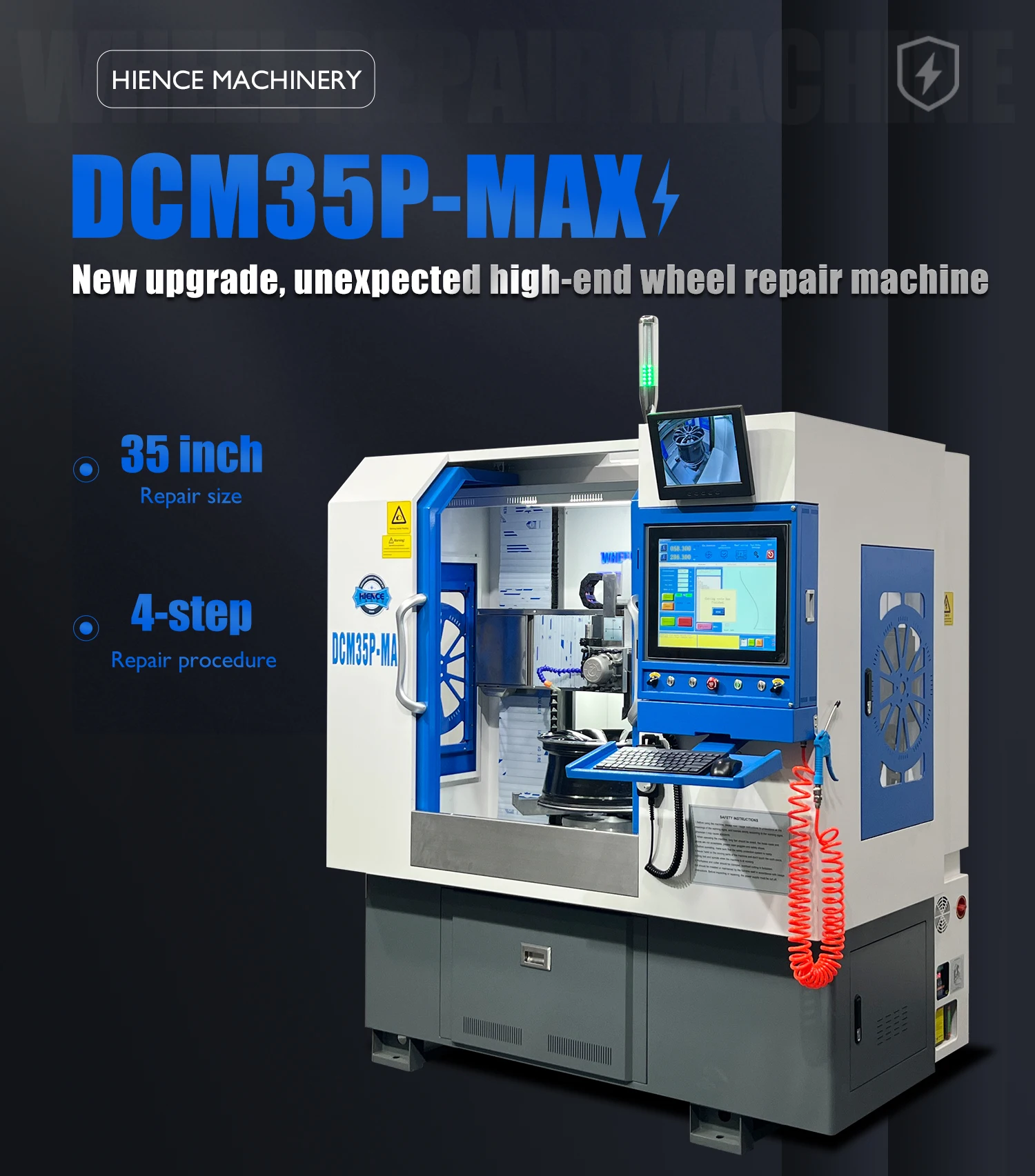

Automatic wheel repair cnc lathe wheel rim repair machine with wheel straightening machine DCM35P MAX

Item

DCM35P-MAX

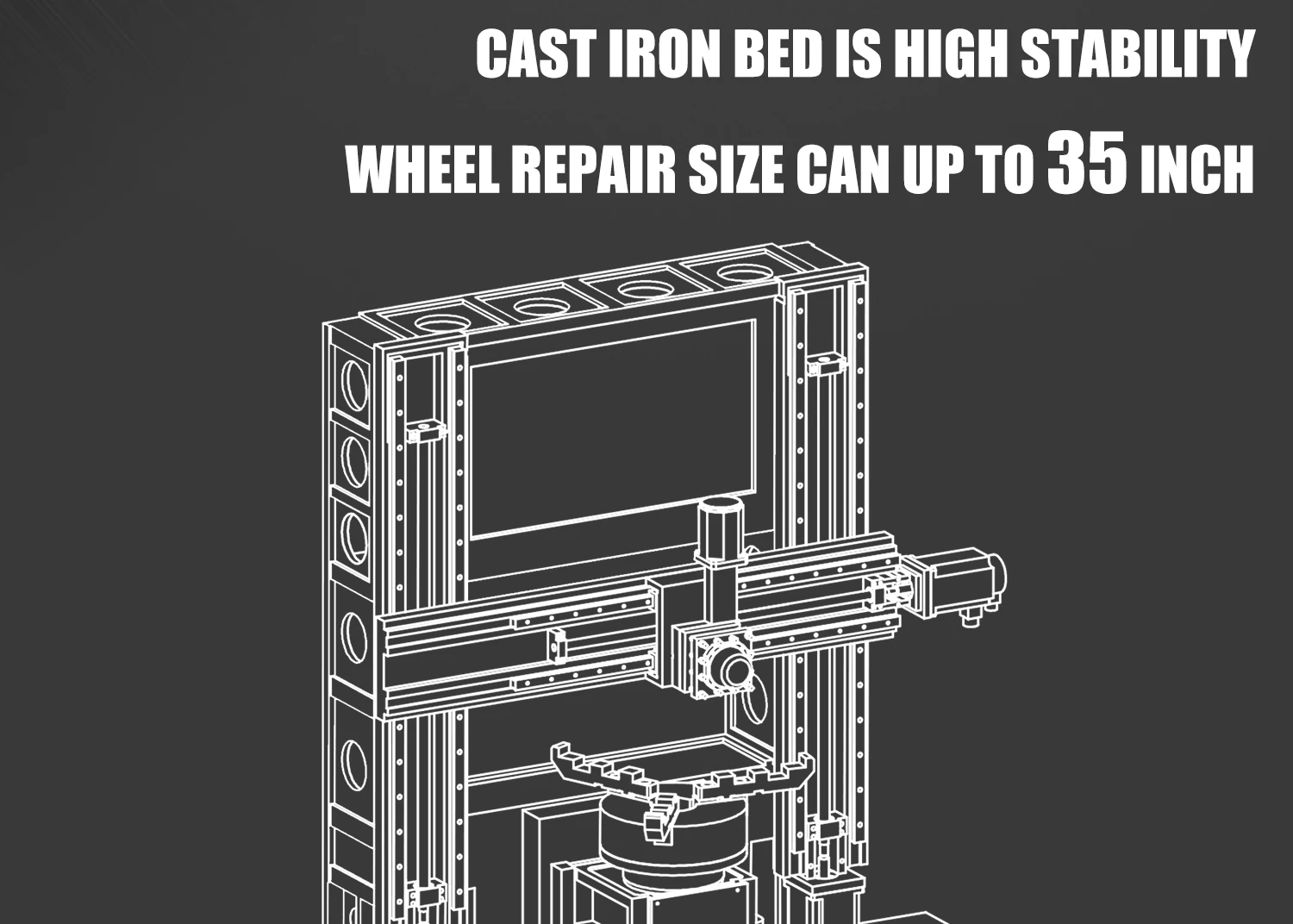

Maximum clamping wheel size

35 inch

Maximum diameter with tire on

880mm

Maximum repairable wheel thickness

550mm

X-axis travel (Diameter)

920mm

X-axis drive motor torque

6NM

Z-axis travel

620mm

Z-axis drive motor torque

6NM×2 (With brake function)

Total machine power

9KW

Spindle speed

50-1800rpm

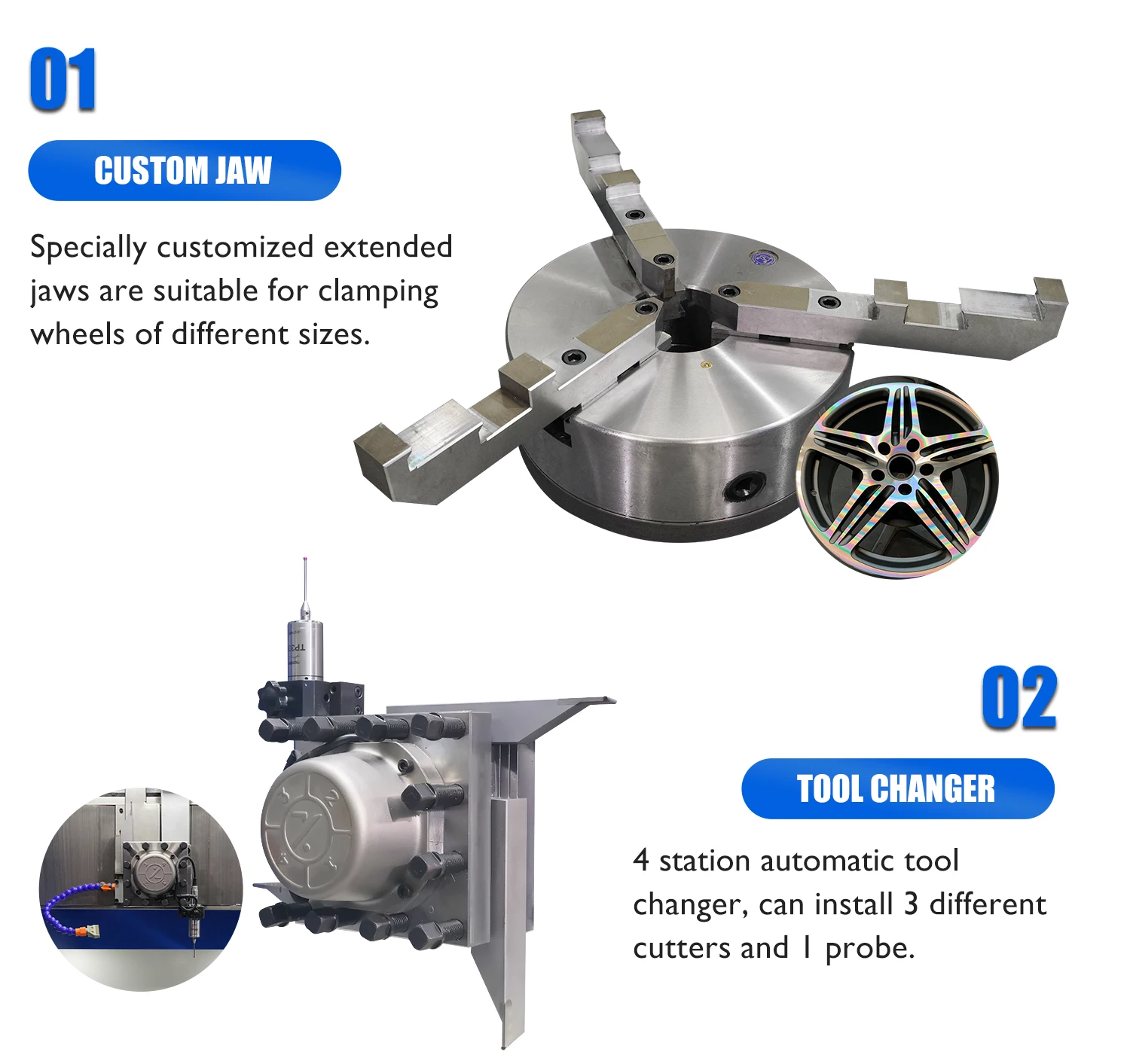

Chuck Diameter/Number of Jaws

320mm /3 jaws

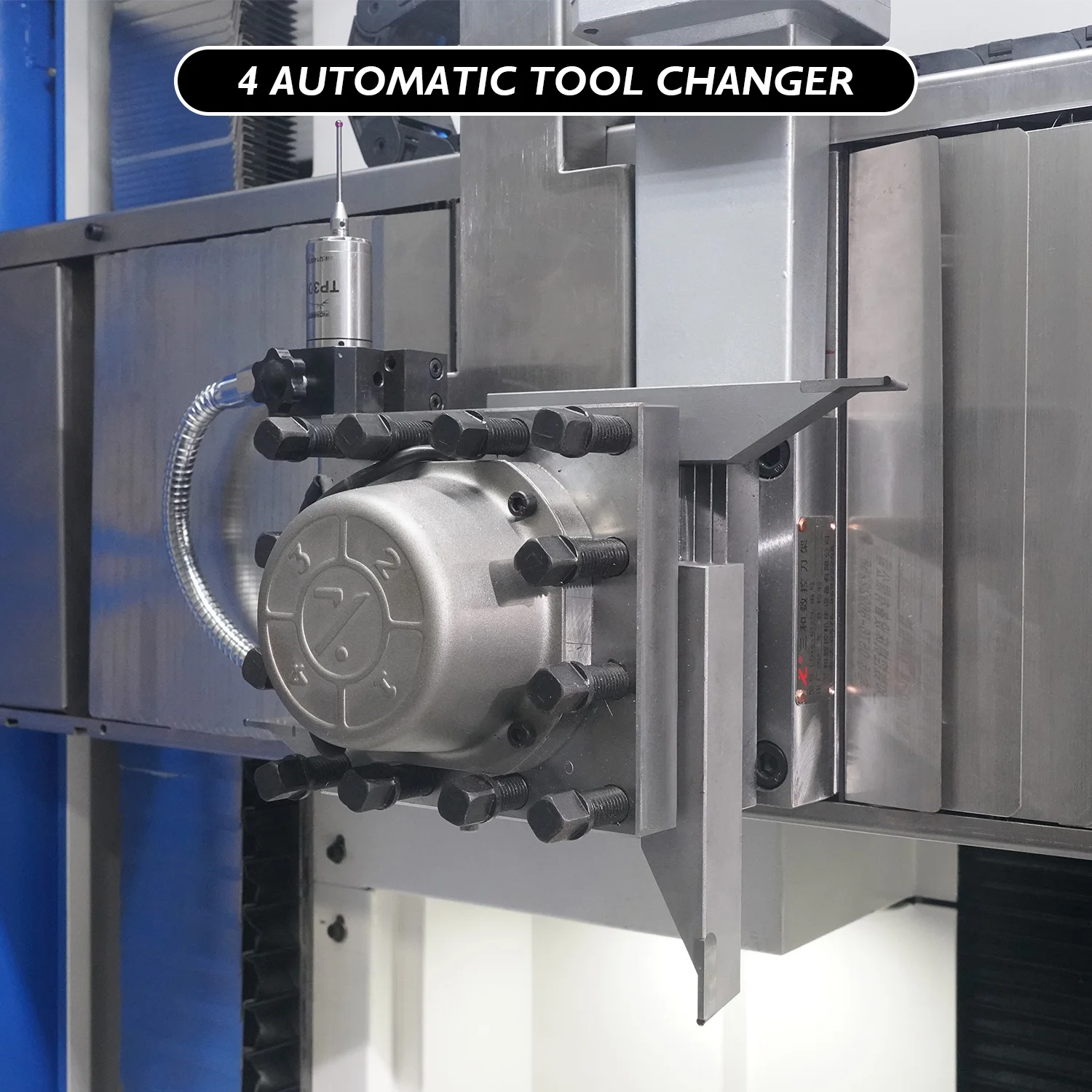

Tool changer

4 Station automatic tool changer

X/Z feed accuracy

0.001mm

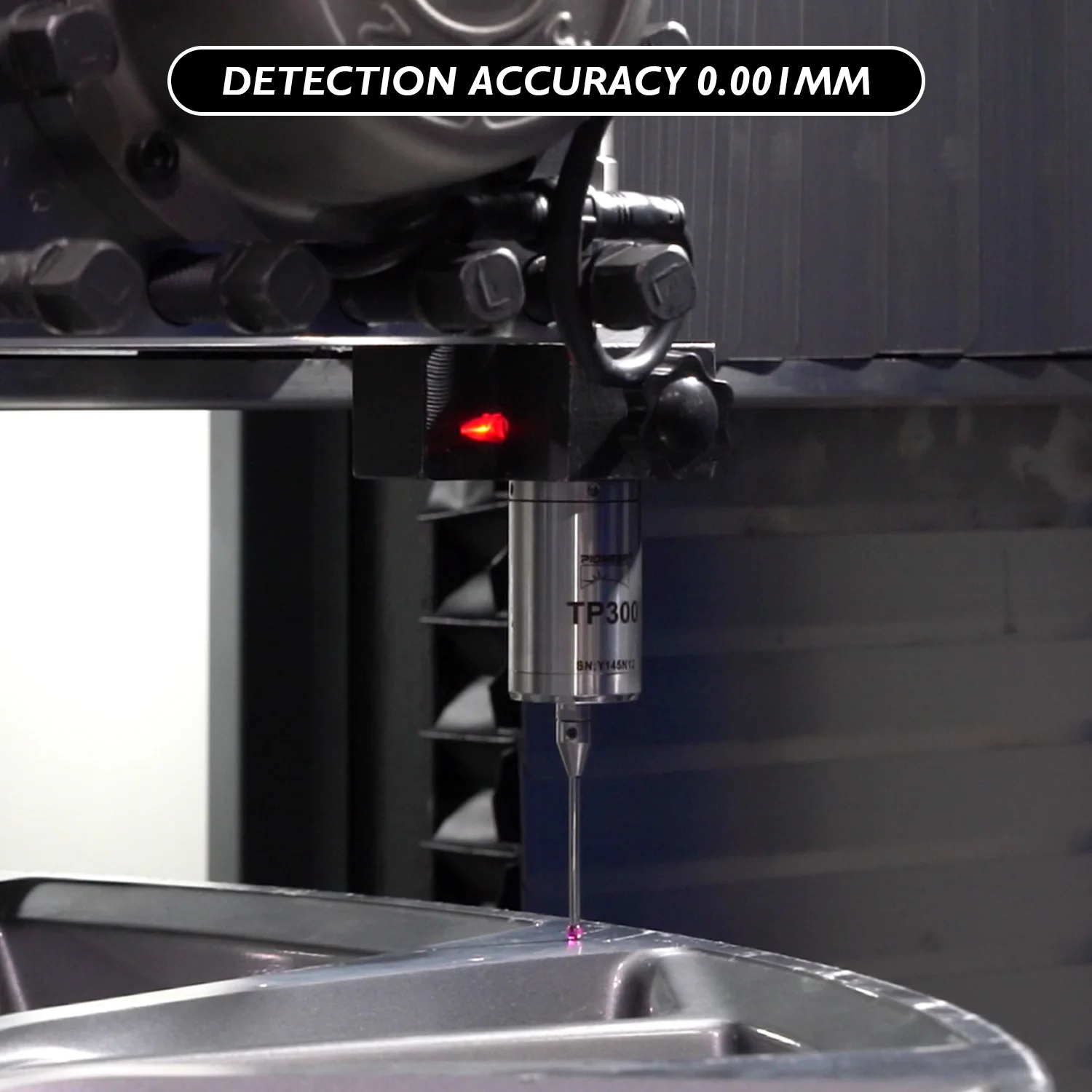

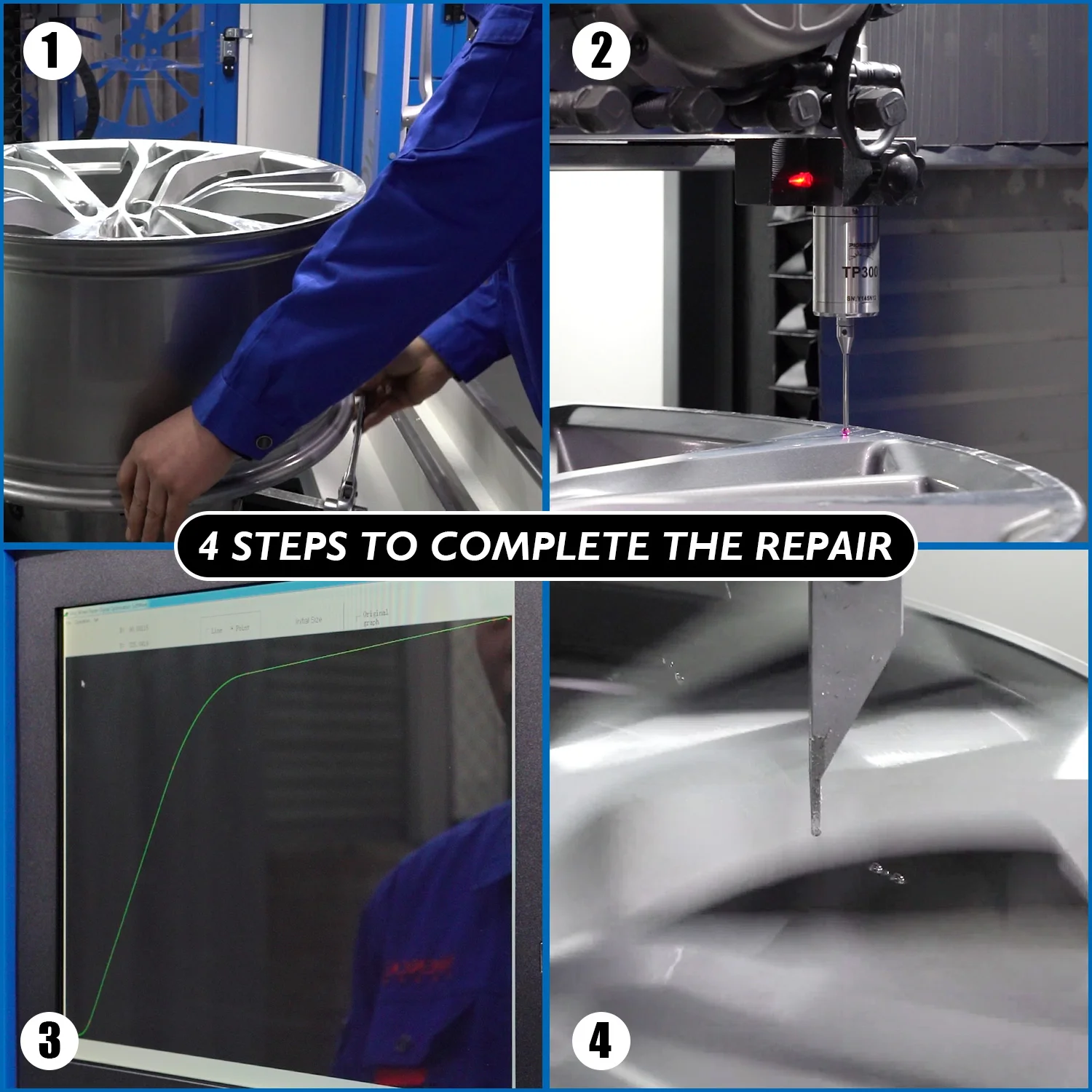

Wheel detection method

Ruby probe detection system

(optional laser detection system)

Detection accuracy

Ruby probe detection 0.001mm

Device Voltage/Frequency:

380V 3ph/ 50HZ

Customization for different voltages

Support

Net weight/ Gross Weight

1500KG/1650KG

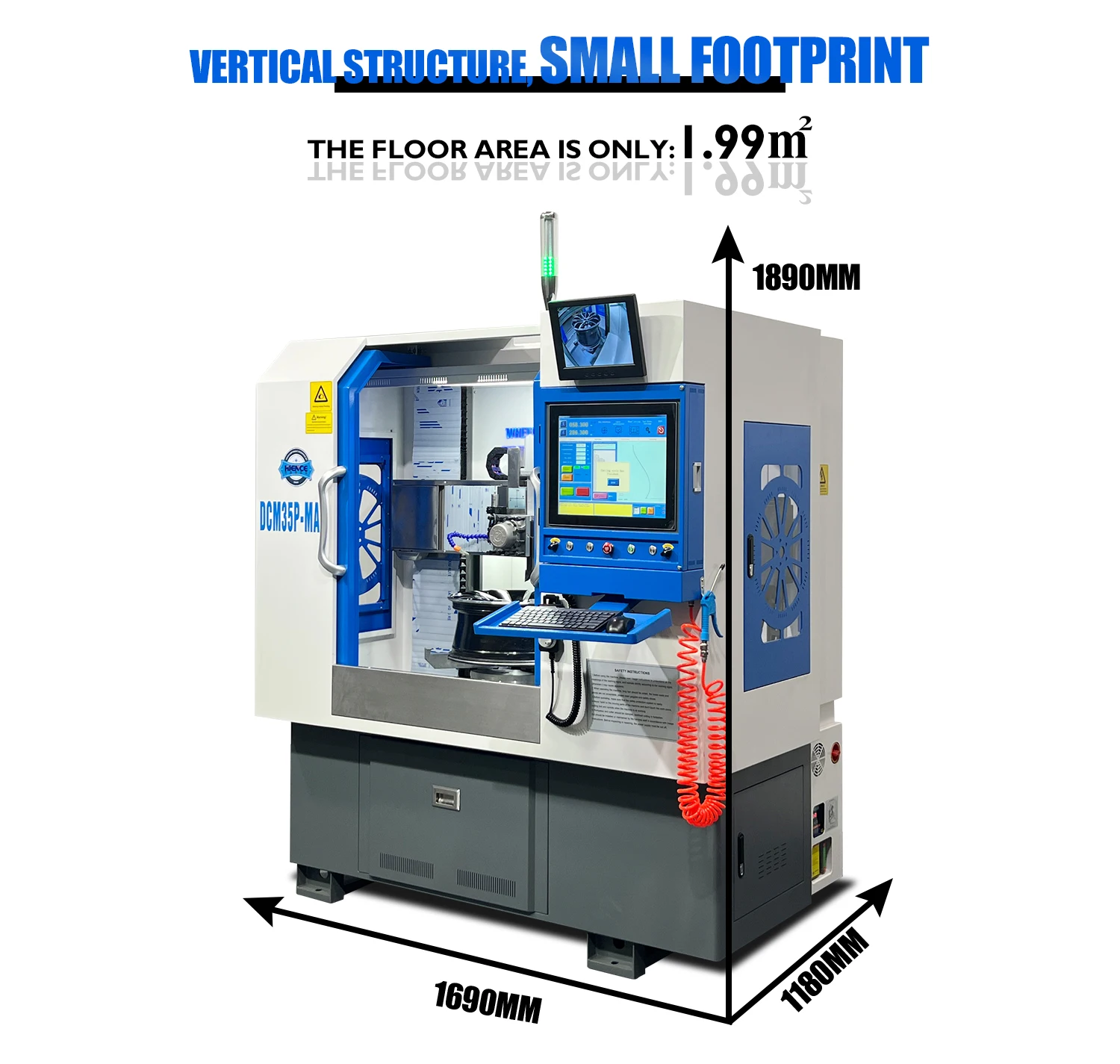

Machine size

1690×1180×1890mm
