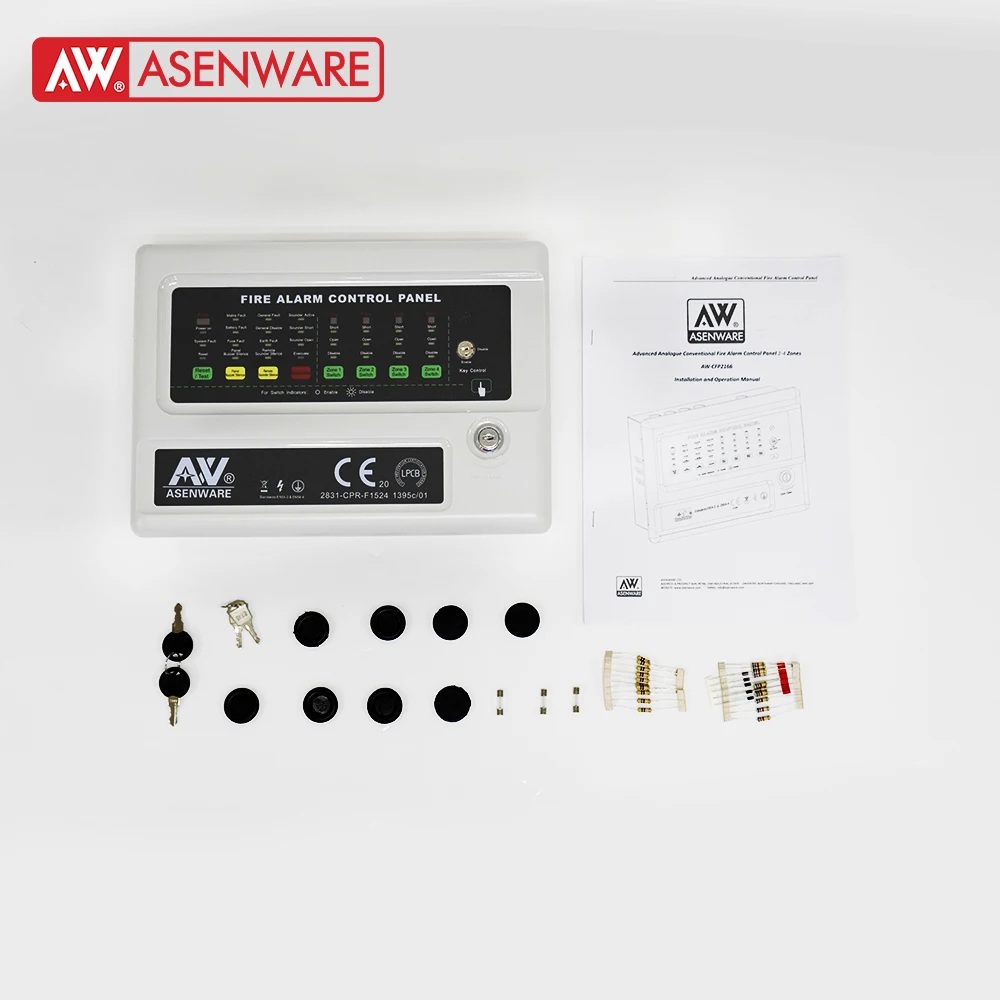

Asenware Fire Alarm system 2 zone Conventional smoke alarm Control panel
- Category: >>>
- Supplier: Zhongshan,Guta,Fire,Equipment,Technology,Co.,Ltd.
Share on:
Product Overview
Description
➷Product Description
Model | AW-CFP2166-2W/4W | ||||||
Main Voltage | 220V AC 50HZ/60HZ | ||||||
Batteries | 2*12V / 2.3Ah sealed lead acid gel, self-regulated | ||||||
Battery low-voltage protection | 21V | ||||||
Detectors connection allowed each zone | 20 detectors (except MCPs) | ||||||
Zone alarm current | 6mA minimum/ 27mA maximum | ||||||
Sounder output | 0.2A maximum | ||||||
Relay contacts rating | 1A @30VDC | ||||||
Loop output | 1 addressable horn strobe with transmitter each zone 20 wireless devices for each addressable horn strobe | ||||||
EOL resistor for zone and sounder outputs | 6.8K ohm 1W | ||||||
Environmental | Class A temperature range: -5 to 40°C (23~104°F) Humidity: 5 to 95% RH, non-condensing | ||||||
Fuse for AC Power | 1 A/ 250V glass tube fuse slow blow 5 X 20mm | ||||||
Fuse for DC Power | 1 A/ 250V glass tube fuse slow blow 5 X 20mm | ||||||
Terminal blocks rating | All terminals rated for 12 to18 AWG(0.75 to 2.5 mm²) | ||||||
➷Product Features
✔ Automatic power switchover | ||||||||
✔ 24V2.3Ah High-capacity batteries | ||||||||
✔ Fault supervision and notification | ||||||||
✔ 2 relay output circuits | ||||||||
✔ 1 sounder output circuit | ||||||||
✔ Sounders and panel buzzer silence | ||||||||
✔ Loop for wireless devices | ||||||||
✔ Meets all requirements of latest EN54 part 2 and EN54 part 4 | ||||||||
➷Projects for reference
➷Company Information
A whole fire safety provider and fire equipment manufacturer, established in 2005, driven by a commitment to sound operations, ongoing innovation, and o[en collaboration, we have set a competitive fire safety products line including：
*Fire alarm system （conventional and addressable);
*Fire extinguishing system ( FM200, gas release fire extinguishing system, water extinguishing system and fittings);
*Emergency light and system (conventional and addressable);
*Fire telephone and speakers system.
We always pay high attention to our quality and providing our customer better one-stop services, therefore our fire safety solution and our fire equipments have been sold to more than 100 countries.
*Fire alarm system （conventional and addressable);
*Fire extinguishing system ( FM200, gas release fire extinguishing system, water extinguishing system and fittings);
*Emergency light and system (conventional and addressable);
*Fire telephone and speakers system.
We always pay high attention to our quality and providing our customer better one-stop services, therefore our fire safety solution and our fire equipments have been sold to more than 100 countries.
➷Exhibition & Certification
Certification
FAQ
Q1:Can I have a sample order?
A:Yes,we welcome sample order to test and check quality.
Q2:What is the lead time?
A:Sample needs 1-3 days if in stock, mass product depends on the quantity of your goods.
Q3:How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL,UPS,FedEX or by Air. 3-5 days after payment received.
Q4:Do you guarantee for the products?
A:Yes,we offer one year guarantee for the products.
Q5:Is OEM service available?
A:Yes,we can design the products according to your request.
A:Yes,we welcome sample order to test and check quality.
Q2:What is the lead time?
A:Sample needs 1-3 days if in stock, mass product depends on the quantity of your goods.
Q3:How do you ship the goods and how long does it take arrive?
A:We usually ship by DHL,UPS,FedEX or by Air. 3-5 days after payment received.
Q4:Do you guarantee for the products?
A:Yes,we offer one year guarantee for the products.
Q5:Is OEM service available?
A:Yes,we can design the products according to your request.
