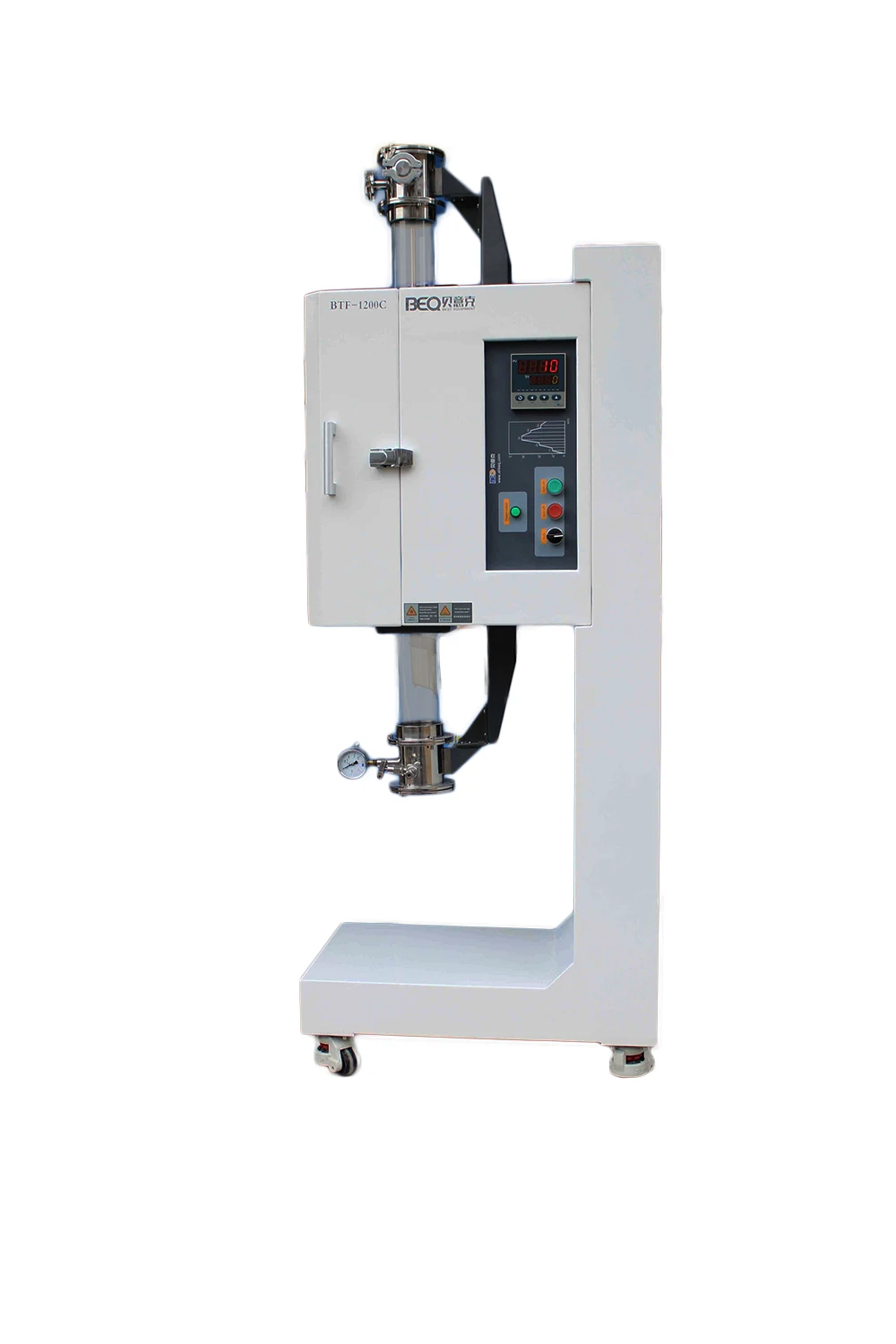

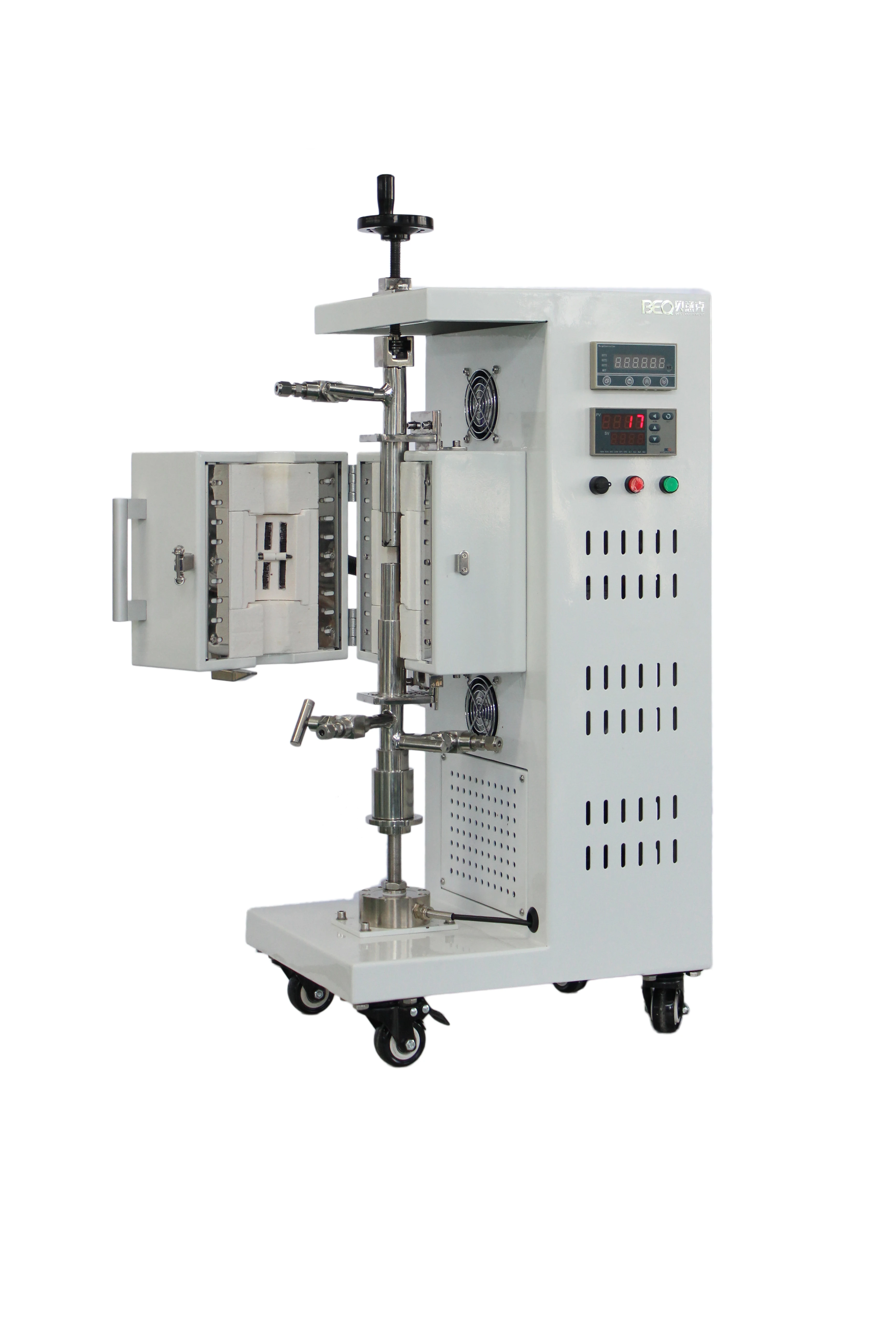

single heat zone vertical furnace

Power

· Furnace input 220V.  50/60 HZ

Working Temperature

· Max. Temperature: 1200 °C

· Continuous working temperature: 1100 °C

· Max. Heating Rate: 50°C /min

Heating Zone

· Heating Zone Length:     440mm

· Constant Temperature Zone:  200mm

Temperature Controller

· PID automatic control and auto-tune function.

· 30 programmable segments for precise thermal processing.

· Built-in protection for the over-heated and broken thermocouple.

· Temperature Accuracy: +/- 1 °C.

· K type thermocouple.

Heating Elements

· Fe-Cr-Al Alloy doped by Mo

Processing Tube

· QUARTZ TUBE:OD 50/60/80/100X1000MM

· Two fibrous ceramic tube blocks are included for blocking heat radiation generated from tube center. (Ceramic blocks must be fully inserted into the furnace chamber before heating).

Vacuum Flange

·  KF25 quick clamp flange

Vacuum Pressure

· 10^-1 pa can be achieved by mechanical pump

· 10^-4 pa can be reached by molecular pump

Dimensions

590X380X500mm(L*W*H without tube & flange)

Net weigh

60kgs

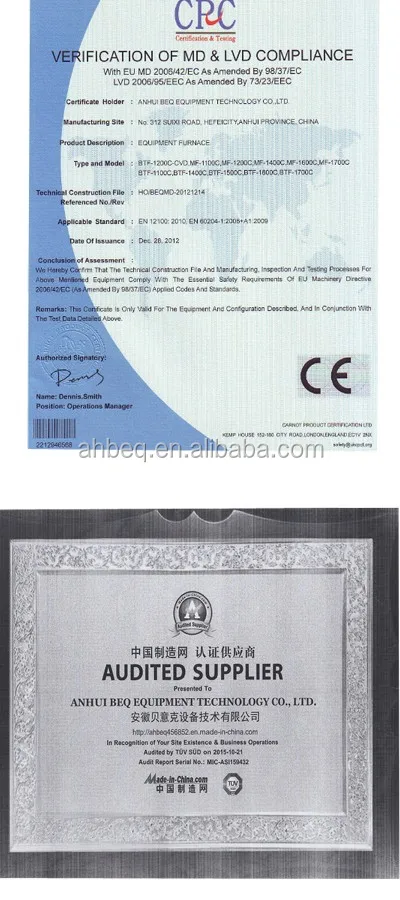

Compliance

  CE certified
