Frontlight 4.2 inch epaper display backlit 4 Grayscale, GDEW042T2 FL
- Category: OLED\/E-Paper Module >>>
- Supplier: Dalian Diamo Electronic Technology Co. Ltd.
Share on (1600336259130):
Product Overview
Description
Product Overview

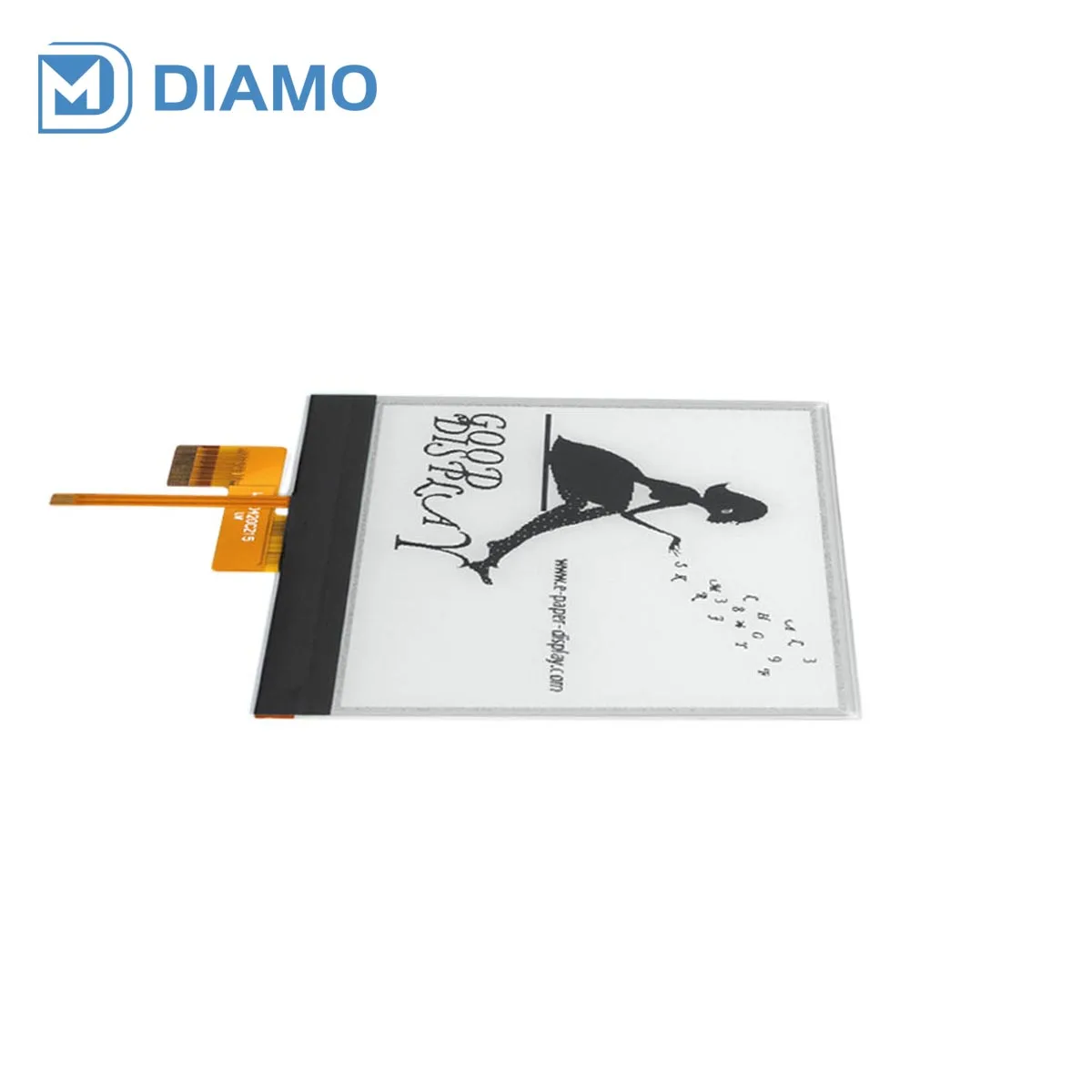

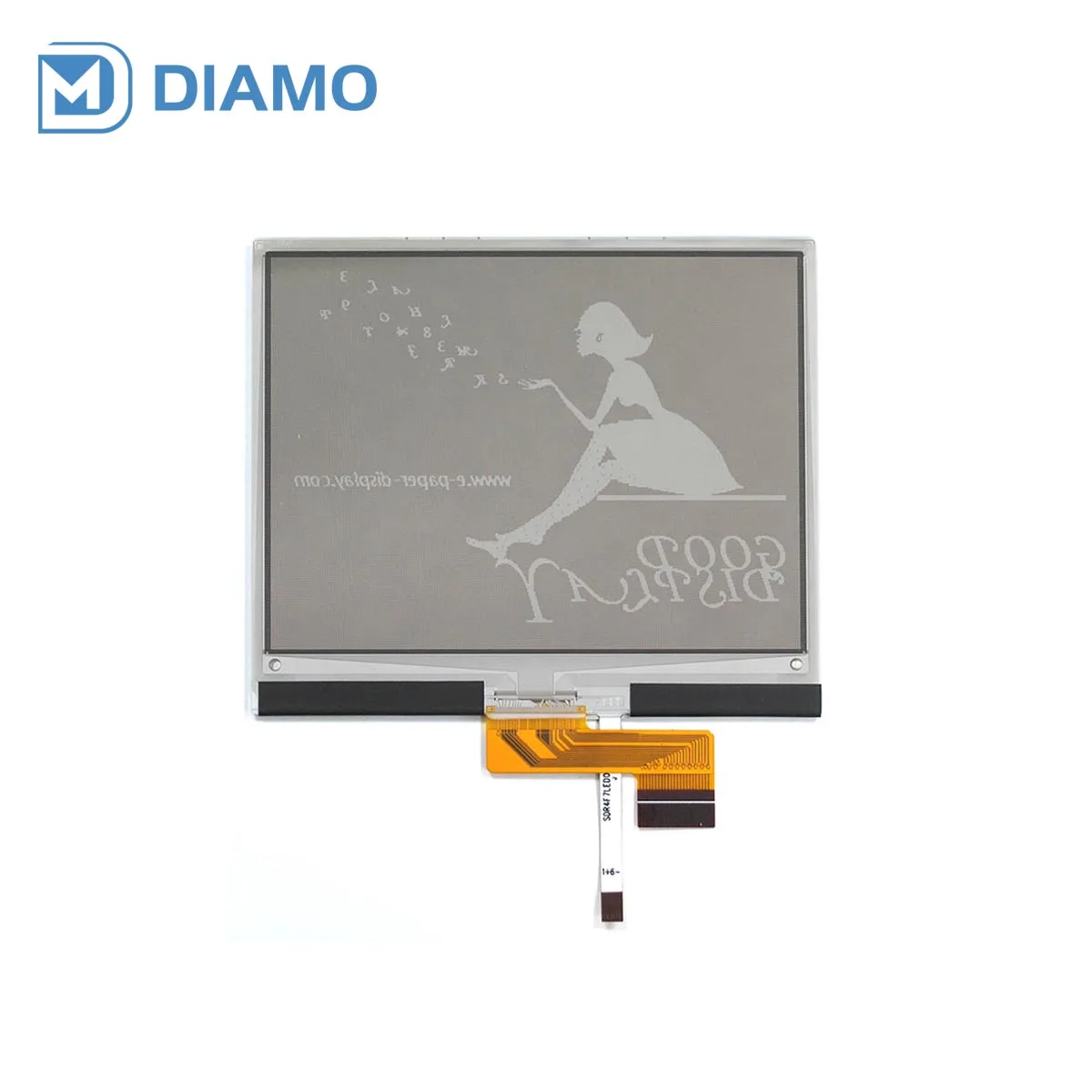

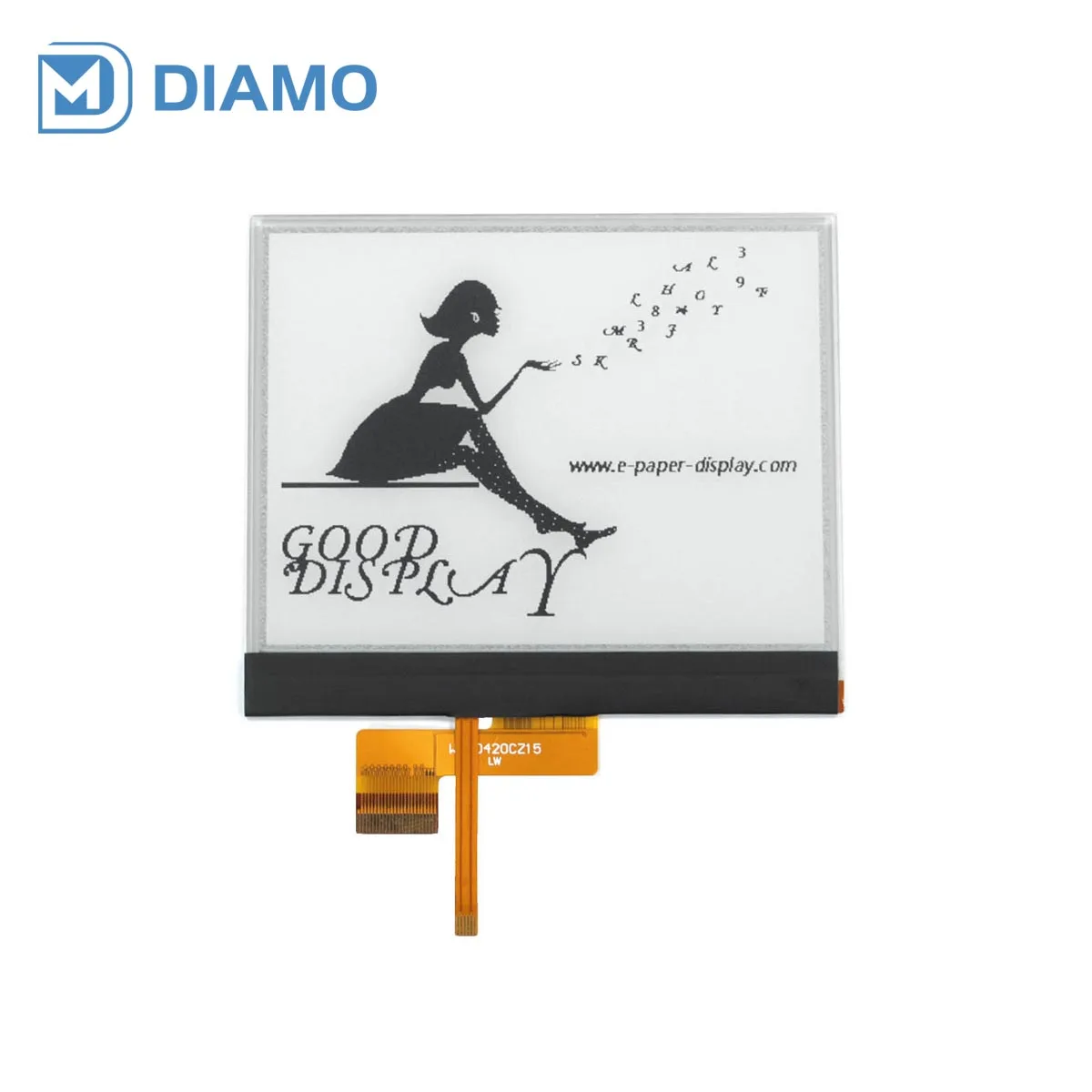

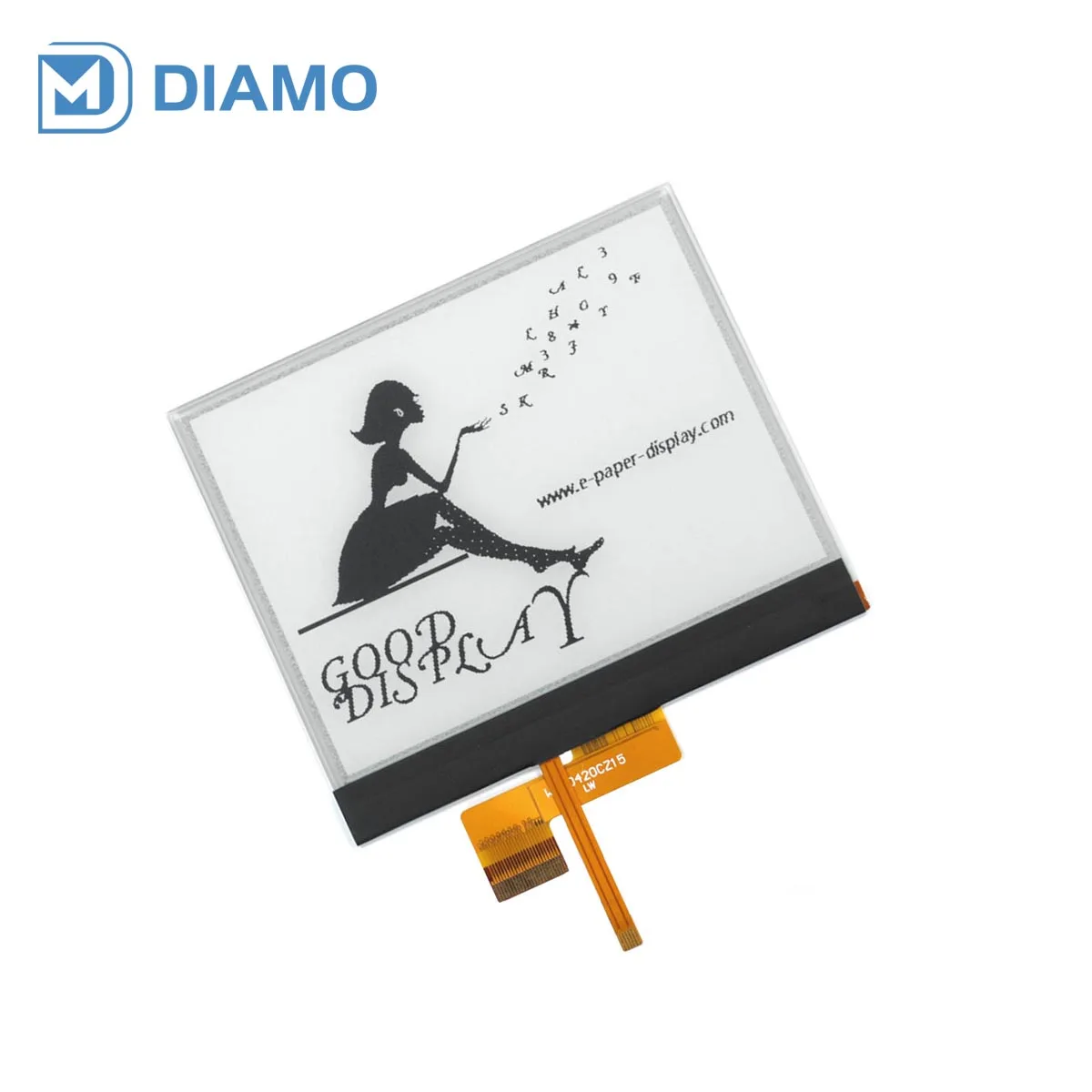

4.2 inch eink display with front light backlit GDEW042T2-FL
4.2 inch e-paper screen with, 400x300 resolution, SPI interface, and the display is capable to display images with black and white content. Support 4 Grayscale.
This e-paper display GDEW042T2-FL is perfect for dark environment. And is a very good choice for low power devices powered by solar or batteries, or the products that require slow updates or semi-static content such as digital price tags, electronic shelf labels or signage.
Use our free e-paper software to prepare your bitmap image for this display.
● 400x300 resolution
● With frontlight. If you need any other accessories, such as touch screen, please contact us
● With frontlight. If you need any other accessories, such as touch screen, please contact us
● Support 4 Grayscale
● I2C Signal Master Interface to read external temperature sensor
● I2C Signal Master Interface to read external temperature sensor

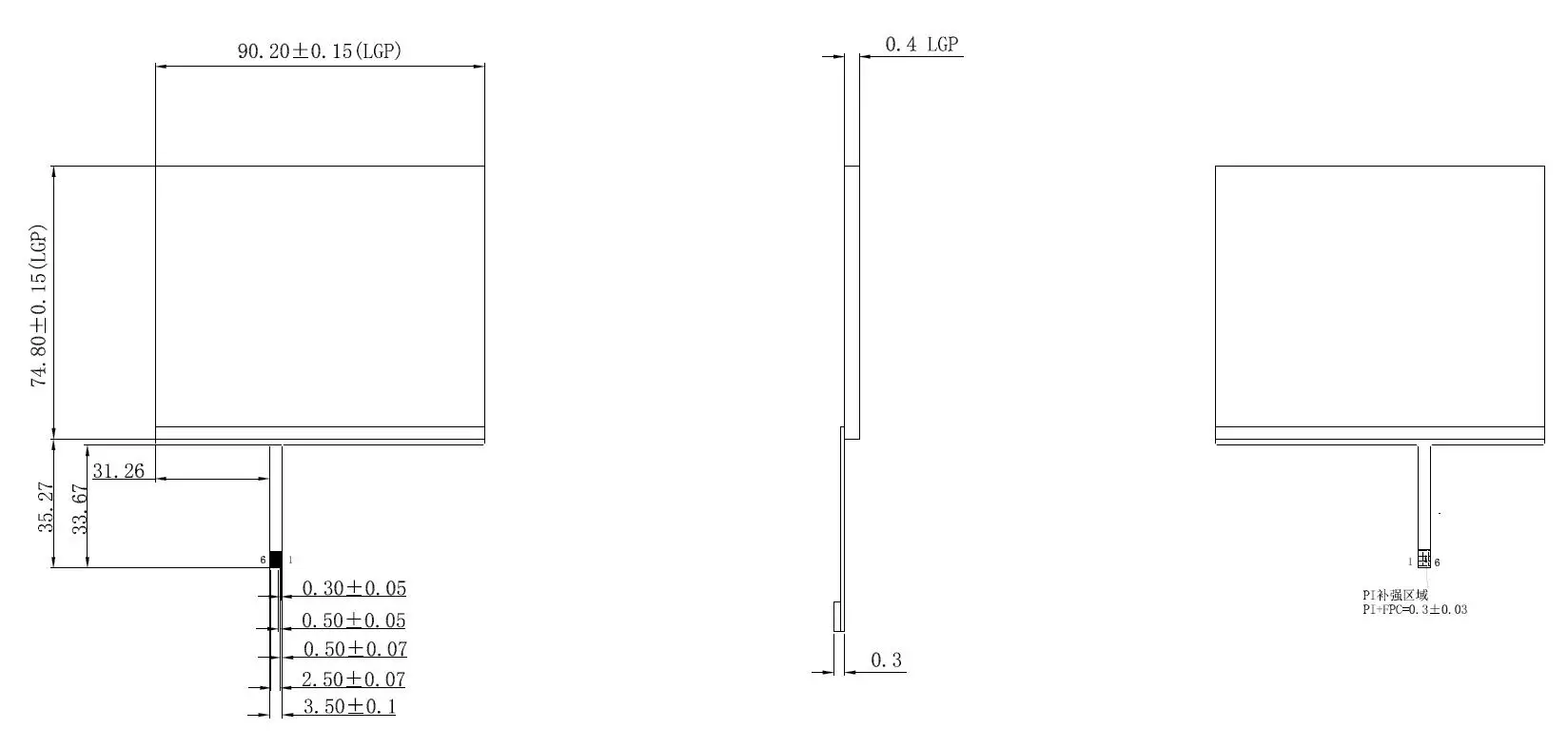

Front elevation
Side elevation
Back elevation
PRODUCT SPECIFICATIONS
PART NUMBER | GDEW042T2-FL |
TYPE | Dot Matrix |
IC | UC8176 |
RESOLUTION | 400x300 |
PIXEL PITCH(mm) | 0.212x0.212 |
ACTIVE SIZE(mm) | 84.8x63.6 |
OPERATING TEMP. | 0℃~50℃ |
STORAGE TEMP. | -25℃~70℃ |
CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 4 |
COLOR | Black,White |
INTERFACE | SPI |
FULL REFRESH(s) | 3 |
FRONT LIGHT | Optional |
Drawing / Structure
PRODUCT CONFIGURATION
4.2'' E-paper GDEW042T2 * 1
4.2 inch Front light * 1
24 Pin FPC * 1 & 6 Pin FPC * 1
