Air Cooled Screw Water Chiller Liquid Industrial Cooling System Air Cooled Screw Water Chiller
- Category: >>>
- Supplier: Shandong Entelai Air Conditioning Equipment Co. Ltd.
Share on (1600336300931):
Product Overview
Description
Chillers are divided into air-cooled chillers and water-cooled chillers
Air cooled chillers include air-cooled screw chillers and air-cooled scroll module chillers
The water-cooled chiller includes a water-cooled screw chiller and a water-cooled scroll module chiller

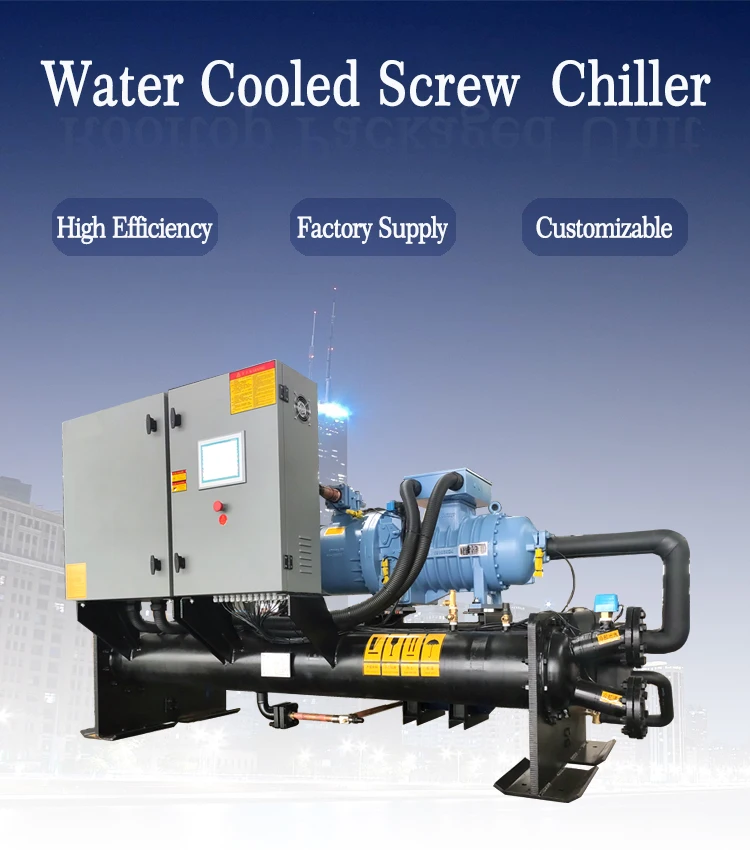

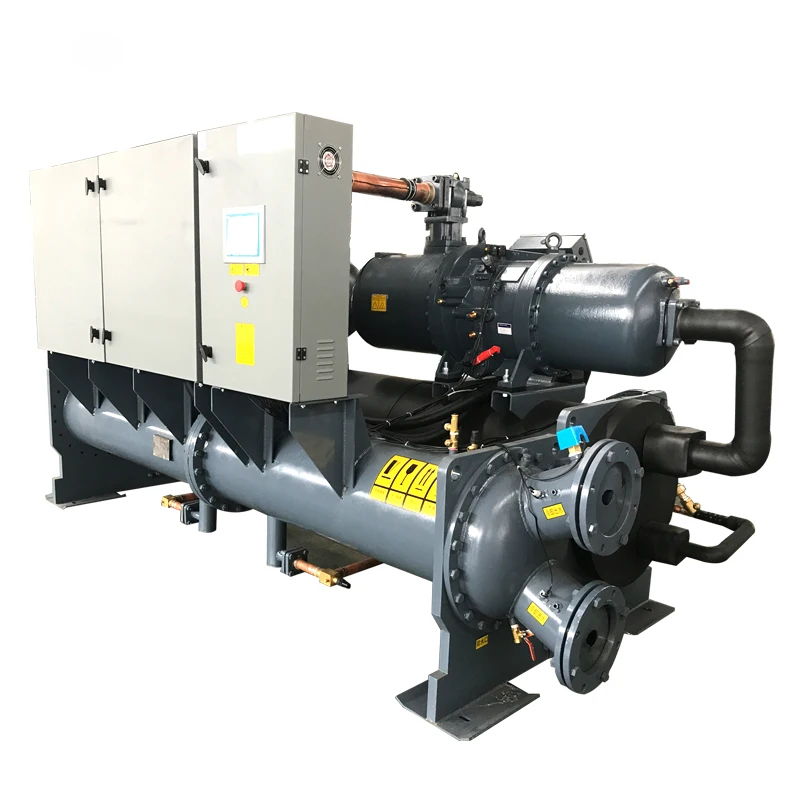

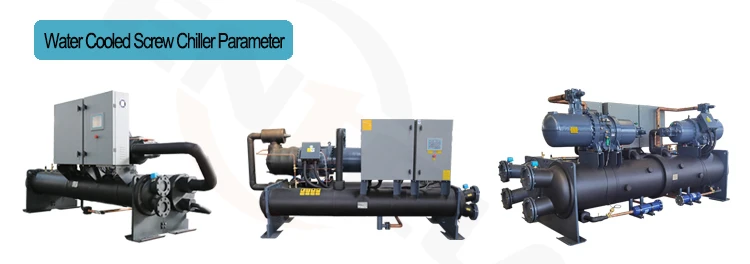

This page shows the water-cooled screw chiller. To learn more about other styles, click the link below
1,Applicable place: hotel, shopping mall, office building, factory and other places.
2,Product features:

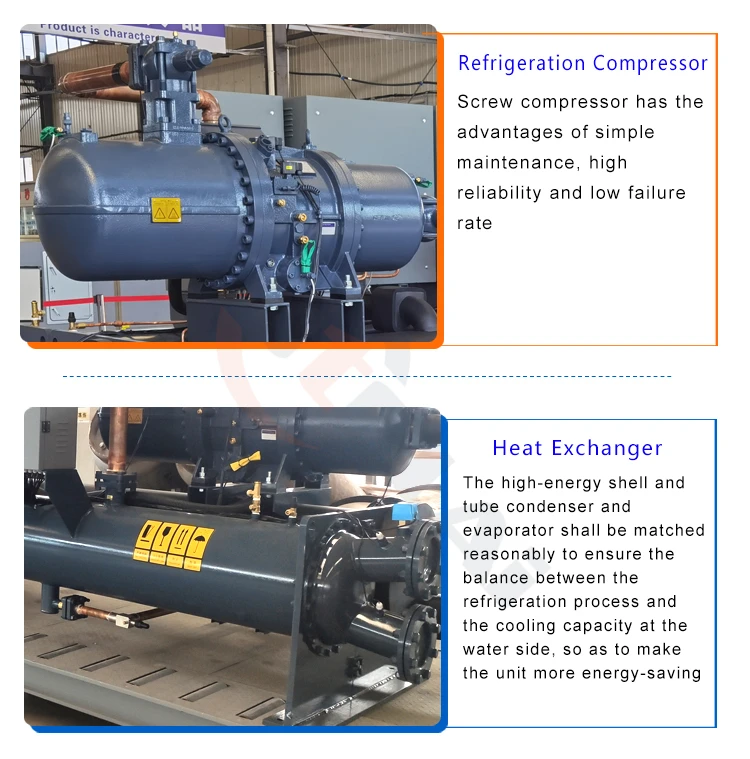

It adopts advanced structural design, with high energy efficiency ratio and small volume
Reasonable system matching degree, it has capacity adjustment and flexible start and stop functions, which is convenient and energy-saving.

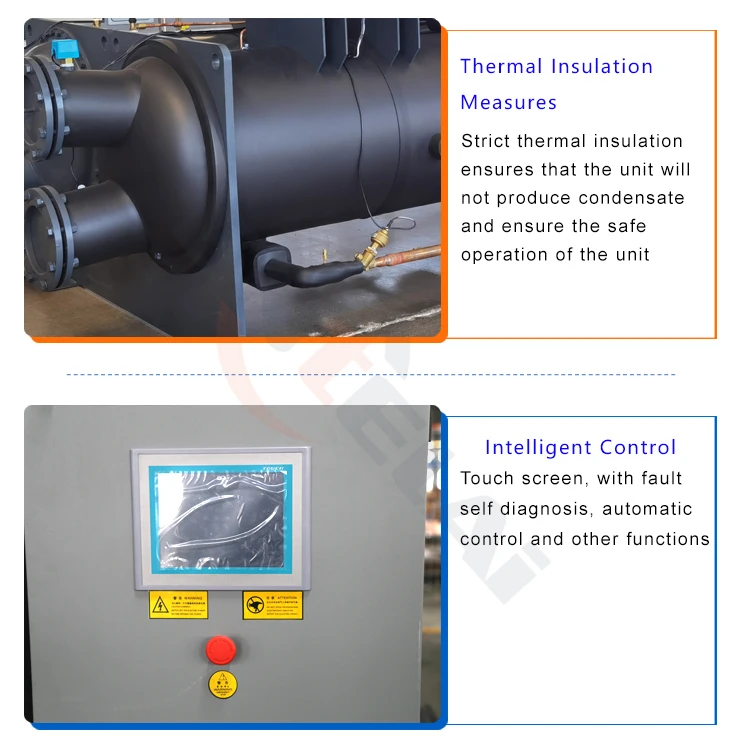

It has a large touch screen, powerful control function, and it also has functions such as troubleshooting.
These devices can operate safely and take a variety of safety precautions.
Product Parameters

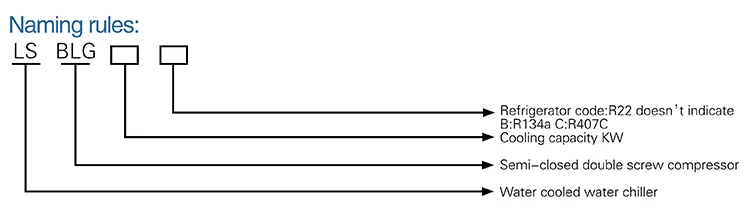

| Model | Company | LSBLG195Z | LSBLG210Z | LSBLG260Z | LSBLG280Z | LSBLG370ZP | LSBLG430ZP | LSBLG470ZP | LSBLG510ZP | LSBLG610ZP | LSBLG640ZP | |
| Refrigeration Capacity | kW | 195 | 208 | 259 | 279 | 367 | 432 | 465 | 505 | 614 | 642 | |
| Power Supply | - | 380V3Ph50Hz | ||||||||||
| Energy Control Range | % | 0,25,50,75,100 | 0,25,50,75,100 | |||||||||
| Compressor | Compressor Type | Semi-Closed Screw | ||||||||||
| Refrigeration Input Power | kW | 38 | 41.9 | 50.2 | 54.8 | 62.8 | 72.8 | 79 | 87.1 | 104.3 | 106.7 | |
| Cryogen | Type | - | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
| Addition Amount | kg | 37 | 40 | 50 | 54 | 99 | 116 | 125 | 136 | 165 | 176 | |
| Evaporator | Type | - | Shell And Tube Heat Exchanger | |||||||||
| Pipe Diameter | DN | 80 | 80 | 100 | 100 | 100 | 100 | 100 | 125 | 125 | 125 | |
| Chilled Water Flow | m3/h | 33.5 | 35.8 | 44.5 | 48.0 | 63.2 | 74.2 | 80.0 | 86.9 | 105.6 | 110.4 | |
| Condenser | Type | - | Shell And Tube Heat Exchanger | |||||||||
| Pipe Diameter | DN | 80 | 80 | 100 | 100 | 100 | 100 | 100 | 125 | 125 | 125 | |
| cooling Water Flow | m3/h | 40.0 | 43.1 | 53.2 | 57.4 | 74.0 | 86.8 | 93.6 | 101.9 | 123.5 | 128.8 | |
| Size | Length | mm | 2960 | 2960 | 2960 | 2960 | 3009 | 3009 | 3009 | 3009 | 3009 | 3009 |
| Width | mm | 710 | 710 | 710 | 710 | 1265 | 1265 | 1265 | 1265 | 1265 | 1265 | |
| Height | mm | 1430 | 1430 | 1530 | 1530 | 1675 | 1675 | 1675 | 1727 | 1727 | 1727 | |
| Net Weight | kg | 1530 | 1680 | 1860 | 2060 | 2370 | 2620 | 2780 | 2940 | 3150 | 3250 | |

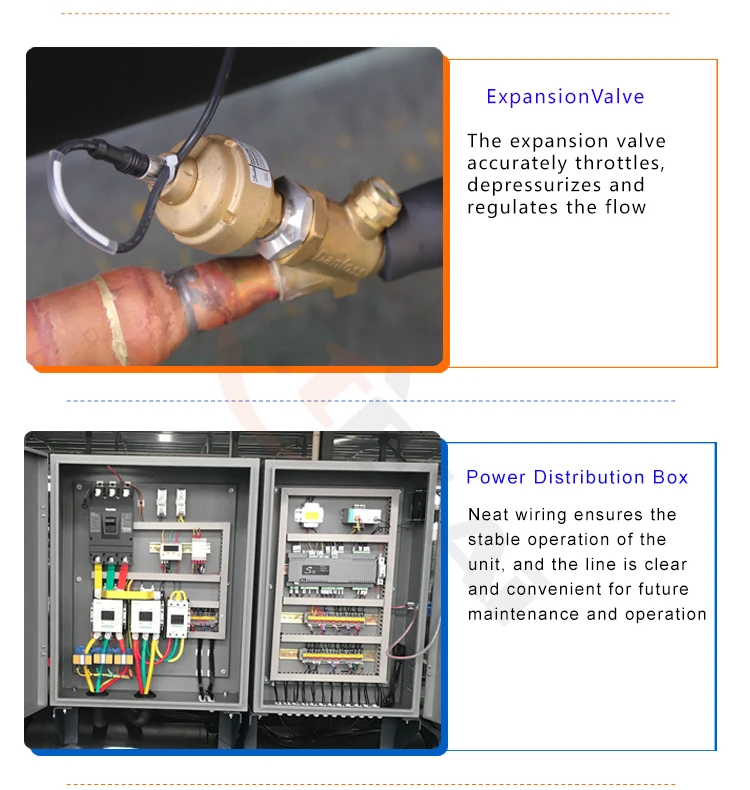

Product Details

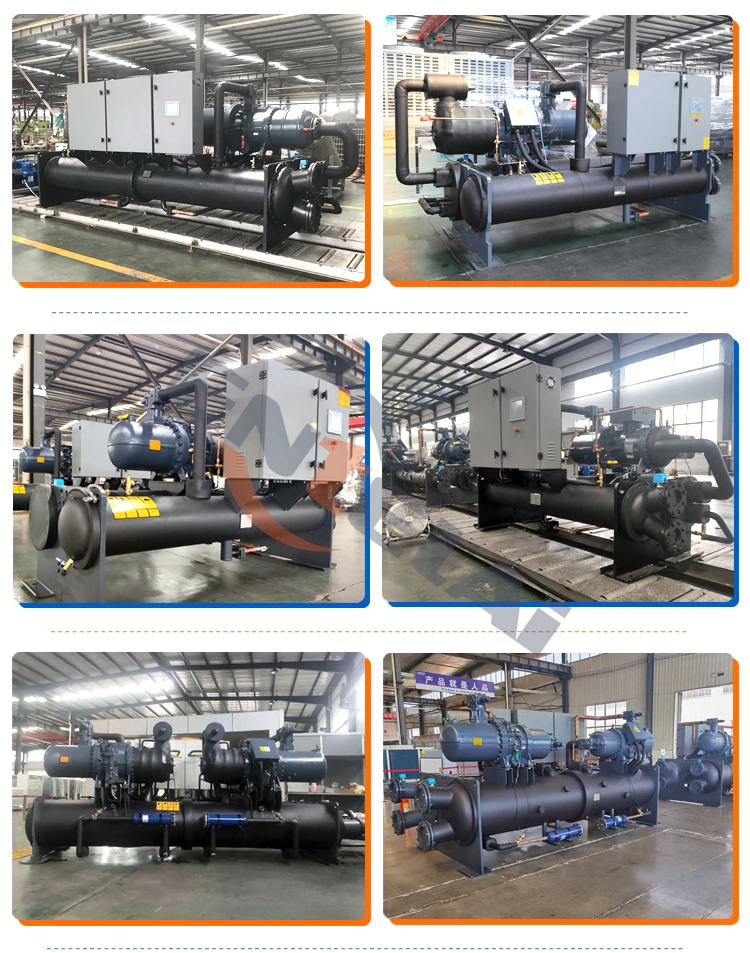

Finished Product
Related Products
Product Accessories
Company Information
Packaging & Shipping
FAQ
1. Product warranty: Usually, our product warranty is 18 months after leaving factory or 12 months after installation.
2. Delivery time: It takes 2 weeks for air handling unit and fan coil unit, and 4 weeks for the chillers, rooftop packaged unit etc.It will depend on the product quantity. Our products are sold according to order. This is negotiable.
3. Installation: If the project needs our installation guidance, we can send our engineer and translator. The expenses shall be borne by the project owner.
4, Terms of payment:L/C or T/T.This is negotiable.
5, About the sample: if you need, we can give you delivery, you need to pay for this cost.
6,The product introduction on this page is the general products of the company, and the technology and accessories are subject to change without notice, subject to communication
