Product Overview
Description
Chillers are divided into air-cooled chillers and water-cooled chillers
Air cooled chillers include air-cooled screw chillers and air-cooled scroll module chillers
The water-cooled chiller includes a water-cooled screw chiller and a water-cooled scroll module chiller

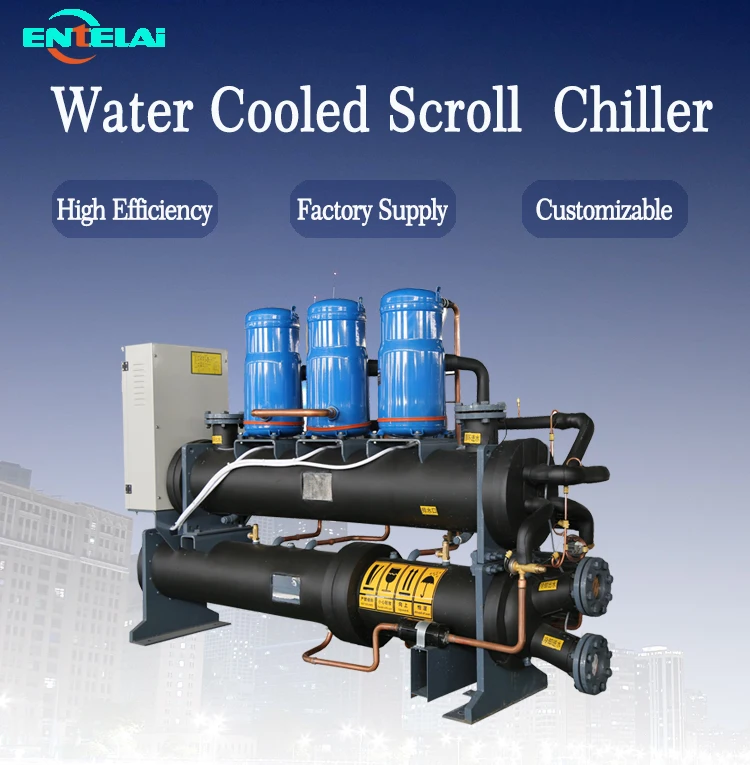

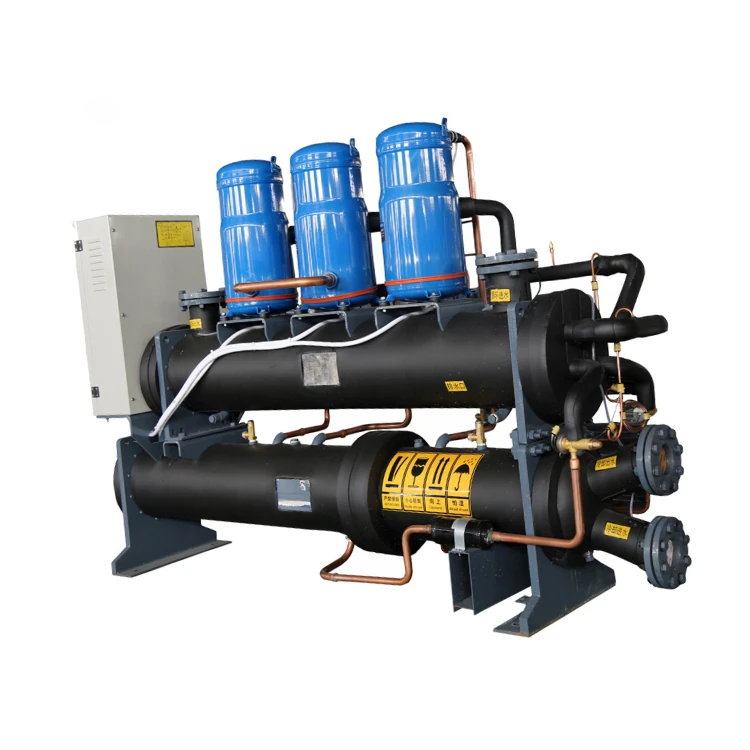

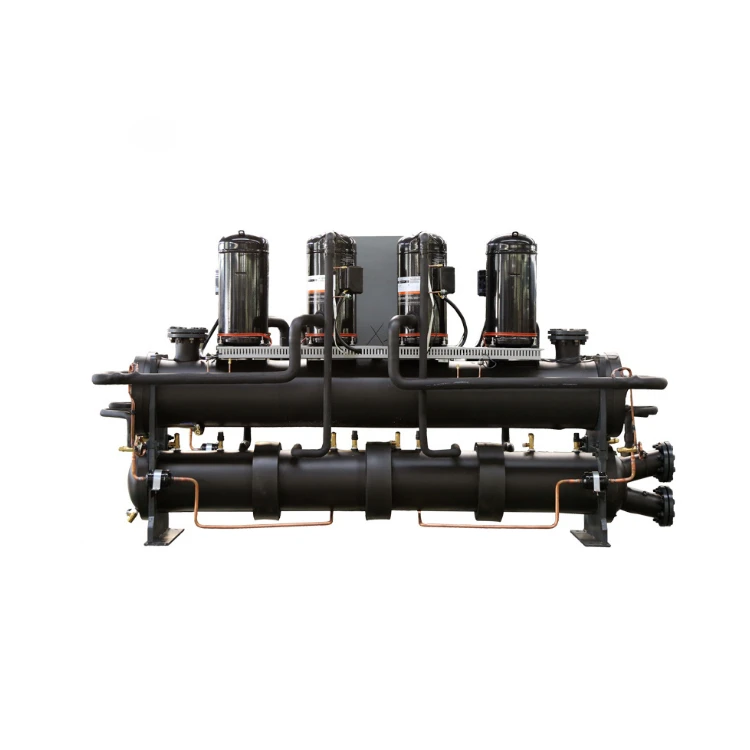

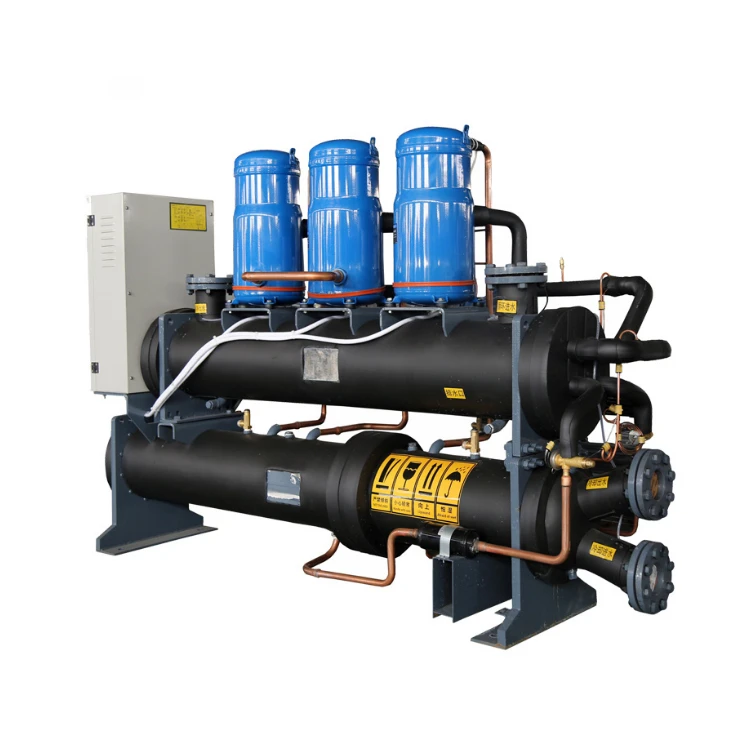

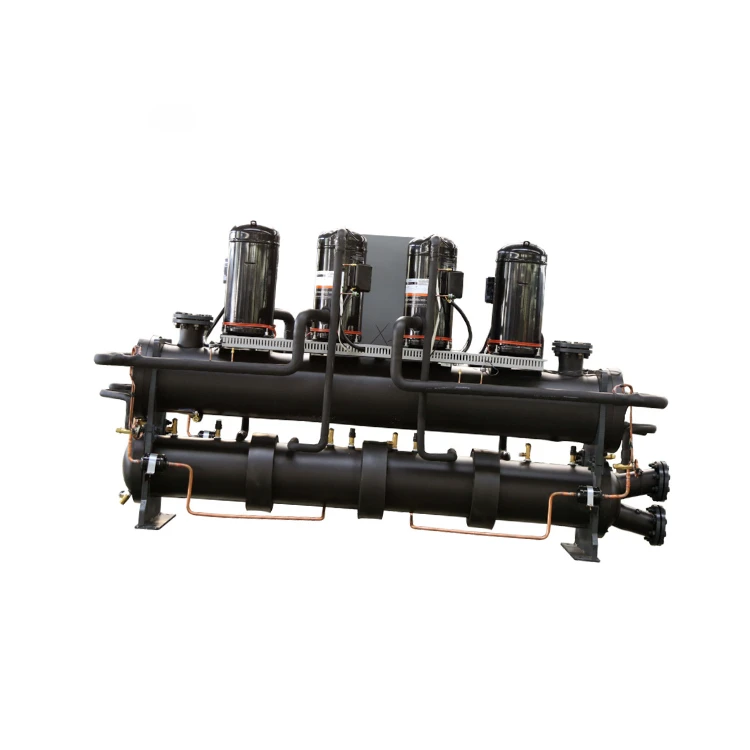

This page shows the water-cooled scroll chiller. To learn more about other styles, click the link below
1,Applicable place: hotel, villa, office building, station, factory, supermarkets, hospital, bank, farm and other medium and large places
2,Characteristics of the products: The products are energy efficient and environmentally friendly by using the renewable heat source. It is convenient to transport and install. It works quietly. The units capacity can be enlarged optionally. The units can be combined freely according to the capacity, which exerts remarkable influence on environment and economy. The products also have a large application area
Product Parameters

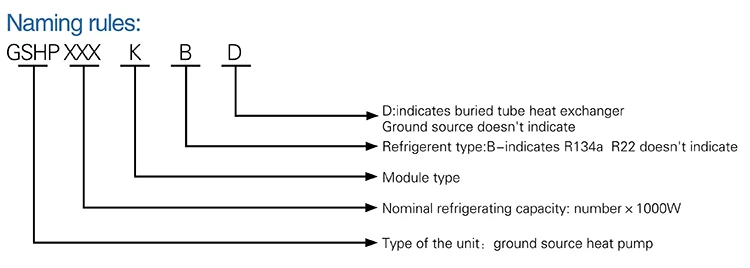

| Model | Company | GSHP90K | GSHP130K | GSHP160K | GSHP180K | GSHP280K | GSHP360K | |
| Refrigeration Capacity | kW | 90 | 130 | 160 | 175 | 270 | 360 | |
| Power Supply | - | 380V3Ph50Hz | ||||||
| Compressor | Compressor Type | Scroll | ||||||
| Quantity | 2 | 3 | 4 | 2 | 3 | 4 | ||
| Refrigeration Input Power | kW | 16.7 | 25 | 33 | 33 | 49 | 66 | |
| Cryogen | Type | - | R22 | R410a | ||||
| Addition Amount | kg | 16 | 24 | 32 | 32 | 48 | 64 | |
| Evaporator | Type | - | Shell And Tube Heat Exchanger | |||||
| Water side resistance | kPa | 50 | 56 | 58 | 58 | 60 | 60 | |
| Pipe Diameter | DN | 50 | 65 | 65 | 80 | 80 | 100 | |
| Chilled Water Flow | m3/h | 15 | 22.3 | 27.5 | 30 | 46 | 62 | |
| Condenser | Type | - | Shell And Tube Heat Exchanger | |||||
| Water side resistance | kPa | 40 | 45 | 50 | 52 | 55 | 55 | |
| Pipe Diameter | DN | 50 | 65 | 65 | 80 | 80 | 100 | |
| cooling Water Flow | m3/h | 19 | 28 | 34 | 43 | 58 | 77 | |
| Size | Length | mm | 1750 | 2500 | 2735 | 2300 | 2750 | 3200 |
| Width | mm | 800 | 850 | 900 | 900 | 900 | 1000 | |
| Height | mm | 1400 | 1450 | 1450 | 1550 | 1600 | 1800 | |
| Net Weight | kg | 680 | 830 | 1080 | 1150 | 1600 | 2000 | |
| Refrigeration condition:use inlet12℃ effluent7℃;Cold source inlet30℃ effluent35℃ | ||||||||
| The company reserves the right to explain the parameters and shapes of the above devices without prior notice | ||||||||

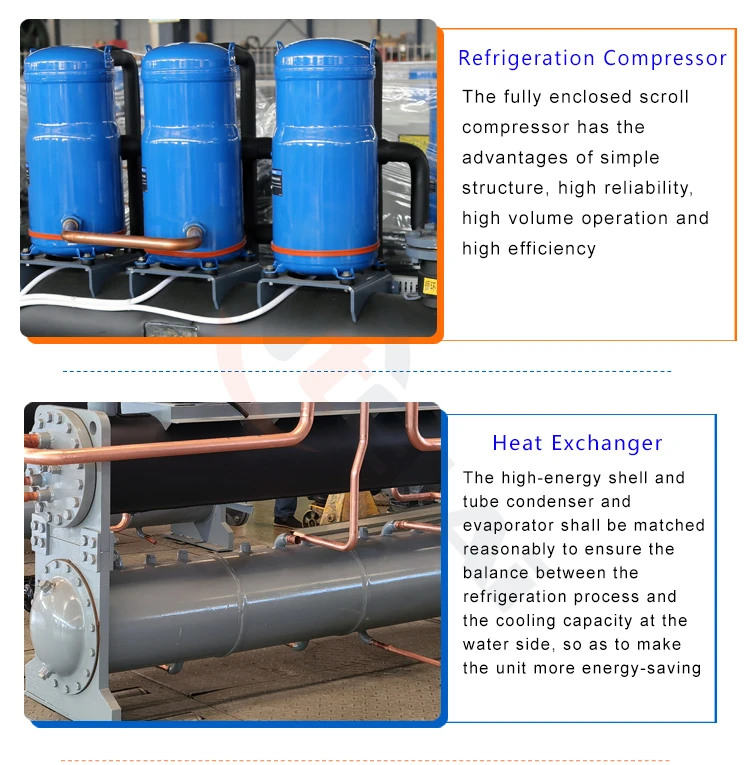

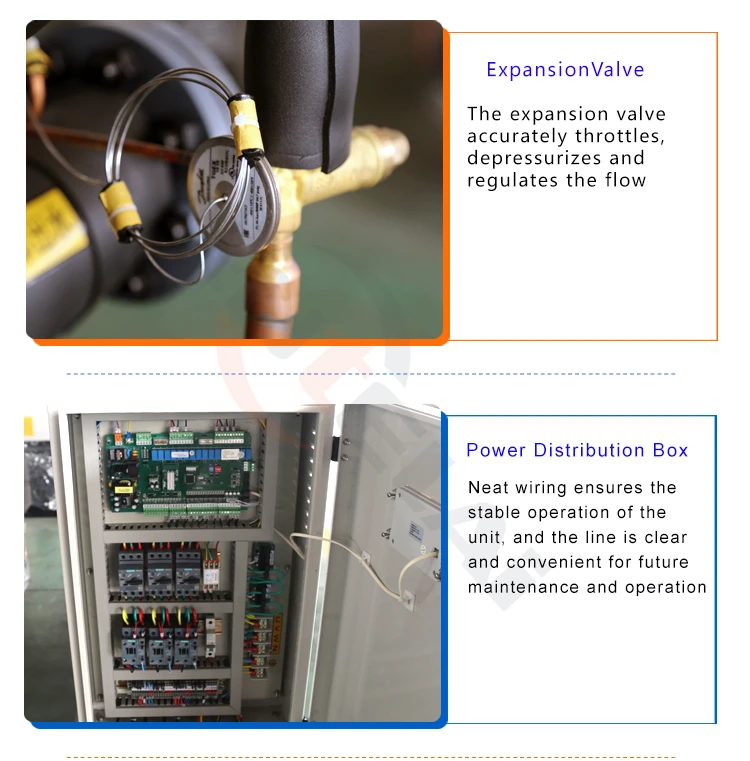

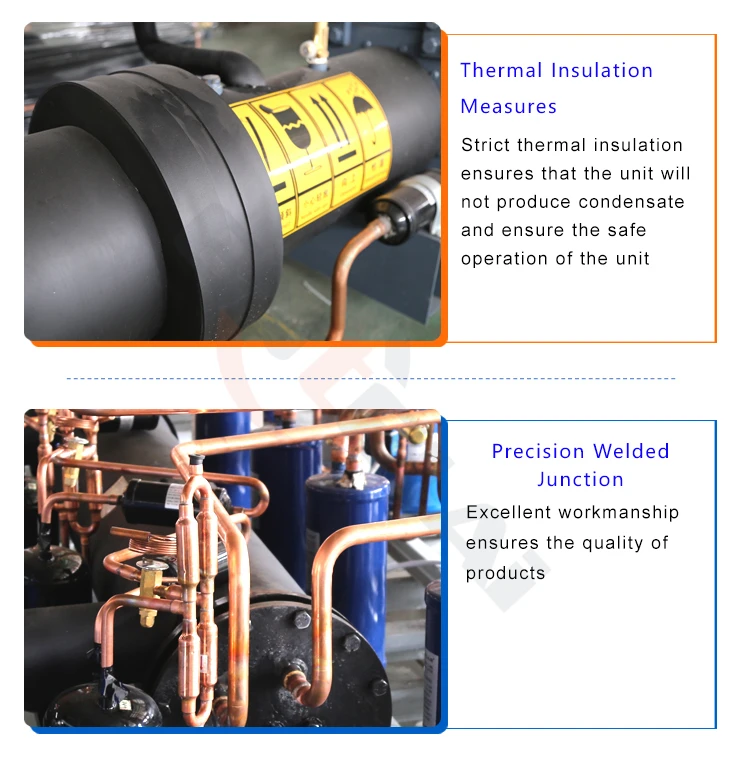

Product Details

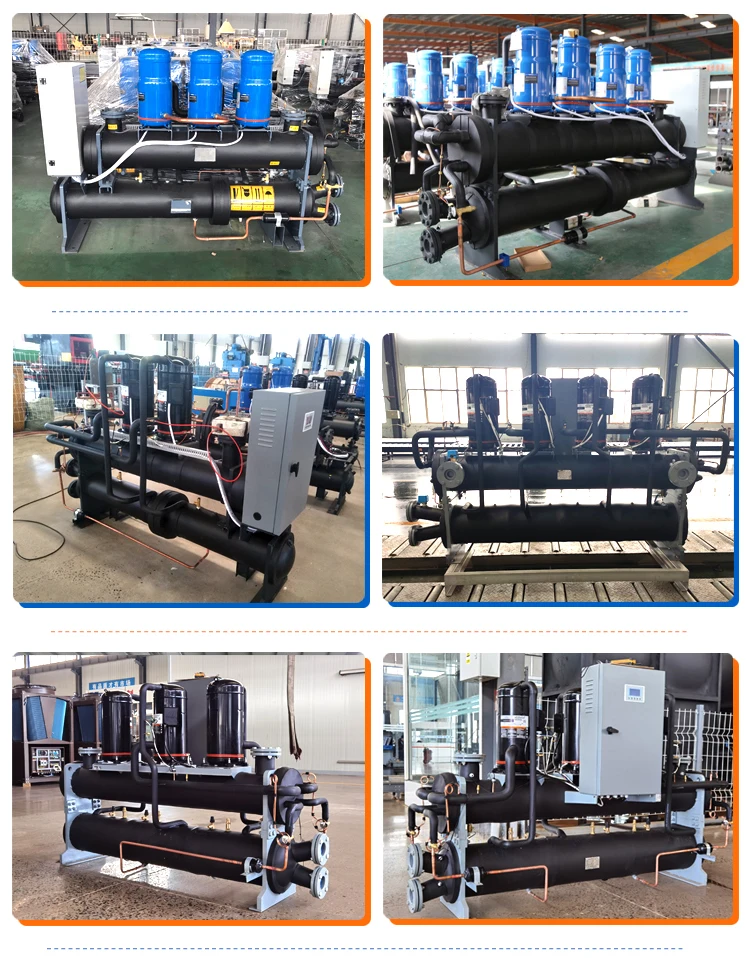

Finished Product
Related Products
Product Accessories
Company Information
Packaging & Shipping
FAQ
1. Product warranty: Usually, our product warranty is 18 months after leaving factory or 12 months after installation.
2. Delivery time: It takes 2 weeks for air handling unit and fan coil unit, and 4 weeks for the chillers, rooftop packaged unit etc.It will depend on the product quantity. Our products are sold according to order. This is negotiable.
3. Installation: If the project needs our installation guidance, we can send our engineer and translator. The expenses shall be borne by the project owner.
4, Terms of payment:L/C or T/T.This is negotiable.
5, About the sample: if you need, we can give you delivery, you need to pay for this cost.
6,The product introduction on this page is the general products of the company, and the technology and accessories are subject to change without notice, subject to communication
