High Quality 3W5W7W9W12W LED Double Color WW3000K & CW6000K Dimmable LED Module Light Board For Smart Lighting

7W LED double color temperature module light board 65mm diameter with 5730SMD Epistar chip

Specifications :

Type: LED light board

LED type :5730SMD
Power: 3W 5W 7W 9W 12W

Voltage :

3W    9-12V  ;

5W     15-18V

7W     21-25V

9W     27-32V

12W   36-42V

Dimension :

3W   Φ40mm

5W   Φ50mm

7W   Φ65mm

9W   Φ85mm

12W   Φ85mm

Color : Warm white & cold white
Color temperature : 3000-3200K & 6000-6500K
Luminous efficacy: 100-110LM/W
Chip brand: Epistar

Color rendering index:>72

Stent material : Aluminum PCB

Beam Angle:120 degree

Input voltage : 21-24V

Current:300mA
Life:>50000Hr

Product feature :

1. Integrated IC technology, no electrolytic capacitors and transformers. Long life
2. Products are small, allowing a more flexible and more creative lighting design
3. high power factor (> 0.90), low total harmonic distortion (<20%)
4. high power conversion efficiency (> 90%)
5. apply to electronic dimmer .

Product application:

1. Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting
4. Reading light
5. Craft flashlights, headlights

 >>> Click Here To Get More Information From Us Now

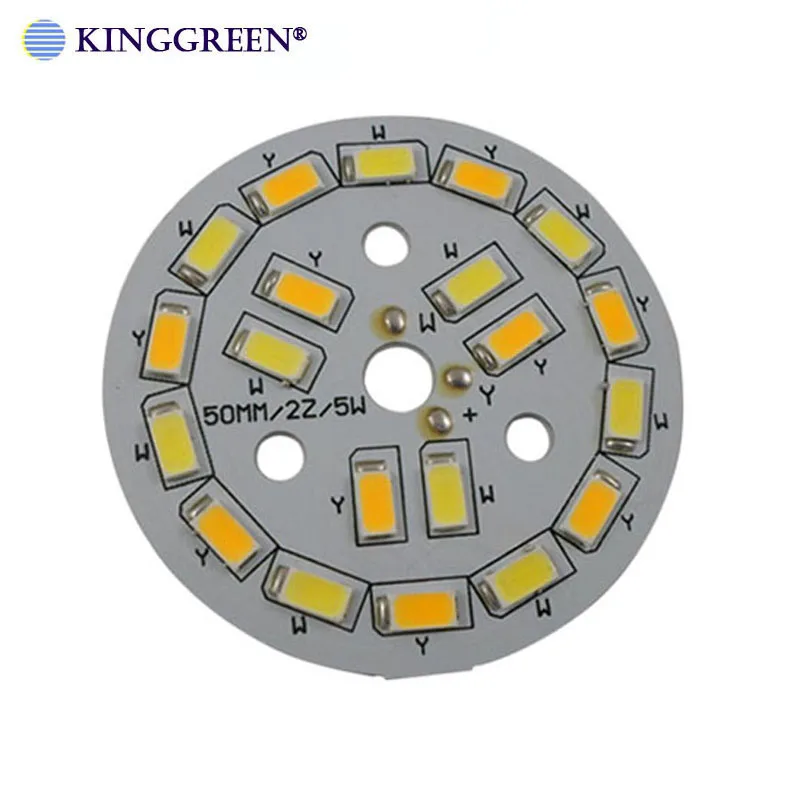

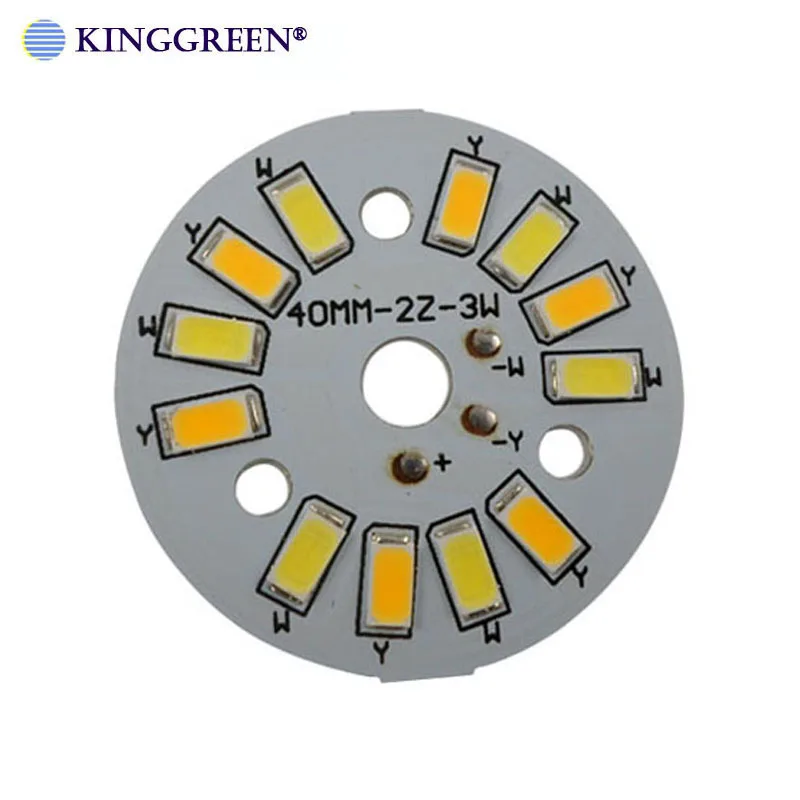

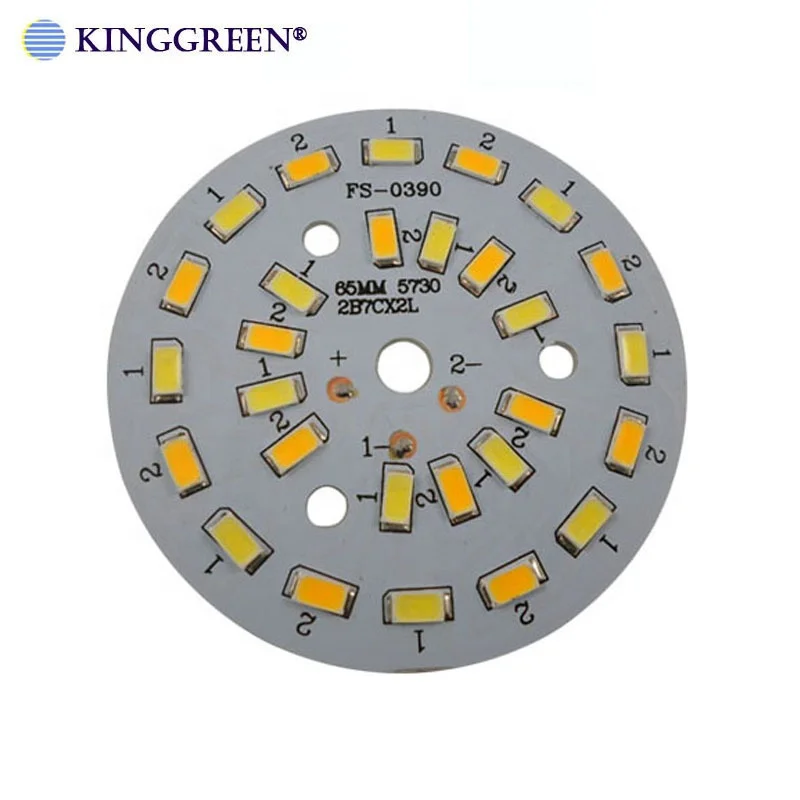

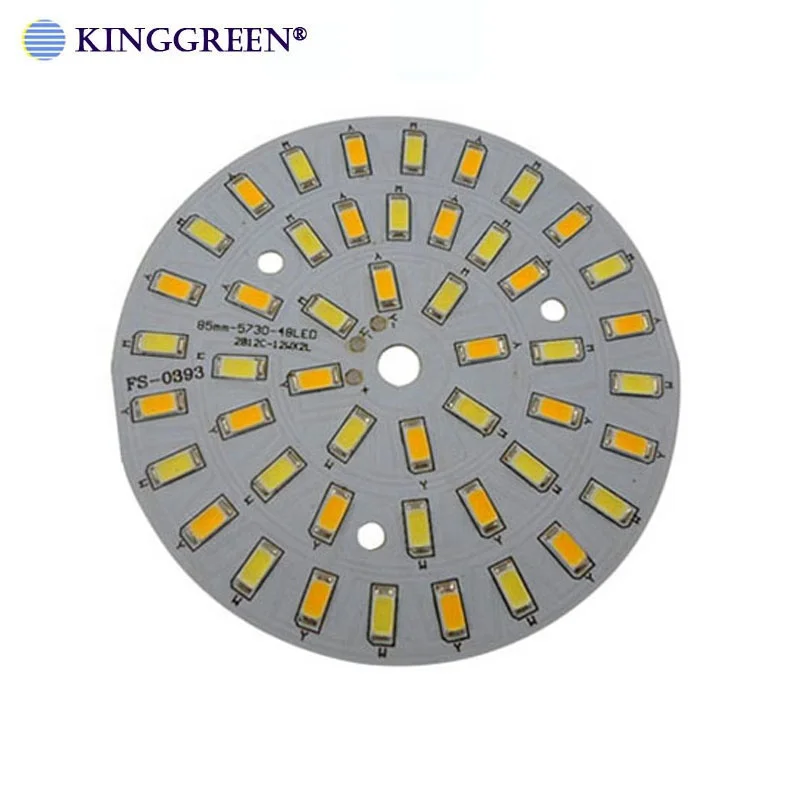

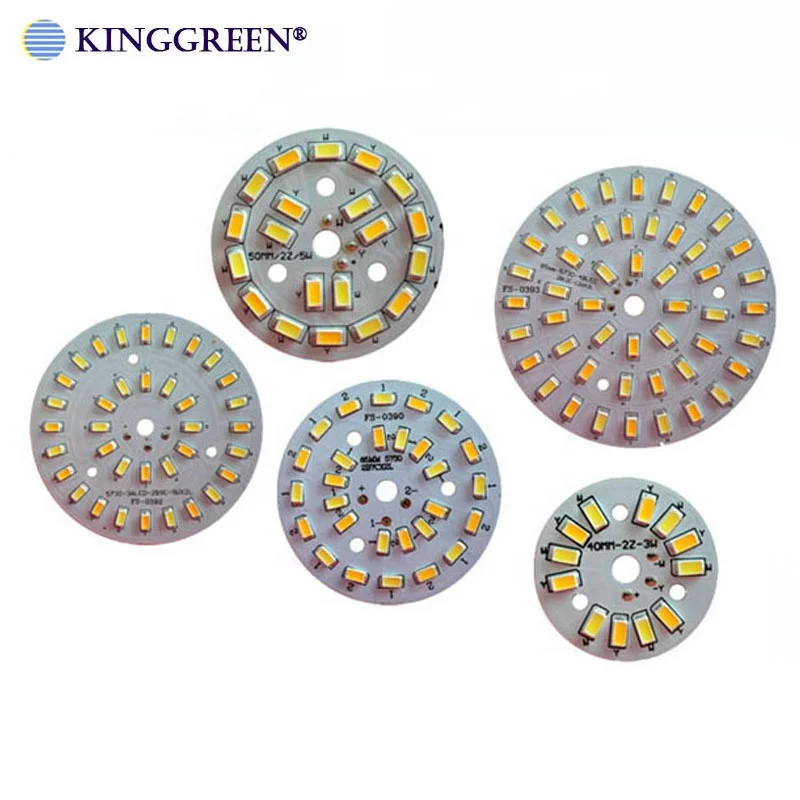

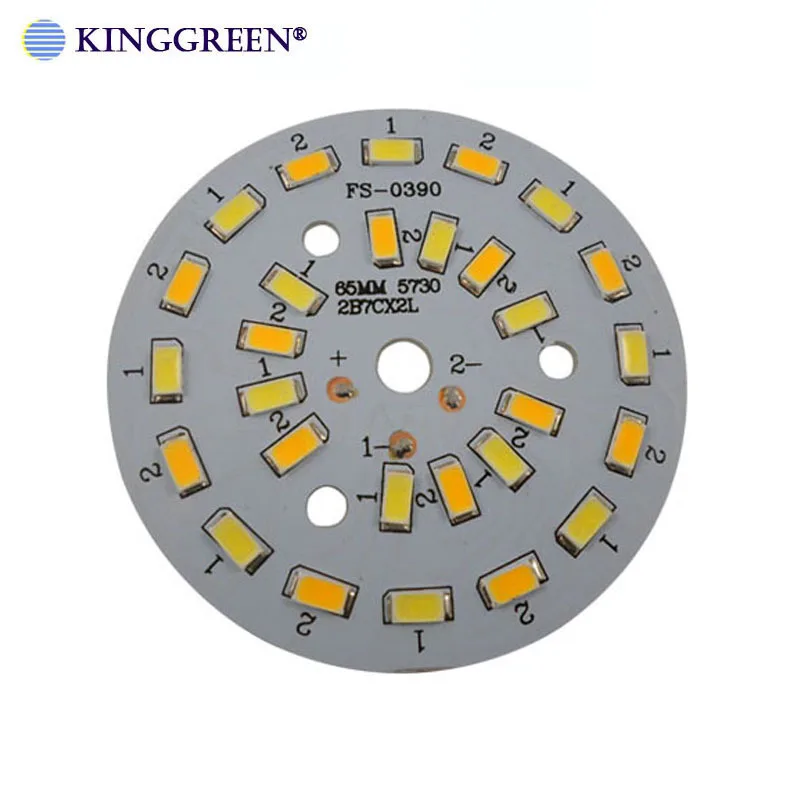

 Product picture :

1.Are you a Manufacturer or Trading company?

We are a trading company with our own factory, which can ensure better quality.

2.How does your factory ensure the quality?

We are conduct the sampling reliability test of every batch before shipment

3: After Sale Service and Technology Supports ?

We have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by  Email, online chat ( skype, whatsapp ) , telephone,

4. OEM&ODM service ?

We offer professional services on LED design and production
